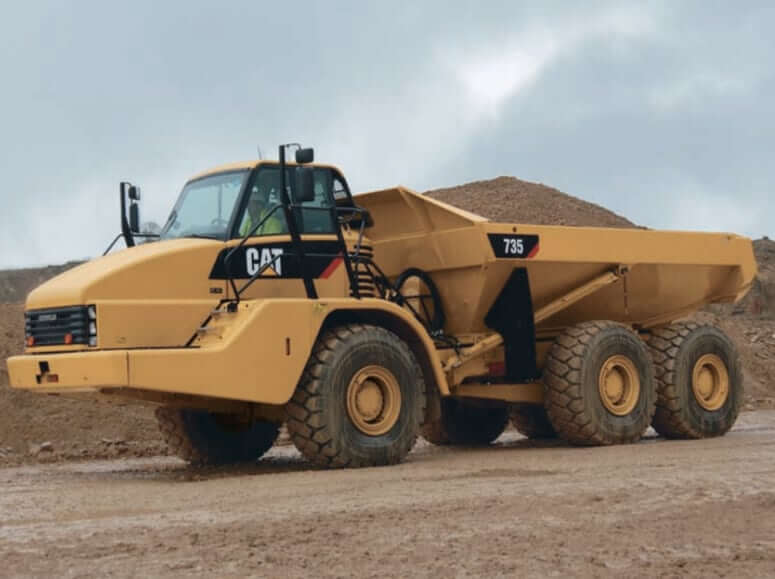

Dimensions
| Overall Length | 35.73 ft in (10889 mm) |
| Overall Width | 11.01 ft in (3353 mm) |
| Overall Height | 12.15 ft in (3703 mm) |
| Wheelbase | 17.15 ft in (5227 mm) |
| Ground Clearance | 1.76 ft in (534 mm) |
| Dump Height | 22.82 ft in (6955 mm) |
| Dump Ground Clearance | 2.09 ft in (635 mm) |
| Wheel Base Between Back Tires | 6.4 ft in (1.96 m) |
| Dump Clearance | 2 ft in (0.61 m) |

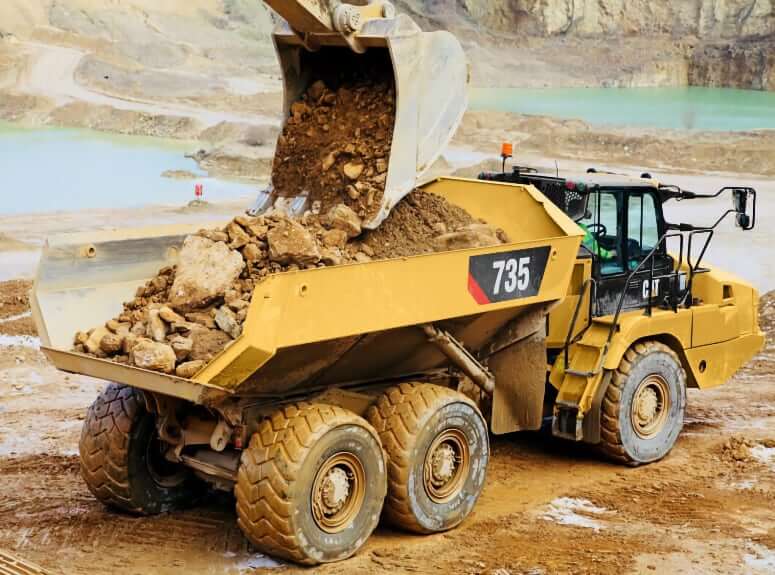

Dump
| Lower Time | 7 sec |
| Capacity – Heaped | 25.77 yd3 (19.7 m3) |
| Capacity – Struck | 19.23 yd3 (14.7 m3) |
| Rated Payload | 72091.16 lb (32700 kg) |
| Raise Time | 11 sec |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | CAT |
| Engine Model | C15 with ACERT Technology |
| Gross Power | 413 hp (308 kw) |
| Net Power | 394 hp (293.9 kw) |
| Max Torque | 1524.6 lb ft (2067 Nm) |
| Torque Measured @ | 1200 rpm |
| Aspiration | Turbocharged |
| Displacement | 926 cu in (15.2 L) |
| Bore | 5.4 in (137.2 mm) |
| Stroke | 6.8 in (171.5 mm) |
| Emissions | The 735 meets Tier 4 Final/Stage IV emission standards. |
| Net Power – Iso 9249 | 424 hp (316.2 kw) |
| Net Power – Sae J1349 | 419 hp (312.5 kw) |
| Gross Power – Sae J1995 | 435 hp (324.4 kw) |
| Engine Model | Cat C15 ACERT |
| Flywheel Power | 385 hp (287.1 kw) |
| Net Power – Iso 14396 | 429 hp (320 kw) |
| Note (1) | The references to Tier 4 Final/Stage IV include U.S. EPA Tier 4 Final, EU Stage IV, Japan 2014 (Tier 4 Final), and Korea Tier 4 Final emission standards. |
| Note (2) | The power ratings apply at rated speed of 1,800 rpm when tested under the conditions for the specified standard. |
| Note (3) | The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed. |
| Note (4) | Net power when the fan is at maximum speed is 254 kW (341 hp) per the SAE reference conditions. |
| Net Power – Eec 80/1269 | 424 hp (316.2 kw) |
| Note (5) | DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications. |
| Peak Engine Torque Gross (Sae J1995) | 1614 lb ft (2188.3 Nm) |
| Peak Engine Torque Speed | 1200 rpm |
| Engine Model – U.S. Epa Tier 4 Final/Eu Stage Iv | Cat C13 ACERT |
| Peak Engine Torque Net (Sae J1349) | 1597 lb ft (2165.3 Nm) |
| No Engine De-Rating Below | 12500 ft in (3810 m) |
Operational Specs
| Fuel Tank Capacity | 148 gal (560 L) |
| Hydraulic System Fluid Capacity | 61.6 gal (233 L) |
| Cooling System Fluid Capacity | 21.2 gal (80 L) |
| Engine Oil Capacity | 10.1 gal (38 L) |
| Transmission Fluid Capacity | 19.1 gal (72 L) |
| Tire Size | 26.5R25 |
Transmission
| Number Of Forward Gears | 8 |
| Number Of Reverse Gears | 1 |
| Max Speed | 36.3 mph (58.3 km/h) |
| Forward – 1 | 5.2 mph (8.3 km/h) |
| Forward – 2 | 7.1 mph (11.4 km/h) |
| Forward – 3 | 9.6 mph (15.4 km/h) |
| Forward – 4 | 12.9 mph (20.7 km/h) |
| Forward – 5 | 17.5 mph (28.1 km/h) |
| Forward – 6 | 23.5 mph (37.8 km/h) |
| Forward – 7 | 31.9 mph (51.3 km/h) |
| Reverse – 1 | 5 mph (8 km/h) |
| Reverse – 2 | 6.8 mph (10.9 km/h) |
Steering
| Lock To Lock | 4.75 seconds @ 60 rpm |
Weights
| Center Axle – Empty | 14087.6 % (14087.5393 %) |
| Front Axle – Empty | 40014 lb (18150 kg) |
| Rear Axle – Empty | 12588.4 lb (5710 kg) |
| Front Axle – Loaded | 48479.7 % (48479.6542 %) |
| Center Axle – Loaded | 45900.3 % (45900.2456 %) |
| Rear Axle – Loaded | 44401.2 lb (20140 kg) |
| Total Empty | 66689.9 lb (30250 kg) |
| Total Loaded | 138781.1 lb (62950 kg) |

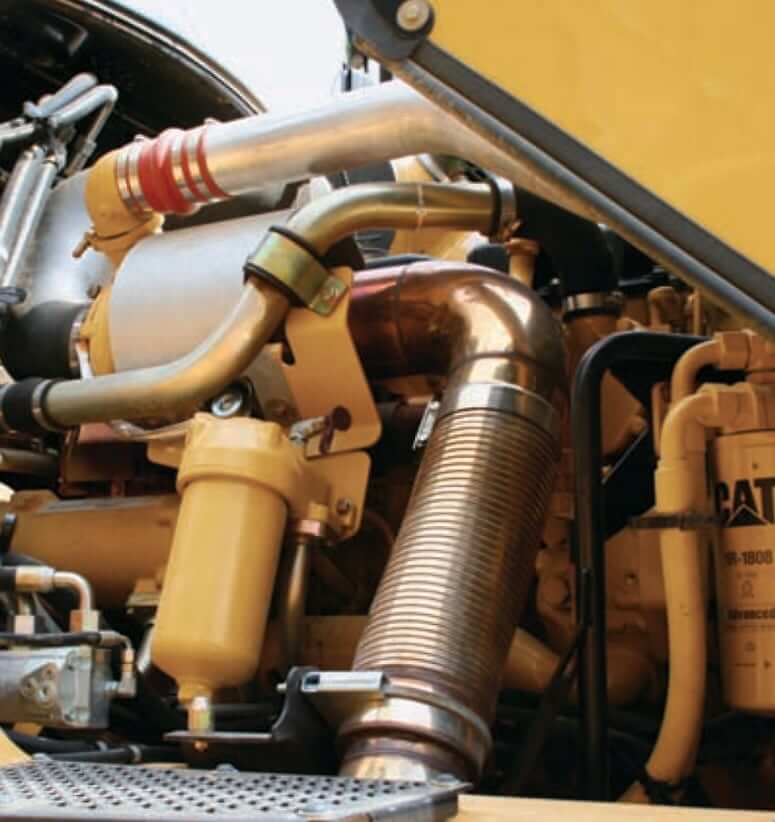

Service Refill Capacities
| Cooling System | 25.1 gal (95.1 L) |
| Fuel Tank Capacity | 148 gal (560.3 L) |
| Def Tank | 5.3 gal (20.1 L) |
| Engine Crankcase | 10.6 gal (40.2 L) |
| Transmission | 22.5 gal (85.2 L) |
| Hydraulic System | 86.6 gal (327.9 L) |
| Final Drives/Differential | 21.1 gal (79.9 L) |
| Output Transfer Gear Box | 6.3 gal (23.9 L) |
Standards
| Cab – Fops | SAE J231 JAN81 and ISO 3449-1992 Level II |
| Cab – Rops | SAE J1040 May 1994 and ISO 3471-1994 |
| Brakes | SAE J/ISO 3450-1998 |
| Steering | ISO 5010 1992E |
Operating Weights
| Front Axle – Empty | 41881 lb (18997 kg) |
| Center Axle – Empty | 14406 lb (6534.5 kg) |
| Rear Axle – Empty | 12919 lb (5860 kg) |
| Total – Empty | 69206 lb (31391.4 kg) |
| Front Axle – Rated Load | 7417 lb (3364.3 kg) |
| Center Axle – Rated Load | 32337 lb (14667.9 kg) |
| Rear Axle – Rated Load | 32337 lb (14667.9 kg) |
| Total – Rated Load | 72091 lb (32700 kg) |
| Front Axle – Loaded | 49298 lb (22361.2 kg) |
| Center Axle – Loaded | 46743 lb (21202.3 kg) |
| Rear Axle – Loaded | 45256 lb (20527.8 kg) |
| Total – Loaded | 141297 lb (64091.3 kg) |
Sound Levels
| Interior Cab | 79 dB(A) |
| Note (1) | The operator sound exposure Leq (equivalent sound pressure level) measured according to the work cycle procedures specified in ANSI/SAE J1166 OCT98 is 72 dB(A), for the cab offered by Caterpillar, when properly installed and maintained and tested with the doors and windows closed. |
| Note (2) | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments. |
Turning Circle
| Note | Dimensions are for machines equipped with 750/65 R25 tires. |
| Turning Dimensions – Sae Turning Radius | 294 in (7467.6 mm) |
| Turning Dimensions – Clearance Radius | 318 in (8077.2 mm) |
| Turning Dimensions – Inside Radius | 149 in (3784.6 mm) |
| Turning Dimensions – Aisle Width | 212 in (5384.8 mm) |
Body Capacities
| Heaped (Sae 2:1) | 25.8 yd3 (19.8 m3) |
| Struck | 19 yd3 (14.6 m3) |
| Tailgate Struck | 19.9 yd3 (15.3 m3) |
| Tailgate Heaped Sae 2:1 | 27.3 yd3 (20.9 m3) |
| Heaped Sae 1:1 | 32 yd3 (24.5 m3) |
Body Hoist
| Raise Time | 11 s |
| Lower Time | 7 s |
Body Plate Thickness
| Front | 0.4 in (7.9 mm) |
| Scow | 0.6 in (14 mm) |
| Side | 0.5 in (12 mm) |
| Base | 0.6 in (14 mm) |
| Front Plate | 0.3 in (7.2 mm) |
| Base Plate | 0.6 in (13 mm) |
| Side Plates | 0.5 in (11 mm) |
Body Plate
| Body Plate Type | High strength Brinell HB450 wear resistant steel |
Optimal Loader/Truck Pass Matching
| Note | An optimum system match gives you a major productivity advantage. The 735 is an excellent match for the Cat 349F and 336F Excavators; and Cat 972M, 966M, 962M and 950M Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved. |
| Hydraulic Excavators: 349f/349f Xe – Passes | 45 |
| Hydraulic Excavators: 336f/336f Xe – Passes | 56 |
| Wheel Loaders: 972m/972m Xe – Passes | 34 |
| Wheel Loaders: 966m/966m Xe – Passes | 4 |
| Wheel Loader: 962m – Passes | 45 |
| Wheel Loader: 950m – Passes | 5 |
