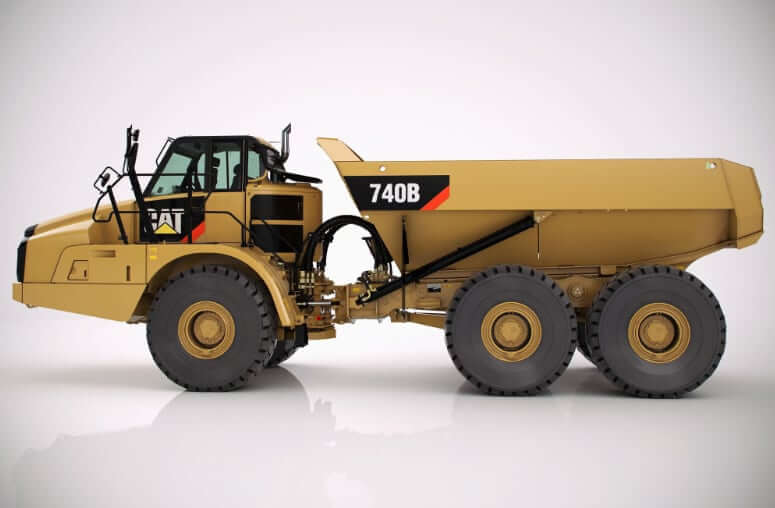

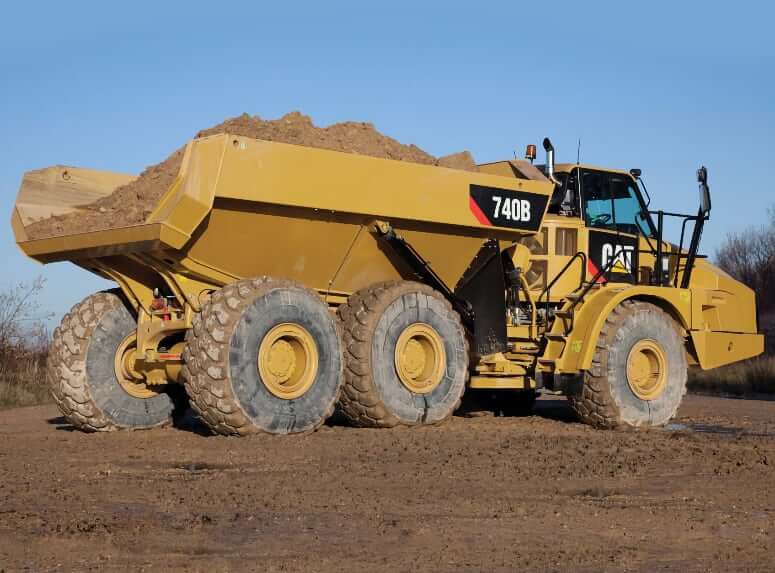

Dimensions
| Overall Length | 36.09 ft in (11000 mm) |
| Overall Width | 12.37 ft in (3770 mm) |
| Overall Height | 13.26 ft in (4039 mm) |
| Wheelbase | 17.16 ft in (5229 mm) |
| Ground Clearance | 1.9 ft in (577 mm) |
| Dump Height | 23.27 ft in (7092 mm) |
| Dump Ground Clearance | 2.29 ft in (697 mm) |
Dump
| Dump Angle | 70 degrees |
| Lower Time | 7 sec |
| Rated Payload | 87082.59 lb (39500 kg) |
| Capacity – Struck | 24.2 yd3 (18.51 m3) |
| Raise Time | 12 sec |
| Capacity – Heaped | 31.4 yd3 (24.01 m3) |
Engine Details
| Engine Make | CAT |
| Engine Model | C15 |
| Gross Power | 489 hp (364.7 kw) |
| Net Power | 474 hp (353.5 kw) |
| Power Measured @ | 1700 rpm |
| Max Torque | 1819 lb ft (2466.3 Nm) |
| Torque Measured @ | 1200 rpm |
| Displacement | 926 cu in (15.2 L) |
| Bore | 5.4 in (137.2 mm) |
| Stroke | 6.8 in (171.5 mm) |
| Net Power – Iso 9249 | 477 hp (355.7 kw) |
| Net Power – Sae J1349 | 474 hp (353.5 kw) |
| Gross Power – Sae J1995 | 489 hp (364.7 kw) |
| Engine Model | Cat C15 ACERT |
| Net Power – Iso 14396 | 484 hp (361 kw) |
| Net Power – Eec 80/1269 | 477 hp (355.7 kw) |
| Engine Model Tier 4 Interim/Eu Stage Iiib | Cat C15 ACERT |
| Engine Model – Tier 2 Eu Stage Ii | Cat C15 ACERT |
Operational Specs
| Fuel Tank Capacity | 148 gal (560 L) |
| Hydraulic System Fluid Capacity | 86.7 gal (328 L) |
| Cooling System Fluid Capacity | 21.2 gal (80 L) |
| Engine Oil Capacity | 10.1 gal (38 L) |
| Transmission Fluid Capacity | 19.1 gal (72 L) |
| Tire Size | 29.5R25 |

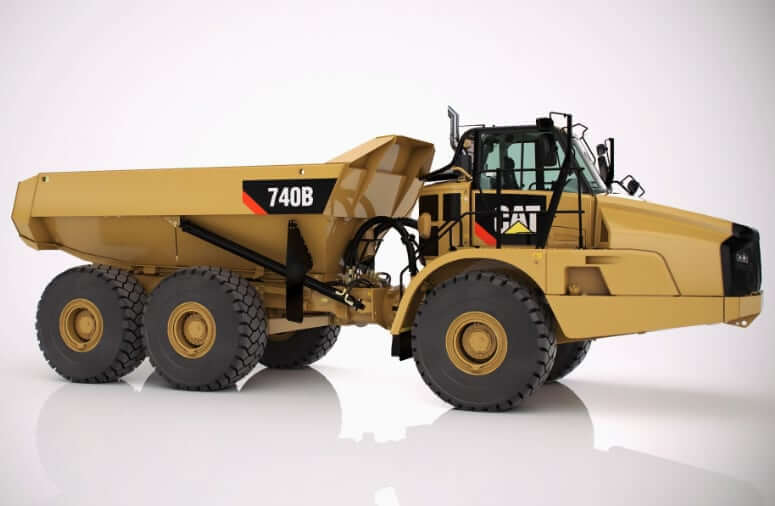

Transmission
| Number Of Forward Gears | 7 |
| Number Of Reverse Gears | 2 |
| Max Speed | 34 mph (54.8 km/h) |
| Forward – 1 | 5.5 mph (8.9 km/h) |
| Forward – 2 | 7.5 mph (12.1 km/h) |
| Forward – 3 | 10.2 mph (16.5 km/h) |
| Forward – 4 | 13.7 mph (22.1 km/h) |
| Forward – 5 | 18.6 mph (30 km/h) |
| Forward – 6 | 25.1 mph (40.4 km/h) |
| Forward – 7 | 34 mph (54.8 km/h) |
| Reverse – 1 | 5.2 mph (8.4 km/h) |
| Reverse – 2 | 7.2 mph (11.6 km/h) |
Steering
| Lock To Lock | 4.6 seconds @ 60 rpm |

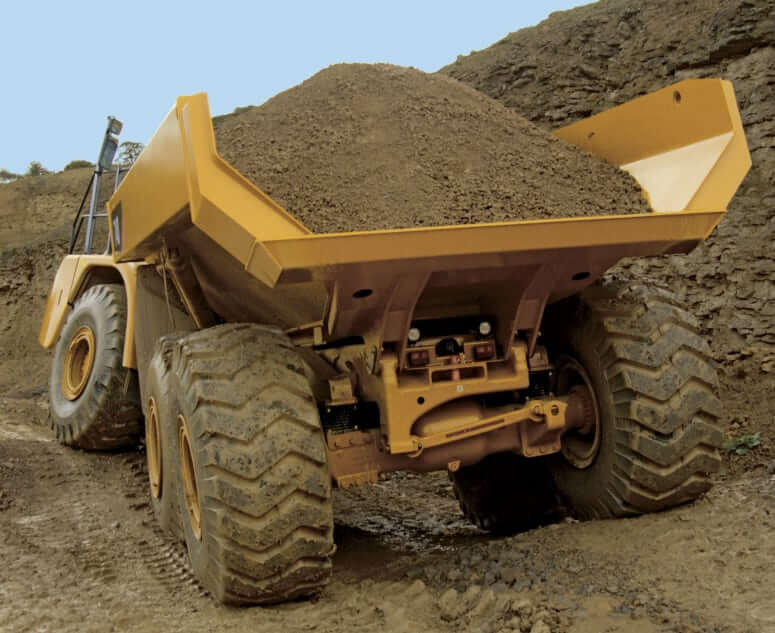

Weights
| Front Axle – Empty | 45556 lb (20663.9 kg) |
| Center Axle – Empty | 15937 % |
| Rear Axle – Empty | 14328 lb (6499.1 kg) |
| Front Axle – Loaded | 57045 % |
| Center Axle – Loaded | 53826 % |
| Rear Axle – Loaded | 52216 lb (23684.8 kg) |
| Total Empty | 75824 lb (34393.2 kg) |
| Total Loaded | 163087 lb (73975.1 kg) |

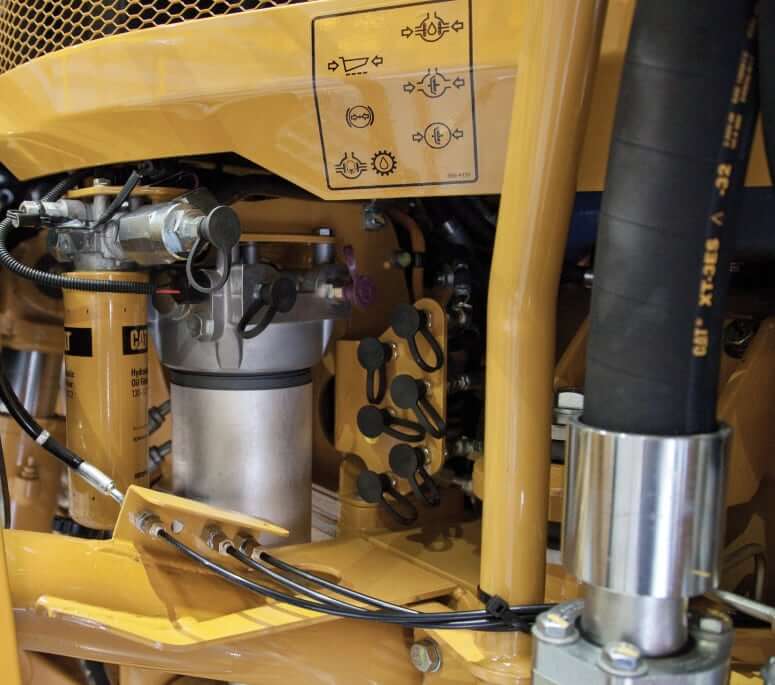

Service Refill Capacities
| Cooling System | 21.1 gal (79.9 L) |
| Fuel Tank Capacity | 149.3 gal (565.2 L) |
| Engine Crankcase | 9 gal (34.1 L) |
| Transmission | 19 gal (72 L) |
| Hydraulic System | 85 gal (321.8 L) |
| Final Drives/Differential | 60.8 gal (230.2 L) |
| Output Transfer Gear Box | 4.8 gal (18.2 L) |
Standards
| Cab – Fops | ISO 3449 Level II – 2005 |
| Cab – Rops | ISO 3471 – 2008 |
| Brakes | ISO 3450 – 1996 |
| Steering | ISO 5010 – 2007 |
Operating Weights
| Front Axle – Empty | 45737 lb (20746 kg) |
| Center Axle – Empty | 15864 lb (7195.8 kg) |
| Rear Axle – Empty | 14255 lb (6466 kg) |
| Total – Empty | 75857 lb (34408.2 kg) |
| Front Axle – Rated Load | 11488 lb (5210.9 kg) |
| Center Axle – Rated Load | 37889 lb (17186.2 kg) |
| Rear Axle – Rated Load | 37889 lb (17186.2 kg) |
| Total – Rated Load | 87263 lb (39581.9 kg) |
| Front Axle – Loaded | 57223 lb (25956 kg) |
| Center Axle – Loaded | 53753 lb (24382 kg) |
| Rear Axle – Loaded | 52144 lb (23652.2 kg) |
| Total – Loaded | 163120 lb (73990 kg) |
Sound Levels
| Interior Cab | 79 dB(A) |
Turning Circle
| Note | Dimensions are for machines equipped with 29.5R25 tires. |
| Turning Dimensions – Steer Angle – Left/Right | 45 degrees |
| Turning Dimensions – Sae Turning Radius | 320.4 in (8138.2 mm) |
| Turning Dimensions – Clearance Radius | 338.4 in (8595.4 mm) |
| Turning Dimensions – Inside Radius | 161.5 in (4102.1 mm) |
| Turning Dimensions – Aisle Width | 224.2 in (5694.7 mm) |
Body Capacities
| Heaped (Sae 2:1) | 31.4 yd3 (24.1 m3) |
| Struck | 24.2 yd3 (18.6 m3) |
| Tailgate Struck | 25.5 yd3 (19.5 m3) |
| Tailgate Heaped Sae 2:1 | 33.5 yd3 (25.7 m3) |
Body Hoist
| Raise Time | 12 s |
| Lower Time | 7 s |
Body Plate Thickness
| Front | 0.4 in (7.9 mm) |
| Scow | 0.7 in (16.1 mm) |
| Side | 0.5 in (12 mm) |
| Base | 0.7 in (16.1 mm) |
