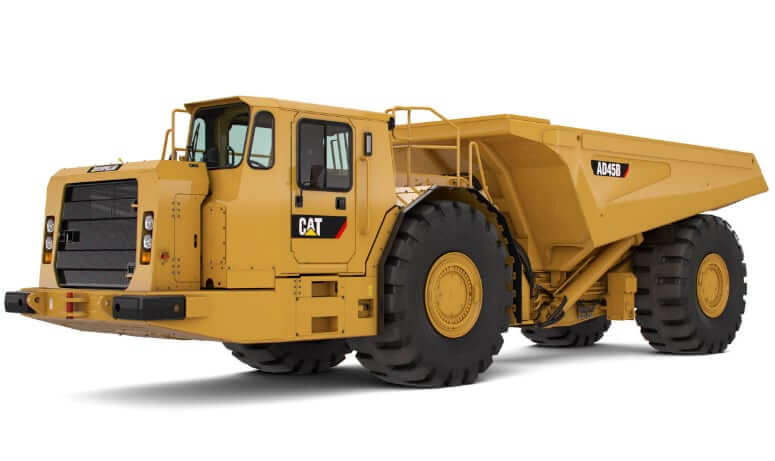

CAT AD45B Articulated Dump Truck

Contents

Dimensions
Dump
Engine Details
Operational Specs
Transmission
Weights

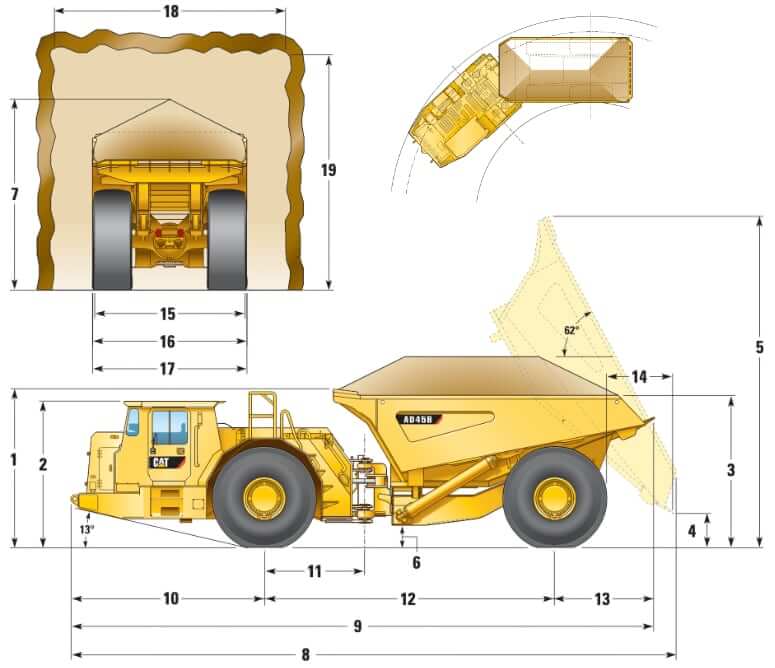

Dimensions

Overall Length	36.73 ft in (11194 mm)
Overall Width	9.85 ft in (3000 mm)
Overall Height	9.97 ft in (3036 mm)
Wheelbase	18.28 ft in (5570 mm)
Ground Clearance	1.45 ft in (441 mm)
Dump Height	20.86 ft in (6357 mm)
Dump Ground Clearance	2.19 ft in (665 mm)

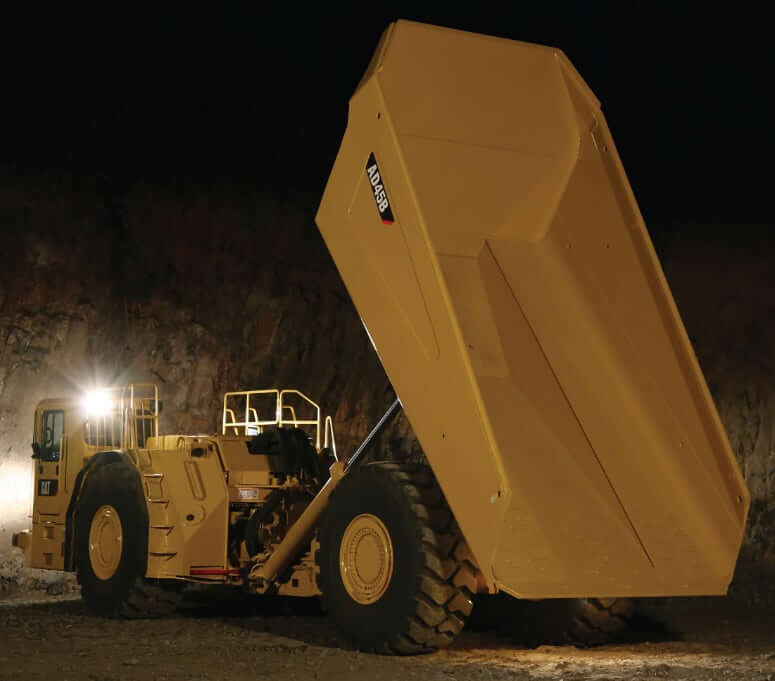

Dump

Lower Time	21 sec
Raise Time	16 sec
Capacity – Heaped	27.9 yd3 (21.3 m3)

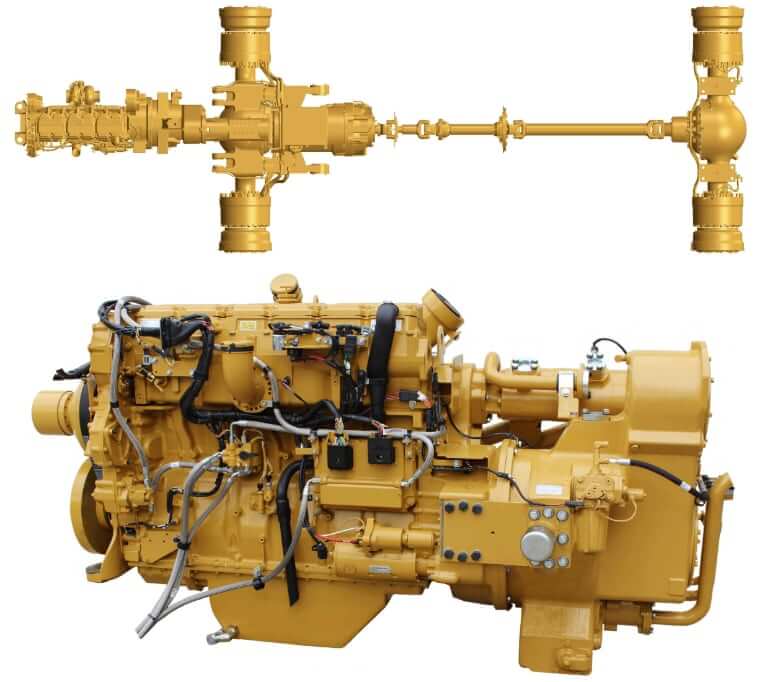

Engine Details

Engine Make	CAT
Engine Model	C18 ACERT
Gross Power	587 hp (438 kw)
Net Power	556 hp (414 kw)
Power Measured @	2000 rpm
Displacement	1104.6 cu in (18.1 L)

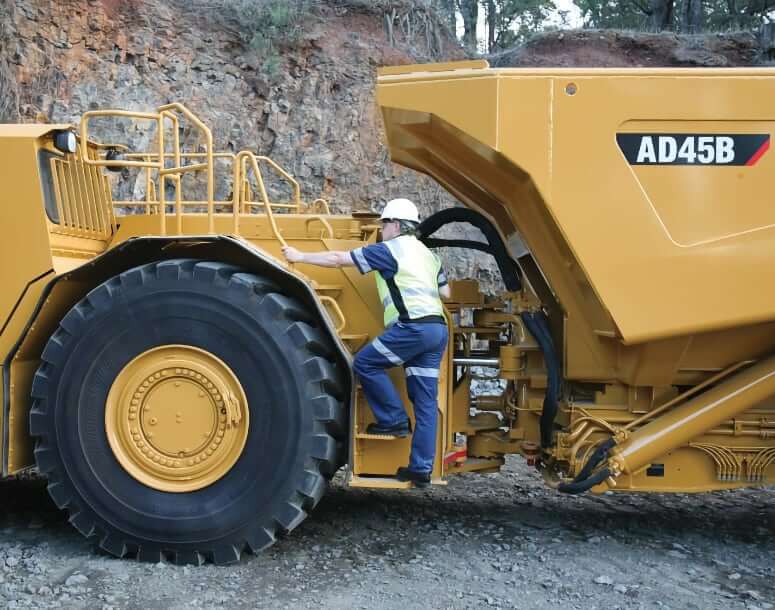

Operational Specs

Fuel Tank Capacity	201.8 gal (764 L)
Hydraulic System Fluid Capacity	70.3 gal (266 L)
Cooling System Fluid Capacity	22.5 gal (85 L)
Engine Oil Capacity	16.9 gal (64 L)
Transmission Fluid Capacity	15.9 gal (60 L)
Tire Size	29.5 x R29

Transmission

Number Of Forward Gears	7
Number Of Reverse Gears	2
Max Speed	32.3 mph (52 km/h)

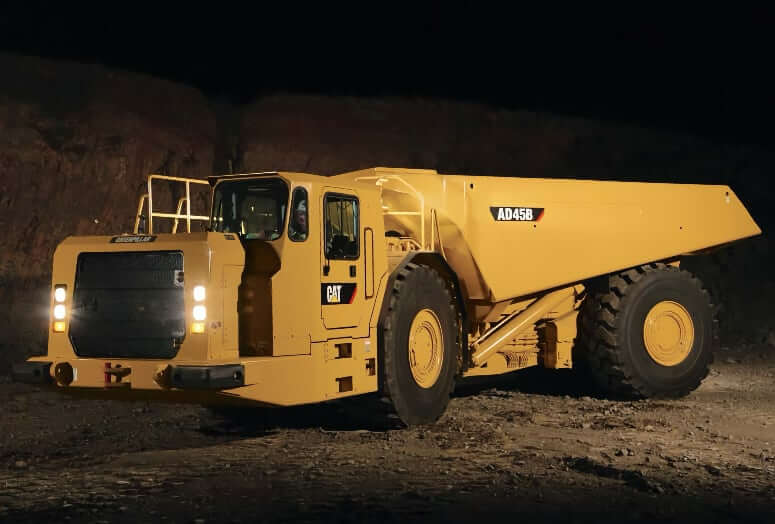

Weights

Front Axle – Empty	60847 lb (27600 kg)
Rear Axle – Empty	27337 lb (12400 kg)
Front Axle – Loaded	85451 %
Rear Axle – Loaded	101942 lb (46240 kg)
Total Empty	88184 lb (40000 kg)
Total Loaded	187393 lb (85000 kg)
