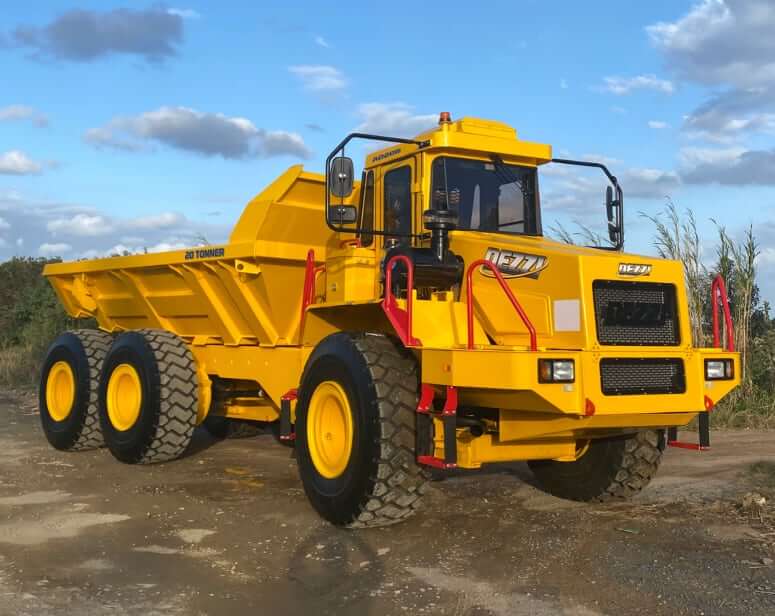

Dump
| Capacity – Heaped | 21.3 yd3 (16.3 m3) |
| Capacity – Struck | 13.1 yd3 (10.1 m3) |
| Rated Payload | 44092 lb (20000 kg) |
| Dump Angle | 62° |
| Up Time | 8.2 sec |
| Down Time | 7.1 sec |
Dimensions
| Overall Length | 369.1 in (9376 mm) |
| Wheelbase | 200.2 in (5084 mm) |
| Overall Width | 128.7 in (3270 mm) |
| Overall Height to Top of Cab with ROPS | 139.1 in (3533 mm) |
| Loading Height | 96.0 in (2437 mm) |
| Body Raised Height | 247.5 in (6286 mm) |
| Dump Clearance | 25.9 in (659 mm) |
| Ground Clearance | 25.9 in (659 mm) |
| Steering Angle | ±36° |
Weight
| Weights | Empty | Loaded | Payload |
|---|---|---|---|
| Front Axle | 18800 lb (8528 kg) | 22575 (10240 kg) | 3792 lb (1720 kg) |
| Middle Axle | 9789 lb (4440 kg) | 29939 lb (13580 kg) | 20150 lb (9140 kg) |
| Rear Axle | 9789 lb (4440 kg) | 29939 lb (13580 kg) | 20150 lb (9140 kg) |
| Max Operating Weight | 38680 lb (17400 kg) | 82453 lb (37400 kg) | 44092 lb (20000 kg) |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | Cummins |
| Engine Model | Cummins QSB6.7 |
| Displacement | 409 cu in (6.7 L) |
| Gross Power | 260 hp (194 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 730 lb ft (990 Nm) |
| Torque Measured @ | 1500 rpm |
| Aspiration | Turbocharged and aftercooled |
| Emission Standards | U.S. EPA Tier 3 |
Operational Specs
| Voltage | 24 V |
| Alternator | 70 amps, 24 V |
| Battery | 2x 12 V, sealed type |
| Front Tire Size | 20.5 R25 |
| Rear Tire Size | 20.5 R25 |
Hydraulic System
| Pump Type | Variable displacement piston pump |
| Hydraulic Filter | Full flow filtration |
| Working Pressure (Steering) | 1987.0 psi (13700 kPa) |
| Working Pressure (Tipping) | 2465.6 psi (17000 kPa) |
Transmission
| Transmission Type | ZF 6WG210 constant mesh counter shaft with integral drop box |
| Torque Converter | Single phase 3 element, lock-up clutches effective in all gears. Downshift protection |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 3 |
| Max Travel Speed | 26.1 mph (42 km/h) |
Axles & Brakes
| Drive | 6×6 |
| Front Axle | ZF MT-D 3095 axle – with self leveling air-ride suspension |
| Rear Axle | Dezzi tandem-drive free-swinging walking beam |
| Differential | Rockwell differential with reduction in tandem |
| Service Brakes | Sealed outboard wet disc brakes (front wheels) / Dry disc caliper brakes (rear wheels) |
| Parking Brakes | Heavy duty SAHR park brake. Failsafe spring-applied hydraulic release |
Service Refill Capacities
| Fuel Tank Capacity | 66 gal (250 L) |
| Engine Oil Capacity | 5.5 gal (21 L) |
| Cooling System Capacity | 13.2 gal (50 L) |
| Hydraulic System Capacity | 42.2 gal (160 L) |
| Transmission Oil Capacity | 4.8 gal (18 L) |
| Differential Oil Capacity | 9.5 gal (36 L) |
| Planetary Hubs (each side) | 2.1 gal (8 L) |
| Rear Tandem Drive | 48.9 gal (185 L) |
