Dump
| Rated Payload | 55116 lb (25000 kg) |
| Capacity – Heaped SAE 1:1 | 21.3 yd3 (16.3 m3) |
| Capacity – Heaped SAE 2:1 | 18.3 yd3 (14.0 m3) |
| Capacity – Struck | 13.2 yd3 (10.1 m3) |
| Dump Angle | 62° |
| Up Time | 8.2 sec |
| Down Time | 7.1 sec |
Dimensions
| Overall Length | 369.3 in (9379 mm) |
| Wheelbase | 200.2 in (5084 mm) |
| Overall Width | 128.7 in (3270 mm) |
| Overall Height | 139.1 in (3533 mm) |
| Body Raised Height | 247.7 in (6292 mm) |
| Loading Height | 103 in (2617 mm) |
| Dump Clearance | 26 in (660 mm) |
| Ground Clearance | 16.3 in (415 mm) |
Operating Weight

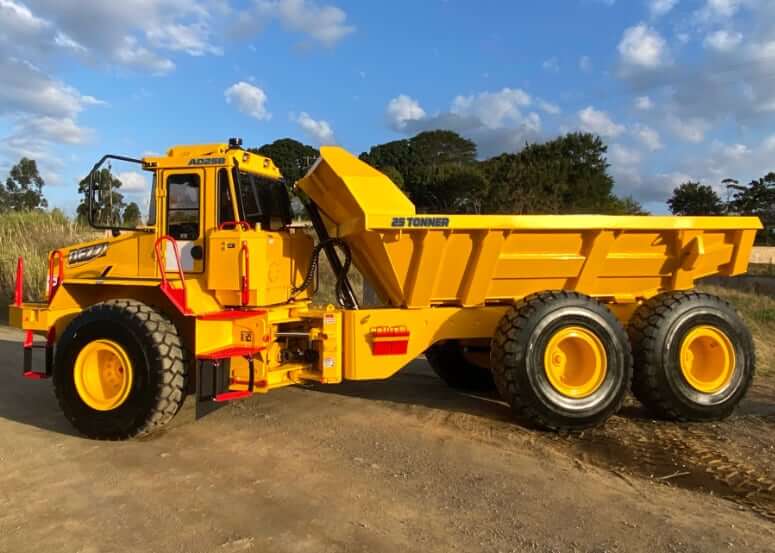

| Dezzi AD25B 6×6 | Tare | Gross | Payload |
|---|---|---|---|
| Front Axle | 19180 lb (8700 kg) | 30146 lb (13674 kg) | 10966 lb (4974 kg) |
| Middle Axle | 10670 lb (4840 kg) | 32745 lb (14853 kg) | 22075 lb (10013 kg) |
| Rear Axle | 10670 lb (4840 kg) | 32745 lb (14853 kg) | 22075 lb (10013 kg) |
| Total Weight | 40520 lb (18380 kg) | 95636 lb (43380 kg) | 55116 lb (25000 kg) |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | Cummins |
| Engine Model | Cummins QSB6.7 |
| Displacement | 408 cu in (6.7 L) |
| Gross Power | 260 hp (194 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 730 lb ft (990 Nm) |
| Torque Measured @ | 1500 rpm |
| Aspiration | Turbocharged and Charge Air Cooled |
| Emission Standards | EPA Tier 3, EU Stage III, Stage IIIA |
Operational Specs
| Voltage | 24 V |
| Alternator | 70 amps |
| Battery | 2x 12 V (sealed type) |
| Tire Size | 20.5 R25 |
| Drive | 6×6 AWD |
| Steering Angle | 36° |
| Front Axle | ZF MT-D 3095 with self leveling air-ride suspension |
| Rear Axle | Dezzi tandem-drive free-swinging walking beam |
| Differential | Rockwell differential with reduction in tandem |
| Service Brake | Front Wheels – Sealed outboard wet disc brakes / Rear Wheels – Dry disc caliper brakes |
| Parking Brake | Failsafe spring-applied hydraulic release. Heavy duty SAHR park brake |
Transmission
| Transmission Type | ZF 6WG210 Constant mesh counter shaft with integral drop box |
| Torque Converter | Single phase 3 element, lock-up clutches effective in all gears. Downshift protection |
| Number Of Gears | 6F x 3R |
| Max Travel Speed | 26 mph (42 km/h) |
Hydraulic System
| Hydraulic Pump Type | Variable displacement piston pump |
| Working Pressure – Tipping | 2466 psi (17000 kPa) |
| Working Pressure – Steering | 1987 psi (13700 kPa) |
| Hydraulic Filter | Full flow filtration |
Service Refill Capacities
| Fuel Tank Capacity | 66 gal (250 L) |
| Engine Oil Capacity | 5.5 gal (21 L) |
| Cooling System Capacity | 13.2 gal (50 L) |
| Hydraulic System Capacity | 42.3 gal (160 L) |
| Transmission Oil Capacity | 4.8 gal (18 L) |
| Rear Tandem Drive | 48.9 gal (185 L) |
| Front Differential | 9.5 gal (36 L) |
| Front Planetary Hubs (Per Side) | 2.1 gal (8 L) |
