Dump
| Rated Payload | 65477 lb (29700 kg) |
| Capacity – Heaped SAE 1:1 | 26.2 yd3 (20.0 m3) |
| Capacity – Heaped SAE 2:1 | 21.6 yd3 (16.5 m3) |
| Capacity – Struck | 17.0 yd3 (13.0 m3) |
| Dump Angle | 62° |
| Up Time | 8.2 sec |
| Down Time | 7.1 sec |
Dimensions
| Overall Length | 377 in (9577 mm) |
| Wheelbase | 212.4 in (5394 mm) |
| Overall Width | 128.3 in (3260 mm) |
| Overall Height | 141.5 in (3593 mm) |
| Body Raised Height | 250.3 in (6358 mm) |
| Loading Height | 113.1 in (2872 mm) |
| Dump Clearance | 22.4 in (569 mm) |
| Ground Clearance | 18.7 in (475 mm) |
Weights

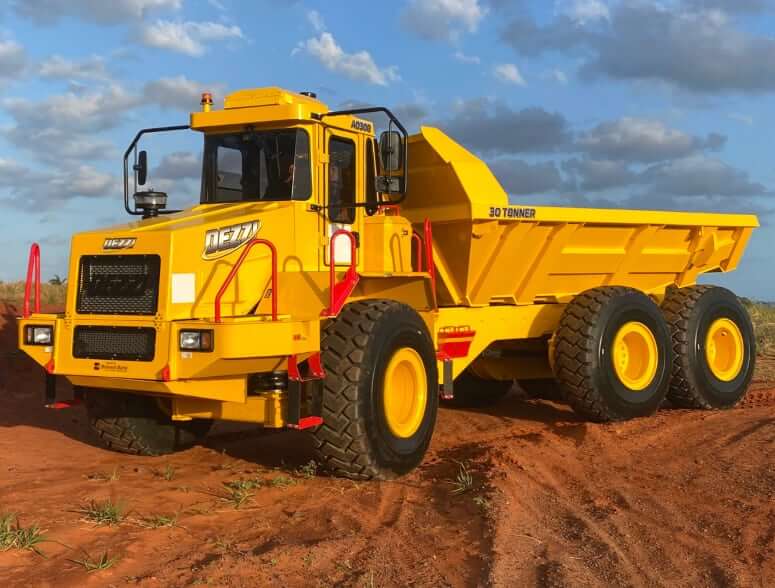

| Dezzi AD30B 6×6 | Tare | Gross | Payload |
|---|---|---|---|
| Front Axle | 19048 lb (8640 kg) | 30071 lb (13640 kg) | 10406 lb (4720 kg) |
| Middle Axle | 11640 lb (5280 kg) | 38867.5 lb (17630 kg) | 27536 lb (12490 kg) |
| Rear Axle | 11640 lb (5280 kg) | 38867.5 lb (17630 kg) | 27536 lb (12490 kg) |
| Total Weight | 42328 lb (19200 kg) | 107806 lb (48900 kg) | 65477 lb (29700 kg) |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | Cummins |
| Engine Model | Cummins QSB6.7 |
| Displacement | 408 cu in (6.7 L) |
| Gross Power | 275 hp (205 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 730 lb ft (990 Nm) |
| Torque Measured @ | 1500 rpm |
| Aspiration | Turbocharged and Charge Air Cooled |
| Emission Standards | Tier 3 / Stage IIIA, EPA Tier 3, EU Stage III |
Operational Specs
| Voltage | 24 V |
| Alternator | 70 amps |
| Battery | 2x 12 V (sealed type) |
| Tire Size | 23.5 R25 |
| Drive | 6×6 AWD |
| Steering Angle | 36° |
| Front Axle | ZF MT-D 3095 with self leveling air-ride suspension |
| Rear Axle | Dezzi tandem-drive free-swinging walking beam |
| Differential | Rockwell differential with reduction in tandem |
| Service Brake | Front Wheels – Sealed outboard wet disc brakes / Rear Wheels – Dry disc caliper brakes |
| Parking Brake | Heavy duty SAHR park brake. Failsafe spring-applied hydraulic release |
Transmission
| Transmission Type | ZF 6WG210 Constant mesh counter shaft with integral drop box |
| Torque Converter | Single phase 3 element, lock-up clutches effective in all gears. Downshift protection |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 3 |
| Max Travel Speed | 26 mph (42 km/h) |
Hydraulic System
| Pump Type | Variable displacement piston pump |
| Working Pressure – Steering | 1987 psi (13700 kPa) |
| Working Pressure – Tipping | 2466 psi (17000 kPa) |
| Hydraulic Filter | Full flow filtration |
Service Refill Capacities
| Fuel Tank Capacity | 66 gal (250 L) |
| Cooling System Capacity | 13.2 gal (50 L) |
| Engine Oil Capacity | 5.5 gal (21 L) |
| Hydraulic System Capacity | 42.3 gal (160 L) |
| Transmission Oil Capacity | 4.8 gal (18 L) |
| Front Differential | 9.5 gal (36 L) |
| Front Planetary Hubs (Per Side) | 2.1 gal (8 L) |
| Rear Tandem Drive | 58.1 gal (220 L) |
