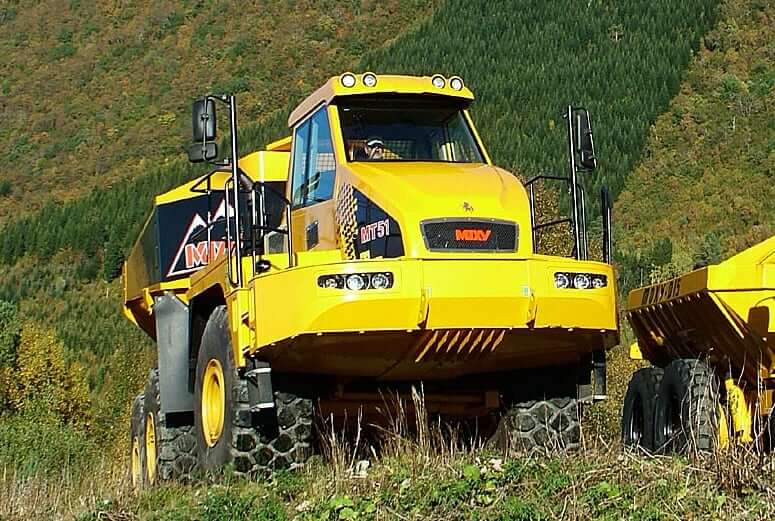

Dump
| Rated Payload | 102008 lb (46270 kg) |
| Capacity – Heaped | 38 yd3 (29 m3) |
| Capacity – Struck | 30 yd3 (23 m3) |
| Dump Angle | 70° |
| Lower Time | 11 sec |
| Raise Time | 12 sec |
Dimensions
| Overall Length | 35.03 ft in (10675 mm) |
| Overall Width | 11.41 ft in (3475 mm) |
| Overall Height | 12.72 ft in (3875 mm) |
| Wheelbase | 17.59 ft in (5360 mm) |
| Ground Clearance | 2.09 ft in (634 mm) |
| Dump Height | 21.46 ft in (6540 mm) |
| Dump Ground Clearance | 1.78 ft in (542 mm) |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | Cummins |
| Engine Model | Cummins QSX15 |
| Gross Power | 510 hp (375 kw) |
| Net Power | 508 hp (374 kw) |
| Displacement | 915.4 cu in (15 L) |
| Aspiration | Turbocharged |
| Air filter | Dry type |
| Emission Standards | U.S. EPA Tier 3, CARB Tier 3, EU Stage IIIA |
Operational Specs
| Operating Voltage | 24 V |
| Alternator | 70 amps |
| Battery | 2x 12V, 255 Ah |
| Starter | 12 hp (9 kw) |
| Tire Size | 26.5 x 25; 29.5R25 |
Transmission
| Transmission Type | Allison 4600 ORS automatic transmission with lock up in all gears. Remote propshaft driven two speed dropbox |
| Number Of Forward Gears | 6 |
| Max Speed | 33.6 mph (54 km/h) |
Hydraulic System
| Pump Type | Engine mounted 3 load sensing piston pumps + 2 gear pumps for tipping, steering, brake charging, cooling fan + auxilaries |
| PumpFlow | 86.1 gal/min (326 L/min) @ 2000 rpm |
| Filtration | One return flow filter |
| Steering Circuit Pressure | 3046 bar (21000 kPa) |
| Tipping Circuit Pressure | 4061 psi (28000 kPa) |
Weights
| Front Axle – Empty | 35935 lb (16300 kg) |
| Rear Axle – Empty | 33069 lb (15000 kg) |
| Total Empty | 69005 lb (31300 kg) |
| Front Axle – Loaded | 49185 lb (49185 kg) |
| Rear Axle – Loaded | 121960 lb (55320 kg) |
| Total Loaded | 171145 lb (77630 kg) |
Service Refill Capacities
| Fuel Tank Capacity | 158.6 gal (600 L) |
| Hydraulic System Fluid Capacity | 66.1 gal (250 L) |
| Cooling System Fluid Capacity | 19.9 gal (75 L) |
| Engine Oil Capacity | 11.9 gal (45 L) |
| Transmission Fluid Capacity | 11.9 gal (45 L) |
| Tandem Housing Capacity | 2x 40 gal (2x 150 L) |
| Rear Differential | 14.8 gal (56 L) |
