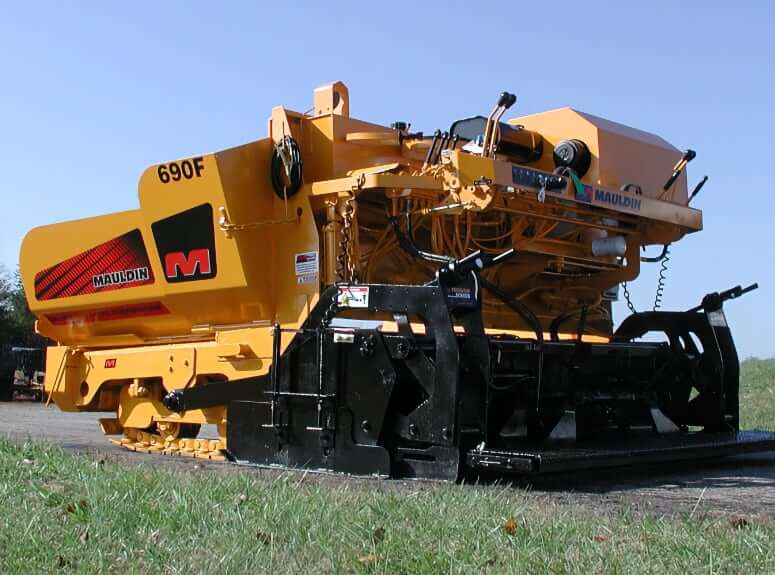

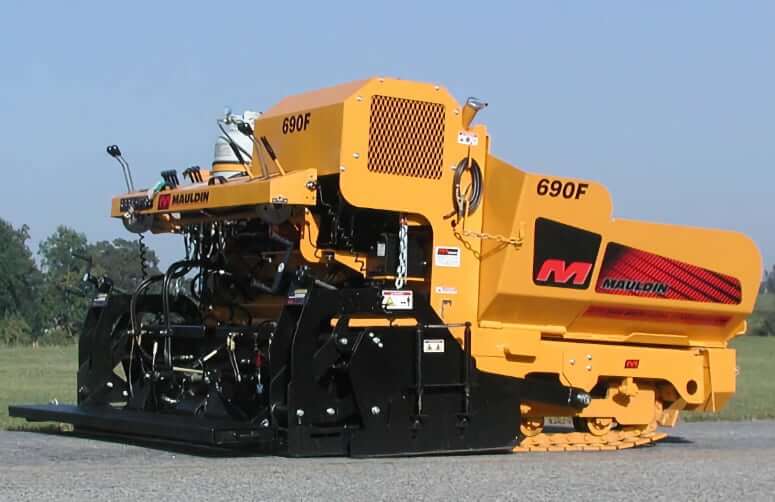

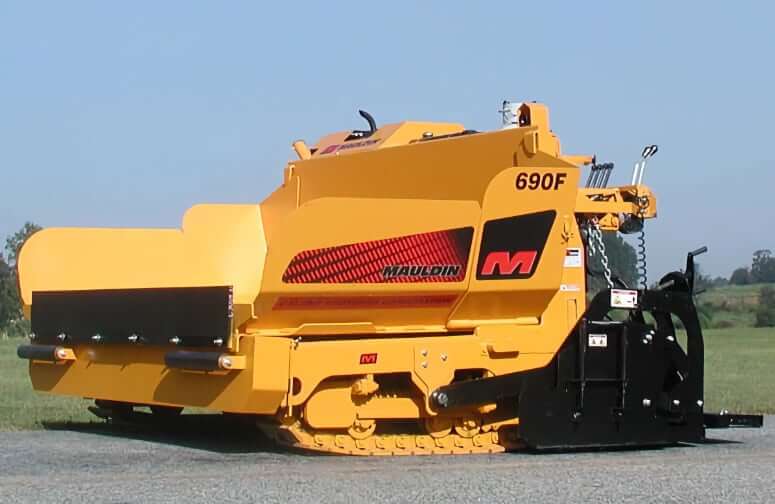

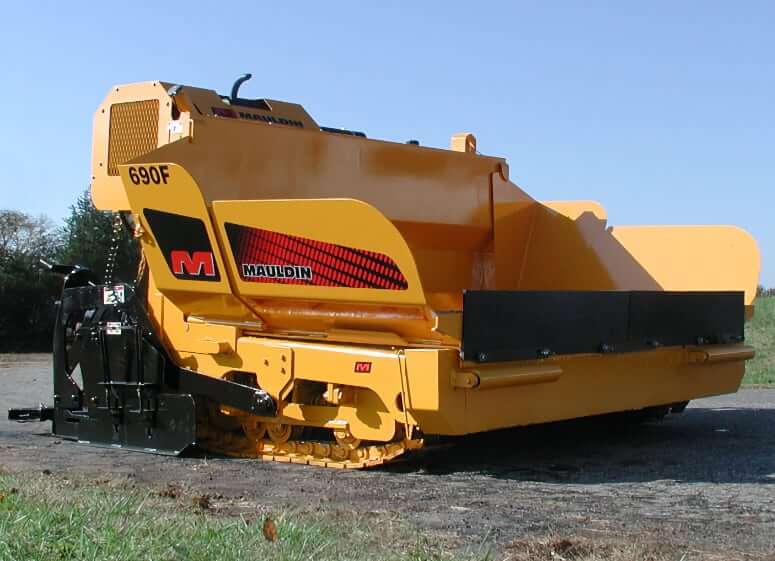

Mauldin 690F Asphalt Paver

Contents

Dimensions
Engine Details
Operational Specs
Hopper/Paver

Dimensions

Length W/ Screed	8.83 ft in (2691.39 mm)
Transport Width	8.42 ft in (2566.42 mm)
Transport Height	5.83 ft in (1776.99 mm)
Width W/ Hopper Open	9.83 ft in (2996.19 mm)

Engine Details

Engine Make	Kubota
Gross Power	38 hp (28.4 kw)

Operational Specs

Operating Weight W/ Screed	9700 lb (4399.9 kg)
Fuel Tank Capacity	13 gal (49.3 L)
Hydraulic System Fluid Capacity	17.5 gal (66.3 L)

Hopper/Paver

Paving Width – Std	8 ft in (2438.4 mm)
Paving Width – Max	13 ft in (3962.4 mm)
Paving Speed – Max	140 ft/min (42.7 m/min)
Travel Speed – Max	2.8 mph (4.4 km/h)
Auger Diameter	9 in (228.6 mm)
