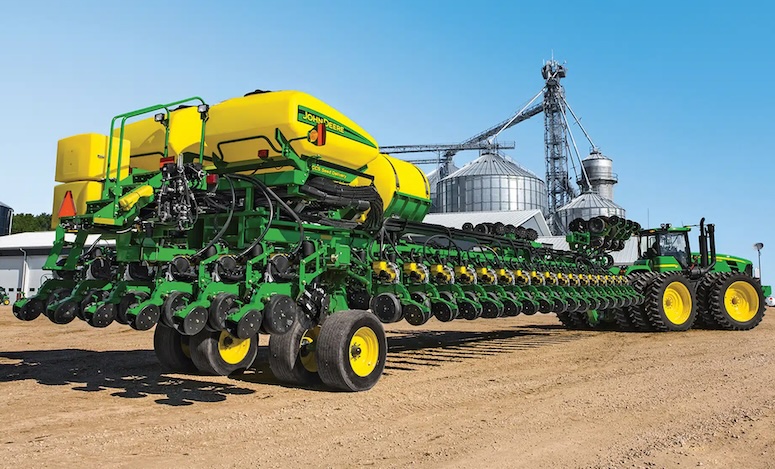

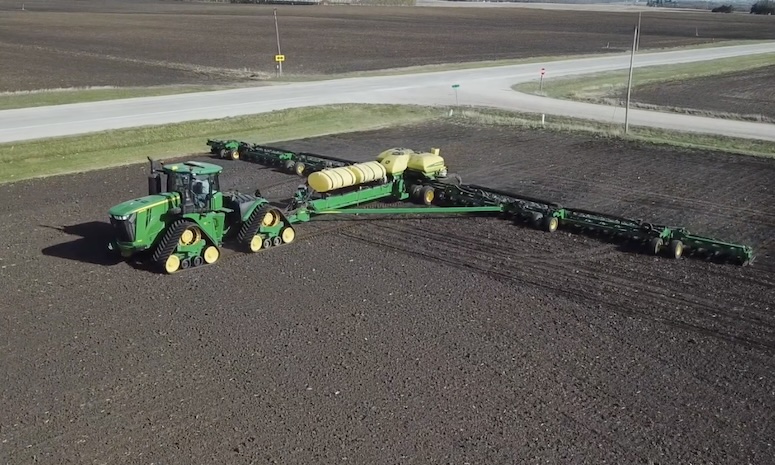

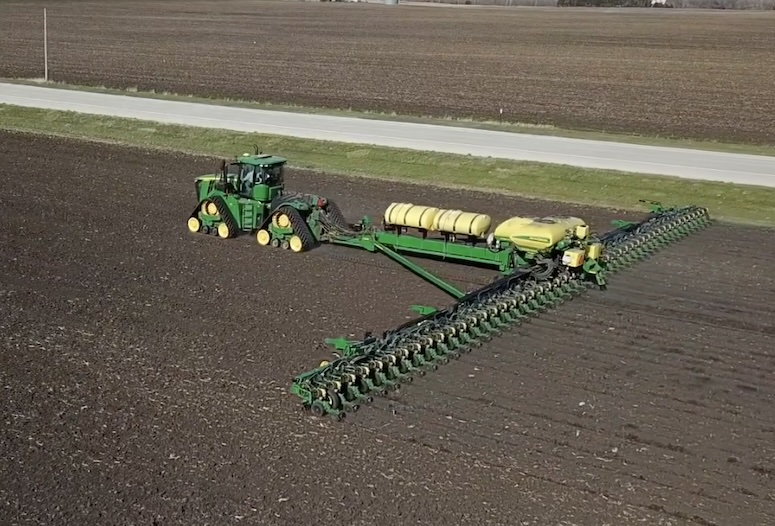

The John Deere DB120 Planter is a monumental leap forward in agricultural technology, boasting a colossal 120-ft. toolbar and an impressive 48 rows spaced at 30 inches. This mammoth machine redefines efficiency and precision in planting operations, catering to the needs of modern farming on a grand scale. Designed to revolutionize modern farming practices, the John Deere DB120 is more than just a world’s largest planter – it’s a game-changer!!!
One of the most striking features of the JD DB120 is its sheer size, allowing farmers to cover vast expanses of land with unprecedented speed and efficiency. With its wide toolbar and dense row configuration, the DB120 48Row30 significantly reduces the time and labor required for planting, maximizing productivity and profitability. Despite its immense size, the DB120 doesn’t compromise on precision.
Equipped with advanced seed metering systems and intelligent row unit design, this planter ensures accurate seed placement and spacing, essential for optimal crop development and yield potential. Farmers can trust the DB120 to deliver consistent results across every inch of their fields, even under challenging conditions. The John Deere DB120 Planter represents a groundbreaking advancement in planting technology, offering unmatched efficiency, precision, and reliability on a scale never seen before. For farmers looking to maximize productivity and stay ahead in today’s competitive agricultural landscape, the DB120 is the ultimate planting solution.
Specifications
| Spec | Value |
|---|---|
| Number of Rows | 48 |
| Row Spacing | 76.2 cm / 30 in. |
| Frame | |
| Fold Configuration | Front fold |
| Flexibility | 5-section flex-frame; wing 15° up and down |
| Frame Tube Size | 17.8×17.8 cm (7×7 in.) |
| Fold-&-Go from Tractor Cab | Base |
| Row Units | |
| Depth Gauging | (2) semi-pneumatic wheels: 11.4×40.6 cm (4.5×16 in.) |
| Adjustment | T-handle 0.635-10.2 in. (0.25-4 in.) in increments of 0.635 cm (0.25 in.) |
| Walking Wheels | Optional |
| Row Unit Seed Hoppers | Mini Hoppers Capacity: 2.22 L (0.063 bu), Material – Plastic |
| Row Unit Down Force | Pneumatic Base, Infinitely Adjustable, up to 181.4 kg (400 lb) Base Equipment |
| Scrapers, Opener Blades | Steel straight blade Base Heavy-duty Optional Optional |
| Seed Tube Sensors | Base Equipment |
| Hitch | |
| Hitch Base | Drawbar |
| Rear hitch | Optional |
| Lift System | |
| Type | Electrohydraulic series rephasing cylinder with center sec. drop axle |
| Number of Cylinders | 6 |
| Tires | |
| Base | (8) 31-13.5×15 |
| Tires Quantity | 12 |
| Seed Meters | |
| Base | Vacuum |
| Central Commodity System | Seed Capacity: 4,405 L (125 bu) |
| Drive System | |
| Base | 3-motor hydraulic variable rate drive |
| Counter Shaft | Hex: 2.22 cm (0.875 in.) |
| Drill Shaft | Hex: 2.22 cm (0.875 in.) |
| Seed Transmission | Frame-mounted |
| Transmission combinations | Electrohydraulic, on-demand adjustment |
| Closing System | |
| Rubber Tire Closing System | (2) rubber tires with nylon wheel: 2.54×30.5 cm (1×12 in.) Position In-line or staggered Adjustment T-handle Down force 5-position Alignment Adjustable |
| Cast Iron Closing System | Base equipment |
| Liquid Insecticide System | |
| Tank capacity | 1,590 L (420 gal.) |
| Fertilizer | |
| Fertilizer Opener Type | Dry fertilizer |
| Tillage Attachments | |
| Unit-mounted coulter | Unit-mounted: Optional |
| Ag Management Solutions | |
| Field Documentation | Map-based seeding / Parallel Tracking |
Weight & Dimensions
The DB120 boasts a substantial transport width of 4.6 meters (15 feet) – this width is essential for ensuring smooth transportation of the planter between fields and across roads. With a transport height of 3.7 meters (12 feet), the DB120 may require additional clearance during transport, especially when passing under bridges or power lines. Proper planning is necessary to ensure safe transportation.
| Dimension | Value |
|---|---|
| Wide Toolbar | 37 m (120 feet) |
| Transport Width (with Markers) | 4.6 m (15 ft) |
| Transport Length | 19 m (62 ft) |
| Transport Height | 3.7 m (12 ft) |
| Transport Weight | 18,273 kg (40,200 lb) |
| Transport Underframe Clearance | 66 cm (26 in.) |
Requires a minimum 370-hp tractor with Category 5 drawbar (rated for 17,000 lbs vertical load) and five hydraulic SCVs plus power beyond
Weighing in at 18,273 kilograms (40,200 pounds), the JD DB120 is a heavy-duty machine designed for large-scale planting operations. Its weight contributes to its stability and ability to handle various soil conditions. The planter offers a generous underframe clearance of 66 centimeters (26 inches). This clearance ensures that the planter can navigate uneven terrain and obstacles encountered during transport without risking damage to its components. The John Deere DB120 planter’s dimensions reflect its robust construction and ability to handle extensive planting tasks. Its size and weight make it suitable for large farms where efficiency and productivity are paramount.
JD DB120 Planter Pros
The JD DB120 Planter, with its advanced features and capabilities, offers several benefits for farmers looking to maximize their planting efficiency. Here are some of the key pros:
- Large Capacity: The DB120 boasts an impressive capacity with its 48 rows and 30-inch row spacing. This allows farmers to cover vast areas quickly and efficiently, reducing planting time and labor costs.
- Flexibility: With its front-fold frame configuration and 5-section flex-frame design, the DB120 offers excellent flexibility to navigate various field contours and obstacles. This ensures precise planting even in challenging terrain.
- Advanced Technology: Equipped with cutting-edge technology, such as the Central Commodity System and map-based seeding capabilities, the DB120 enables precise seed placement and optimal seed rates. This helps maximize crop yields while minimizing input costs.
- Ease of Operation: Despite its size, the DB120 is designed for ease of operation, with features like on-demand adjustment, electrohydraulic controls, and parallel tracking. This makes it easier for operators to set up and operate the planter effectively.
- Durability: Built with high-quality materials and components, the DB120 is rugged and durable, capable of withstanding the rigors of large-scale farming operations. Its robust construction ensures reliability and longevity, reducing downtime and maintenance costs.
- Comprehensive Warranty: John Deere stands behind its products with a comprehensive one-year warranty, providing farmers with peace of mind and assurance of quality and support.
The JD DB120 Planter offers farmers a powerful and efficient solution for large-scale planting operations. With its capacity, flexibility, advanced technology, ease of operation, durability, and warranty coverage, it stands out as a top choice for modern agricultural operations.
JD DB120 Planter Cons
While the John Deere DB120 Planter offers numerous advantages for large-scale farming operations, there are some potential drawbacks to consider:
- High Initial Cost: The DB120 is a high-capacity, technologically advanced planter, which means it comes with a significant upfront investment. The initial cost of purchasing the equipment may be prohibitive for smaller farming operations or those with limited budgets.
- Maintenance Costs: While John Deere equipment is known for its durability, maintenance and repair costs for large-scale planters like the DB120 can be substantial. Routine maintenance, replacement parts, and repairs may contribute to ongoing operational expenses.
- Large Equipment Requirements: The size and weight of the DB120 planter necessitate compatible tractors and transportation equipment. Farmers may need to invest in larger tractors and trailers to accommodate the planter, which can add to overall equipment costs.
- Field Limitations: The DB120’s large size and width may not be suitable for all fields, especially those with irregular shapes, narrow gateways, or obstacles such as trees, power lines, or buildings. Farmers must carefully assess their field conditions to ensure compatibility with the planter.
- Complexity: The advanced technology and features of the DB120 may also contribute to its complexity. Operators may require training to fully understand and utilize all the functionalities effectively. Additionally, troubleshooting and maintenance of sophisticated systems could require specialized knowledge and skills.
Overall, while the John Deere DB120 Planter offers significant benefits in terms of capacity, precision, and efficiency, farmers should carefully weigh these considerations against their specific needs, budget constraints, and operational requirements before making a purchasing decision.
Top 5 Largest Planters in the World (2024)
The world of agricultural machinery continues to evolve, and planters are no exception. As of XXI century, advancements in technology and engineering have led to the development of some of the largest and most efficient planters ever seen. These machines are designed to cover vast areas of farmland with precision and speed, significantly enhancing productivity for large-scale farming operations.
Here’s a table showcasing the top 5 largest planters in the world along with their key specifications:
| # | Planter Model | Toolbar Width | Number of Rows | Row Spacing |
|---|---|---|---|---|
| 1 | John Deere DB120 | 120 ft (37 m) | 48 | 30 in. |
| 2 | Case IH 2160 | 90 ft (28 m) | 36 | 30 in. |
| 3 | New Holland P2075 | 70 ft (22 m) | 70 | 12 in. |
| 4 | Kinze 5900 | 61 ft (18,9 m) | 24 | 30 in. |
| 5 | Massey Ferguson VF2430 | 60 ft (18.5 m) | 24 | 30 in. |
These top-tier planters represent the pinnacle of agricultural engineering, providing farmers with the tools they need to maximize their planting efficiency and overall crop yields. Whether it’s the sheer size of the John Deere DB120 or the advanced technology of the Massey Ferguson VF2430, these planters are setting new standards in the industry.
