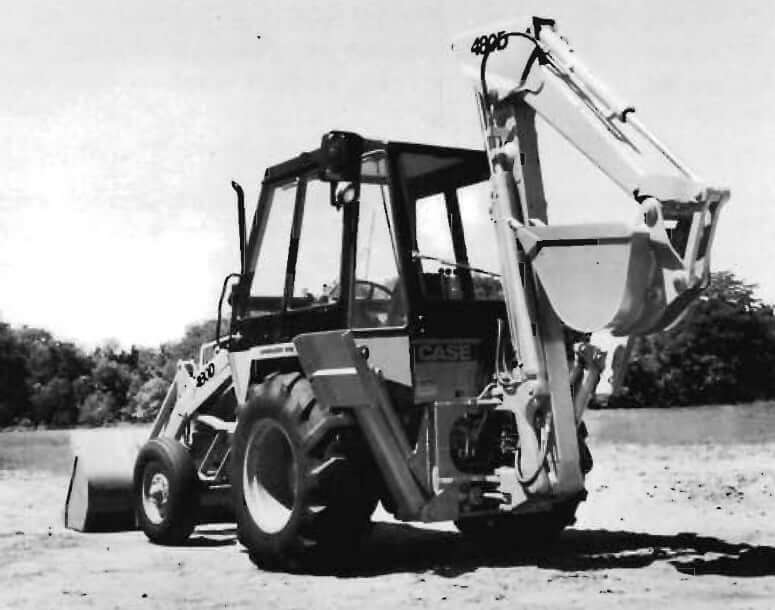

Case 480D Backhoe Loader

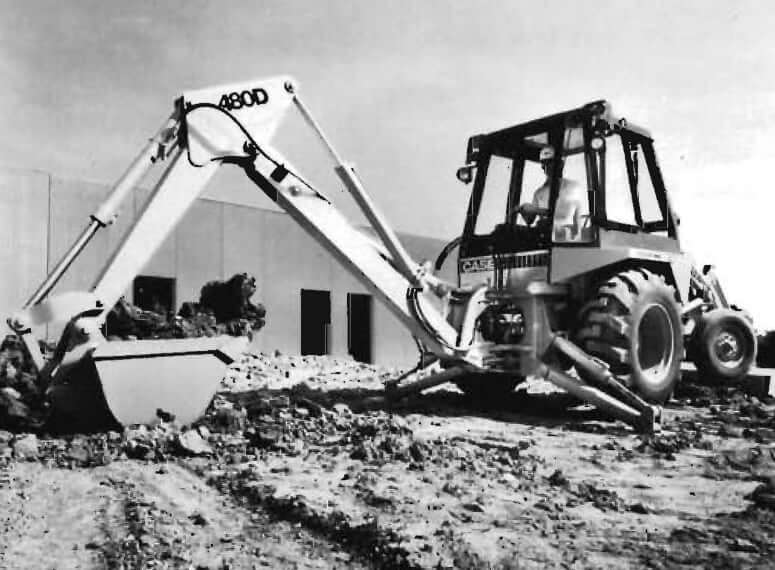

Backhoe

Load Height – Std 8.4 ft in (2560 mm)
Reach From Swivel – Std 15.72 ft in (4790 mm)
Dig Depth – Std 12.01 ft in (3660 mm)
Load Height – Ext 8.7 ft in (2650 mm)
Dig Depth – Ext 15.13 ft in (4610 mm)
Bucket Dig Force – Ext 7747.05 lb (3514 kg)
Bucket Dig Force – Std 7597.13 lb (3446 kg)
Reach From Swivel – Ext 18.67 ft in (5690 mm)

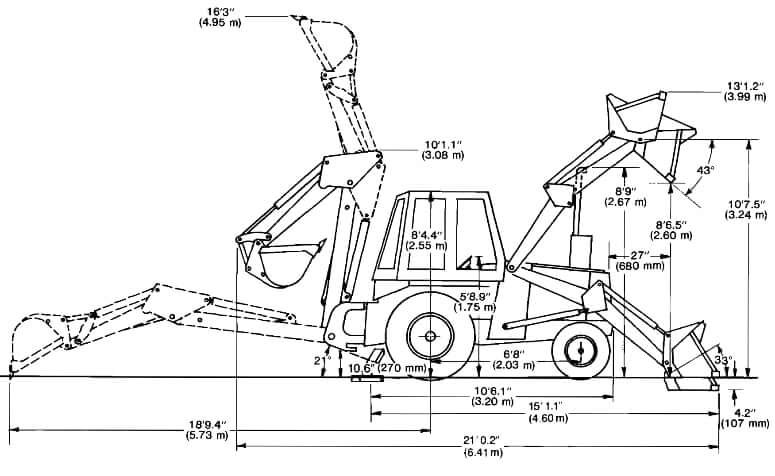

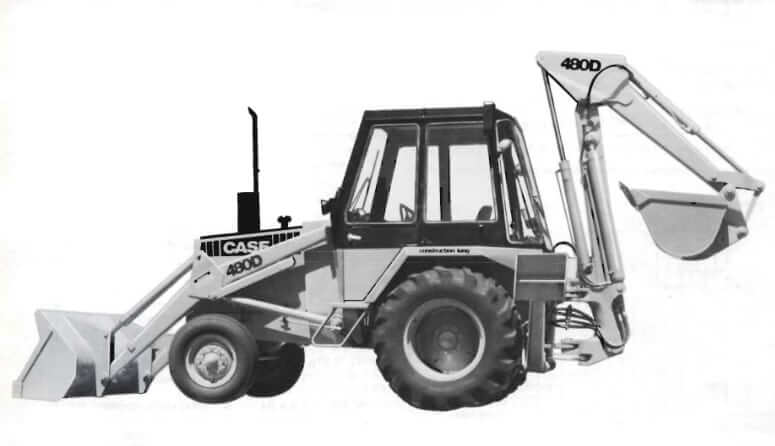

Dimensions

Transport Length 10.5 ft in (3200 mm)
Transport Width 6.93 ft in (2110 mm)
Transport Height 10.08 ft in (3070 mm)
Wheelbase 6.67 ft in (2030 mm)
Ground Clearance 1.05 ft in (320 mm)
Height To Top Of Suspended Cab 8.37 ft in (2550 mm)
Rear Tread Range 66.15 in (1680 mm)
Shipping Weight 5282.28 lb (2396 kg)
Front Wheel Tread Width 61.82 in (1570 mm)

Loader

Clearance At Max Dump Height 8.73 ft in (2660 mm)
Reach At Max Dump Height 2.24 ft in (680 mm)
Bucket Breakout Force 5700 lb (25.36 kN)
Bucket Width 63.78 in (1620 mm)
Lift Capacity At Full Height 3000 lb (1360.78 kg)

Engine Details

Number Of Cylinders 4
Engine Make J.I. Case
Engine Model G188D
Gross Power 52 hp (38.8 kw)
Net Power 47 hp (35.1 kw)
Power Measured @ 2100 rpm
Torque Measured @ 1400 rpm
Net Max Torque 138 lb ft (187.2 Nm)
Displacement 189.2 cu in (3.1 L)
Bore 3.9 in (97 mm)
Stroke 4.2 in (105 mm)

Operational Specs

Fuel Tank Capacity 23.5 gal (89 L)
Max Weight 9302 lb (4219.4 kg)
Hydraulic System Fluid Capacity 10.8 gal (40.9 L)
Oil System Fluid Capacity 1.8 gal (6.6 L)
Cooling System Fluid Capacity 3.5 gal (13.2 L)
Tire Size Front – 2wd / 4wd 7.50×16
Rear Tires Size 2wd/4wd 14.9×24
Operating Voltage 12 V
Alternator Supplied Amperage 39 amps
Axle Load – Front 9000 lb (4082.4 kg)
Axle Load – Rear 13500 lb (6123.5 kg)

Transmission

Transmission Type Power shuttle
Number Of Forward Gears 4
Number Of Reverse Gears 4
Max Speed – Forward 20.9 mph (33.5 km/h)
Max Speed Reverse 18.3 mph (29.3 km/h)

Hydraulic

Pump Flow Capacity 23.9 gal/min (90.5 L/min)
