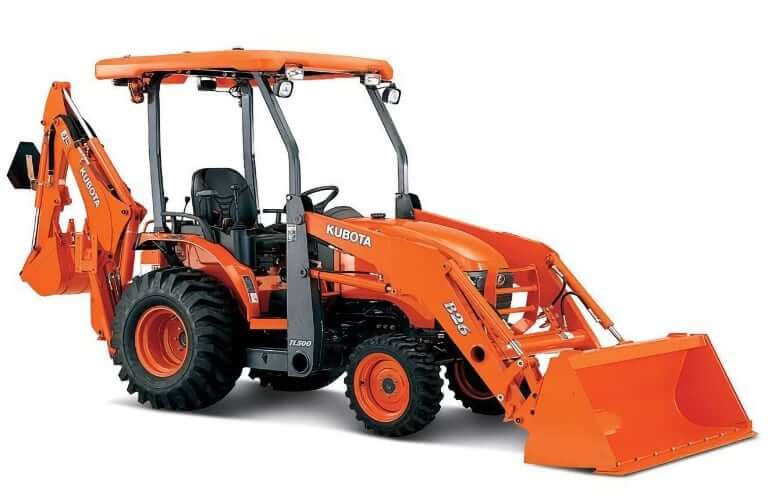

Dimensions
| Transport Length | 201.9 in (5130 mm) |
| Transport Width | 53.7 in (1365 mm) |
| Transport Height | 89.1 in (2264 mm) |
| Wheelbase | 62.2 in (1581 mm) |
| Ground Clearance | 11.3 in (287 mm) |
| Tractor Overall Height (to Top of Canopy) | 89.5 in (2273 mm) |
| Tractor Overall Length (without 3P) | 53.7 in (2557 mm) |
| Tractor Overall Width | 53.7 in (1365 mm) |
| Tread Front | 35.6 in (905 mm) |
| Tread Rear | 41.3 in (1050 mm) |
| Turning Radius | 98.4 in (2500 mm) |

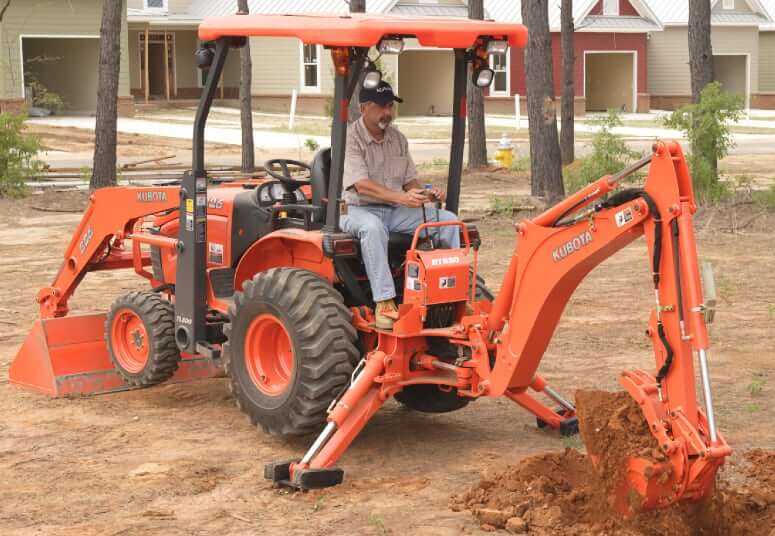

Backhoe B26 BT820
| Bucket Width | 18 in (460 mm) |
| Bucket Digging Force | 4210 lbs (18.73 kN) |
| Dipperstick Digging Force | 2123 lbs (9.44 kN) |
| Max Digging Depth | 99.8 in (2535 mm) |
| Digging Depth, 2ft. flat bottom | 98.3 in (2498 mm) |
| Digging Depth, 8ft. flat bottom | 77.0 in (1957 mm) |
| Operating Height, fully raised | 129.8 in (3298 mm) |
| Loading Height | 77.3 in (1963 mm) |
| Loading Reach | 52.1 in (1324 mm) |
| Reach From Swing Pivot | 133.9 in (3400 mm) |
| Swing Pivot to Rear Axle Center Line | 33.7 in ( 855 mm) |
| Bucket Rotation | 181.2 deg |
| Swing Arc | 180 deg |
| Angle of Departure Per SAE J1234 | 20.3 deg |
| Leveling Angle | 10.7 deg |
| Stabilizer spread-transport | 53.0 in (1347 mm) |
| Stabilizer spread-operating | 83.3 in (2116 mm) |
| Auxiliary Hydraulic Valve (Optional) | 7.0 gpm (26.5 L/min) |
| Trunnion Type Boom Swing Mechanism | Two cylinders |

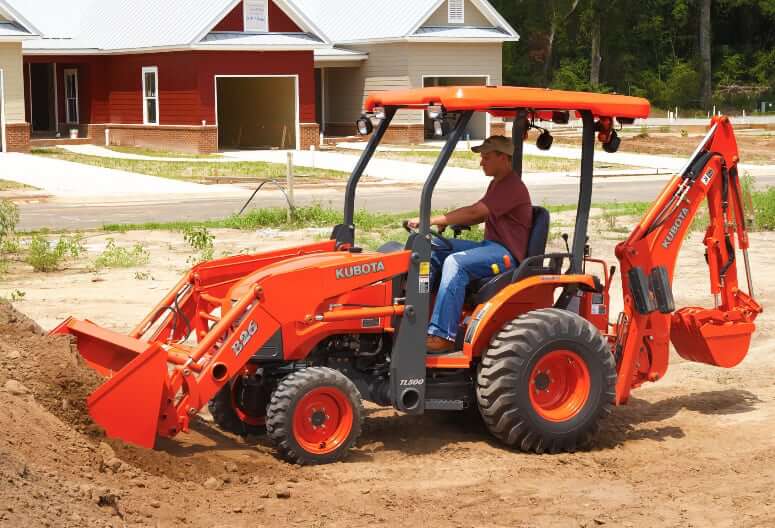

Loader B26 TL500
| Bucket Width | 59.85 in (1520 mm) |
| Bucket Capacity | 0.36 yd3 (0.27 m3) |
| Breakout Force at Pivot Pin | 2343 lbf (10.4 kN) |
| Lift Capacity to Max Height at Pivot Pin | 1301 lb (590 kg) |
| Maximum Lift Height to Pivot Pin | 94.5 in (2400 mm) |
| Reach at Max Height | 22.3 in (567 mm) |
| Clearance with Bucket Dumped | 70.0 in (1778 mm) |
| Reach with Bucket on Ground | 61.5 in (1561 mm) |
| Maximum Dump Angle | 45 deg. |
| Bucket Rollback Angle | 46 deg. |
| Digging Depth | 7.0 in (177 mm) |
| Overall Height in Carrying Position | 49.5 in (1258 mm) |
| Raise to Full Height | 3.6 sec. |
| Lowering Time | 2.4 sec. |
| Attachment Rollback Time | 3.4 sec. |
| Attachment Dumping Time | 1.8 sec. |
| 3rd Function Valves (Optional) | 7.0 gpm (26.5 L/min) |
| Control Valve | One detent float position power beyond circuit |
| TL500 Loader Net Weight | 628 lbs (285 kg) |
| Auto-leveling Mechanism | Mechanical spill guard |
| 2 Lever Quick Coupler | Standard |

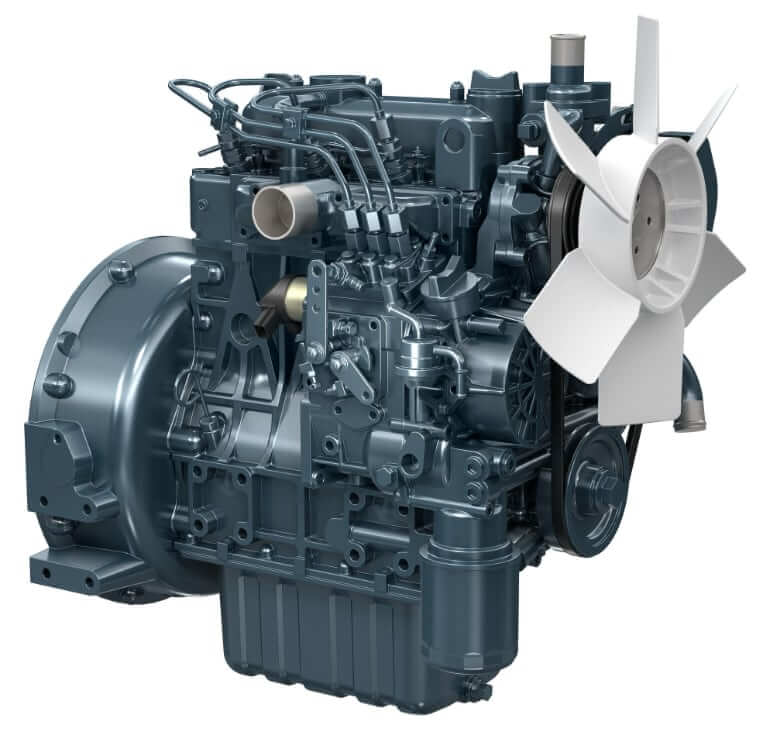

Engine Details
| Number Of Cylinders | 3 |
| Engine Make | Kubota |
| Engine Model | Kubota D1105-E4-TLB-1 |
| Gross Power | 24.3 hp (18.1 kw) |
| Net Power | 23.1 hp (17.2 kw) |
| Power Measured @ | 2800 rpm |
| Max Torque | 57.2 ft lb (77.6 Nm) |
| Torque Measured @ | 1100 rpm |
| PTO Horsepower | 19.5 hp (14.5 kw) |
| Engine Type | Diesel |
| Displacement | 68.5 cu in (1.2 L) |
| Bore | 3.1 in (78 mm) |
| Stroke | 3.1 in (78.4 mm) |
| Oil Filtration | Spin on cartridge |
| Air Filter Type | Dual paper element |
| Cooling Method | Liquid |
| Aspiration | Natural |
| Emission Standards | EPA Tier 4 Final |
Operational Specs
| Operating Weight (Tractor + Backhoe + Loader) | 4001 lb (1815 kg) |
| Operating Weight (Tractor with ROPS/FOPS Only) | 2606 lb (1182 kg) |
| Power take off (PTO) | Independent Rear PTO |
| Rear PTO / Engine Speed | 540 rpm / 540 rpm |
| 3-Point Hitch Lift Capacity at 24″ behind lift point | 1676 lb (760 kg) |
| ROPS/FOPS | OSHA 1926 1001/1003, ISO 3471 |
Electrical
| Alternator | 40 amps |
| Battery | 12 V, RC: 79 min, CCA 433 |
| Block Heater | Optional, CSA approved |
| Lighting | 2 front work lights, 2 rear work lights, 2 tail lights, 4 ROPS mounted turn signals / 4-way flashers |
Transmission
| Transmission Type | HST – hydrostatic transmission, 3 range gear shift |
| Number Of Gears | Infinite |
| Max Speed Forward | 11.8 mph (19.0 km/h) |
| Max Speed Reverse | 10.5 mph (16.9 km/h) |
| Front Tire Size (2WD / 4WD) | 23×8.50-14 R4 |
| Rear Tire Size (2WD / 4WD) | 12.4-16 R4 IND / 12.4-16 Farm / 13.6 – 16 Turf |
| Service Brake | Wet disk type |
| Differential Lock (Rear axle) | Standard |
| Steering | Hydrostatic type power steering |
Hydraulic
| Hydraulic Control System | Position control |
| Pump Type | Gear |
| 3P Pump Flow Capacity | 7.0 gal/min (26.3 L/min) |
| Steering Pump Flow Capacity | 4.2 gal/min (16.0 L/min) |
| Overall Pump Flow Capacity | 11.1 gal/min (42.3 L/min) |
| Max Hydraulic Pressure | 2402 psi (16600 kPa) |
Service Refill Capacities
| Fuel Tank Capacity | 8.19 gal (31 L) |
| Engine Oil Capacity (with Filter) | 0.79 gal (3.0 L) |
| Cooling System Fluid Capacity | 1.19 gal (4.5 L) |
| Transmission Oil Capacity (with oil tank) | 6.87 gal (26 L) |
| Front Axle Case Capacity | 1.24 gal (4.7 L) |
