JLG 460SJC Boom Lift

Contents

Dimensions
Platform
Engine Details
Operational Specs
Performance

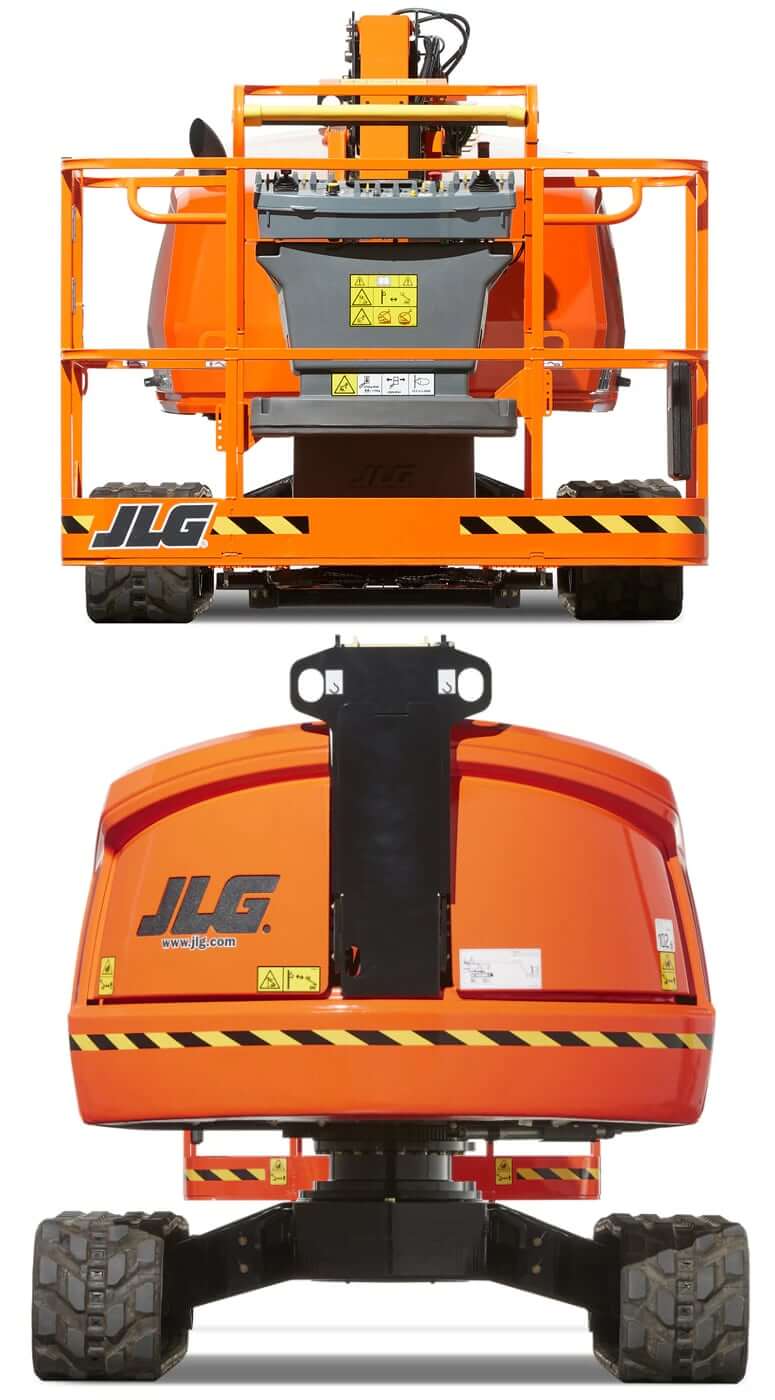

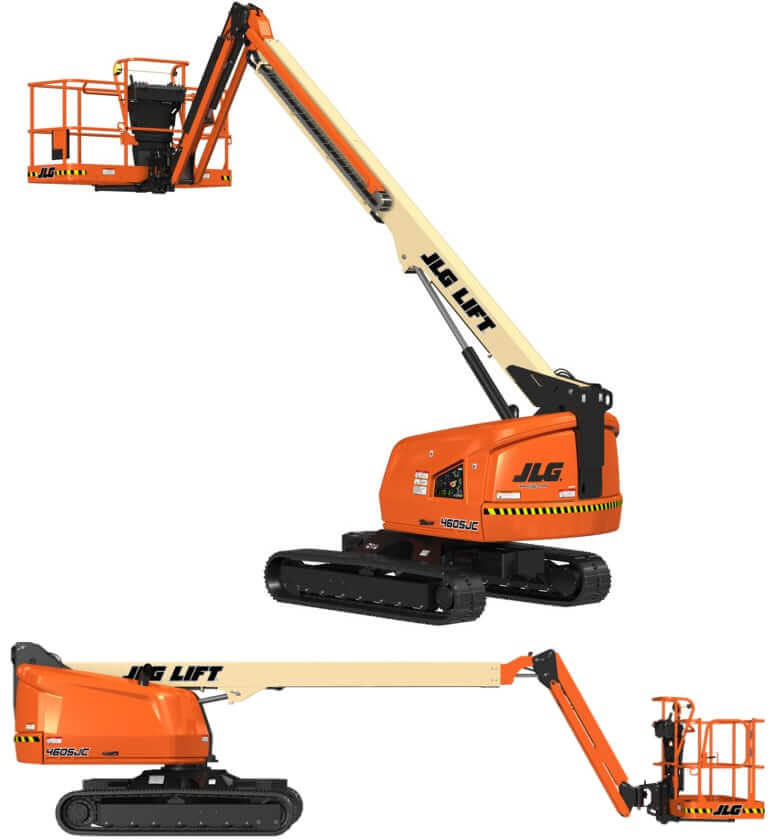

Dimensions

Overall Length	29.3 in (744.22 mm)
Overall Width	7.4 ft in (2255.52 mm)
Overall Height – Mast Lowered	7.7 ft in (2346.96 mm)
Ground Clearance	13 in (330.2 mm)
Tailswing Radius	3.2 ft in (975.36 mm)
Track Width	1.4 ft in (0.43 m)
Turning Radius	3.2 ft in (975.36 mm)

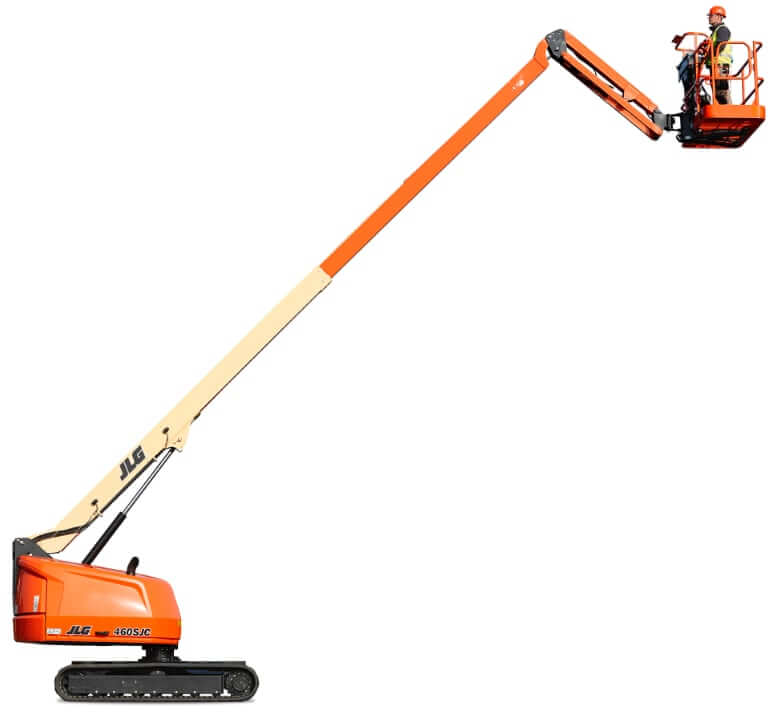

Platform

Max Platform Height	45.6 ft in (13898.88 mm)
Max Horizontal Reach	39 ft in (11887.2 mm)
Platform Capacity – Unrestricted	600 lb (272.16 kg)

Engine Details

Diesel Engine Type	Deutz D2.9L4 Tier 4 Final
Diesel Engine Power	49 hp (36.6 kw)
Maximum Ground Bearing Pressure	8.4 psi (58 kPa)
Fuel Type	Diesel
System Voltage	12 V

Operational Specs

Operating Weight	17998 lb (8163.8 kg)
Fuel Tank Capacity	31 gal (117.4 L)
Hydraulic System Fluid Capacity	36 gal (136.3 L)

Performance

Drive Speed	1.8 mph (2.9 km/h)
Swing	360 degrees
Gradeability	51 %
