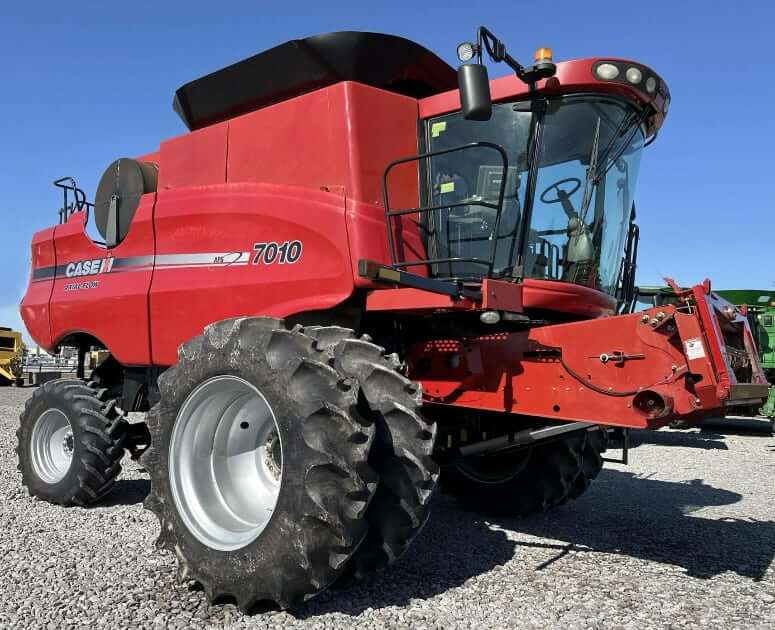

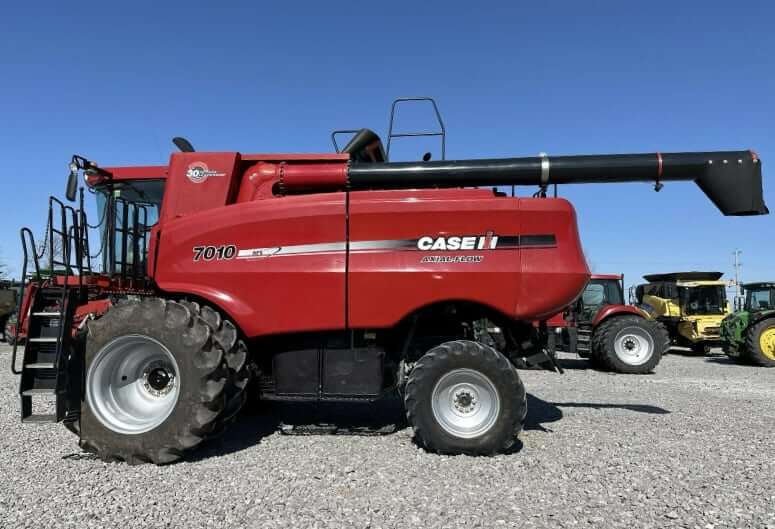

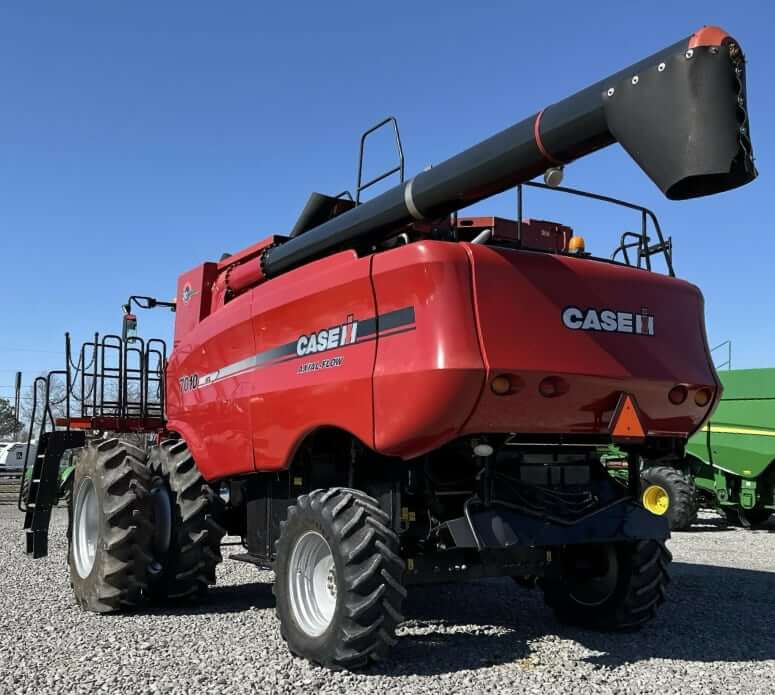

Case IH Axial-Flow 7010 Combine

Contents
  1. Dimensions
  2. Engine Details
  3. Operational Specs
  4. Threshing
  5. Cleaning System
  6. Grain Handling

Dimensions

Width Over Tires 13.03 ft in (3970 mm)
Wheelbase 12.2 ft in (3718 mm)
Height To Top Of Isomount Cab 12.41 ft in (3780 mm)

Engine Details

Engine Make 2408
Power 350 hp (261 kw)
Power Boost Power 390 hp (290.9 kw)
Displacement 549.3 cu in (9 L)

Operational Specs

Operating Weight W/O Attachment 34500 lb (15649 kg)
Fuel Tank Capacity 264 gal (999.4 L)
Transmission Type Hydrostatic drive
Number Of Gears 4

Threshing

Rotor Diameter 30 in (762 mm)
Rotor Speed – Low 220 rpm
Rotor Speed – High 1180 rpm

Cleaning System

Total Cleaning Area 8370 in2 (5.4 m2)
Cleaning Fan Speed – Low 300 rpm
Cleaning Fan Speed – High 1150 rpm
Self Leveling? Yes

Grain Handling

Grain Tank Capacity 315 bu (11100.4 L)
Unloading Auger Length 21 ft in (6.5 m)
Unloading Speed 3.2 bu/sec (112.8 L/sec)
