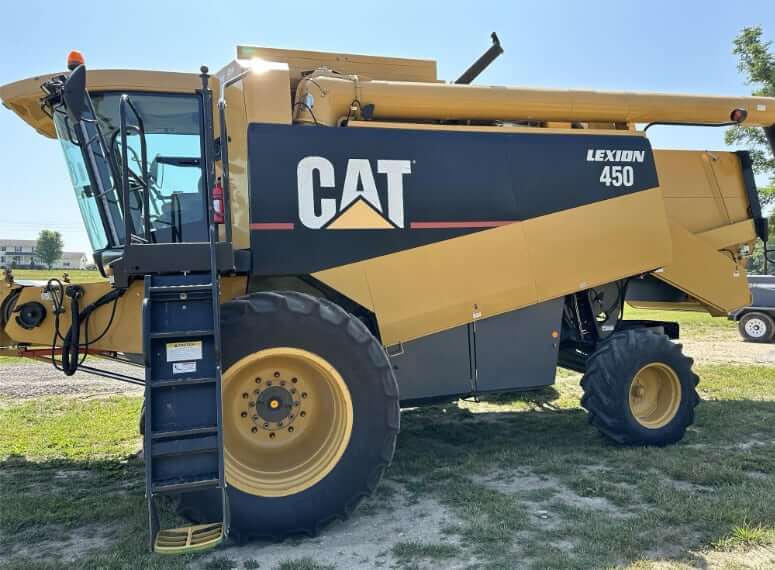

CAT Lexion 450 Combine

Contents
  1. Capacities
  2. Threshing
  3. Separating
  4. Engine Details
  5. Transmission

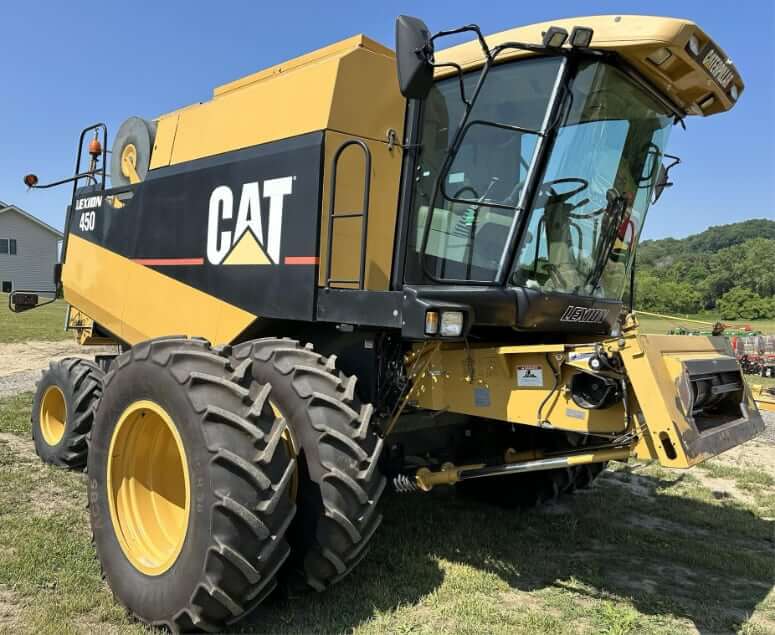

Capacities

Cleaning Area 7639 in2 (5 m2)
Grain Tank Capacity 249 bu (8774.6 L)
Fuel Tank Capacity 130 gal (500 L)
Unloading Rate 2 bu/sec

CAT Lexion 450 Combine Capacities

Threshing

Threshing System APS
Cylinder Width 56 in (1422.4 mm)
Total Concave Area 2653 in2 (1.8 m2)

Separating

Separating Area 9612 in2 (6.3 m2)
Separation System Straw Walkers
Number Of Straw Walkers Five

Engine Details

Number Of Cylinders 6
Engine Make Caterpillar
Engine Model Cat 3126C ATAAC
Displacement 439 cu in (7.2 L)
Gross Power 290 hp (216 kw)
Power Measured @ 2100 rpm
Aspiration Turbocharged (ATAAC)
Emission Standards US EPA Tier 2

CAT Lexion 450 Combine Specs

Transmission

Type Hydrostatic variable transmission
Number of Gears 3F x 3R
