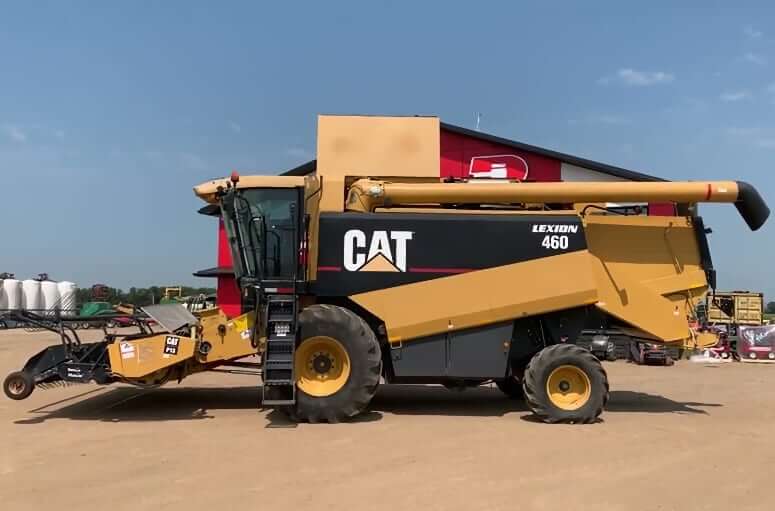

Dimensions
| Combine Height | 12′ 9″ (3870 mm) |
| Operating Length | 30′ (9136 mm) |
| Shipping Length | 29′ 2″ (8886 mm) |
| Outside Width | 13′ 10″ (4200 mm) |
| Width to Center of Tread | 10′ 11″ (3337 mm) |
Capacities
| Cleaning Area | 9286 in2 (6 m2) |
| Grain Tank Capacity | 280 bu (9867 L) |
| Unloading Rate | 2.5 bu/sec |
Threshing
| Threshing System | APS |
| Cylinder Width | 67 in (1701.8 mm) |
| Total Concave Area | 3177 in2 (2.1 m2) |
Separating
| Separating Area | 11507 in2 (7.5 m2) |
| Separation System | Straw Walkers |
| Number Of Straw Walkers | Six |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | Caterpillar |
| Engine Model | Cat 3126C ATAAC |
| Displacement | 439 cu in (7.2 L) |
| Gross Power | 290 hp (216 kw) |
| Power Measured @ | 2100 rpm |
| Aspiration | Turbocharged + aftercooled ATAAC |
| Emission Standards | EPA Tier 2 |
Transmission
| Type | Hydrostatic variable 3-speed transmission |
| Front Tire Size | 24.5R32 170 A8 Radial 800/65 167 A8 Radial 800/65 172 A8 Radial 18.4R38 Radial Duals 20.8R42 Radial Duals 35.5L32 12PR (R2) 73-44.00-32 12PR |
| Rear Tire Size | 16.5/85-24 8PR 500/60-26.5 8PR 600/55-26.5 8PR 480/70 R28 |
Operating Specs
| Fuel Tank Capacity | 170 gal (650 L) |
| Operating Voltage | 24 V |
| Sound Level in Cab | 76 bD(A) |
