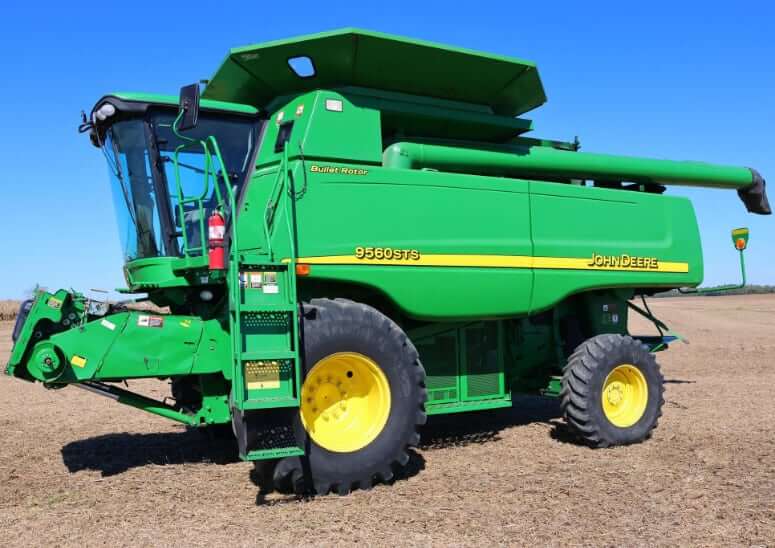

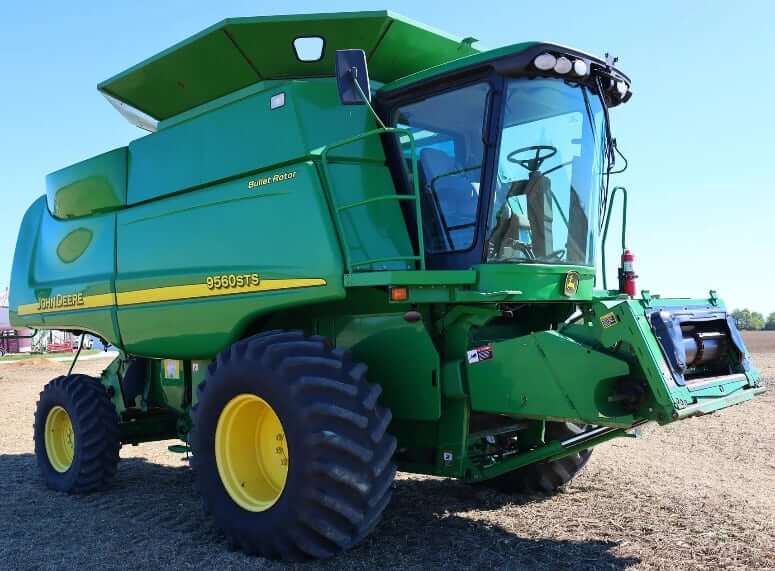

John Deere 9560 STS Combine

Contents

Dimensions
Electrical System
Engine Details
Capacities
Operational Specs
Feeding
Separating
Brakes
Grain Handling

Dimensions

Turning Radius

24.28 ft in (7400 mm)

Electrical System

Alternator	95 Amp
Voltage	12 V

Engine Details

Number Of Cylinders	6
Engine Make	John Deere
Engine Model	6081HH
Power	265.6 hp (198 kw)
Power Boost Power	284.3 hp (212 kw)
Power Measured @	2200 rpm
Displacement	494.3 cu in (8.1 L)

Capacities

Crankcase Oil Volume	7.8 gal (29.5 L)
Final Drive	2.2 gal (8 L)
Feeder House Reverser Gearcase	0.7 gal (2.3 L)
Engine Gearcase	5.7 gal (21.3 L)
Loading Auger Gearcase	1.1 gal (3.8 L)

Operational Specs

Fuel Tank Capacity	200 gal (757 L)
Cooling System Fluid Capacity	10.6 gal (40 L)
Hydraulic System Fluid Capacity	9 gal (34 L)
Transmission Fluid Capacity	2.6 gal (9.6 L)
Number Of Gears	3

Feeding

Number Of Wings

10

Separating

Tines	18
Number Of Grates	3

Brakes

Brakes Type

Hydraulic Shoe

Grain Handling

Grain Tank Capacity	220 bu (7750 L)
Unloading Speed	2.2 bu/sec (77.5 L/sec)
