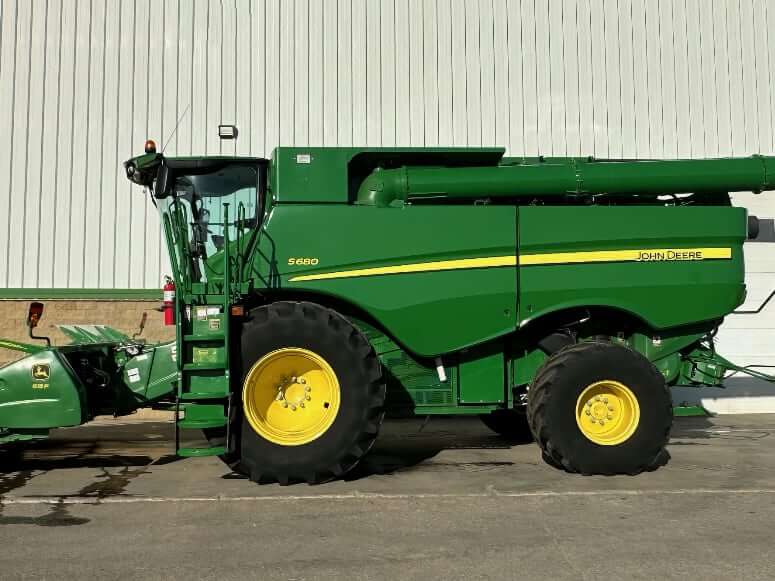

Dimensions
| Transport Length | 270 in (6860 mm) |
| Transport Width | 168.5 in (4280 mm) |
| Transport Height | 156.7 in (3980 mm) |
| Rear Wheel Tread Width | 131.9 in (3350 mm) |
| Turning Radius (Non-Powered Axles) | 315.7 in (8020 mm) |
| Turning Radius (Powered Axles) | 304.3 in (7730 mm) |
| Operating Weight (w/o header) | 44541 lb (20200 kg) |
Feeding
| John Deere S680 Conveyor Width | 55 in (1397 mm) |
| Conveyor Length | 68 in (1727 mm) |
Threshing
| Rotor Diameter | 29.6 in (750 mm) |
| Rotor Length | 123 in (3124 mm) |
| Rotor Speed – Low | 210 rpm |
| Rotor Speed – High | 1000 rpm |
| Concave Area | 1705 in2 (1.1 m2) |
Separating
| Separator Type | Rotary |
| Separating Area | 2387 in2 (1.6 m2) |
| Discharge Grate Area | 1705 in2 (1.1 m2) |
Cleaning System
| Total Cleaning Area | 8138 in2 (5.3 m2) |
| Cleaning Fan Speed – Low | 620 rpm |
| Cleaning Fan Speed – High | 1250 rpm |
Grain Handling
| Grain Tank Capacity | 300 bu (10600 L) |
| Unloading Auger Length | 22.5 ft in (6.9 m) |
| Unloading Speed | 3.3 bu/sec (116.3 L/sec) |
| Unloading Discharge Height | 14.4 ft in (4.4 m) |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | John Deere PowerTech |
| Engine Model | John Deere 6135HH003 |
| Displacement | 823.9 cu in (13.5 L) |
| Bore | 5.2 in (132 mm) |
| Stroke | 6.5 in (165 mm) |
| Gross Power | 473 hp (352.8 kw) |
| Power Boost | 50 hp (37.3 kw) |
| Power Measured @ | 2100 rpm |
| Aspiration | Turbocharged |
| Emission Standards | US EPA Interim Tier 4 + EU Stage IIIB |

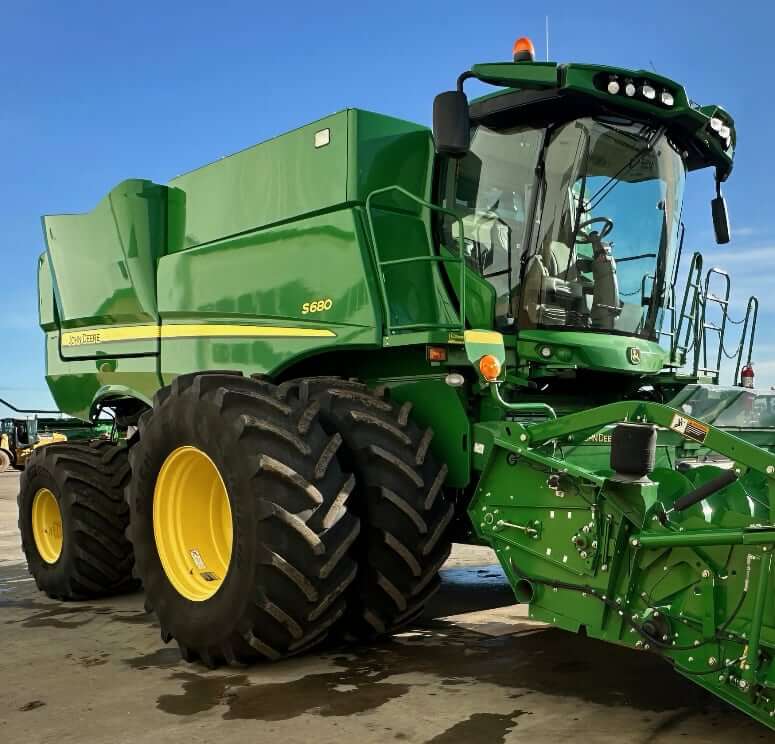

Operational Specs
| Operating Weight (w/o attachment) | 44541 lb (20200 kg) |
| Operating Voltage | 12 V |
| Alternator | 200 amps |
| Battery | 12 V, 174 Ah, CCA 1400, B BCI |
Transmission
| Type | Two-speed auto shift transmission John Deere ProDrive |
| Namber of Gears | 2 |
| Max Travel Speed | 25 mph (40 km/h) |
| Service Brakes | Multiple Wet Discs |
| Front Tire Size | 650/85R38 |
| Rear Tire Size | 650/85R38 |
Service Refill Capacities
| Fuel Tank Capacity | 330 gal (1250 L) |
| Engine Oil Capacity (w/ filter) | 11.4 gal (43 L) |
| Cooling System Capacity (w/ heater) | 22.5 gal (85 L) |
| Final Drive Capacity | 2.1 gal (8 L) |
| Hydraulic / Hydrostatic Tank Capacity | 12.4 gal (47 L) |
| Extra Heavy Duty Feeder House Reverser Gearcase (w/o cooler) | 0.95 gal (3.6 L) |
| Multi-Speed Feeder House Reverser Gearcase (w/ cooler) (optional) | 1.4 gal (5.2 L) |
| Premium Overshot Beater Gearcase Capacity (If Equipped) | 0.05 gal (0.2 L) |
| Countershaft Drive Gearcase Capacity (Non Multi-Speed) | 0.32 gal (1.2 L) |
| Loading Auger Gearcase Capacity | 1 gal (3.8 L) |
| 2-Speed Separator Drive Gearcase Capacity | 1.2 gal (4.7 L) |
| Engine Gearcase Capacity (w/ transfer) | 13.5 gal (51 L) |
