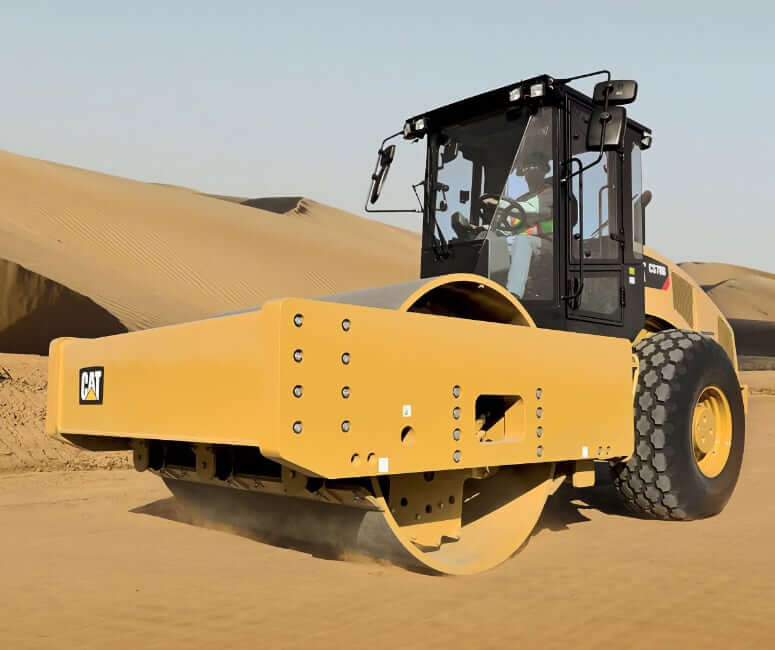

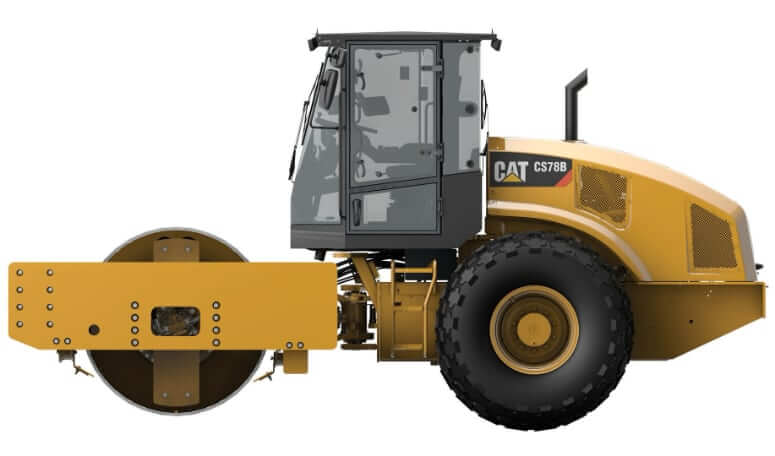

Dimensions
| Overall Length | 241 in (6120 mm) |
| Wheelbase | 115 in (2920 mm) |
| Overall Width | 98.4 in (2500 mm) |
| Overall Height | 123.2 in (3130 mm) |
| Ground Clearance | 17.1 in (434 mm) |
| Curb Clearance | 21.0 in (533 mm) |
| Turning Radius – Inside Drum Edge | 145 in (3682 mm) |
Drum
| Drum Diameter | 60.4 in (1535 mm) |
| Drum Width | 84 in (2134 mm) |
| Vibratory Frequency (Standard) | 1680 vpm (28 Hz) |
| Vibratory Frequency (Eco-mode Operation) | 1680 vpm (28 Hz) |
| Variable Frequency Option Range | 1400-1680 vpm (23.3 – 28 Hz) |
| Nominal Amplitude – Low | 0.039 in (0.98 mm) |
| Nominal Amplitude – High | 0.083 in (2.1 mm) |
| Centrifugal Force – Minimum | 35163 lbf (156 kN) |
| Centrifugal Force – Maximum | 75234 lbf (335 kN) |
Padfoot Shell Kit
| Number of Pads | 120 |
| Pad Height, Oval Pads | 3.5 in (89.8 mm) |
| Pad Face Area, Oval Pads | 9.8 in2 (63.5 cm2) |
| Pad Height, Optional Square Pads | 3.5 in (89.8 mm) |
| Pad Face Area, Optional Square Pads | 16.4 in2 (105.7 cm2) |
| Number of Chevrons | 16 |
Operating Specifications
| Compaction Width | 84 in (2134 mm) |
| Static Linear Load | 278.7 lbs/in (49.7 kg/cm) |
| Maximum Travel Speed | 7 mph (11.4 km/h) |
| Rear Tire Size | 23.1 x 26 |
| Gradeability, with or without Vibration | 53% |
Engine Details
| Number Of Cylinders | 4 |
| Engine Make | Cat |
| Engine Model | Cat C4.4 with ACERT |
| Displacement | 269 cu in (4.4 L) |
| Gross Power SAE J1995 | 175.7 hp (131.0 kw) |
| Net Power ISO 9249 | 147.1 hp (109.7 kw) |
| Power Measured @ | 2200 rpm |
| Aspiration | Turbocharged |
| Emission Standards | U.S. EPA Tier 4 Final EU Stage IV |

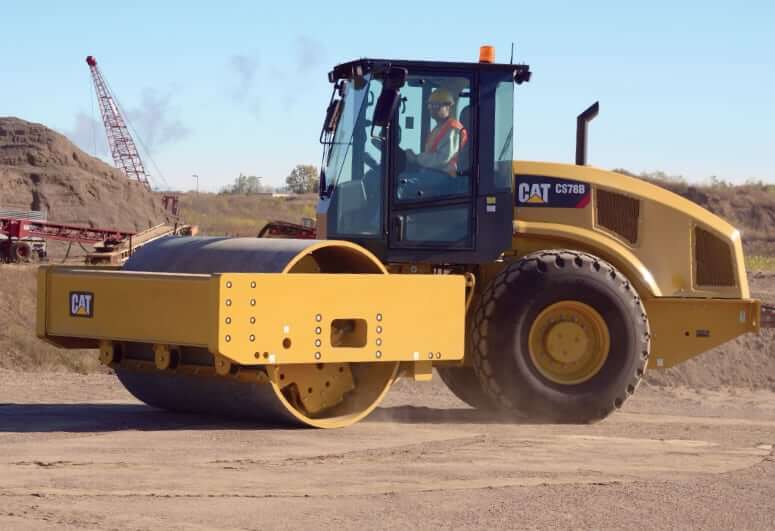

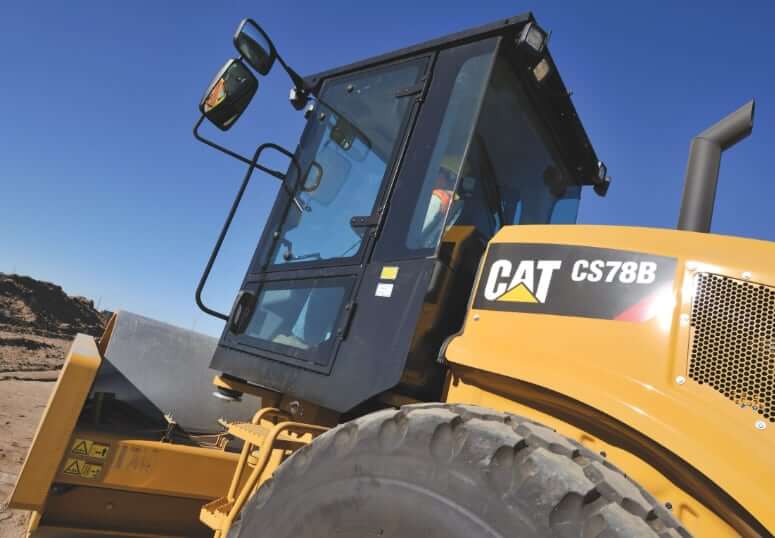

Weights
| Operating Weight with ROPS/FOPS cab | 41641 lb (18888 kg) |
|---|---|
| w/ Oval Padfoot Shell Kit | 42280 lb (19178 kg) |
| w/ Square Padfoot Shell Kit | 42631 lb (19337 kg) |
| Weight at Drum with ROPS/FOPS cab | 29637 lb (13443 kg) |
| w/ Oval Padfoot Shell Kit | 28940 lb (13127 kg) |
| w/ Square Padfoot Shell Kit | 29291 lb (13286 kg) |
Service Refill Capacities
| Fuel Tank Capacity | 88 gal (332 L) |
| DEF Tank Capacity | 5 gal (19 L) |
| Engine Oil Capacity w/ Filter | 3.1 gal (11.6 L) |
| Cooling System Capacity | 7.5 gal (28.2 L) |
| Hydraulic Tank Capacity | 13.2 gal (50 L) |
| Axle and Final Drives | 4.8 gal (18 L) |
| Eccentric Weight Housings (Combined) | 6.9 gal (26 L) |
