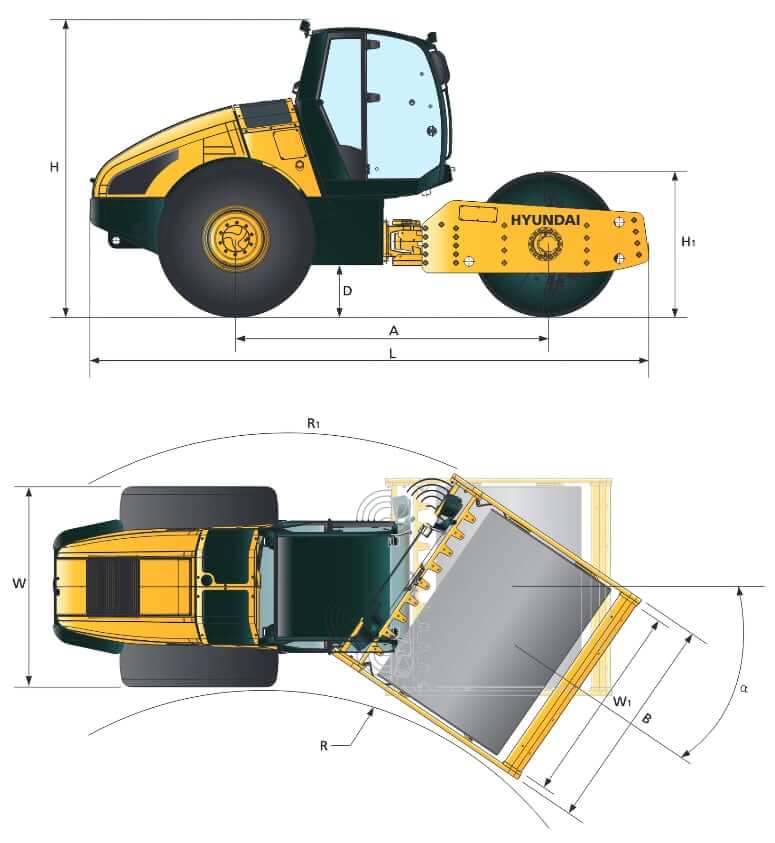

Dimensions
| Overall Length | 226.6 in (5757 mm) |
| Overall Width | 89.4 in (2270 mm) |
| Height To Top Of Cab | 115 in (2920 mm) |
| Wheelbase | 125.8 in (3195 mm) |
| Ground Clearance | 19.3 in (490 mm) |
| Inside Turning Radius | 15.9 ft (4860 mm) |
| Outside Turning Radius | 23 ft (7015 mm) |

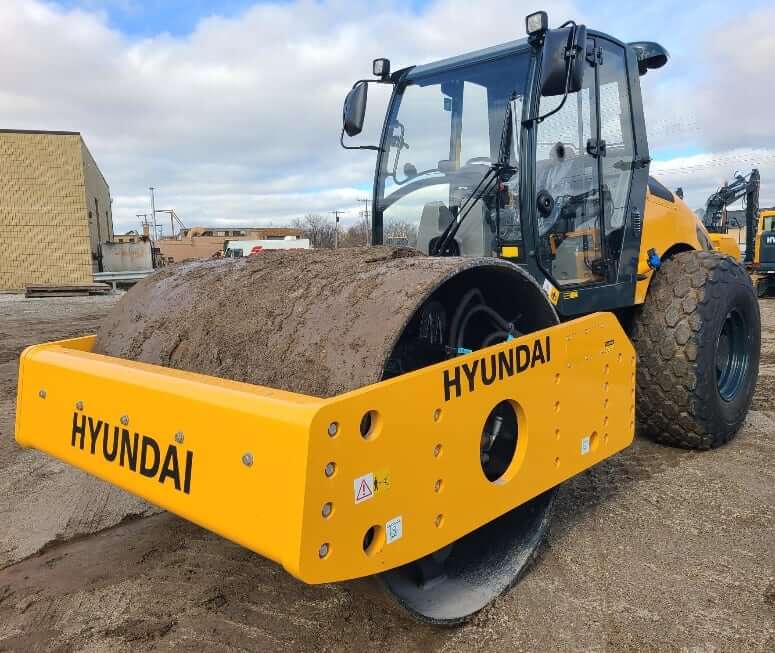

Drum
| Drum Width | 82.7 in (2100 mm) |
| Drum Diameter | 59.1 in (1500 mm) |
| Drum Thickness | 1.18 in (30 mm) |
| Vibration Frequency 1 | 30 Hz |
| Vibration Frequency 2 | 40 Hz |
| Nominal Amplitude – Low | 0.02 in (0.6 mm) |
| Nominal Amplitude – High | 0.07 in (1.8 mm) |
| Centrifugal Force – Low | 31473 lbf (140 kN) |
| Centrifugal Force – High | 53954 lbf (240 kN) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Deutz |
| Engine Model | Deutz TCD 2012 L042V |
| Displacement | 247 cu in (4 L) |
| Bore | 4 in (101 mm) |
| Stroke | 5 in (126 mm) |
| Gross Power | 129 hp (96 kw) |
| Power Measured @ | 2400 rpm |
| Peak Torque | 384 lb ft (520 Nm) |
| Torque Measured @ | 1600 rpm |
| Compression Ratio | 18:1 |
| Emission Standards | Tier 3 |
Operational Specs
| Max Speed | 7.8 mph (12.5 km/h) |
| Rear Tire Size | 23.1-26 |
| Angular Movement | ±12 |
| Gradeability Without Vibration | 45% |
| Gradeability With Vibration | 48% |
Weight
| Operating Weight | 26456 lb (12000 kg) |
| Fron Axle Load | 15212 lb (6900 kg) |
| Rear Axle Load | 11244 lb (5100 kg) |
| Static Linear Load (Average) | 183.67 lb/in (32.80 kg/cm) |
Service Refill Capacities
| Fuel Tank Capacity | 79.3 gal (300 L) |
| Hydraulic System Fluid Capacity | 28.1 gal (106 L) |
| Engine Oil Capacity | 4.1 gal (15.5 L) |
| Cooling System Fluid Capacity | 1.9 gal (7.2 L) |
