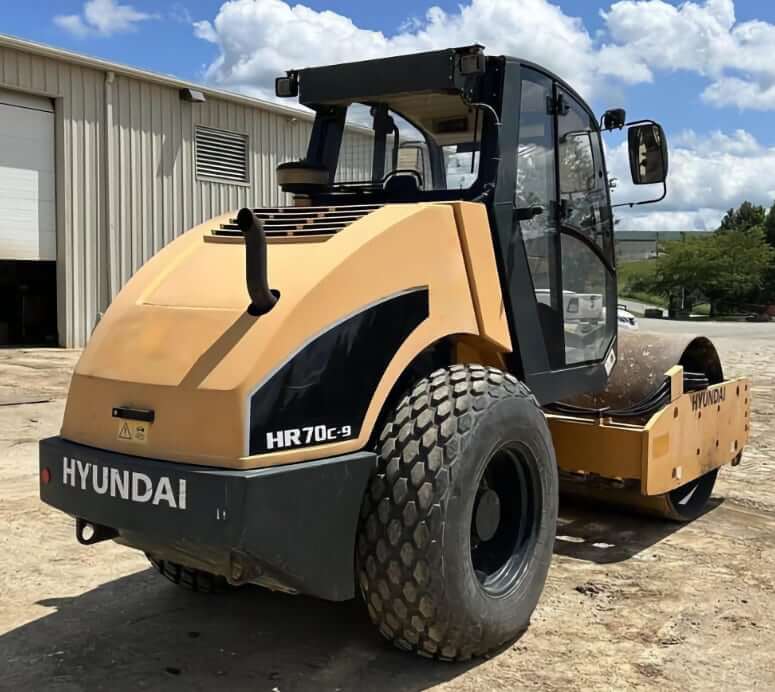

Dimensions
| Overall Length | 198.1 in (5032 mm) |
| Overall Width | 72.8 in (1850 mm) |
| Height To Top Of Cab | 107.2 in (2723 mm) |
| Wheelbase | 107.0 in (2720 mm) |
| Ground Clearance | 14.8 in (375 mm) |
| Inside Turning Radius | 12.8 ft (3900 mm) |
| Outside Turning Radius | 18.4 ft (5600 mm) |

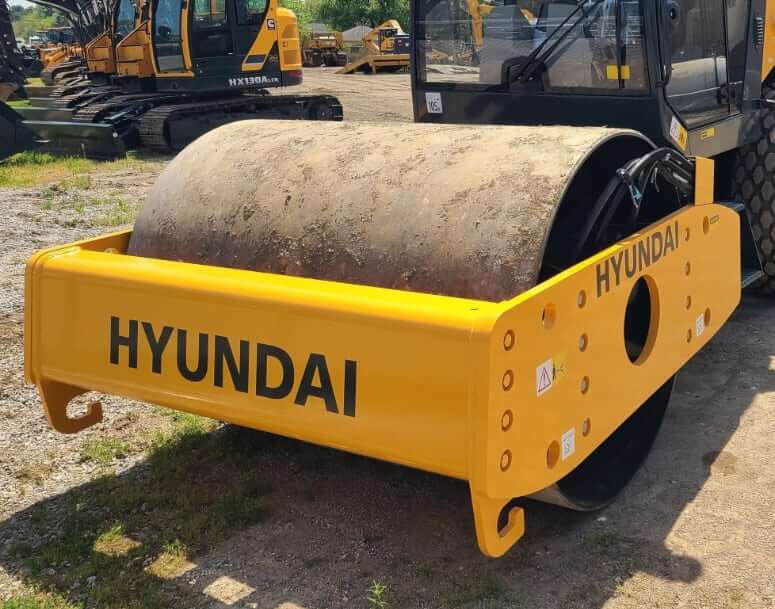

Drum
| Drum Width | 66.9 in (1700 mm) |
| Drum Diameter | 49.2 in (1250 mm) |
| Drum Thickness | 0.79 in (20 mm) |
| Vibration Frequency 1 | 30 Hz |
| Vibration Frequency 2 | 40 Hz |
| Nominal Amplitude – Low | 0.03 in (0.8 mm) |
| Nominal Amplitude – High | 0.07 in (1.8 mm) |
| Centrifugal Force – Low | 20233 lbf (90 kN) |
| Centrifugal Force – High | 26977 lbf (120 kN) |

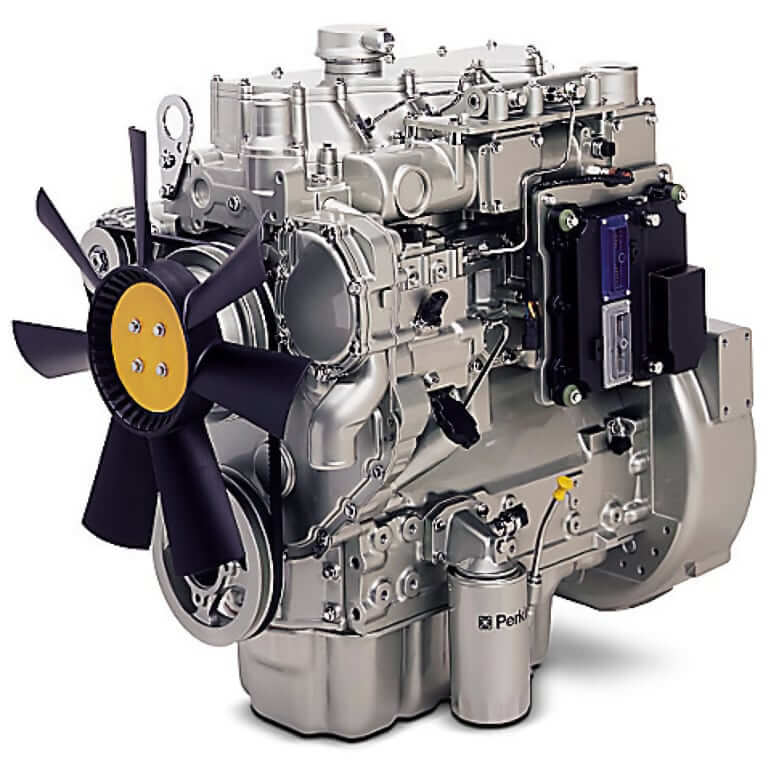

Engine Details
| Number of Cylinders | 4 |
| Engine Make | Perkins |
| Engine Model | Perkins 1104D-44T |
| Displacement | 269 cu in (4.4 L) |
| Gross Power | 83.8 hp (62.5 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 480 lb ft (354 Nm) |
| Torque Measured @ | 1400 rpm |
| Compression Ratio | 16.2:1 |
| Bore | 4.13 in (105 mm) |
| Stroke | 5.0 in (127 mm) |
| Aspiration | Turbocharged |
| Emission Standards | EU Stage IIIA / US EPA Tier 3 equivalent |
Operational Specs
| Compaction Width | 66.9 in (1700 mm) |
| Max Speed | 6.2 mph (10 km/h) |
| Rear Tire Size | 16.9-24 |
| Angular Movement | ±12 |
| Gradeability Without Vibration | 45% |
| Gradeability With Vibration | 50% |
Weight
| Operating Weight CECE | 15652.8 lb (7100 kg) |
| Fron Axle Load | 8377.6 lb (3800 kg) |
| Rear Axle Load | 7572.2 lb (3300 kg) |
| Static Linear Load (Average) | 125.4 lb/in (22.4 kg/cm) |
Service Refill Capacities
| Fuel Tank Capacity | 44.1 gal (167 L) |
| Hydraulic System Fluid Capacity | 17.9 gal (68 L) |
| Engine Oil Capacity | 2.2 gal (8.4 L) |
| Cooling System Fluid Capacity | 1.9 gal (7.0 L) |
