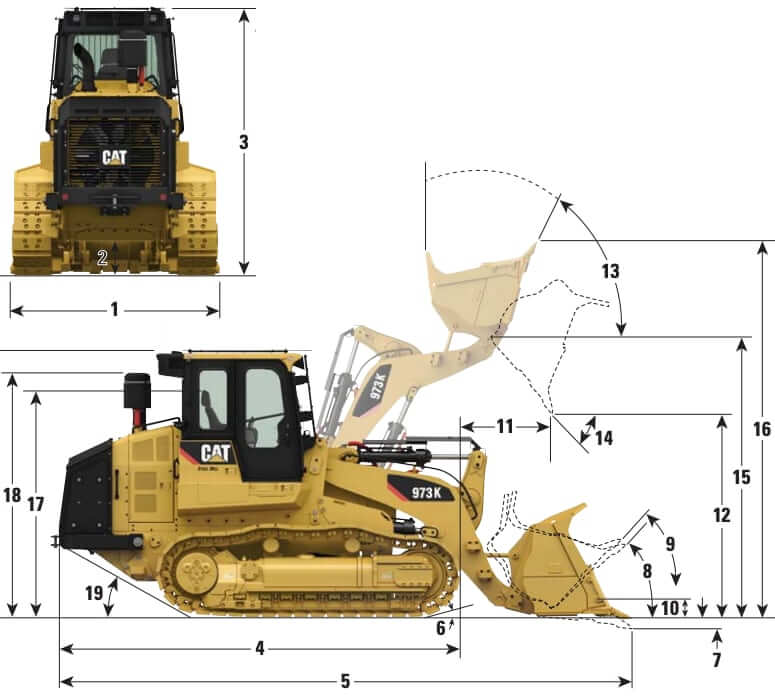

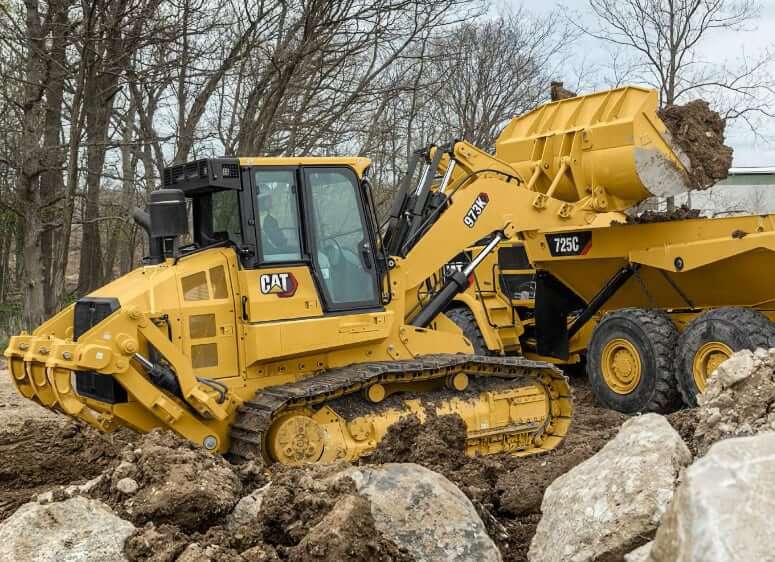

Dimensions
| Ground Clearance | 1.55 ft in (469.9 mm) |
| Maximum Rollback/Dump – Fully Raised | 59 degrees/49 degrees |
| Overall Machine Height – Bucket Fully Raised | 226.5 in (5753.1 mm) |
| Overall Machine Length* | 298.4 in (7579.36 mm) |
| Overall Machine Width Without Bucket: With Standard Tracks – 550 Mm (21.6 In) Shoes | 106.7 in (2710.18 mm) |
| Ramp Angle | 29 degrees |
| Reach At Full Lift Height And 45 Degrees Dump* | 53.8 in (1366.52 mm) |
| Note | *With General Purpose bucket and heavy duty teeth. |
| Bucket Height – Carry Position | 19 in (482.6 mm) |
| Carry Position Approach Angle | 15 degrees |
| Clearance At Full Lift Height And 45 Degrees Dump* | 116.2 in (2951.48 mm) |
| Digging Depth* | 6.2 in (157.48 mm) |
| Grading Angle | 85 degrees |
| Machine Height – Top Of Cab | 138.2 in (3510.28 mm) |
| Maximum Rollback – Ground/Carry Position | 43 degrees/47 degrees |
| Height – Bucket Hinge Pin | 166.1 in (4218.94 mm) |
| Height – Top Of Stack | 120.8 in (3068.32 mm) |

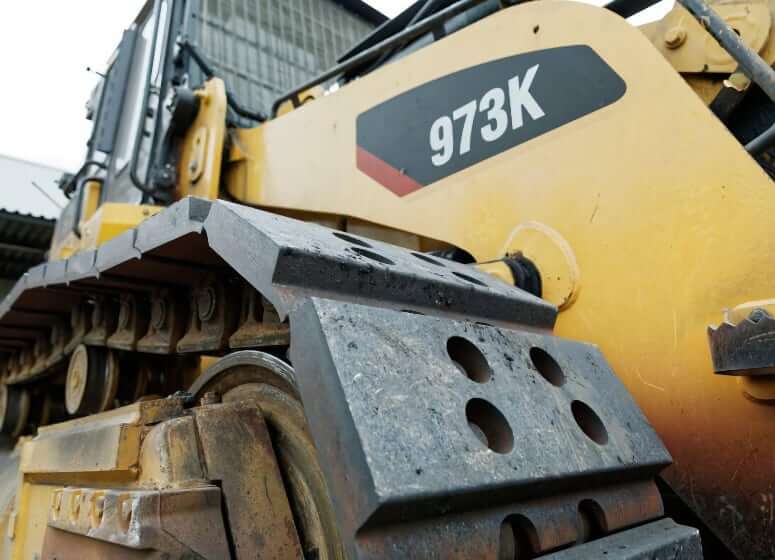

Undercarriage
| Track Gauge | 7.09 ft in (2159 mm) |
| Track Shoe Width – Wide Gauge | 32.71 in (830.58 mm) |
| Ground Contact Area* – Optional Shoe – 675 Mm (26.6 In) | 6960 in2 (4.5 m2) |
| Ground Contact Area* – Standard Shoe – 550 Mm (21.6 In) | 5673 in2 (3.66 m2) |
| Ground Contact Area* – Wide Gauge – 830 Mm (32.7 In) | 8572 in2 (5.54 m2) |
| Ground Pressure* – Optional Shoe – 675 Mm (26.6 In) | 9.3 psi |
| Ground Pressure* – Standard Shoe – 550 Mm (21.6 In) | 11.3 psi |
| Ground Pressure* – Wide Gauge – 830 Mm (32.7 In) | 8.3 psi |
| Grouser Height – Double Grouser | 1.92 in (48.77 mm) |
| Track On Ground | 115.3 in (2928.62 mm) |
| Track Rollers/Shoes – Each Side | Jul-40 |
| Track Shoe Width – Optional | 26.6 in (675.64 mm) |
| Track Shoe Width – Standard | 21.6 in (548.64 mm) |
| Note | *ISO 16754:2008. |
Engine Details
| Emissions | Tier 4 Final/Stage IV/Korea Tier 4 |
| Engine Model | Cat C9.3 ACERT |
| Flywheel Power | 275 hp (205.1 kw) |
| Note (1) | All nonroad Tier 4 Interim and Final, Stage IIIB and IV and Korea Tier 4 Final diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) with 15 ppm (mg/kg) of sulfur or less, or up to B20 biodiesel blended with ULSD. B20 should meet ASTM D7467 specification (biodiesel blend stock should meet Cat biodiesel spec, ASTM D6751 or EN 14214). Cat DEO-ULS or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specification are required. Consult your OMM for further machine specific fuel recommendations. |
| Note (2) | Diesel Exhaust Fluid (DEF) used in Cat Selective Catalytic Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241. |
| Net Power – Iso 9249/Sae J1349 (Din) | 278 hp (207.4 kw) |
| Net Power – Iso 9249/Sae J1349 | 275 hp (205.1 kw) |

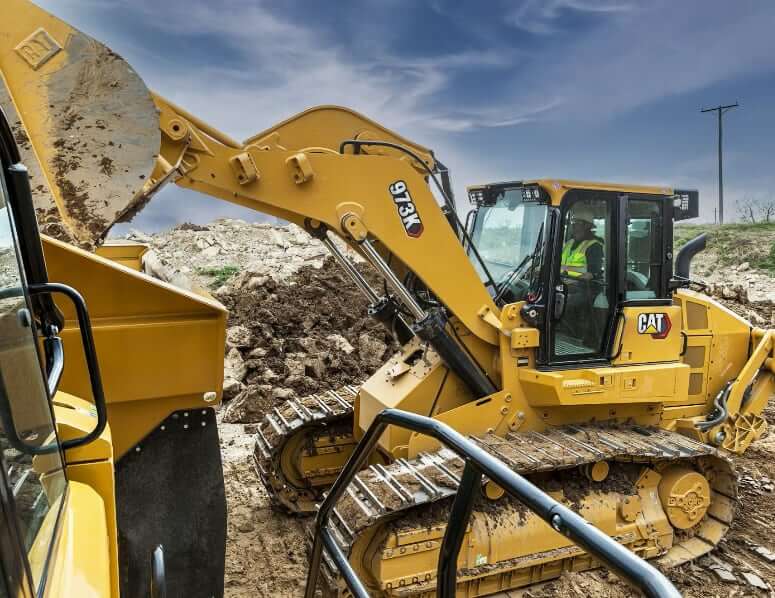

Operational Specs
| Operating Weight | 63900 lb (28984.6 kg) |

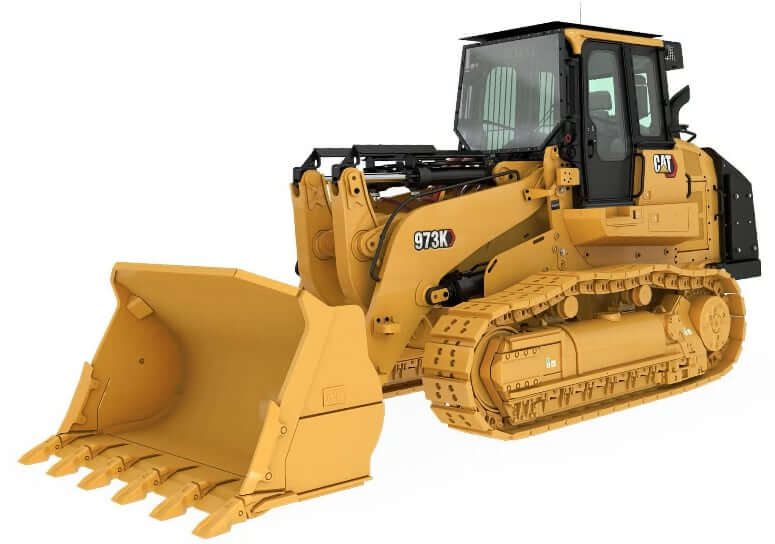

Weights
| Operating Weight – Steel Mill | 72102 lb (32705 kg) |
| Operating Weight – Waste Handler | 64319 lb (29174.7 kg) |
| Operating Weight – Wide Gauge | 71218 lb (32304 kg) |

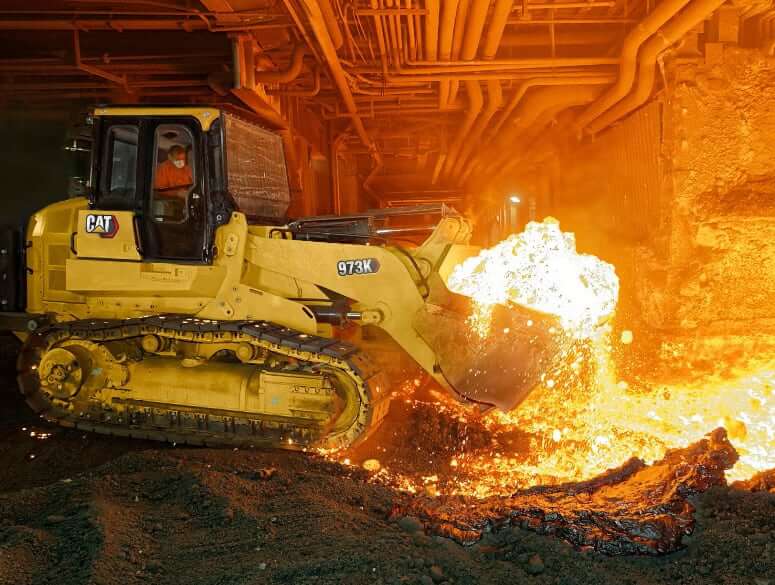

Buckets
| Capacity – General Purpose | 4.2 yd3 (3.3 m3) |
| Capacity – Multi-Purpose | 4 yd3 (3.1 m3) |
| Capacity – Performance Series | 5 yd3 (3.9 m3) |
| Width – General Purpose | 117 in (2971.8 mm) |
| Width – Performance Series | 117 in (2971.8 mm) |
| Width – Multi-Purpose | 116 in (2946.4 mm) |
| Width – Slag | 112 in (2844.8 mm) |
| Capacity – Slag | 4 yd3 (3.1 m3) |
| Width – Landfill | 117 in (2971.8 mm) |
| Capacity – Landfill | 6.4 yd3 (4.9 m3) |
Service Refill Capacities
| Fuel Tank Capacity | 101.5 gal (384.3 L) |
| Def Tank | 9.2 gal (34.9 L) |
Air Conditioning System
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.89 kg of refrigerant which has a CO2 equivalent of 2.717 metric tonnes. |
