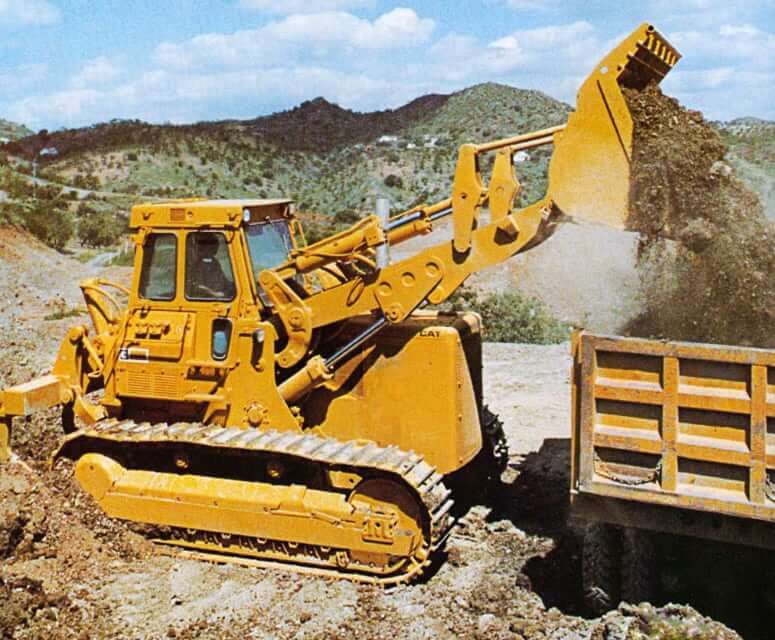

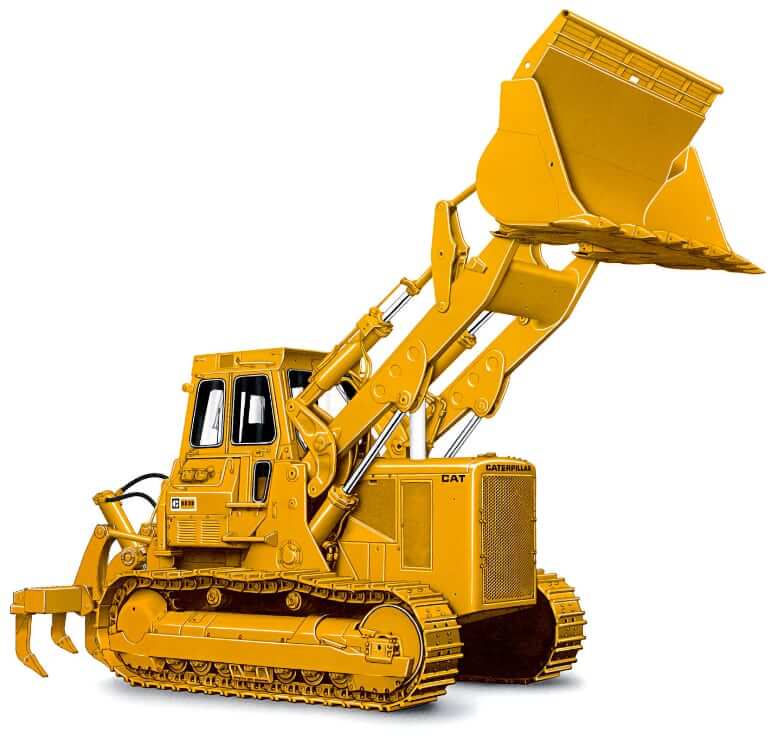

Dimensions
| Length With Bucket On Ground | 267 in (6780 mm) |
| Length To Front Of Track | 182 in (4623 mm) |
| Width To Outside Of Tracks | 114.2 in (2900 mm) |
| Height To Top of Cab / ROPS | 144 in (3658 mm) |
| Height To Top of Operator Seat | 110 in (2794 mm) |
| Ground Clearance | 22 in (560 mm) |
| Grading Angle | 76° |
Loader
| GP Bucket Capacity – Struck | 3.74 yd3 (2.86 m3) |
| GP Bucket Capacity – Heaped | 4.50 yd3 (3.44 m3) |
| Static Tipping Load | 52530 lb (23824 kg) |
| Breakout Force (GP Bucket) | 46680 lb (207.6 kN) |
| Digging Depth | 6.3 in (160 mm) |
| Clearance At Full Height And Dump | 144.1 in (3660 mm) |
| Reach At Dump Height | 46.1 in (1170 mm) |
| Reach At 45° Discharge Angle, 84 in (2130 mm) Height | 79.9 in (2030 mm) |
Operational Specs
| Operating Weight (w/ GP Bucket) | 78530 lb (35620 kg) |
| Max Operating Weight (w/ Slag Bucket) | 80800 lb (36650 kg) |
| Counterweights (w/ ROPS Canopy) | 1285 lb (583 kg) |
| Counterweights (w/o ROPS Canopy) | 3489 lb (1582 kg) |
| Operating Voltage | 24 V |
| Alternator | 35 amps |
| Max Travel Speed (Forward) | 7.0 mph (11.3 km/h) |
| Max Travel Speed (Reverse) | 8.0 mph (12.9 km/h) |
| ROPS | SAE J395, SAE J1040a and ISO 3471 |
| FOPS | SAE J231 and ISO 3449 |
Undercarriage
| Track Gauge | 92 in (2340 mm) |
| Length Of Track On Ground | 132.6 in (3370 mm) |
| Track Shoe Width | 22 in (560 mm) |
| Ground Contact Area | 5834 in2 (3.76 m2) |
| Number Of Shoes Per Side | 43 |
| Number Of Track Rollers Per Side | 7 |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | CAT |
| Engine Model | CAT 3406 |
| Displacement | 891 cu in (14.6 L) |
| Bore | 5.4 in (137 mm) |
| Stroke | 6.5 in (165 mm) |
| Net Power | 275 hp (205 kw) |
| Power Measured @ | 2060 rpm |
| Aspiration | Turbocharged |
Hydraulic
| Pump Flow Capacity | 136 gal/min (515 L/min) |
| Relief Valve Pressure | 2150 psi (14800 kPa) |
| Raise Time | 8.1 sec |
| Dump Time | 1.5 sec |
| Lower Time | 2.0 sec |
| Total Hydraulic Cycle | 11.6 sec |
Service Refill Capacities
| Fuel Tank Capacity | 135 gal (511 L) |
| Cooling System Capacity | 23.5 gal (89 L) |
| Engine Oil Capacity | 9 gal (34 L) |
| Hydraulic System Capacity | 75 gal (284 L) |
| Hydraulic Tank Capacity | 31 gal (117 L) |
| Transmission, Torque Converter, Steering Clutches | 25 gal (95 L) |
| Final Drive Fluid Capacity (Each) | 8.5 gal (32.2 L) |
