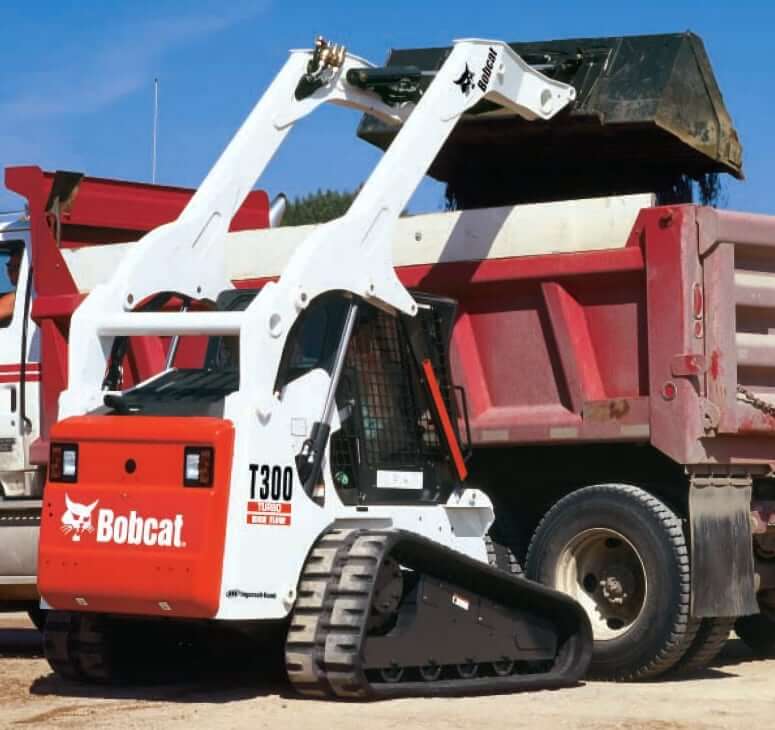

Loader Performance
| Rated Operating Capacity (35% of tipping load) | 3000 lb (1361 kg) |
| Rated Operating Capacity (50% of tipping load) | 4317 lb (1958 kg) |
| Tipping Load | 9702 lb (4177 kg) |
| Breakout Force (Lift) | 6700 lbf (29.8 kN) |
| Breakout Force (Tilt) | 6300 lbf (28.0 kN) |
| Push Force | 6200 lbf (27.6 kN) |
| Bucket Width | 80.0 in (2032 mm) |
| Lift Arm Path | Vertical-path lift arms |

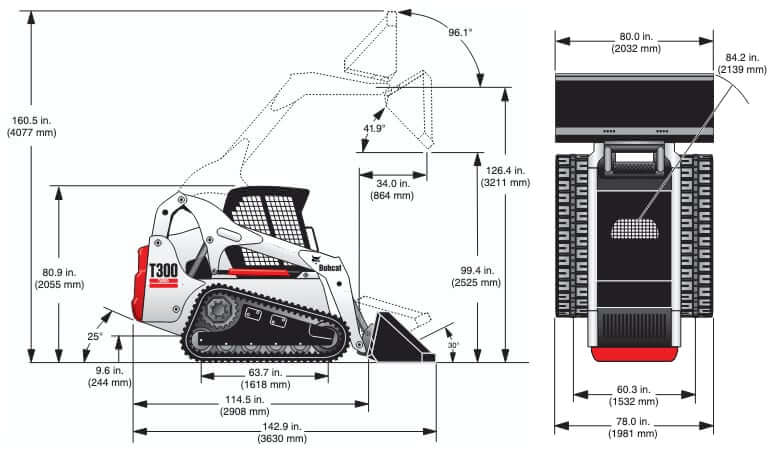

Dimensions
| Operating Height | 160.5 in (4077 mm) |
| Height with Operator Cab | 80.9 in (2055 mm) |
| Angle of Departure | 25° |
| Ground Clearance | 9.6 in (244 mm) |
| Ground Contact Length | 63.7 in (1618 mm) |
| Length without Attachment | 114.5 in (2908 mm) |
| Length with Standard Bucket | 142.9 in (3630 mm) |
| Rollback @ Ground | 30° |
| Dump Height with Standard Bucket | 99.4 in (2525 mm) |
| Height to Bucket Hinge Pin | 126.4 in (3211 mm) |
| Dump Reach @ Maximum Height | 34.0 in (864 mm) |
| Dump Angle @ Maximum Height | 41.9° |
| Rollback Fully Raised @ Maximum Height | 96.1° |
| Width Over Bucket | 80.0 in (2032 mm) |
| Track Tread | 60.3 in (1532 mm) |
| Width Over Tracks | 78.0 in (1981 mm) |
| Turning Radius with Bucket | 84.2 in (2139 mm) |

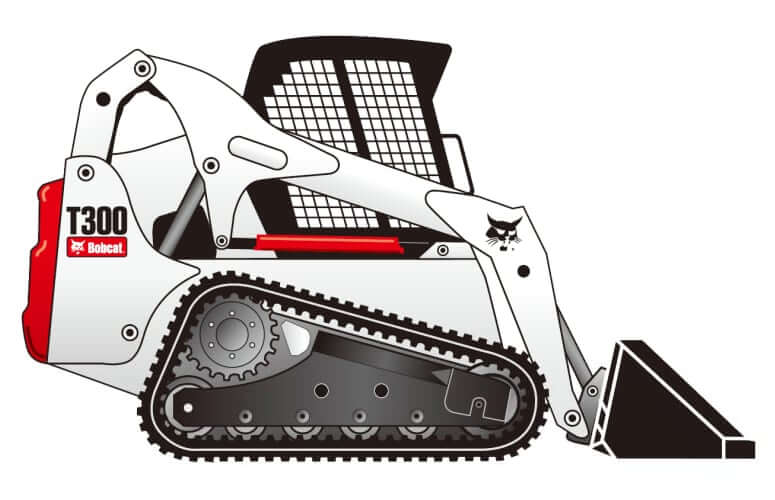

Weight
| Operating Weight (Bobcat T300) | 9702 lb (4401 kg) |
| Operating Weight (Bobcat T300H) | 9747 lb (4421 kg) |
| Shipping Weight | 8733 lb (3961 kg) |

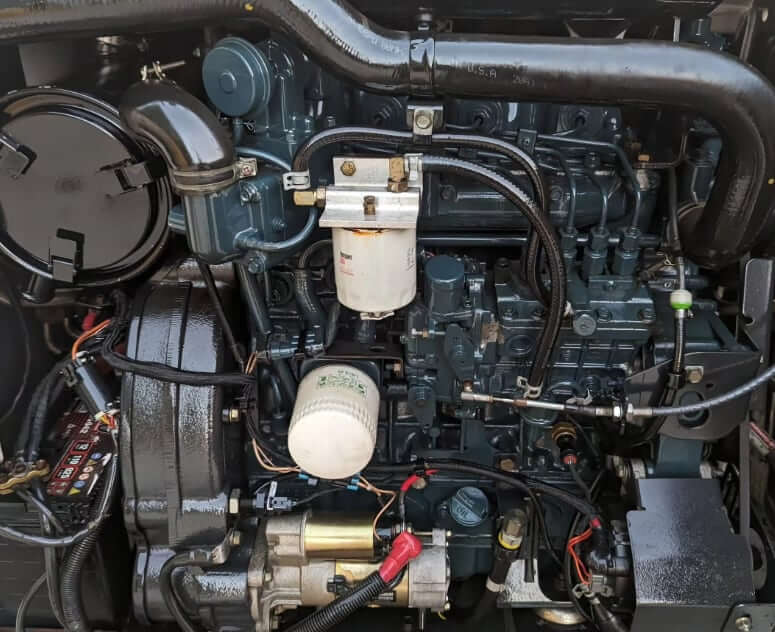

Engine Details
| Engine Model | Kubota V3300-TE | Kubota V3300M-DI-T | Kubota V3800-DI-T |
|---|---|---|---|
| Number of Cylinders | 4 | 4 | 4 |
| Displacement | 202 cu in (3.318 L) | 202 cu in (3.318 L) | 230 cu in (3.769 L) |
| Bore | 3.86 in (98 mm) | 3.86 in (98 mm) | 3.94 in (100 mm) |
| Stroke | 4.33 in (110 mm) | 4.33 in (110 mm) | 4.72 in (120 mm) |
| Max Horsepower | 87 hp (65 kw) | 81 hp (60.4 kw) | 90.1 hp (67.6 kw) |
| Net Horsepower | 78 hp (58 kw) | 78 hp (58 kw) | 77.9 hp (58.1 kw) |
| Power Measured @ | 2400 rpm | 2400 rpm | 2400 rpm |
| Lubrication System | Forced, trochoid pump | Forced, gear pump | Pressure reducing valve and filter |
| Cooling System | Radiator, water pump | Radiator, water pump | Radiator, water pump |
| Air Cleaner | Dry cartridge with safety element | Dry cartridge with safety element | Dry cartridge with safety element |
| Combustion System | Indirect injection | Indirect injection | Indirect injection |
| Fuel System | In-line pump | In-line pump | In-line pump |
| Aspiration | Turbo | Turbo | Turbo |
| Emission Standards | US EPA Tier 2 + EU Stage II | US EPA Tier 2 + EU Stage II | US EPA Tier 3 + EU Stage III |
Operational Specs
| Max Operating Weight (Bobcat T300) | 9747 lb (4421 kg) |
| Operating Voltage | 12 V |
| Alternator | 90 amps |
| Battery | 12 V, RC: 180 min, CCA 950 |
| Battery Location | Access is available through the rear door/tailgate |
| Starter | 12 V, gear type, 4 hp (3 kw) |
Power Train
| Type | Hydrostatic transmission |
| Number of Gears | Infinitely variable tandem hydrostatic piston pumps, driving 2 fully reversing hydrostatic motors |
| Max Travel Speed | 6.6 mph (10.6 km/h) |
| Control | Direction and speed controlled by two hand levers |
| Service Brakes | Hydrostatic dynamic braking via drive motors |
| Parking Brake | Spring-applied, hydraulically-released (SAHR) disc brake |

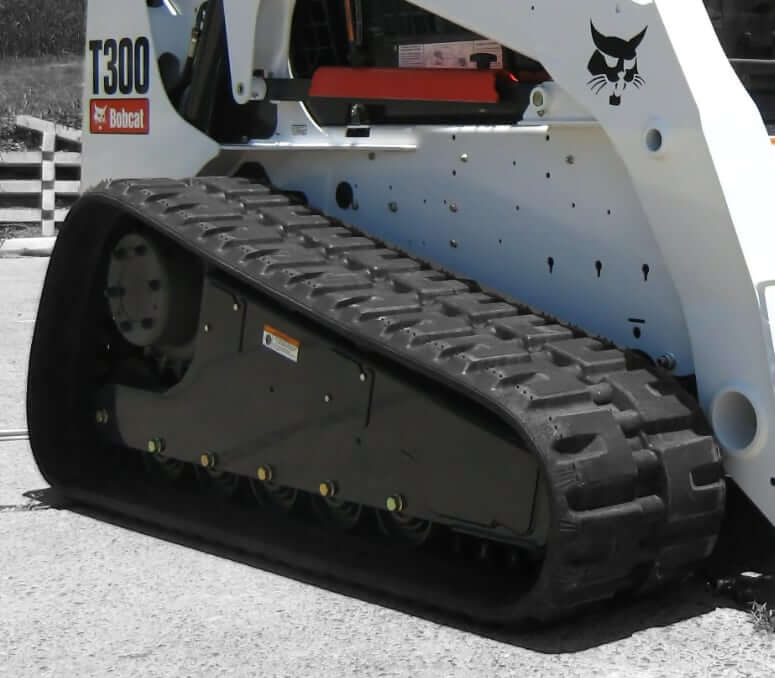

Undercarriage
| Track Type | Rubber |
| Track Width (Standard) | 17.7 in (450 mm) |
| Track Width (Optional) | 12.6 in (320 mm) |
| Track Gauge | 60.3 in (1532 mm) |
| Length of Track on Ground | 63.7 in (1618 mm) |
| Ground Pressure | 4.1 psi (28.3 kPa) |
| Departure Angle | 25° |
| Number of Track Rollers Per Side | 5 |
Operator Environment
| Standard Cab | ROPS SAE-J1040 and ISO 3471 + FOPS SAE-J1043 and ISO 3449, Level I |
| Enclosed Operator Cab | Optional |
| Operator Seat | Adjustable suspension seat, vinyl (cloth cover – optional) |
| Seat Belt | 2 point seat belt (3 point seat belt – optional) |
| Working Lights | 2x Front + 2 Rear working lights |
| Noise Level (inside cab) | 85 dB(A) |
Hydraulic System
| Type | Open center hydraulic system |
| Hydraulic Pump Type | Engine driven, gear type |
| Standard Pump Flow | 21.2 gal/min (80.25 L/min) |
| High Flow (Bobcat T300H) | 37 gal/min (140.1 L/min) |
| System Relief at Quick Couplers | 3300 psi (22800 kPa) |
| Control Valve | 3-Spool, open centre, manually operated with spring detent for lift float; Electrically controlled auxiliary spool |
| Fluid Lines | SAE Standard tubelines, hoses, and fittings |
| Raise Lift Arms Time | 4.3 sec |
| Lower Lift Arms Time | 3.0 sec |
| Bucket Dump Time | 2.7 sec |
| Bucket Rollback Time | 2.1 sec |
Service Refill Capacities
| Engine Model | V3300-TE | V3300M-DI-T | V3800-DI-T |
|---|---|---|---|
| Fuel Tank Capacity | 30 gal (113.6 L) | 30 gal (113.6 L) | 26 gal (98.4 L) |
| Engine Oil Capacity (w/ Filter) | 3.5 gal (13.2 L) | 3.5 gal (13.2 L) | 3.0 gal (11.4 L) |
| Cooling System (w/o HVAC) | 2.4 gal (9 L) | 4.3 gal (16.3 L) | 3.6 gal (13.6 L) |
| Cooling System (w/ HVAC) | 4.5 gal (17.1 L) | 4.5 gal (17.1 L) | |
| Hydraulic System Capacity | 13 gal (49.2 L) | 13 gal (49.2 L) | 13 gal (49.2 L) |
| Hydraulic Tank Capacity | 4.7 gal (17.8 L) | 4.7 gal (17.8 L) | 4.7 gal (17.8 L) |
| Hydrostatic Drive Motor (Each) | 0.06 gal (0.21 L) | 0.06 gal (0.21 L) | 0.06 gal (0.21 L) |
Bobcat T300 Filters
| Filter | Part Number |
|---|---|
| Air Filter (Inner), SN: 5219 11001-; 5220 11001-; 5254 11001-; 5255 11001-; 5320 11001-; 5321 11001- | 6681475 |
| Air Filter (Inner), SN: A5GU11001-; A5GV11001- | 6698058 |
| Air Filter (Outer), SN: 5219 11001-; 5220 11001-; 5254 11001-; 5255 11001-; 5320 11001-; 5321 11001- | 6681474 |
| Air Filter (Outer), SN: A5GU11001-; A5GV11001- | 6690857 |
| Engine Oil Filter | 6678233 |
| Fuel Filter | 6667352 |
| Hydraulic Filter ,SN: 5219 11001-; 5220 11001-; 5254 11001-; 5255 11001- | 6661248 6661807 In-Line |
| Hydraulic Filter, SN: 5320 11001-; 5321 11001- | 6661248 Stand Flow 6668819 High Flow 6661807 In-Line |
| Hydraulic Filter, SN: A5GU11001-; A5GV11001- | 6661248 Stand Flow 6668819 High Flow |
| Case Drain Filter | 6661022 |
| Hydraulic Fill / Breather Cap | 6727475 |
| Charge Filter (Aluminum) SN: 5320 11001-; 5321 11001-; A5GU11001-; A5GV11001- | 6686926 |
| Charge Filter (Cast Iron) SN: 5320 11001-; 5321 11001-; A5GU11001-; A5GV11001- | 6692337 |
| Heater Filter | 6677983 |
| Recirculating Air Filter | 6678207 |

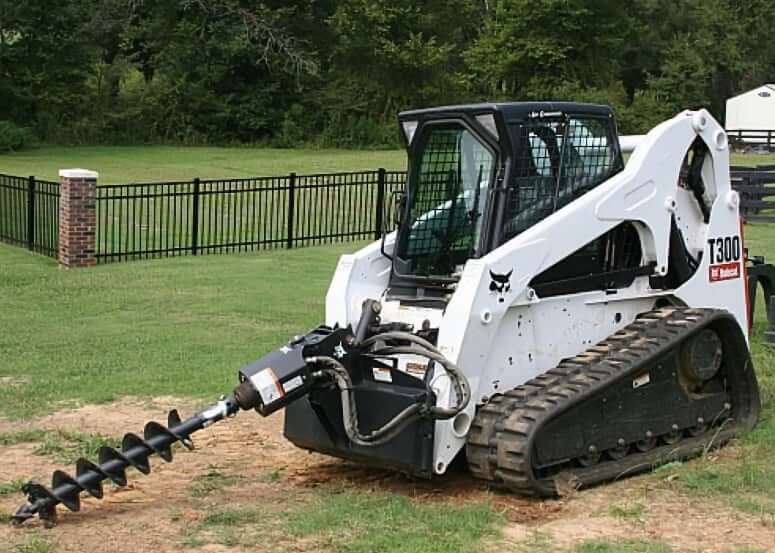

The Bobcat T300 Compact Track Loader is engineered for productivity and versatility, making it a top choice for operators who demand performance in tough ground conditions. With its powerful hydraulic system and high lifting capacity, the T300 supports a broad array of attachments, enabling it to tackle demanding jobs in construction, landscaping, agriculture, and more.
Compatible attachments include everything from standard tools like buckets, pallet forks, and augers to heavy-duty options like trenchers, stump grinders, planers, and concrete mixers. For advanced hydraulically controlled tools—such as the angle broom, snowblower, and soil conditioner—an Attachment Control Kit is required. Whether clearing land, grading, digging, or snow removal, the Bobcat T300 adapts to every challenge with efficiency and ease.
