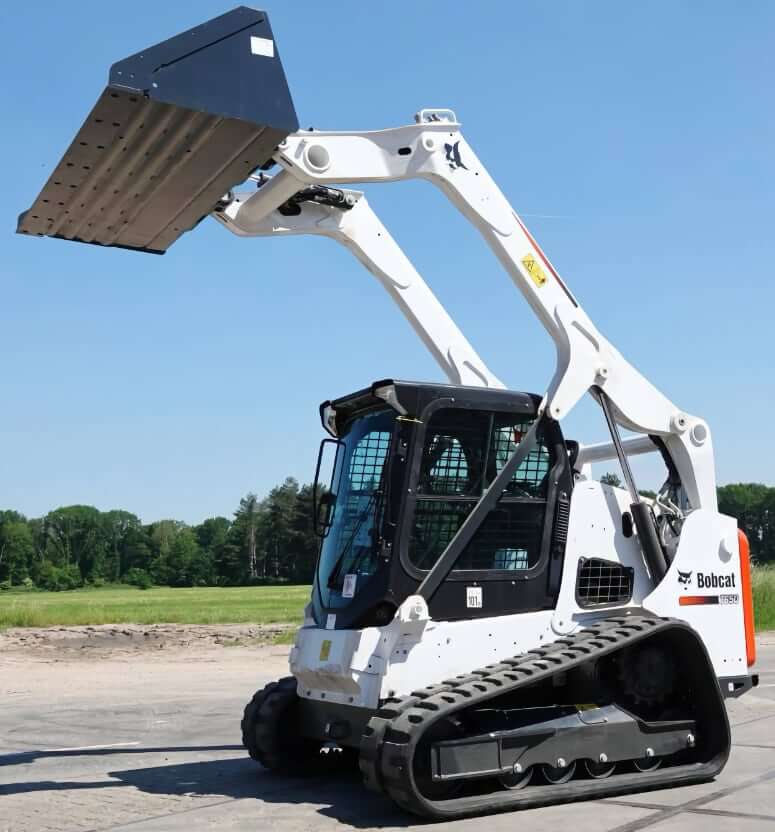

Loader
| Rated Operating Capacity (35% of tipping load) | 2570 lb (1165 kg) |
| Rated Operating Capacity (50% of tipping load) | 3670 lb (1664 kg) |
| ROC w/ Counterweight, 200 lb (90 kg) optional | 2670 lb (1211 kg) |
| Tipping Load | 7343 lb (3330 kg) |
| Breakout Force (Lift) | 6900 lbf (30.7 kN) |
| Breakout Force (Tilt) | 6960 lbf (31.0 kN) |
| Bucket Width | 74 in 1880 mm |
| Lift Arm Path | Vertical |

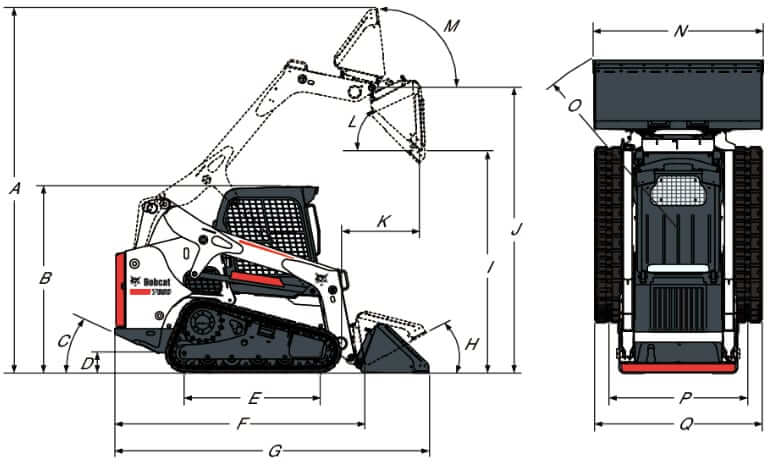

Dimensions
| A. Operating Height | 158.5 in (4026 mm) |
| B. Height with Operator Cab | 81.3 in (2065 mm) |
| C. Angle of Departure | 31° |
| D. Ground Clearance | 16 in (406 mm) / 7.3 in (185 mm) |
| E. Ground Contact Length | 57.7 in (1466 mm) |
| F. Length without Attachment | 108.4 in (2754 mm) |
| G. Length with Standard Bucket | 136.8 in (3474 mm) |
| H. Rollback @ Ground | 30.0° |
| I. Dump Height with Standard Bucket | 96.3 in (2447 mm) |
| J. Height to Bucket Hinge Pin | 124 in (3149 mm) |
| K. Dump Reach @ Maximum Height | 34.2 in (870 mm) |
| L. Dump Angle @ Maximum Height | 42° |
| M. Rollback Fully Raised @ Maximum Height | 97° |
| N. Width (over bucket) | 74 in (1880 mm) |
| O. Turning Radius with Standard Bucket | 87.7 in (2228 mm) |
| P. Track Tread | 60.3 in (1532 mm) |
| Q. Track (width over track) | 78 in (1981 mm) |

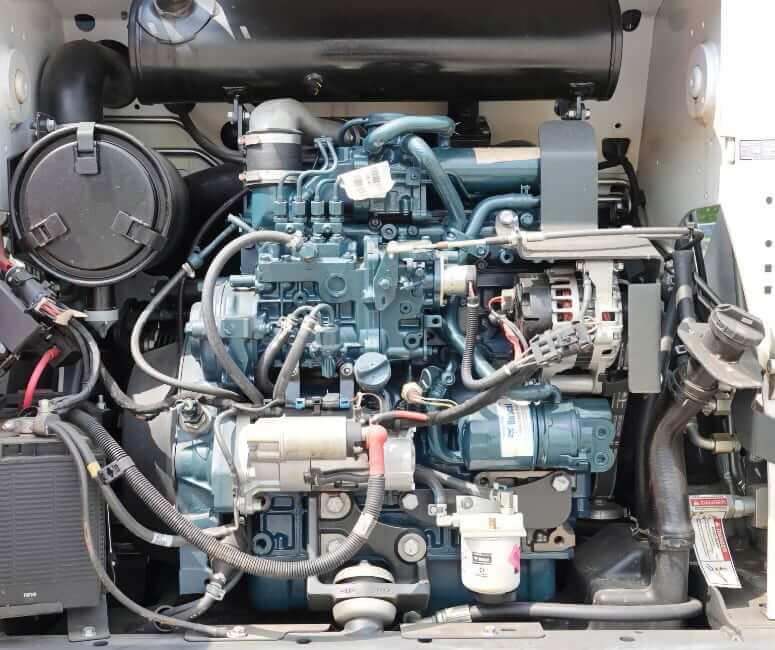

Engine Details
| Engine Make | Kubota | Doosan |
|---|---|---|
| Number of Cylinders | 4 | 4 |
| Engine Model | Kubota V3307-DI-T-E3B | Doosan D24 |
| Displacement | 203.3 cu in (3.331 L) | 146.0 cu in (2.392 L) |
| Bore | 3.70 in (94 mm) | 3.54 in (90 mm) |
| Stroke | 4.72 in (120 mm) | 3.70 in (94 mm) |
| Gross Horsepower | 74.3 hp (55.4 kw) | 74.0 hp (55.2 kw) |
| Net Horsepower | 70.3 hp (52.4 kw) | 70.5 hp (52.6 kw) |
| Power Measured @ | 2400 rpm | 2600 rpm |
| Peak Torque | 194.7 lb ft (264 Nm) | 209.4 lb ft (283.9 Nm) |
| Torque Measured @ | 1600 rpm | 1800 rpm |
| Fuel System | In-line pump | In-line pump |
| Combustion System | Direct injection | Direct injection |
| Lubrication System | Pressure pump, pressure reducing valve and filter | Gear Pump Pressure System with Filter |
| Aspiration | Turbocharged | Turbocharged and intercooled |
| Emission Standards | US EPA Interim Tier 4 + EU Stage IIIA | US EPA/CARB Tier 4 Final + EU Stage IIIB |
Operational Specs

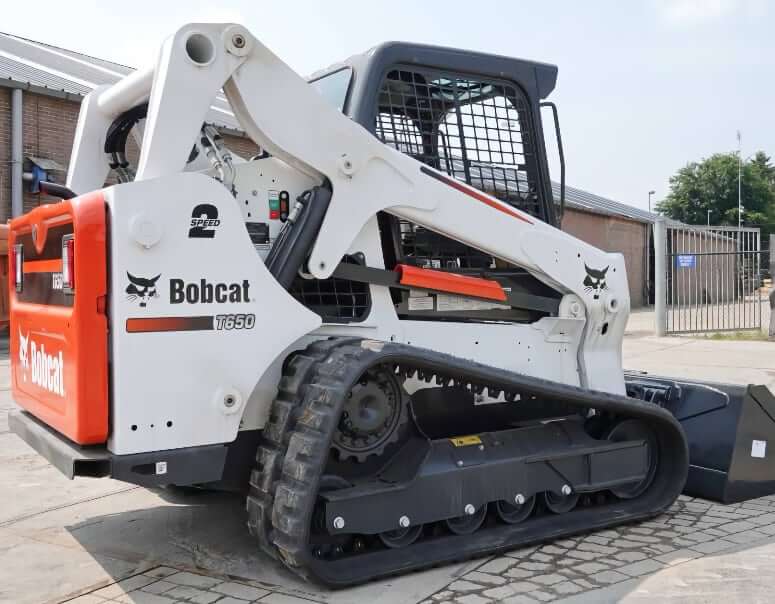

| Operating Weight | 9113 lb (4134 kg) |
| Counterweight Kit #1 | 200 lb (90 kg) |
| Counterweight Kit #2 | 300 lb (136 kg) |
| Operating Voltage | 12 V |
| Alternator | 90 amps |
| Battery (w/ Kubota V3307 engine) | 12 V, RC: 180 min, CCA 950 |
| Battery (w/ Doosan D24 engine) | 12 V, RC: 186 min, CCA 1000 |
| Starter | 12 V, gear type, 4 hp (3 kw) |
Power Train
| Type | Fully hydrostatic transmission |
| Number of Gears | Infinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic motors |
| Max Travel Speed (Single Speed) | 6.2 mph (10.0 km/h) |
| Max Travel Speed (2-Speed, optional) | 10.0 mph (16.1 km/h) |
| Service Brakes | Two independent hydrostatic systems controlled by two hand operated steering levers or optional joystick(s) |
| Secondary Brake | One of the hydrostatic transmissions |
| Parking Brake | Spring applied pressure release multi-disc brake activated by manually operated switch on left instrument panel |

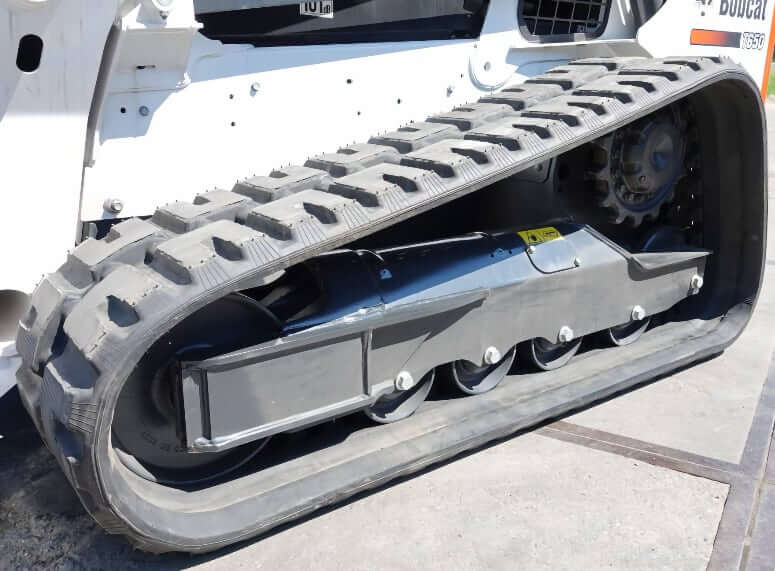

Undercarriage
| Track Width, Rubber (Standard) | 12.6 in (320 mm) |
| Track Width, Rubber (Optional) | 17.7 in (450 mm) |
| Length of Track on Ground | 57.7 in (1466 mm) |
| Ground Pressure, 320 mm Track | 5.7 psi (39 kPa) |
| Ground Pressure, 450 mm Track | 4.1 psi (28 kPa) |
| Lubrication | The track rollers and idlers have sealed bearings and do not require lubrication |
| Departure Angle | 31° |
Operator Environment
| Cab (Options) | Cab enclosure with heating / Cab enclosure with HVAC |
| ROPS | SAE-J1040 and ISO 3471 |
| FOPS | SAE-J1043 and ISO 3449, Level I |
| Operator Seat | Cushion suspension seat |
| Operator Seat (Optional) | Air ride seat with 2 point seat belt (3 point seat belt) |
| Working Lights | 2x Front + 2 Rear working lights |
| Whole Body Vibration (ISO 2631–1) | 0.64 m/s2 |
| Hand-arm Vibration (ISO 5349–1) | 1.64 m/s2 |
| Noise Level Operator LpA | 80 dB(A) |
| Noise level LWA | 101 dB(A) |
Hydraulic System
| Type | Open center hydraulic system |
| Hydraulic Pump Type | Engine driven, gear type |
| Standard Pump Flow | 23.0 gal/min (87.1 L/min) |
| High Flow Pump Flow (optional) | 30.5 gal/min (115.5 L/min) |

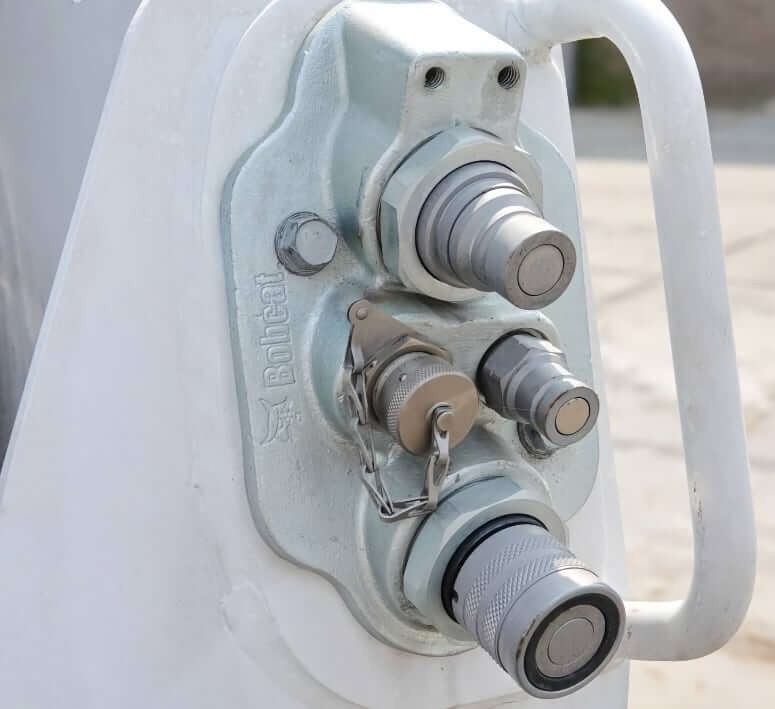

| Standard Relief Pressure at Quick Couplers | 3450 – 3550 psi (23800 – 24500 kPa) |
| Hydraulic Filter | Replaceable beta 10 micron = 200, drop in element |
| Fluid Lines | SAE Standard tubelines, hoses, and fittings |
Service Refill Capacities
| Engine Model | Kubota V3307 | Doosan D24 |
|---|---|---|
| Fuel Tank Capacity | 44.1 gal (166.9 L) 27.3 gal (103.3 L) |
43.8 gal (165.8 L) 27.5 gal (104.1 L) |
| Engine Oil Capacity (w/ Filter) | 3.0 gal (11.4 L) | 2.3 gal (8.6 L) |
| Cooling System Capacity (Cab w/o HVAC) | 3.0 gal (11.4 L) | 3.0 gal (11.4 L) |
| Cooling System Capacity (Cab w/ HVAC) | 3.1 gal (11.7 L) | 3.1 gal (11.8 L) |
| Hydraulic System Fluid Capacity | 11.9 gal (45 L) | 11.9 gal (45 L) |
| Hydraulic Tank Capacity | 2.7 gal (10.2 L) | 2.7 gal (10.2 L) |
| Travel Reduction Unit (each) | 0.05 gal (0.18 L) | 0.1 gal (0.375 L) |
Bobcat T650 Filters
| Filter | Part Number |
|---|---|
| Air Filter (Inner), SN A3P011001-; A3P111001-; 1MLT11001- | 7008044 |
| Air Filter (Inner), SN ALJG11001-; T1ML11001-; B2KZ11001- | 7221934 |
| Air Filter (Outer), SN A3P011001-; A3P111001-; 1MLT11001- | 7008043 |
| Air Filter (Outer), SN ALJG11001-; T1ML11001-; B2KZ11001- | 7286322 |
| Engine Oil Filter, SN A3P011001-; A3P111001-; 1MLT11001- | 6678233 |
| Engine Oil Filter, SN ALJG11001-; T1ML11001-; B2KZ11001- | 7012303 |
| Fuel Filter, SN A3P011001-; A3P111001-; 1MLT11001- | 6667352 |
| Fuel Filter, SN ALJG11001-; T1ML11001-; B2KZ11001- | 7023589 |
| Hydraulic Filter, SN A3NR11001-; A3NS11001-; ALJU11001- | 7002734 (A3P011001-11190, A3P111001-11100) 7012314 w/ 7015308 (A3P011191 & abv., A3P111101 & abv., 1MLT11001 & abv.) |
| Hydraulic Filter, SN ALJG11001- | 7024037 |
| Hydraulic Filter, SN T1ML11001-; B2KZ11001- | 7012314 w/ 7015308 |
| Hydraulic Fill/Breather Cap | 6727475 |
| Charge Filter | 6686926 – Spin-on 6692337 – Canister |
| Heater Filter | 7176099 |
| Recirculating Air Filter, SN A3P011001-; A3P111001-; 1MLT11001- | 6698096 (metal housing) 7193354 (plastic housing) |
| Recirculating Air Filter, SN ALJG11001-; T1ML11001-; B2KZ11001- | 7193354 |

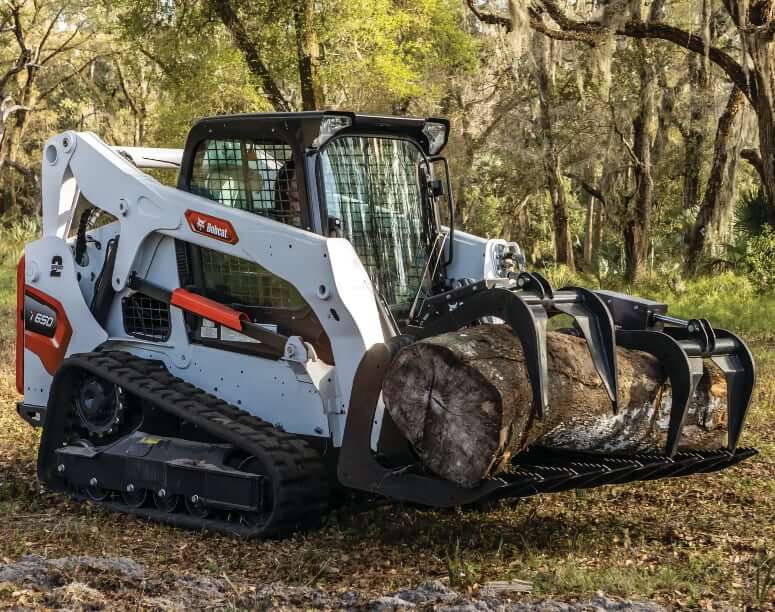

The Bobcat T650 Compact Track Loader is a powerful and versatile machine built to handle demanding tasks across construction, landscaping, agriculture, and property maintenance. Its compatibility with a wide array of genuine Bobcat attachments makes it a go-to solution for year-round productivity. From digging and grading with tools like augers, trenchers, and box blades, to material handling with pallet forks, utility forks, and industrial grapples, the T650 adapts to your workload.
For landscaping and site prep, attachments like landplanes, landscape rakes, tillers, and soil conditioners offer precision and control. In snow and debris management, the loader teams up with snow blowers, pushers, V-blades, sweepers, and whisker brooms to keep job sites clear and operational. With additional tools like forestry cutters, concrete mixers, seeders, stump grinders, and tree transplanters, the Bobcat T650 becomes a multi-purpose powerhouse, ready to meet the challenges of virtually any job.
