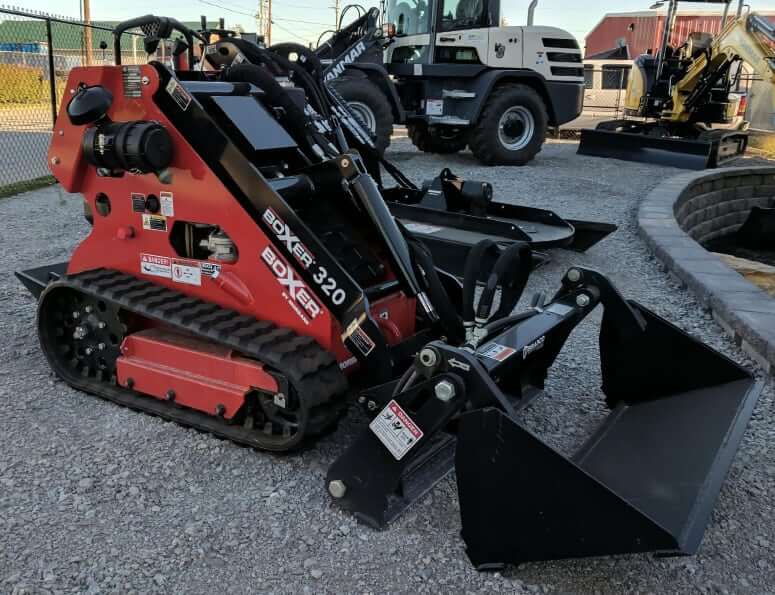

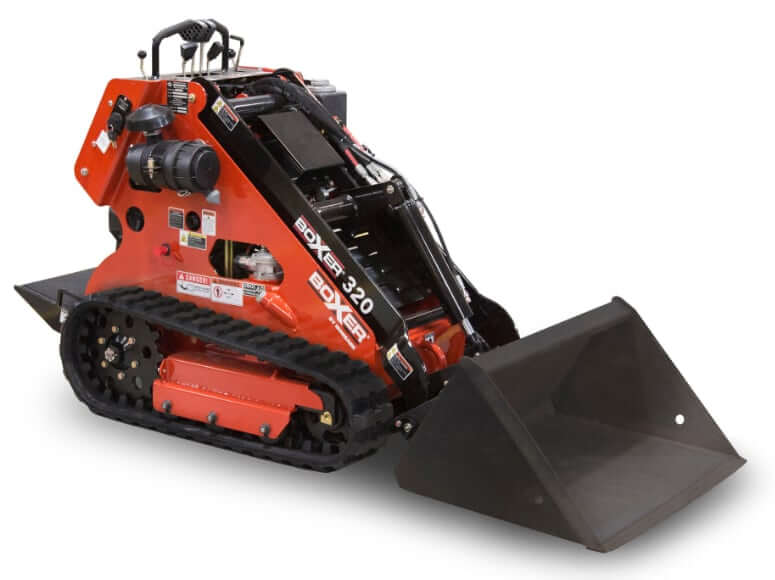

Boxer 320 Compact Track Loader

Contents

Dimensions
Undercarriage
Engine Details
Operational Specs
Loader
Hydraulic

Dimensions

Ground Clearance	19.2 in (487.68 mm)
Dump Height – Maximum	54.02 in (1372 mm)
Width	2.88 ft in (876 mm)
Dump Angle	34 degrees
Hinge Pin Height – Fully Raised	70 in (1778 mm)
Length With Bucket	7.75 ft in (2362 mm)
Length With Out Bucket	5.67 ft in (1727 mm)
Overall Height	4.09 ft in (1245 mm)

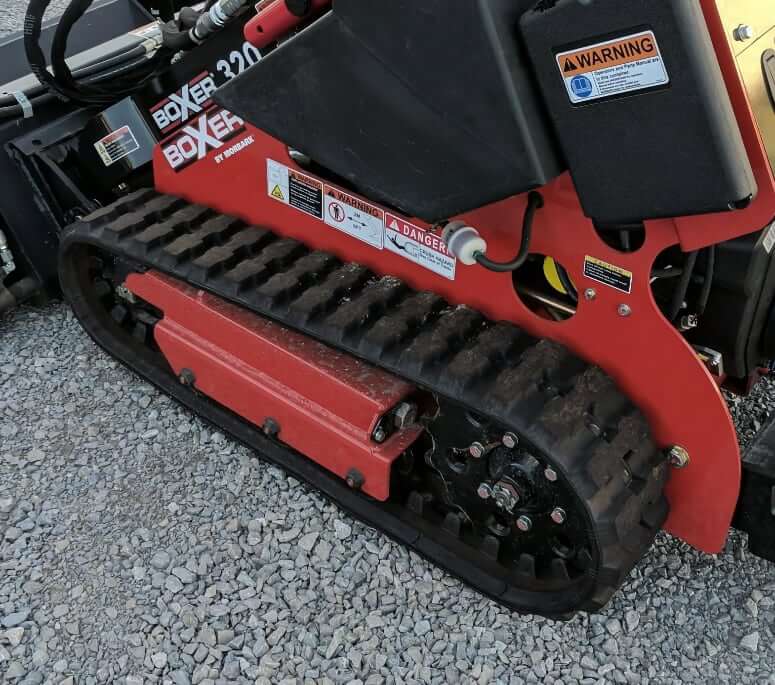

Undercarriage

Ground Pressure

3.2 psi (22.07 kPa)

Engine Details

Engine Make	Kohler Command
Gross Power	20 hp (15 kw)

Operational Specs

Operating Weight	1739.5 lb (789 kg)
Fuel Tank Capacity	4.5 gal (17.1 L)
Travel Speed	3.5 mph (5.5 km/h)

Loader

Wheel (Track Options)	7.1 in (180 mm)
Tip Capacity	1250 lb (567 kg)
Ground Drive	3 gal/min (11.4 L/min)
Operating Load	436.6 lb (198 kg)

Hydraulic

Hydraulic Reservoir	16 gal (60.6 L)
Auxiliary Hydraulic Flow	8 gal/min (30.3 L/min)
Relief Valve Pressure	3000 psi (20684.3 kPa)
