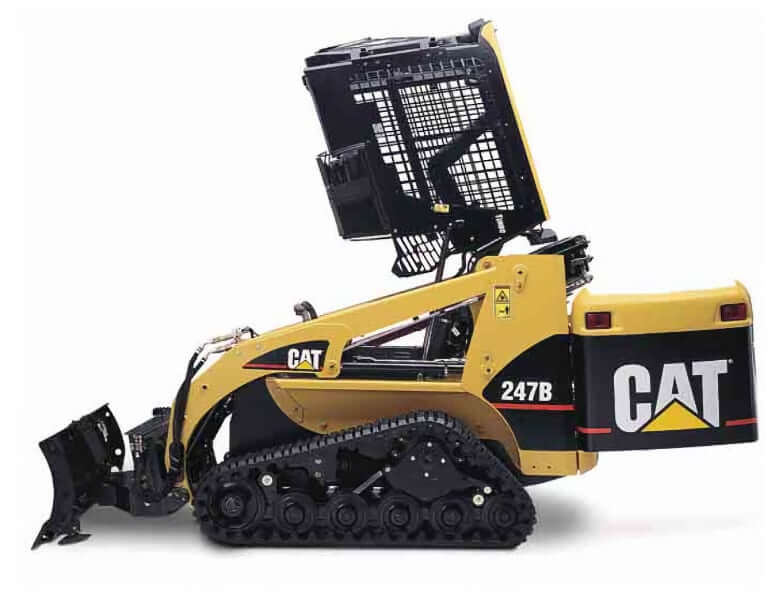

Loader
| Breakout Force (Lift Cylinder) | 3127 lbf (13.91 kN) |
| Breakout Force (Tilt Cylinder) | 3734 lbf (16.61 kN) |
| Tipping Load | 3907 lb (1772 kg) |
| Rated Lift Capacity – 50% Tipping Load | 1951 lb (885 kg) |
| Rated Lift Capacity – 35% Tipping Load | 1367 lb (620 kg) |

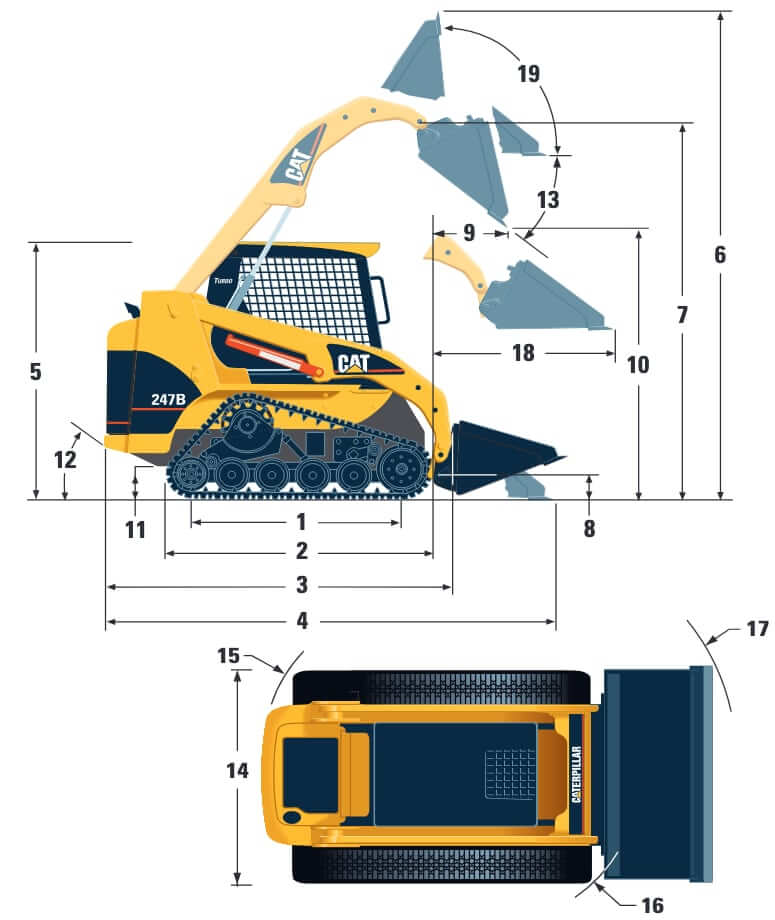

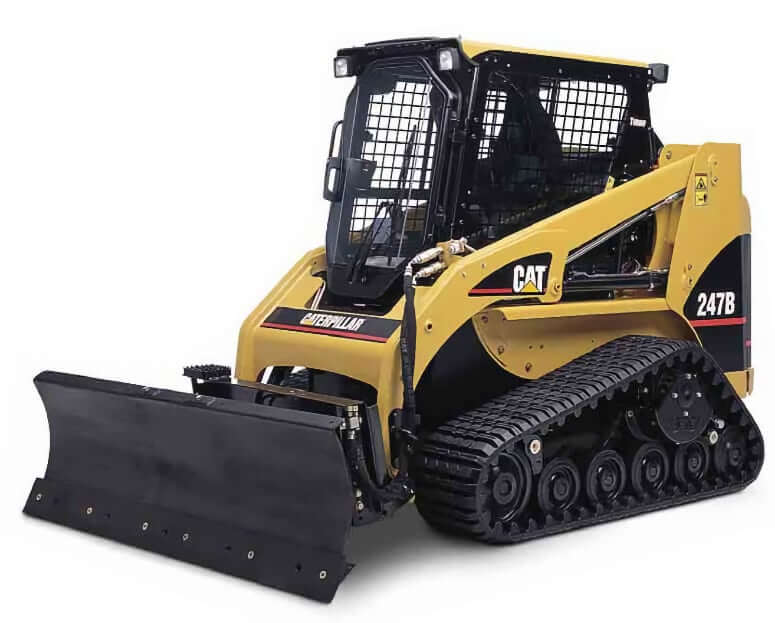

Dimensions
| 1. Trackbase | 59 in (1499 mm) |
| 2. Length of Undercarriage | 75 in (1899 mm) |
| 3. Length w/o Bucket | 99 in (2518 mm) |
| 4. Length w/ Bucket on Ground | 129 in (3285 mm) |
| 5. Height To Top Of Cab | 78 in (1990 mm) |
| 6. Max Overall Height | 150 in (3799 mm) |
| 7. Hinge Pin Height at Max Lift | 112 in (2862 mm) |
| 8. Hinge Pin Height at Carry Position | 9.2 in (234 mm) |
| 9. Reach At Max Lift And Dump | 25 in (625 mm) |
| 10. Clearance At Max Lift And Dump | 84 in (2134 mm) |
| 11. Ground Clearance | 10 in (267 mm) |
| 12. Departure Angle | 41° |
| 13. Max Dump Angle | 40° |
| 14. Overall Width Over Tracks | 66 in (1676 mm) |
| 15. Turn Radius from Center – Left | 53.4 in (1356 mm) |
| 16. Turn Radius from Center – Right | 51.9 in (1318 mm) |
| 17. Turn Radius from Center – Full | 84.9 in (2157 mm) |
| 18. Reach with Level Arms and Bucket | 54.9 in (1395 mm) |
| 19. Rack Back Angle at Max Height | 97° |
Undercarriage
| Length Of Track On Ground | 59 in (1499 mm) |
| Rubber Track | 15 in (381 mm) |
| Ground Contact Area | 1770 in2 (1.14 m2) |
| Ground Pressure | 3.77 psi (26 kPa) |
| Torsion Axles | Heavy-duty, torsion axles suspend each side of the undercarriage |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Caterpillar |
| Engine Model | Cat 3024C T |
| Displacement | 135 cu in (2.2 L) |
| Bore | 3.3 in (84 mm) |
| Stroke | 3.9 in (100 mm) |
| Gross Power | 62 hp (46 kw) |
| Net Power | 57 hp (43 kw) |
| Power Measured @ | 2600 rpm |
| Aspiration | Turbocharged |
| Emission Standards | US EPA Tier 2 and EU Stage II |
Power Train
| Type | Hydrostatic Transmission. |
| Hydrostatic Pumps | Dual, closed-loop, axial piston hydrostatic pumps driven directly off engine. |
| Motors | Pumps provide pressure and flow to two fixed displacement motors |
| Travel Speed Forward | 7.6 mph (12.2 km/h) |
| Travel Speed Reverse | 7.6 mph (12.2 km/h) |
| Service Brakes | Hydrostatic service brakes |
| Parking Brake | Multi-disc, spring-applied hydraulically released |

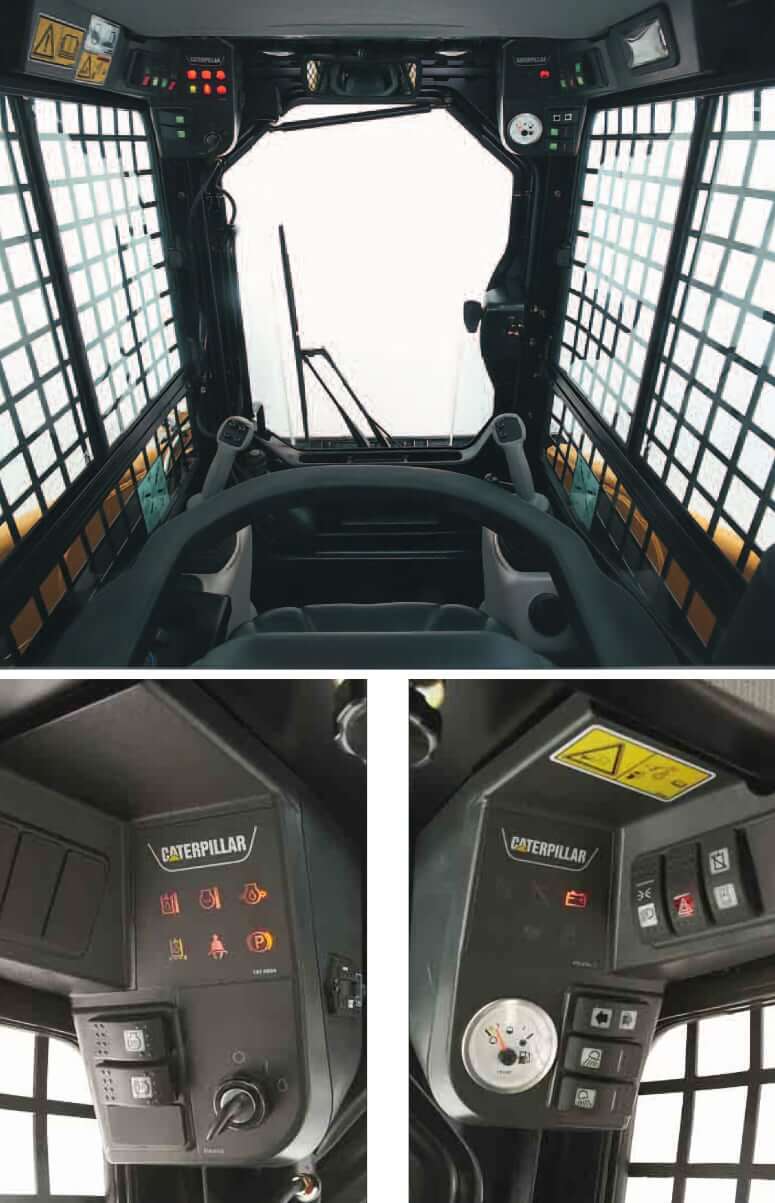

Operational Specs
| Operating Weight | 6667 lb (3024 kg) |
| Max Operating Lift Capacity | 1951 lb (885 kg) |
| Operating Voltage | 12 V |
| Alternator | 85 amps |
| Battery | 12 V, CCA 650 |
| ROPS | ISO 3471:1994 |
| FOPS | ISO 3449:1998 Level I / ISO 3449:1998 Level II (Optional) |
| Sound Power Level | 104 dB(A) |
| Operator Sound Level (ISO 6396) | 89 dB(A) |
| Cab Door | Either glass or polycarbonate with wiper/washer and loader arm lock-out |
Hydraulic System

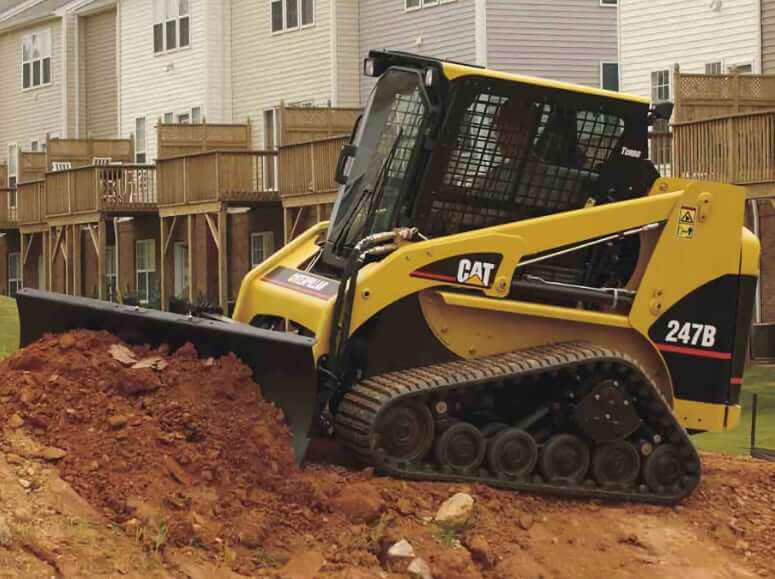

| Pump Flow | 15.8 gal/min (60 L/min) |
| Relief Valve Pressure | 3335 psi (23000 kPa) |
| Hydraulic Power | 30.4 hp (22.7 kw) |
| Work Tools | Augers, Angle Blades, Brooms, Cold Planers, Forks & Carriages, Grapple Buckets & Forks, Landscape Rakes, Landscape Tillers, Material Handling Arms, Stump Grinders, Trenchers, Snow Blowers, Vibratory Compactors, Dozer Blades |
| Work Tool Interface | Coupler, Mechanical, Quick |
Service Refill Capacities
| Fuel Tank Capacity | 17.2 gal (65 L) |
| Engine Oil Capacity | 2.1 gal (8 L) |
| Cooling System Capacity | 2.7 gal (10 L) |
| Hydraulic System Capacity | 14.6 gal (55 L) |
| Hydraulic Tank Capacity | 9.2 gal (35 L) |
