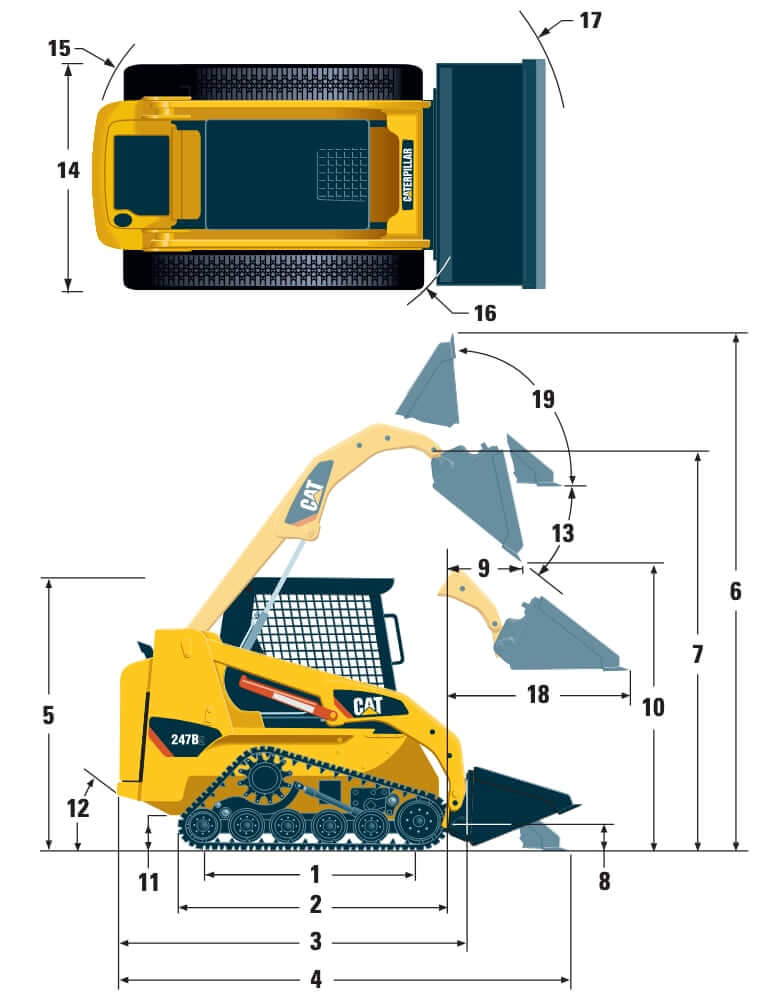

Dimensions
| Ground Clearance | 0.84 ft in (254 mm) |
| Bucket Pin Height – Maximum Lift | 9.34 ft in (0.24 m) |
| Clearance At Maximum Lift And Dump | 84 in (2133.6 mm) |
| Departure Angle | 41 degrees |
| Height – Top Of Cab | 6.5 ft in (0.17 m) |
| Length – Track On Ground | 59 in (1498.6 mm) |
| Length – With Bucket On Ground | 129 in (3276.6 mm) |
| Length – Without Bucket | 99 in (2514.6 mm) |
| Maximum Dump Angle | 40 degrees |
| Maximum Overall Height | 150 in (3810 mm) |
| Maximum Reach – With Arms Parallel | 54.9 in (1394.46 mm) |
| Overall Length – Track | 75 in (1905 mm) |
| Rack Back Angle – Maximum Height | 96.7 degrees |
| Reach At Maximum Lift/Dump | 25 in (635 mm) |
| Turn Radius From Center – Bucket | 84.9 in (2156.46 mm) |
| Turn Radius From Center – Coupler | 51.9 in (1318.26 mm) |
| Turn Radius From Center – Rear | 53.4 in (1356.36 mm) |
| Bucket Pin Height – Carry Position | 9.31 in (236.22 mm) |
| Vehicle Width | 66 in (1676.4 mm) |
Engine Details
| Gross Power | 61 hp (45.5 kw) |
| Net Power | 56 hp (41.8 kw) |
| Displacement | 134 cu in (2.2 L) |
| Bore | 3.3 in (83.9 mm) |
| Stroke | 3.9 in (99.1 mm) |
| Gross Power – Sae J1995 | 61 hp (45.5 kw) |
| Engine Model | Cat C2.2 T |
| Net Power – Sae 1349 | 56 hp (41.8 kw) |
Operational Specs
| Operating Weight | 6997 lb (3173.8 kg) |
Power Train
| Travel Speed Forward | 7.6 mph (12.3 km/h) |
| Travel Speed Reverse | 7.6 mph (12.3 km/h) |
Hydraulic System
| Hydraulic Power | 30.4 hp (22.7 kw) |
| Loader Hydraulic Pressure | 3335 psi |
| Loader Hydraulic Flow | 15.6 gal/min |
| Hydraulic Flow | Standard |
Operating Specifications
| Rated Operating Capacities – 50% Tipping Load | 2050 lb (929.9 kg) |
| Rated Operating Capacities – 35% Tipping Load | 1435 lb (651 kg) |
| Ground Contact Area | 1770 in2 (1.2 m2) |
| Ground Pressure | 4 psi |
| Tipping Load | 4100 lb (1859.8 kg) |
| Breakout Force – Tilt Cylinder | 4060 lb (1841.6 kg) |
Service Refill Capacities
| Cooling System | 2.6 gal (9.9 L) |
| Fuel Tank Capacity | 17 gal (64.4 L) |
| Hydraulic Tank | 9.2 gal (34.9 L) |
| Engine Crankcase | 2.6 gal (9.9 L) |
| Hydraulic System | 14.5 gal (54.9 L) |
Cab
| Rops | SAE J1040 MAY94, ISO 3471:1994 |
| Fops | SAE J1043 SEPT87, ISO 3449:1992 Level I |
| Fops Level Ii | SAE J231 JAN81, ISO 3449:1992 Level II |
