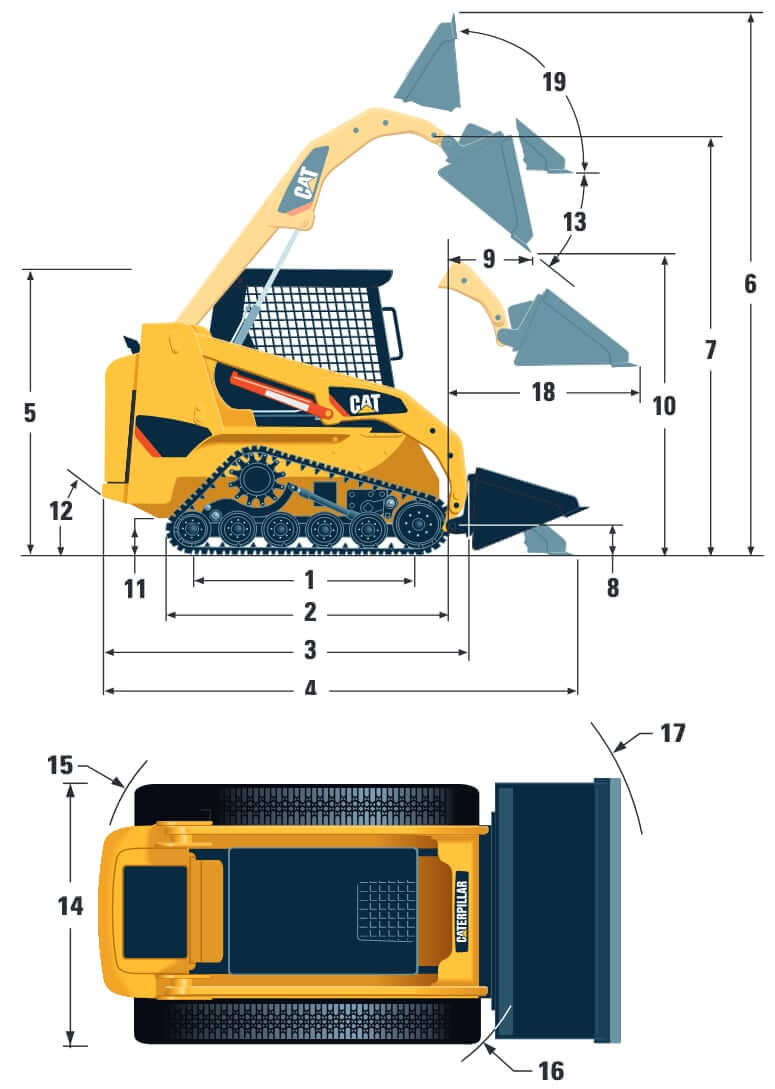

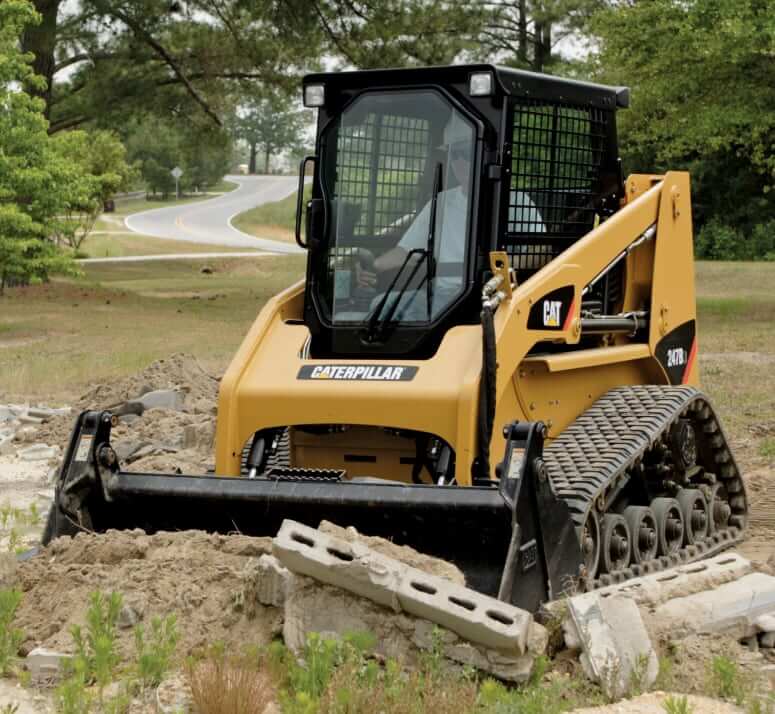

Dimensions
| Width Over Tracks | 5.5 ft in (1676 mm) |
| Height To Top Of Cab | 6.53 ft in (1990 mm) |
| Ground Clearance | 10 in (254 mm) |
| Clearance At Max Lift And Dump | 7.01 ft in (2134 mm) |
| Reach At Max Lift And Dump | 2.06 ft in (625 mm) |
| Length – Track On Ground | 59 in (1498.6 mm) |
| Length – With Bucket On Ground | 129 in (3276.6 mm) |
| Length – Without Bucket | 99 in (2514.6 mm) |
| Length With Out Bucket | 8.27 ft in (2518 mm) |
| Bucket Pin Height – Maximum Lift | 9.34 ft in (0.24 m) |
| Clearance At Maximum Lift And Dump | 84 in (2133.6 mm) |
| Departure Angle | 41 degrees |
| Height – Top Of Cab | 6.5 ft in (0.17 m) |
| Turning Radius From Center – Inc Bucket | 82.49 in (2095 mm) |
| Turning Radius From Center – Machine Rear | 54.22 in (1377 mm) |
| Vehicle Width | 66 in (1676.4 mm) |
| Length With Bucket | 10.78 ft in (3285 mm) |
| Bucket Pin Height – Carry Position | 8.7 in (220.98 mm) |
| Maximum Dump Angle | 40 degrees |
| Maximum Overall Height | 150 in (3810 mm) |
| Maximum Reach – With Arms Parallel | 53 in (1346.2 mm) |
| Overall Length – Track | 75 in (1905 mm) |
| Rack Back Angle – Maximum Height | 82 degrees |
| Reach At Maximum Lift/Dump | 25 in (635 mm) |
| Turn Radius From Center – Bucket | 82 in (2082.81 mm) |
| Turn Radius From Center – Coupler | 52 in (1320.8 mm) |
| Turn Radius From Center – Rear | 54 in (1371.6 mm) |
Undercarriage
| Length Of Track On Ground | 4.92 ft in (1499 mm) |
| Ground Contact Area | 1770 in2 (1.15 m2) |
| Ground Pressure | 4 psi (27.58 kPa) |
Engine Details
| Engine Make | CAT |
| Engine Model | C2.2T |
| Gross Power | 62 hp (46.3 kw) |
| Net Power | 56 hp (41.8 kw) |
| Displacement | 134 cu in (2.2 L) |
| Bore | 3.3 in (83.9 mm) |
| Stroke | 3.9 in (99.1 mm) |
| Gross Power – Sae J1995 | 62 hp (46.3 kw) |
| Engine Model | Cat C2.2 T |
| Net Power – Iso 9249 Eec | 56 hp (41.8 kw) |
| Net Power – Sae 1349 | 56 hp (41.8 kw) |
Operational Specs
| Operating Weight | 6997 lb (3173.8 kg) |
| Cooling System Fluid Capacity | 2.7 gal (10 L) |
| Fuel Tank Capacity | 17.2 gal (65 L) |
| Engine Oil Capacity | 2.7 gal (10 L) |
| Hydraulic System Fluid Capacity | 14.6 gal (55 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 85 amps |
| Max Speed – Low Range | 7 mph (11.3 km/h) |
Power Train
| Travel Speed Forward | 7 mph (11.3 km/h) |
| Travel Speed Reverse | 7 mph (11.3 km/h) |

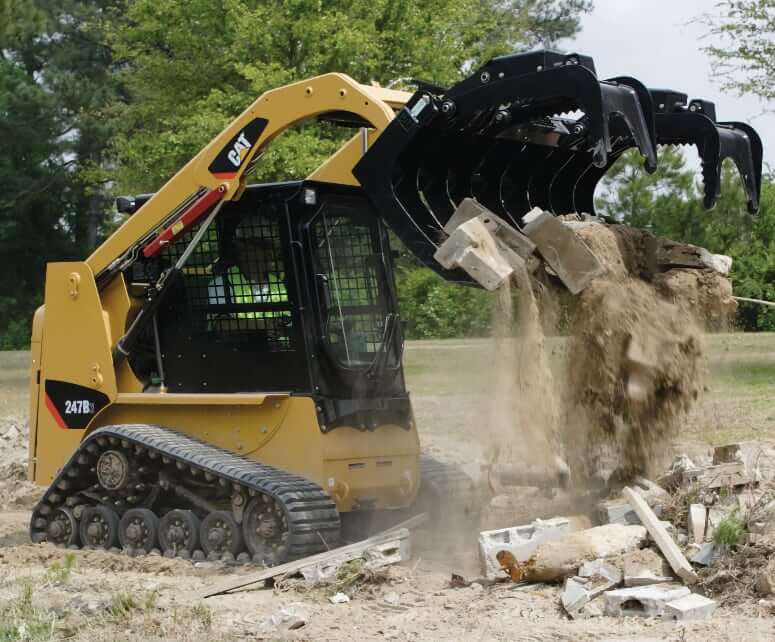

Loader
| Breakout Force | 4060 lb (1841.6 kg) |
| Operating Load | 2149.6 lb (975 kg) |
| Tipping Angle | 4299.1 degrees (4299.0138 degrees) |
Weights
| Operating Weight | 6997 lb (3173.8 kg) |

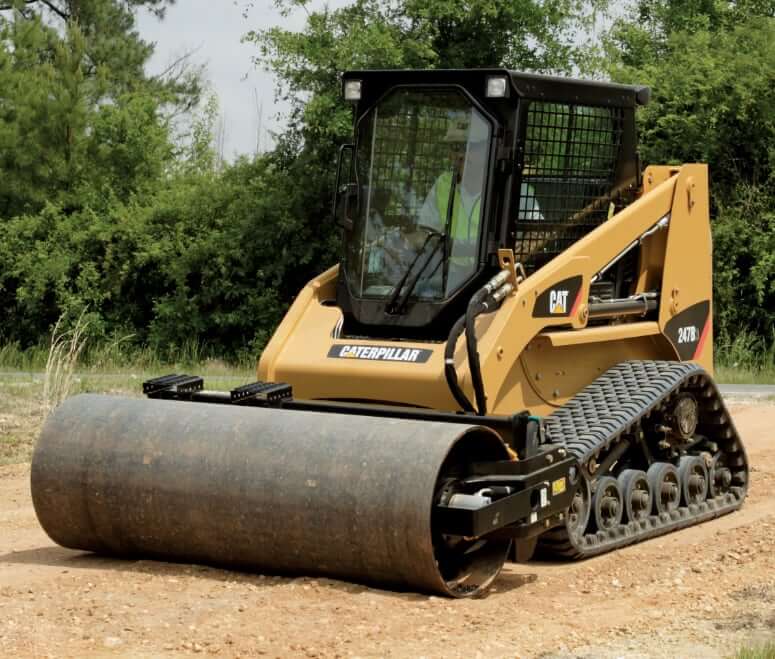

Hydraulic
| Pump Flow | 16.2 gal/min (61 L/min) |
| Relief Valve Pressure | 3335 psi (22994 kPa) |

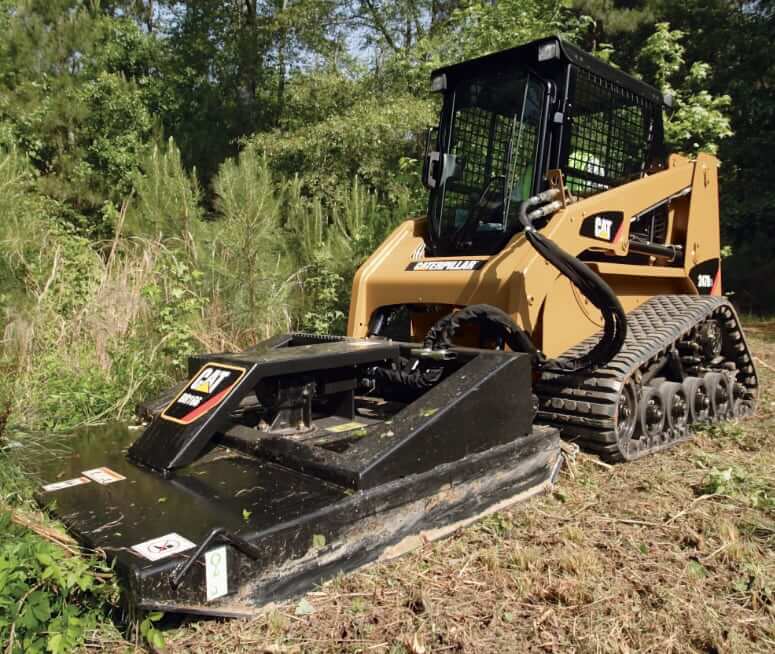

Hydraulic System
| Hydraulic Power | 31 hp (23.2 kw) |
| Loader Hydraulic Pressure | 3335 psi |
| Loader Hydraulic Flow | 16 gal/min |
| Hydraulic Flow | Standard |
Operating Specifications
| Rated Operating Capacities – 50% Tipping Load | 2150 lb (975.3 kg) |
| Rated Operating Capacities – 35% Tipping Load | 1505 lb (682.7 kg) |
| Ground Contact Area | 1770 in2 (1.2 m2) |
| Ground Pressure | 4 psi |
| Tipping Load | 4300 lb (1950.5 kg) |
| Breakout Force – Tilt Cylinder | 4060 lb (1841.6 kg) |
Service Refill Capacities
| Cooling System | 2.6 gal (9.9 L) |
| Fuel Tank Capacity | 17 gal (64.4 L) |
| Hydraulic Tank | 9.2 gal (34.9 L) |
| Engine Crankcase | 2.6 gal (9.9 L) |
| Hydraulic System | 14.5 gal (54.9 L) |
Cab
| Rops | SAE J1040 MAY94, ISO 3471:1994 |
| Fops | SAE J1043 SEPT87, ISO 3449:1992 Level I |
| Fops Level Ii | SAE J231 JAN81, ISO 3449:1992 Level II |
