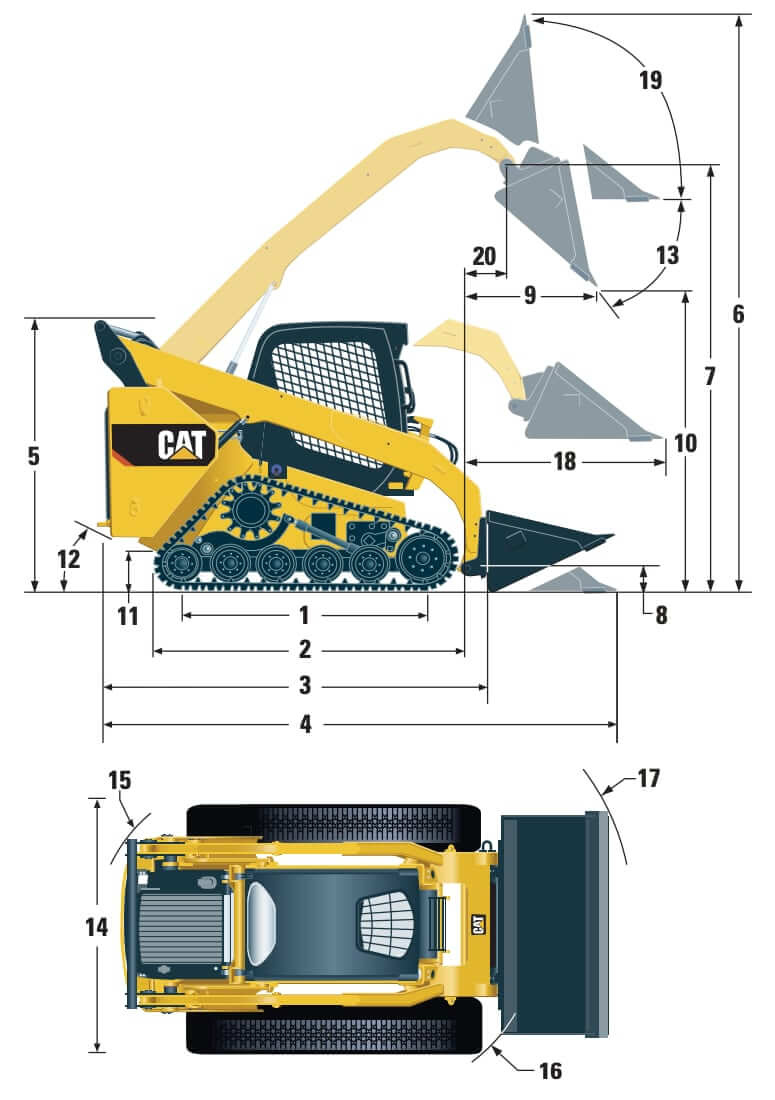

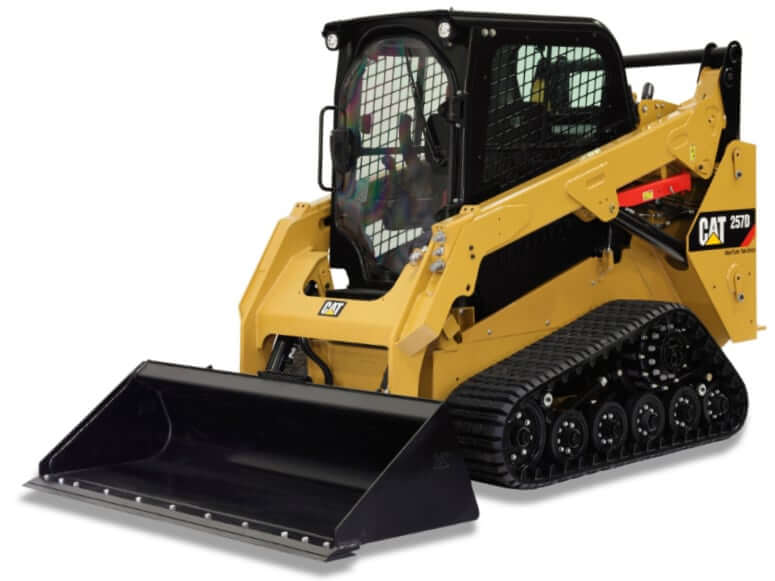

Dimensions
| Ground Clearance | 0.8 ft in (241.3 mm) |
| Bucket Pin Height – Carry Position | 8.5 in (215.9 mm) |
| Bucket Pin Height – Maximum Lift | 10.15 ft in (0.26 m) |
| Bucket Pin Reach – Maximum Lift | 14.5 in (368.3 mm) |
| Clearance At Maximum Lift And Dump | 90.5 in (2298.7 mm) |
| Departure Angle | 35 degrees |
| Height – Top Of Cab | 6.99 ft in (0.18 m) |
| Length – Track On Ground | 59 in (1498.6 mm) |
| Length – With Bucket On Ground | 137.31 in (3487.42 mm) |
| Length – Without Bucket | 108.9 in (2766.06 mm) |
| Maximum Dump Angle | 52 degrees |
| Maximum Overall Height | 154.81 in (3931.92 mm) |
| Maximum Reach – With Arms Parallel To Ground | 52.5 in (1333.5 mm) |
| Overall Length – Track | 74.7 in (1897.38 mm) |
| Rack Back Angle – Maximum Height | 87 degrees |
| Reach – Maximum Lift/Dump | 25.1 in (637.54 mm) |
| Turning Radius From Center – Bucket | 86.3 in (2192.02 mm) |
| Turning Radius From Center – Coupler | 55.1 in (1399.54 mm) |
| Turning Radius From Center – Machine Rear | 61.2 in (1554.48 mm) |
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1676 mm (66 in) dirt bucket, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted). |
| Vehicle Width | 66 in (1676.4 mm) |
Engine Details
| Gross Power | 74.3 hp (55.5 kw) |
| Net Power | 73.2 hp (54.6 kw) |
| Displacement | 203 cu in (3.4 L) |
| Bore | 3.7 in (94 mm) |
| Stroke | 4.7 in (119.4 mm) |
| Net Power – Iso 9249 | 73.9 hp (55.2 kw) |
| Gross Power – Sae J1995 | 74.3 hp (55.5 kw) |
| Engine Model | Cat C3.3B DIT (turbo) |
| Net Power – Sae 1349 | 73.2 hp (54.6 kw) |
| Peak Torque – 1,500 Rpm – Sae J1995 | 195 lb ft (264.4 Nm) |
Operational Specs
| Operating Weight | 8048 lb (3650.6 kg) |
Power Train
| Travel Speed – Forward Or Reverse – One Speed | 6.3 mph (10.2 km/h) |
| Travel Speed – Forward Or Reverse – Two Speed Option | 9.9 mph (16 km/h) |
Weights
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1676 mm (66 in) dirt bucket, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted). |

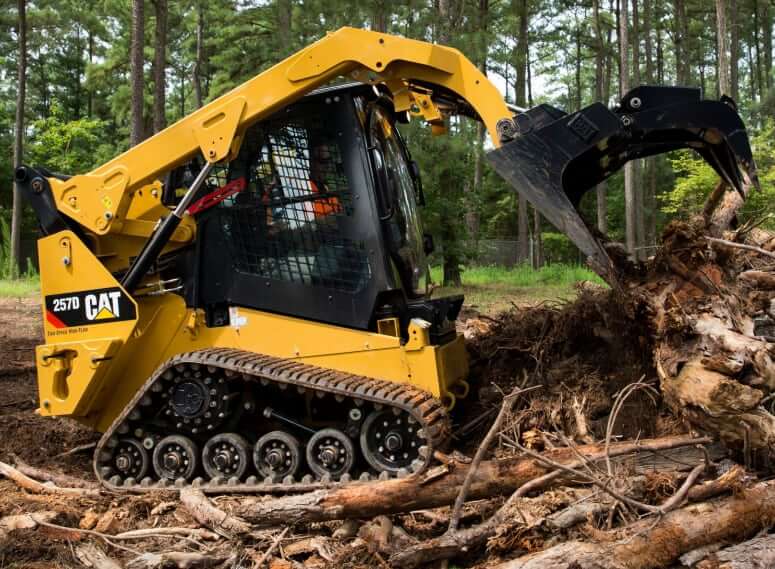

Hydraulic System
| Hydraulic Flow – Standard – Loader Hydraulic Pressure | 3335 psi |
| Hydraulic Flow – Standard – Loader Hydraulic Flow | 20 gal/min |
| Hydraulic Flow – Standard – Hydraulic Power (Calculated) | 39 hp (29.1 kw) |
| Hydraulic Flow – High Flow – Hydraulic Power (Calculated) | 58 hp (43.3 kw) |
| Hydraulic Flow – High Flow – Maximum Loader Hydraulic Pressure | 3335 psi |
| Hydraulic Flow – High Flow – Maximum Loader Hydraulic Flow | 30 gal/min |

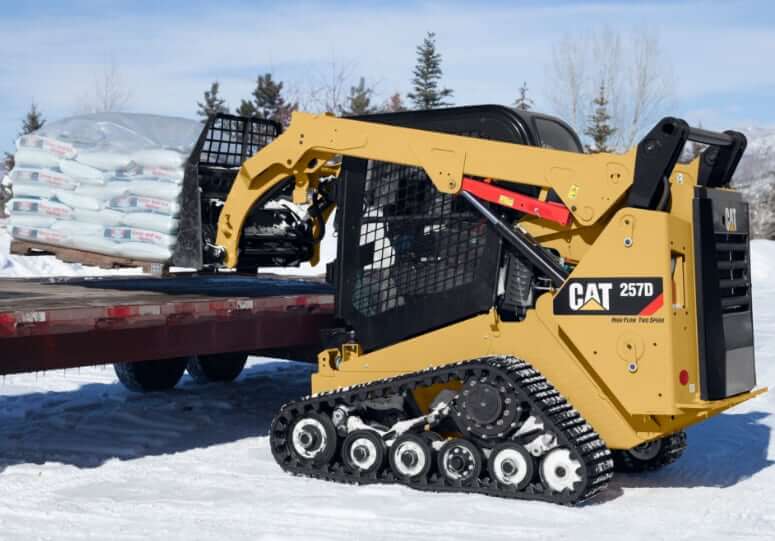

Operating Specifications
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS, 1676 mm (66 in) dirt bucket, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted). |
| Rated Operating Capacities – 50% Tipping Load | 2800 lb (1270.1 kg) |
| Rated Operating Capacities – 35% Tipping Load | 1960 lb (889.1 kg) |
| Ground Contact Area | 1770 in2 (1.2 m2) |
| Ground Pressure | 4.5 psi |
| Rated Operating Capacity With Optional Counterweight | 3000 lb (1360.8 kg) |
| Tipping Load | 5600 lb (2540.2 kg) |
| Breakout Force – Tilt Cylinder | 5035 lb (2283.9 kg) |
Service Refill Capacities
| Cooling System | 3.7 gal (14.1 L) |
| Fuel Tank Capacity | 27.7 gal (104.9 L) |
| Hydraulic Tank | 10.3 gal (39 L) |
| Engine Crankcase | 3 gal (11.4 L) |
| Hydraulic System | 13.2 gal (50 L) |
Cab
| Rops | ISO 3471:2008 |
| Fops | ISO 3449:2005 Level I |
| Fops Level Ii | ISO 3449:2005 Level II |
Air Conditioning System
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes. |
Noise Level
| Note (1) | Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. |
| Note (2) | **The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. |
| Note (3) | ***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC. |
| Inside Cab** | 83 dB(A) |
| Outside Cab*** | 103 dB(A) |
