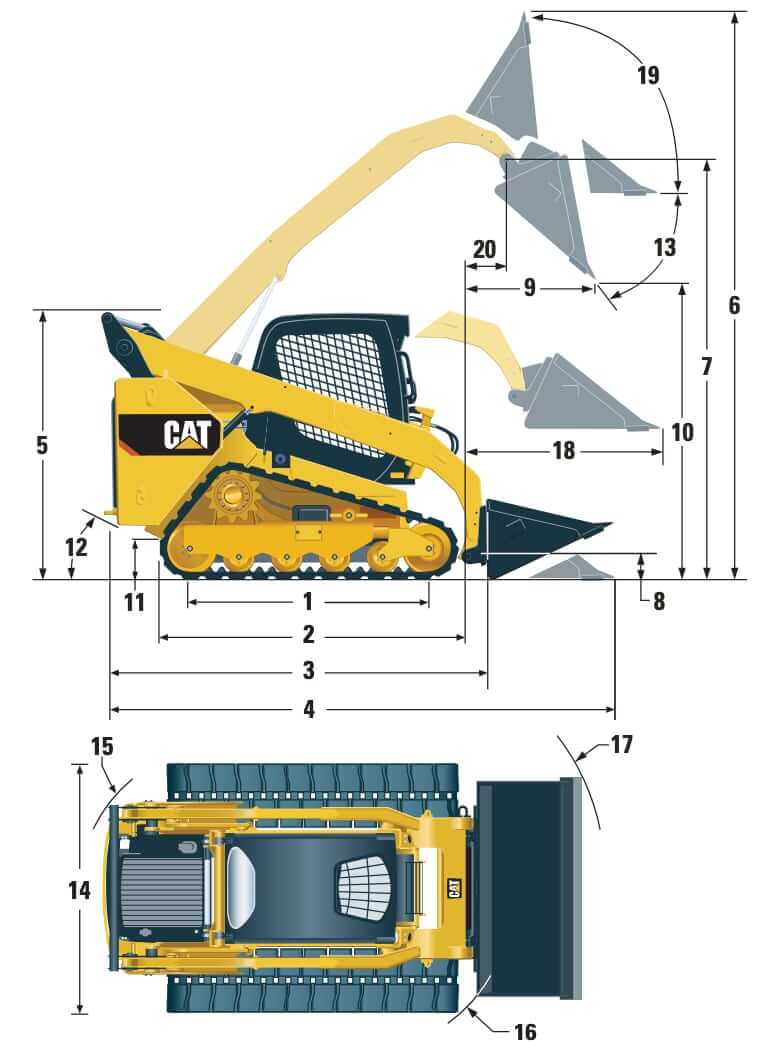

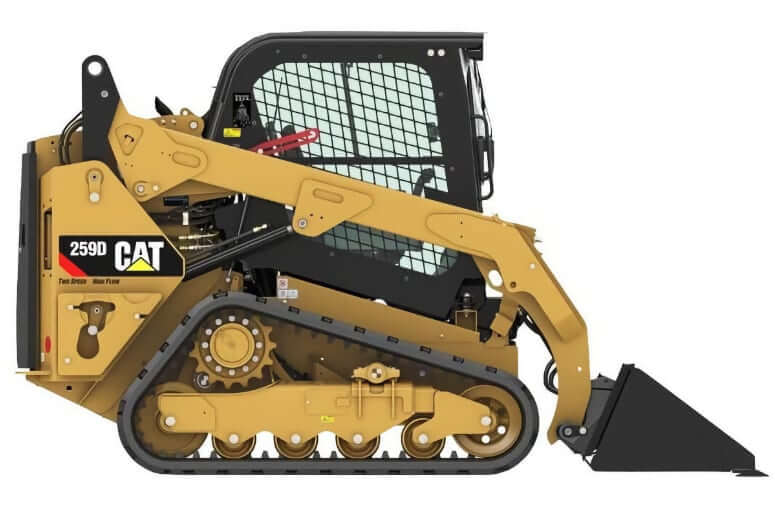

Dimensions
| Height To Top Of Cab | 6.93 ft in (2111 mm) |
| Ground Clearance | 8.9 in (226.06 mm) |
| Clearance At Max Lift And Dump | 7.5 ft in (2283 mm) |
| Reach At Max Lift And Dump | 2 ft in (608 mm) |
| Clearance At Maximum Lift And Dump | 89.9 in (2283.46 mm) |
| Departure Angle | 35 degrees |
| Dump Angle | 52 degrees |
| Height – Top Of Cab | 6.93 ft in (0.18 m) |
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, OROPS, 1676 mm (66 in) dirt bucket, 320 mm (12.6 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted). |
| Bucket Pin Height – Carry Position | 7.8 in (198.12 mm) |
| Bucket Pin Height – Maximum Lift | 10.09 ft in (0.26 m) |
| Bucket Pin Reach – Maximum Lift | 9.4 in (238.76 mm) |
| Turning Radius From Center – Machine Rear | 61.5 in (1562.1 mm) |
| Vehicle Width (320 Mm/12.6 In Tracks) | 66 in (1676.4 mm) |
| Vehicle Width (400 Mm/15.7 In Tracks) | 69 in (1752.6 mm) |
| Length – Track On Ground | 59 in (1498.6 mm) |
| Length – With Bucket On Ground | 137.31 in (3487.42 mm) |
| Length – Without Bucket | 108.9 in (2766.06 mm) |
| Length With Bucket | 11.44 ft in (3486 mm) |
| Length With Out Bucket | 9.08 ft in (2767 mm) |
| Maximum Dump Angle | 52 degrees |
| Maximum Overall Height | 154.1 in (3914.14 mm) |
| Maximum Reach – With Arms Parallel To Ground | 51.4 in (1305.56 mm) |
| Overall Height | 12.85 ft in (3915 mm) |
| Overall Length – Track | 78.7 in (1998.98 mm) |
| Overall Track Length | 6.56 ft in (1999 mm) |
| Rack Back Angle – Maximum Height | 87 degrees |
| Reach – Maximum Lift/Dump | 23.9 in (607.06 mm) |
| Turning Radius From Center – Bucket | 86 in (2184.4 mm) |
| Turning Radius From Center – Coupler | 54.8 in (1391.92 mm) |
Undercarriage
| Length Of Track On Ground | 11.44 ft in (3486 mm) |
| Ground Pressure | 5.97 psi (41.1 kPa) |
| Ground Contact Area | 1488.01 in2 (0.96 m2) |
Engine Details
| Engine Make | DIT |
| Engine Model | Cat C3.3B |
| Gross Power | 74.3 hp (55.5 kw) |
| Net Power | 73.2 hp (54.6 kw) |
| Peak Torque | 195.5 lb ft (265 Nm) |
| Torque Measured @ | 1500 rpm |
| Displacement | 203 cu in (3.4 L) |
| Bore | 3.7 in (94 mm) |
| Stroke | 4.7 in (119.4 mm) |
| Net Power – Iso 9249 | 73.9 hp (55.2 kw) |
| Gross Power – Sae J1995 | 74.3 hp (55.5 kw) |
| Engine Model | Cat C3.3B DIT (turbo) |
| Net Power – Sae 1349 | 73.2 hp (54.6 kw) |
| Peak Torque – 1,500 Rpm – Sae J1995 | 195 lb ft (264.4 Nm) |
Operational Specs
| Operating Weight | 8847.2 lb (4013 kg) |
| Cooling System Fluid Capacity | 3.7 gal (14 L) |
| Fuel Tank Capacity | 27.8 gal (105 L) |
| Engine Oil Capacity | 3 gal (11 L) |
| Hydraulic System Fluid Capacity | 13.3 gal (50 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 80 amps |
| Max Speed – Low Range | 6 mph (9.5 km/h) |
| Max Speed – High Range | 8.6 mph (13.7 km/h) |
Power Train
| Travel Speed – Forward Or Reverse – One Speed | 5.9 mph (9.5 km/h) |
| Travel Speed – Forward Or Reverse – Two Speed | 8.5 mph (13.7 km/h) |

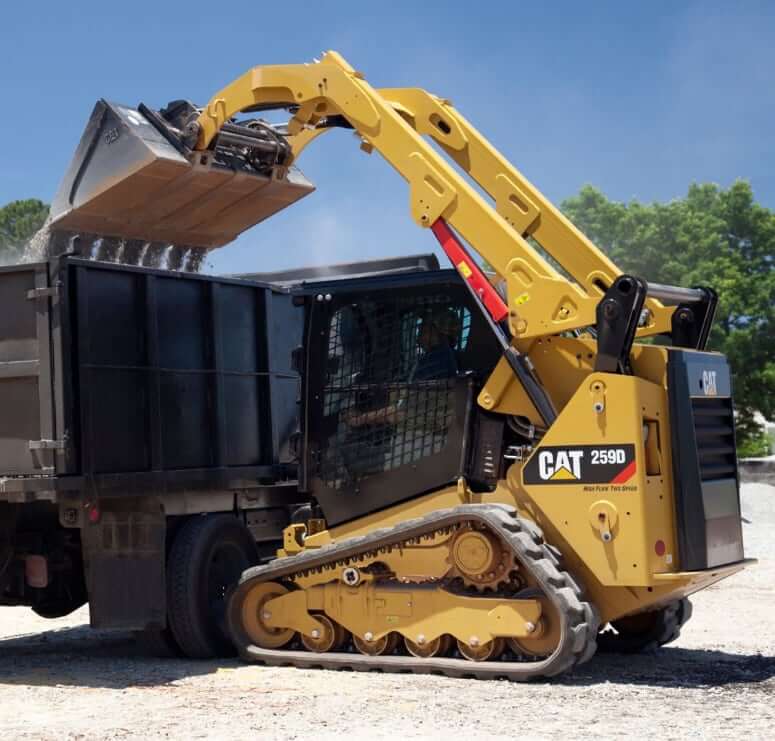

Loader
| Breakout Force | 5035.4 lb (2284 kg) |
| Tipping Load | 5800.4 lb (2631 kg) |
| Operating Load | 2899.1 lb (1315 kg) |
Weights
| Operating Weight | 8945 lb (4057.4 kg) |
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, OROPS, 1676 mm (66 in) dirt bucket, 320 mm (12.6 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted). |
| Operating Weight – 320 Mm/12.6 In Tracks | 8846 lb (4012.5 kg) |
| Operating Weight – 400 Mm/15.7 In Tracks | 8945 lb (4057.4 kg) |
Hydraulic
| Pump Flow | 20.1 gal/min (76 L/min) |
| Relief Valve Pressure | 3335.9 psi (23000 kPa) |
Hydraulic System
| Hydraulic Flow – Standard – Loader Hydraulic Pressure | 3335 psi |
| Hydraulic Flow – Standard – Loader Hydraulic Flow | 20 gal/min |
| Hydraulic Flow – Standard – Hydraulic Power (Calculated) | 39 hp (29.1 kw) |
| Hydraulic Flow – High Flow – Hydraulic Power (Calculated) | 58 hp (43.3 kw) |
| Hydraulic Flow – High Flow – Loader Hydraulic Pressure | 3335 psi |
| Hydraulic Flow – High Flow – Loader Hydraulic Flow | 30 gal/min |
Operating Specifications
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, OROPS, 1676 mm (66 in) dirt bucket, 320 mm (12.6 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted). |
| Rated Operating Capacities – 50% Tipping Load | 2900 lb (1315.5 kg) |
| Rated Operating Capacities – 35% Tipping Load | 2030 lb (920.8 kg) |
| Rated Operating Capacity With Optional Counterweight | 3100 lb (1406.2 kg) |
| Tipping Load | 5800 lb (2630.9 kg) |
| Breakout Force – Tilt Cylinder | 5035 lb (2283.9 kg) |
| Ground Contact Area – With 400 Mm/15.7 In Track | 1848 in2 (1.2 m2) |
| Ground Pressure – With 400 Mm/15.7 In Track | 4.8 psi |
| Ground Contact Area – With 320 Mm/12.6 In Track | 1483 in2 (1 m2) |
| Ground Pressure – With 320 Mm/12.6 In Track | 6 psi |

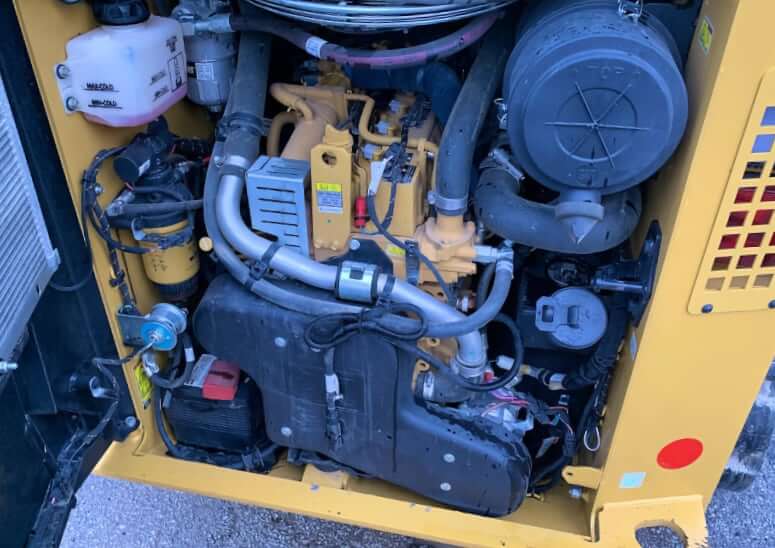

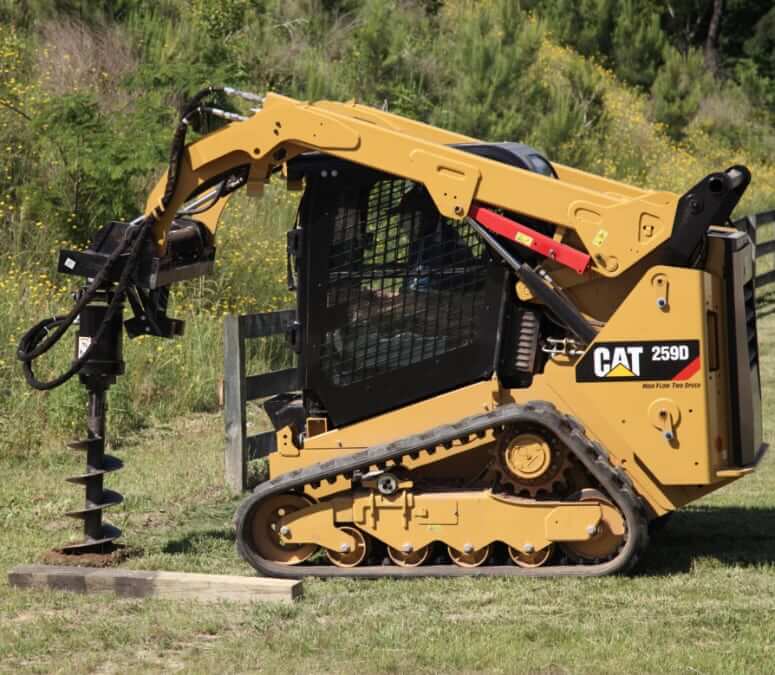

Service Refill Capacities
| Cooling System | 3.7 gal (14.1 L) |
| Fuel Tank Capacity | 27.7 gal (104.9 L) |
| Hydraulic Tank | 10.3 gal (39 L) |
| Engine Crankcase | 3 gal (11.4 L) |
| Hydraulic System | 13.2 gal (50 L) |
Cab
| Rops | ISO 3471:2008 |
| Fops | ISO 3449:2005 Level I |
| Fops Level Ii | ISO 3449:2005 Level II |
Air Conditioning System
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes. |
Noise Level
| Note (1) | Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. |
| Note (2) | **The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. |
| Note (3) | ***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC. |
| Inside Cab** | 83 dB(A) |
| Outside Cab*** | 103 dB(A) |
