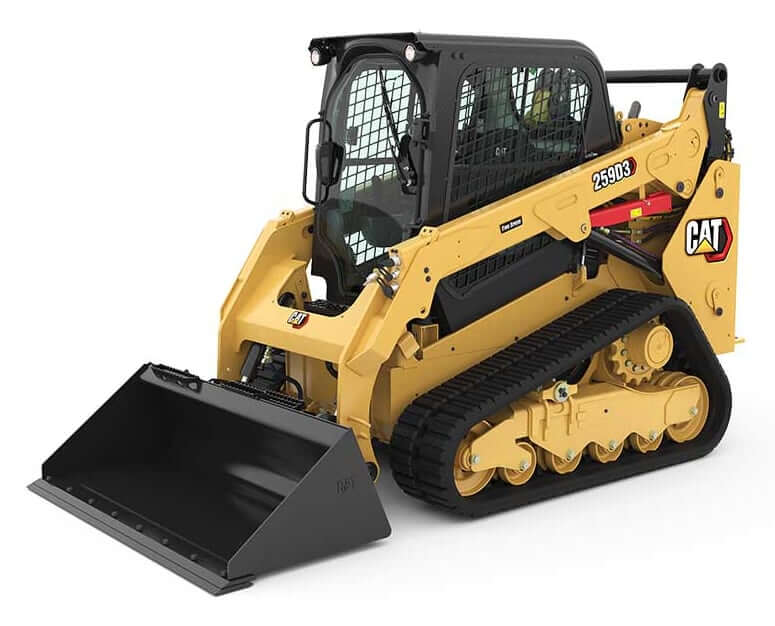

Loader
| Breakout Force (Tilt Cylinder) | 4965 lb (2252 kg) |
| Tipping Load | 5745 lb (2610 kg) |
| Rated Operating Capacity (ROC) (35% Tipping Load) | 2010 lb (915 kg) |
| Rated Operating Capacity (ROC) (50% Tipping Load) | 2870 lb (1305 kg) |
| Rated Operating Capacity w/ Optional Counterweight | 3060 lb (1390 kg) |

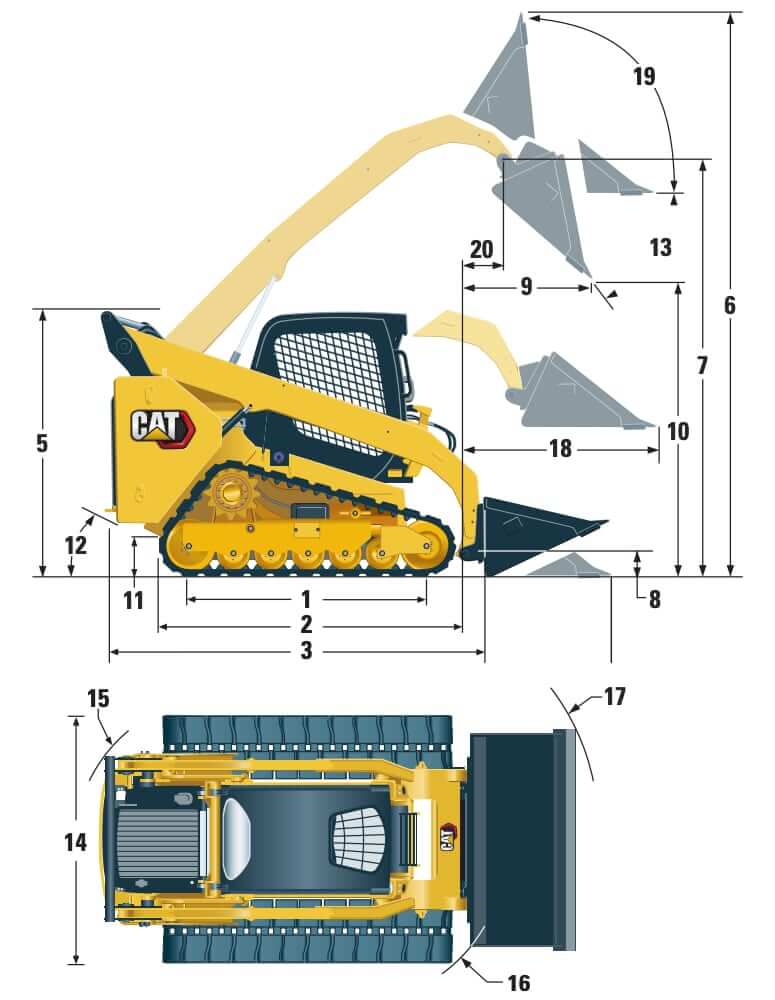

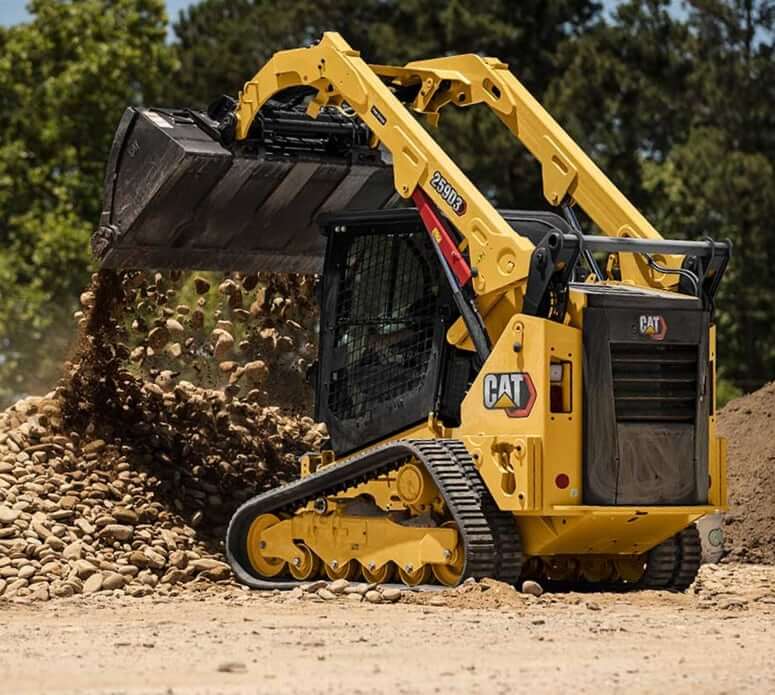

Dimensions
| 1. Length Of Track On Ground | 59 in (1499 mm) |
| 2. Overall Length of Track | 78.7 in (1999 mm) |
| 3. Length w/o Bucket | 108.9 in (2767 mm) |
| 4. Length with Bucket on Ground | 137.3 in (3486 mm) |
| 5. Height To Top Of Cab | 83.1 in (2111 mm) |
| 6. Max Overall Height | 154.1 in (3915 mm) |
| 7. Bucket Pin Height – Maximum Lift | 121 in (3075 mm) |
| 8. Bucket Pin Height – Carry Position | 7.8 in (198 mm) |
| 9. Reach At Max Lift And Dump | 23.9 in (608 mm) |
| 10. Clearance At Max Lift And Dump | 89.9 in (2283 mm) |
| 11. Ground Clearance | 8.9 in (226 mm) |
| 12. Departure Angle | 35° |
| 13. Maximum Dump Angle | 52° |
| 14. Overall Width Over Tracks (12.6 in / 320 mm shoe) | 66 in (1676 mm) |
| 14. Overall Width Over Tracks (15.7 in / 400 mm shoe) | 69 in (1755 mm) |
| 15. Turn Radius from Center – Machine Rear | 61.5 in (1561 mm) |
| 16. Turn Radius from Center – Coupler | 54.8 in (1392 mm) |
| 17. Turn Radius from Center – Bucket | 86 in (2184 mm) |
| 18. Maximum Reach – With Arms Parallel to Ground | 51.4 in (1305 mm) |
| 19. Rack Back Angle at Max Height | 87° |
| 20. Bucket Pin Reach at Maximum Lift | 9.4 in (238 mm) |

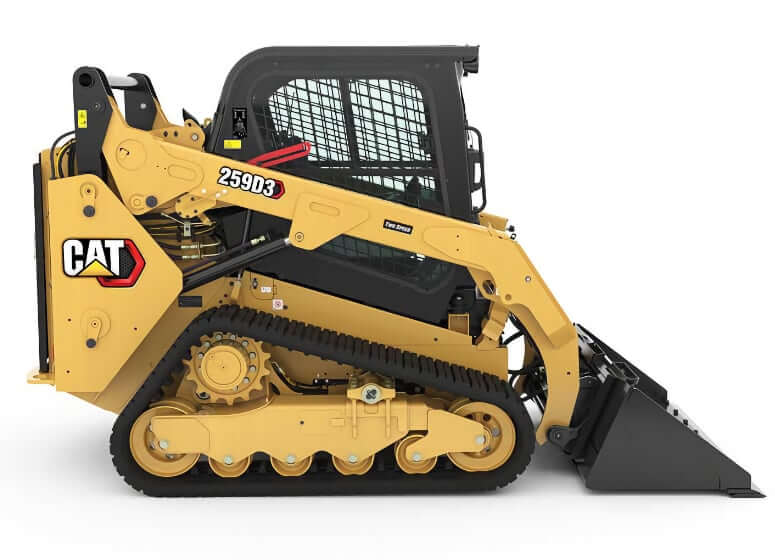

Undercarriage
| Length Of Track On Ground | 59 in (1499 mm) |
| Suspension | Independent Torsion Axles (4) |
| Ground Contact Area (12.6 in / 320 mm shoe) | 1483 in2 (0.96 m2) |
| Ground Contact Area (15.7 in / 400 mm shoe) | 1848 in2 (1.19 m2) |
| Ground Pressure (12.6 in / 320 mm shoe) | 6.1 psi (41.8 kPa) |
| Ground Pressure (15.7 in / 400 mm shoe) | 4.9 psi (34.0 kPa) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Caterpillar |
| Engine Model | Cat C3.3B DIT Turbo |
| Displacement | 203 cu in (3.3 L) |
| Bore | 3.7 in (94 mm) |
| Stroke | 4.7 in (120 mm) |
| Gross Horsepower | 74.3 hp (55.4 kw) |
| Net Horsepower | 72.8 hp (54.3 kw) |
| Power Measured @ | 2400 rpm |
| Peak Torque | 195 lb ft (265 Nm) |
| Torque Measured @ | 1500 rpm |
| Aspiration | Turbocharged and aftercooled |
| Emission Standards | US EPA Tier 4 Final / EU Stage IIIB |
Power Train
| Type | Hydrostatic transmission |
| Number of Gears | Two speed travel and an electronic hand/foot throttle with decel pedal capability |
| One Travel Speed (Forward / Reverse) | 5.9 mph (9.5 km/h) |
| Two Travel Speed (Forward / Reverse) | 8.5 mph (13.7 km/h) |
Cab
| ROPS | ISO 3471:2008 |
| FOPS | ISO 3449:2005 Level I / Level II |
| Performance Package H1 | Standard Flow Hydraulics (No Self Level) |
| Performance Package H2 | Standard Flow Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower) |
| Performance Package H3 | High Flow Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower) |
| Operator Warning System Indicators | Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System |
| Noise Level Inside Cab | 83 dB(A) |
| Noise Level Outside Cab | 103 dB(A) |

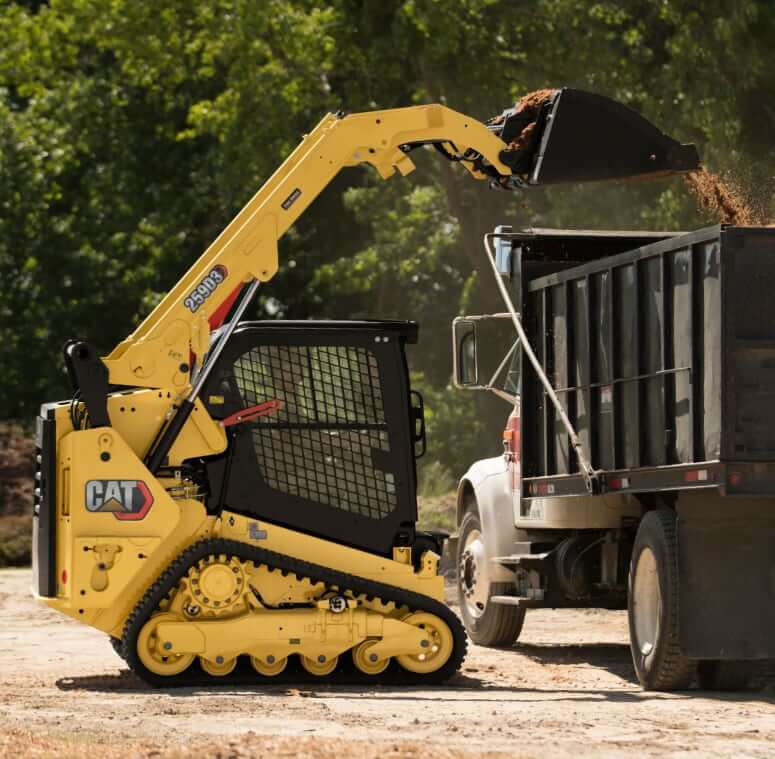

Operational Specs
| Operating Weight, 12.6 in (320 mm) tracks | 8987 lb (4076 kg) |
| Max Operating Lift Capacity | 3060 lb (1390 kg) |
| Counterweight | 74.7 lb (33.9 kg) |
| Work Lights | Gauge Backlighting, Two Rear Tail Lights, Two Adjustable Front and Rear Halogen Lights, Dome Light |
| Operating Voltage | 12 V |
| Alternator | 80 amps |
| Battery | 12 V, 70 Ah, CCA 850 heavy duty battery, 65 BCI group size |

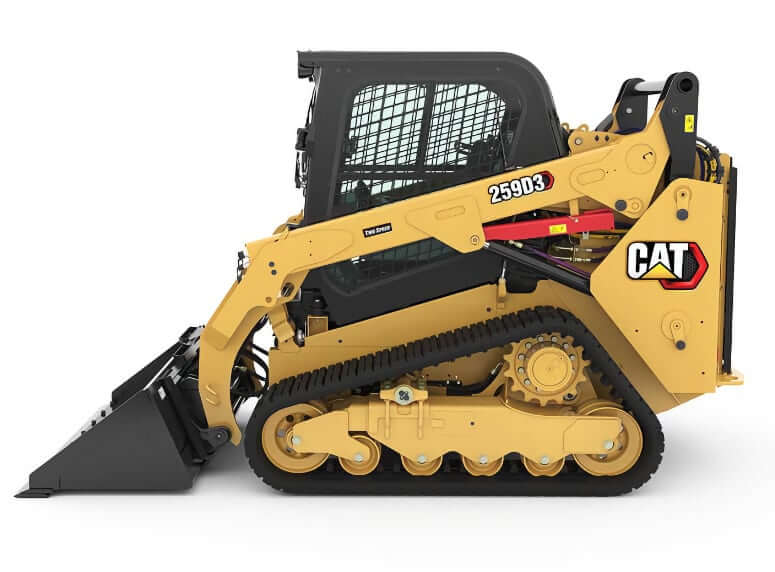

Hydraulic System
| Type | Standard Flow Hydraulics | High Flow Hydraulics |
|---|---|---|
| Pump Flow | 20 gal/min (76 L/min) | 30 gal/min (112 L/min) |
| Relief Valve Pressure | 3335 psi (23000 kPa) | 3335 psi (23000 kPa) |
| Hydraulic Power | 39 hp (29 kw) | 58 hp (43 kw) |

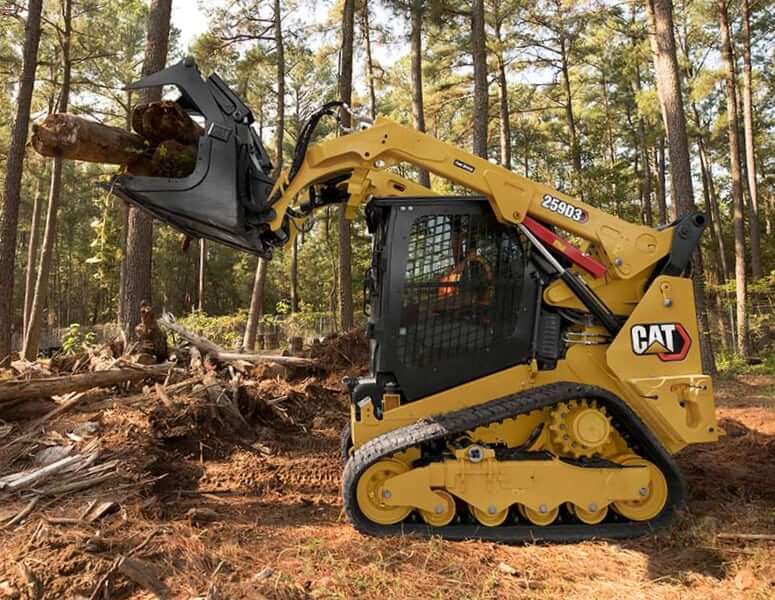

CAT 259D3 Attachments
The CAT 259D3 Compact Track Loader is a powerful and agile machine designed to handle a wide range of jobsite tasks. Thanks to its Smart Attachments compatibility, high-flow hydraulics (optional), and advanced technology, it can work with an impressive lineup of attachments. Here’s a detailed list of popular and compatible attachments and work tools for the CAT 259D3:
| Work Tool | Specifications |
|---|---|
| Angle Blades | 1829 mm (72 in), 30° 2134 mm (84 in), 30° |
| Augers | A23 1699.3 lb/ft A41 3037.3 lb/ft A68 5034.6 lb/ft |
| Dozer Blades | 2007 mm (79 in), 30° 2337 mm (92 in), 30° |
| General Purpose Buckets | 1576 mm (62 in), 0.47 yd3, 407.9 lb 1730 mm (68 in), 0.52 yd3, 509.3 lb 1883 mm (74 in), 0.58 yd3, 549 lb 2036 mm (80 in), 0.63 yd3, 582 lb 2188 mm (86 in), 0.82 yd3, 670.2 lb |
| Grader Blades | GB120, Smart 78 in GB124, Smart 96 in |
| Industrial Grapple Buckets | 1576 mm (62 in), 1062.6 lb 1730 mm (68 in), 1111.1 lb 1883 mm (74 in), 1159.6 lb 2036 mm (80 in), 1201.5 lb |
| Industrial Grapple Forks | 1676 mm (66 in). 38 in 1829 mm (72 in), 38 in |
| Industrial Grapple Rakes | 1829 mm (72 in), 1069.9 lb 2137 mm (84 in), 1115.1 lb |
| Landscape Rakes | LR116 62 in, 0.4 yd3, 1311.7 lb LR119 74.1 in, 0.4 yd3, 1439.6 lb |
| Landscape Tillers | LT114 53.3 in, 25-152 mm (1-6 in) LT118 72.8 in, 25-152 mm (1-6 in) |
| Light Material Buckets | 1883 mm (74 in), 0.9 yd3, 666 lb 2036 mm (80 in), 0.98 yd3, 706 lb 2185 mm (86 in), 1.1 yd3, 747 lb 2490 mm (98 in), 1.22 yd3, 822 lb |
| Low Profile Buckets | 1586 mm (62 in), 0.34 m3 (0.44 yd3) 1740 mm (68 in), 0.37 m3 (0.48 yd3) 1893 mm (74 in), 0.41 m3 (0.54 yd3) |
| Material Handling Arms | Arm 51.8 in, 1999.6 lb, 84 in |
| Multi-Purpose Buckets | 1576 mm (62 in), 0.39 yd3, 851 lb 1730 mm (68 in), 0.44 yd3, 906 lb 1883 mm (74 in), 0.48 yd3, 961 lb 2036 mm (80 in), 0.52 yd3, 1016 lb 2188 mm (86 in), 0.56 yd3, 1071 lb |
| Straight Snow Pushes | 2.44 m (8 ft), 96 in, 1082.5 lb 3.05 m (10 ft), 120 in, 1153 lb 3.05 m (10 ft), 120 in, 1201.5 lb 3.66 m (12 ft), 144 in, 1402.1 lb 2.44 m (8 ft), 96 in, 1036.2 lb 3.66 m (12 ft), 144 in, 1347 lb 2.44 m (8 ft), 96 in, 778.2 lb 3.66 m (12 ft), 144 in, 952.4 lb 3.05 m (10 ft), 120 in, 866.4 lb |
| Stump Grinders | SG16 Standard Flow 21.5 in SG36 High Flow 21.5 in |
| Trenchers | T112 Hydraulic Side Shift 48 in T315 Hydraulic Side Shift 60 in |
| Utility Buckets | 1576 mm (62 in), 0.56 yd3, 529 lb 1730 mm (68 in), 0.63 yd3, 569 lb 1883 mm (74 in), 0.68 yd3, 609 lb |
| Utility Forks | 1676 mm (66 in), 22.9 in, 436.5 lb 1829 mm (72 in), 22.9 in, 485 lb |
| Utility Grapple Buckets | 1883 mm (74 in) 1730 mm (68 in) |
| Utility Grapple Forks | 1676 mm (66 in) 1829 mm (72 in) |
| Vibratory Drum Compactors | CV117 66 in, Standard Flow |
Service Refill Capacities
| Fuel Tank Capacity | 24.8 gal (94 L) |
| Engine Oil Capacity | 3.0 gal (11 L) |
| Cooling System Capacity | 3.7 gal (14 L) |
| Hydraulic System Capacity | 13.2 gal (50 L) |
| Hydraulic Tank Capacity | 10.3 gal (39 L) |
