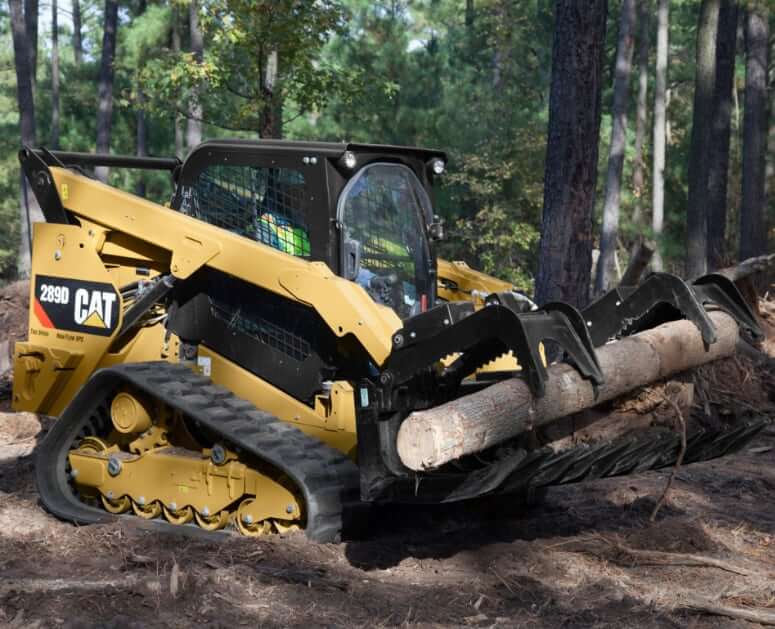

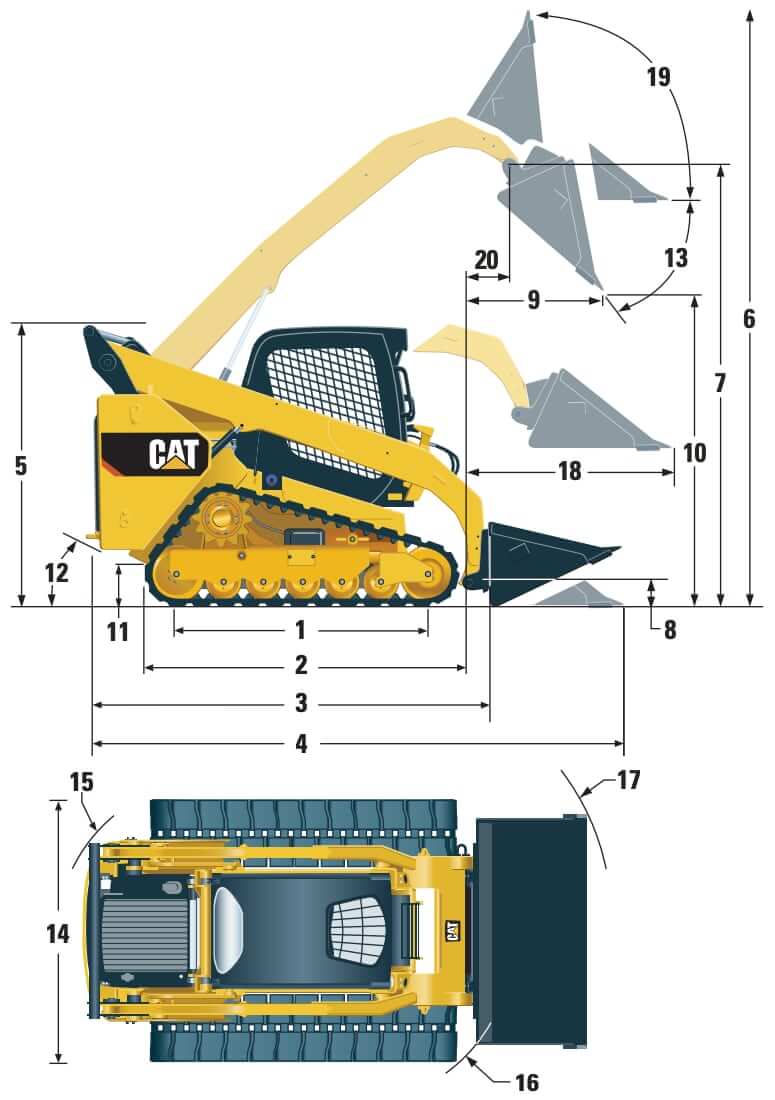

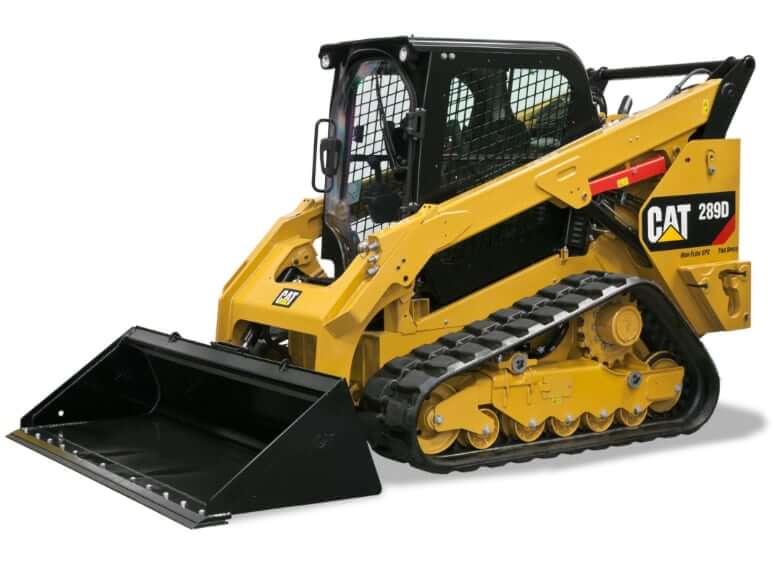

Dimensions
| Width Over Tracks | 6.34 ft in (1931 mm) |
| Height To Top Of Cab | 6.94 ft in (2113 mm) |
| Ground Clearance | 8.9 in (226.06 mm) |
| Clearance At Max Lift And Dump | 7.84 ft in (2387 mm) |
| Reach At Max Lift And Dump | 2.5 ft in (761 mm) |
| Departure Angle | 33 degrees |
| Dump Angle | 51 degrees |
| Height – Top Of Cab | 6.94 ft in (0.18 m) |
| Length – Track On Ground | 64.2 in (1630.68 mm) |
| Length – With Bucket On Ground | 146.2 in (3713.48 mm) |
| Length – Without Bucket | 117.9 in (2994.66 mm) |
| Length With Bucket | 12.19 ft in (3714 mm) |
| Bucket Pin Height – Carry Position | 7.5 in (190.5 mm) |
| Bucket Pin Height – Maximum Lift | 10.43 ft in (0.27 m) |
| Bucket Pin Reach – Maximum Lift | 14.5 in (368.3 mm) |
| Clearance At Maximum Lift And Dump | 94 in (2387.6 mm) |
| Turning Radius From Center – Machine Rear | 70.7 in (1795.78 mm) |
| Vehicle Width (400 Mm/15.7 In Tracks) | 76 in (1930.4 mm) |
| Vehicle Width (450 Mm/17.7 In Tracks) | 78 in (1981.2 mm) |
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, OROPS, 1981 mm (78 in) dirt bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted). |
| Length With Out Bucket | 9.83 ft in (2995 mm) |
| Maximum Dump Angle | 51 degrees |
| Maximum Overall Height | 158.1 in (4015.74 mm) |
| Maximum Reach – With Arms Parallel To Ground | 50 in (1270 mm) |
| Overall Height | 13.18 ft in (4015 mm) |
| Overall Length – Track | 83.8 in (2128.52 mm) |
| Overall Track Length | 6.99 ft in (2129 mm) |
| Rack Back Angle – Maximum Height | 84 degrees |
| Reach – Maximum Lift/Dump | 30 in (762 mm) |
| Turning Radius From Center – Bucket | 88.8 in (2255.52 mm) |
| Turning Radius From Center – Coupler | 55.5 in (1409.7 mm) |
Undercarriage
| Length Of Track On Ground | 5.35 ft in (1630 mm) |
| Ground Pressure | 5.24 psi (36.1 kPa) |
| Ground Contact Area | 2015.01 in2 (1.3 m2) |
Engine Details
| Engine Make | DIT |
| Engine Model | Cat C3.3B |
| Gross Power | 74.3 hp (55.5 kw) |
| Net Power | 72.9 hp (54.4 kw) |
| Peak Torque | 195.5 lb ft (265 Nm) |
| Torque Measured @ | 1500 rpm |
| Displacement | 203 cu in (3.4 L) |
| Bore | 3.7 in (94 mm) |
| Stroke | 4.7 in (119.4 mm) |
| Net Power – Iso 9249 | 73.7 hp (55 kw) |
| Gross Power – Sae J1995 | 74.3 hp (55.5 kw) |
| Engine Model | Cat C3.3B DIT (turbo) |
| Net Power – Sae 1349 | 72.9 hp (54.4 kw) |
| Peak Torque – 1,500 Rpm – Sae J1995 | 195 lb ft (264.4 Nm) |
Operational Specs
| Operating Weight | 10533.7 lb (4778 kg) |
| Cooling System Fluid Capacity | 3.7 gal (14 L) |
| Fuel Tank Capacity | 24.9 gal (94 L) |
| Hydraulic System Fluid Capacity | 13.8 gal (52 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 80 amps |
| Max Speed – Low Range | 4.5 mph (7.2 km/h) |
| Max Speed – High Range | 7.1 mph (11.3 km/h) |
Power Train
| Travel Speed – Forward Or Reverse – One Speed | 4.5 mph (7.3 km/h) |
| Travel Speed – Forward Or Reverse – Two Speed | 7 mph (11.3 km/h) |

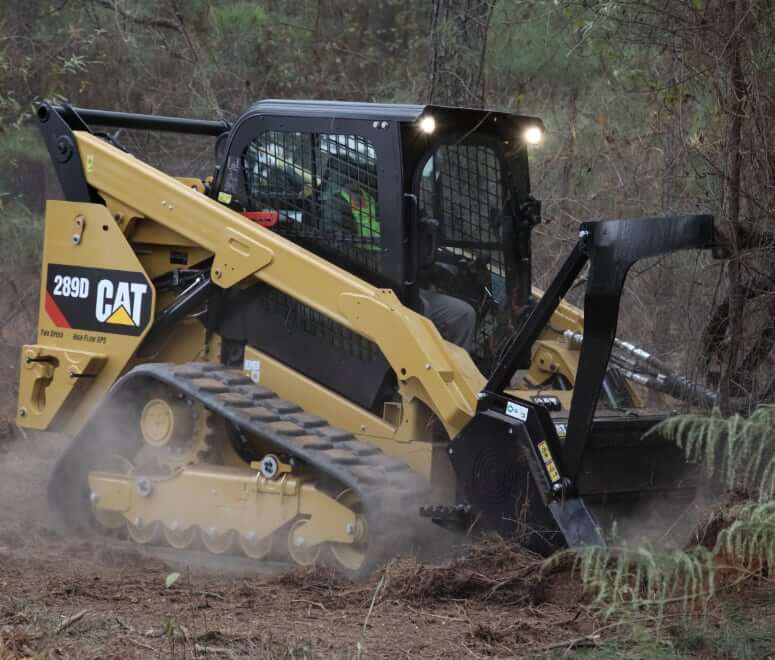

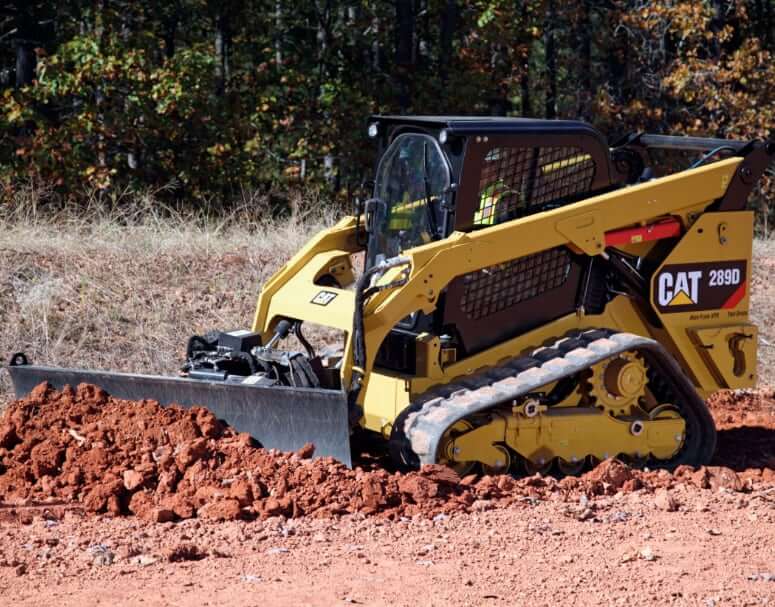

Loader
| Breakout Force | 7290.7 lb (3307 kg) |
| Tipping Load | 7599.4 lb (3447 kg) |
Weights
| Operating Weight | 10533 lb (4777.7 kg) |
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, OROPS, 1981 mm (78 in) dirt bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted). |
Hydraulic
| Pump Flow | 22.8 gal/min (86 L/min) |
| Relief Valve Pressure | 3335.9 psi (23000 kPa) |
Hydraulic System
| Hydraulic Flow – High Flow Xps – Hydraulic Power (Calculated) | 76 hp (56.7 kw) |
| Hydraulic Flow – Standard – Loader Hydraulic Pressure | 3335 psi |
| Hydraulic Flow – Standard – Loader Hydraulic Flow | 23 psi |
| Hydraulic Flow – Standard – Hydraulic Power (Calculated) | 44 hp (32.9 kw) |
| Hydraulic Flow – High Flow Xps – Maximum Loader Hydraulic Pressure | 4061 psi |
| Hydraulic Flow – High Flow Xps – Maximum Loader Hydraulic Flow | 32 gal/min |
Operating Specifications
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, OROPS, 1981 mm (78 in) dirt bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted). |
| Rated Operating Capacities – 50% Tipping Load | 3800 lb (1723.7 kg) |
| Rated Operating Capacities – 35% Tipping Load | 2660 lb (1206.6 kg) |
| Rated Operating Capacity With Optional Counterweight | 4050 lb (1837.1 kg) |
| Tipping Load | 7600 lb (3447.4 kg) |
| Breakout Force – Tilt Cylinder | 7291 lb (3307.2 kg) |
| Ground Contact Area – With 400 Mm/15.7 In Track | 2015 in2 (1.3 m2) |
| Ground Contact Area – With 450 Mm/17.7 In Track | 2272 in2 (1.5 m2) |
| Ground Pressure – With 400 Mm/15.7 In Track | 5.2 psi |
| Ground Pressure – With 450 Mm/17.7 In Track | 4.6 psi |
Service Refill Capacities
| Cooling System | 3.7 gal (14.1 L) |
| Fuel Tank Capacity | 24.8 gal (93.9 L) |
| Hydraulic Tank | 10.3 gal (39 L) |
| Engine Crankcase | 3 gal (11.4 L) |
| Hydraulic System | 13.7 gal (51.9 L) |
Cab
| Rops | ISO 3471:2008 |
| Fops | ISO 3449:2005 Level I |
| Fops Level Ii | ISO 3449:2005 Level II |
Air Conditioning System
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes. |
Noise Level
| Note (1) | Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. |
| Note (2) | **The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. |
| Note (3) | ***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC. |
| Inside Cab** | 83 dB(A) |
| Outside Cab*** | 103 dB(A) |
