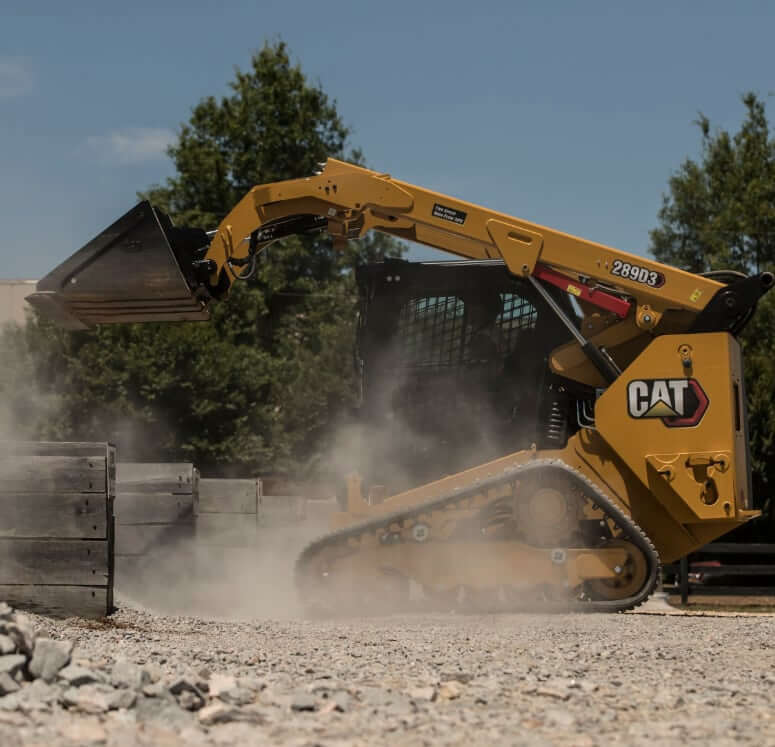

Loader
| Breakout Force (Tilt Cylinder) | 7291 lb (3307 kg) |
| Tipping Load | 8255 lb (3750 kg) |
| Rated Operating Capacity (ROC) (35% Tipping Load) | 2890 lb (1315 kg) |
| Rated Operating Capacity (ROC) (50% Tipping Load) | 4130 lb (1880 kg) |
| Rated Operating Capacity w/ Optional Counterweight | 4370 lb (1985 kg) |

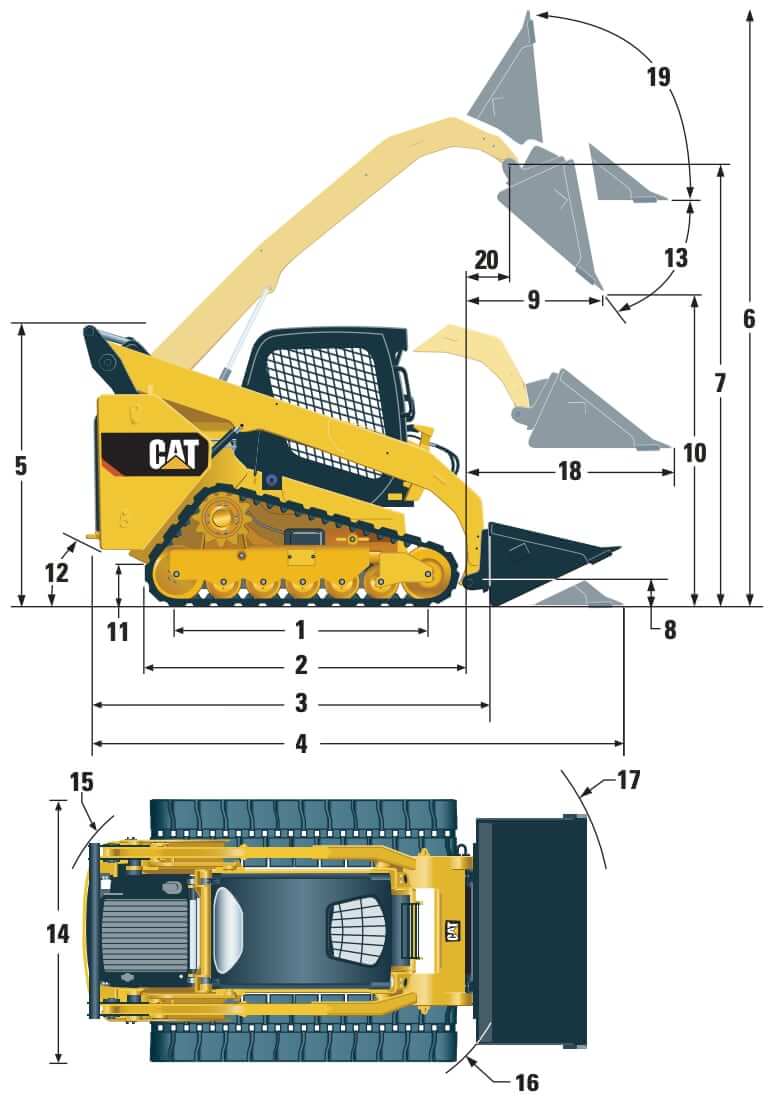

Dimensions
| 1. Length Of Track On Ground | 64.2 in (1630 mm) |
| 2. Overall Length of Track | 83.8 in (2129 mm) |
| 3. Length w/o Bucket | 117.9 in (2995 mm) |
| 4. Length with Bucket on Ground | 146.2 in (3714 mm) |
| 5. Height To Top Of Cab | 83.2 in (2113 mm) |
| 6. Max Overall Height | 158.1 in (4015 mm) |
| 7. Bucket Pin Height – Maximum Lift | 125.1 in (3178 mm) |
| 8. Bucket Pin Height – Carry Position | 7.5 in (190 mm) |
| 9. Reach At Max Lift And Dump | 30 in (761 mm) |
| 10. Clearance At Max Lift And Dump | 94 in (2387 mm) |
| 11. Ground Clearance | 8.9 in (226 mm) |
| 12. Departure Angle | 33° |
| 13. Maximum Dump Angle | 51° |
| 14. Overall Width Over Tracks (17.7 in / 450 mm shoe) | 78 in (1981 mm) |
| 15. Turn Radius from Center – Machine Rear | 70.7 in (1796 mm) |
| 16. Turn Radius from Center – Coupler | 55.5 in (1410 mm) |
| 17. Turn Radius from Center – Bucket | 88.8 in (2256 mm) |
| 18. Maximum Reach – With Arms Parallel to Ground | 50 in (1270 mm) |
| 19. Rack Back Angle at Max Height | 84° |
| 20. Bucket Pin Reach at Maximum Lift | 14.5 in (369 mm) |

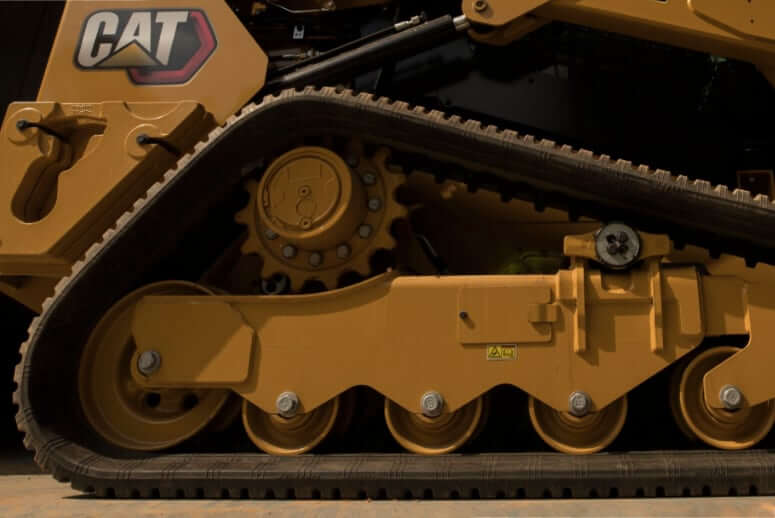

Undercarriage
| Length Of Track On Ground | 64.2 in (1630 mm) |
| Ground Contact Area (17.7 in / 450 mm shoe) | 2272 in2 (1.47 m2) |
| Ground Pressure (17.7 in / 450 mm shoe) | 4.7 psi (32.2 kPa) |
| Suspension | Independent Torsion Axles (4) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Caterpillar |
| Engine Model | Cat C3.3B DIT |
| Displacement | 203 cu in (3.3 L) |
| Bore | 3.7 in (94 mm) |
| Stroke | 4.7 in (120 mm) |
| Gross Horsepower | 74.3 hp (55.4 kw) |
| Net Horsepower | 72.9 hp (54.4 kw) |
| Power Measured @ | 2400 rpm |
| Peak Torque | 195 lb ft (265 Nm) |
| Torque Measured @ | 1500 rpm |
| Aspiration | Turbocharged and aftercooled |
| Emission Standards | US EPA Tier 4 Final / EU Stage V |

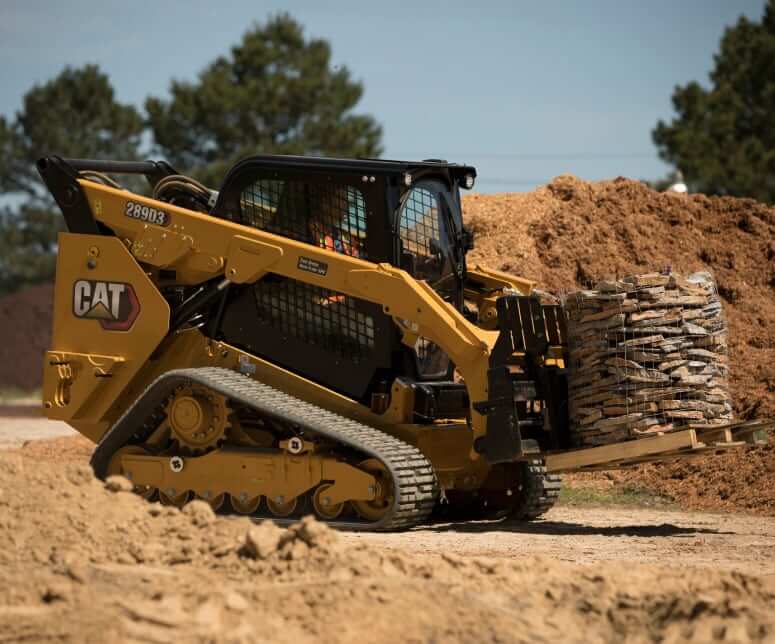

Power Train
| Type | Hydrostatic transmission |
| Number of Gears | Two speed travel with Electronic Torque Management system |
| 1 Max Travel Speed | 4.5 mph (7.2 km/h) |
| 2 Max Travel Speed | 8.3 mph (13.3 km/h) |

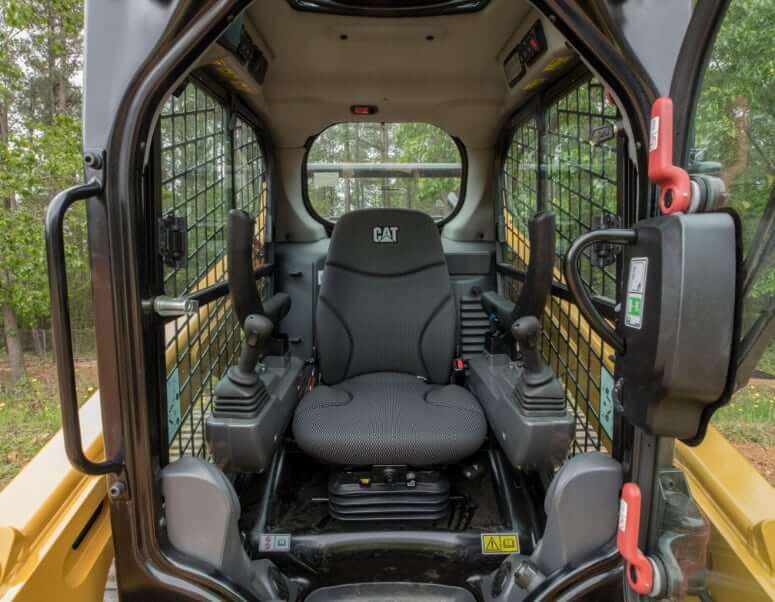

Cab
| ROPS | ISO 3471:2008 |
| FOPS | ISO 3449:2005 Level I / Level II |
| Operator Warning System Indicators | Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System |
| Performance Package H1 | Standard Flow Hydraulics (No Self Level) |
| Performance Package H2 | Standard Flow, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower) |
| Performance Package H3 | High Flow XPS, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower) |
| Noise Level Inside Cab | 83 dB(A) |
| Noise Level Outside Cab | 103 dB(A) |
Operational Specs
| Operating Weight | 10688 lb (4848 kg) |
| Max Operating Lift Capacity | 4370 lb (1985 kg) |
| Counterweight | 74.7 lb (33.9 kg) |
| Lights | Gauge Backlighting, Two Rear Tail Lights, Two Rear Halogen Working Lights, Two Adjustable Front Halogen Lights, Dome Light |
| Operating Voltage | 12 V |
| Alternator | 80 amps |
| Battery | 12 V, 70 Ah, CCA 850, 65 BCI group size heavy duty battery |

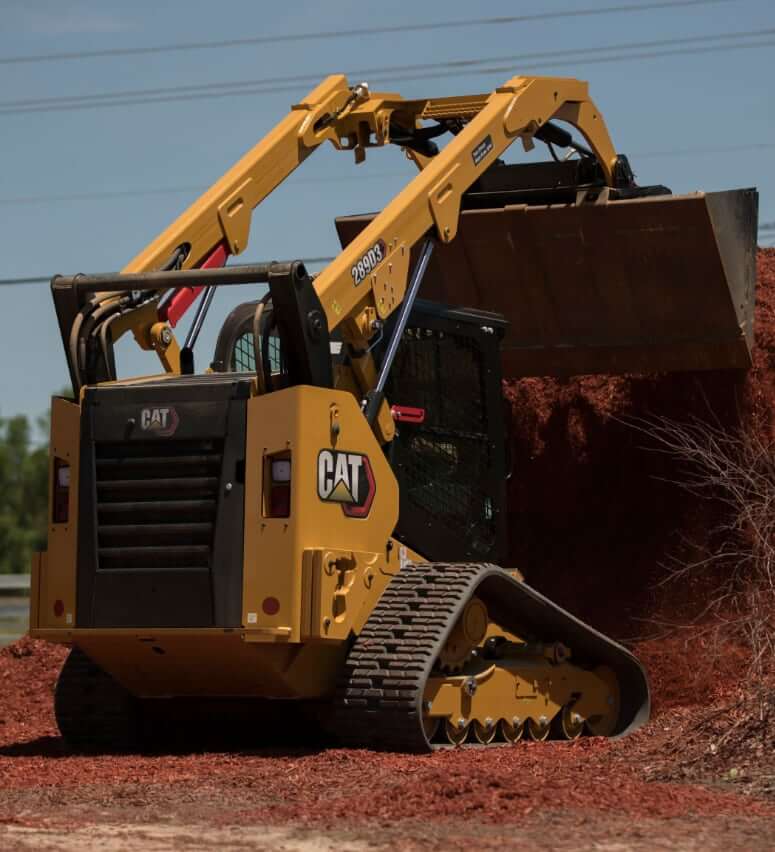

Hydraulic System
| Hydraulics | Standard Flow | High Flow XPS |
|---|---|---|
| Pump Flow | 23 gal/min (86 L/min) | 32 gal/min (121 L/min) |
| Relief Valve Pressure | 3335 psi (23000 kPa) | 4061 psi (28000 kPa) |
| Hydraulic Power | 44 hp (33 kw) | 76 hp (57 kw) |

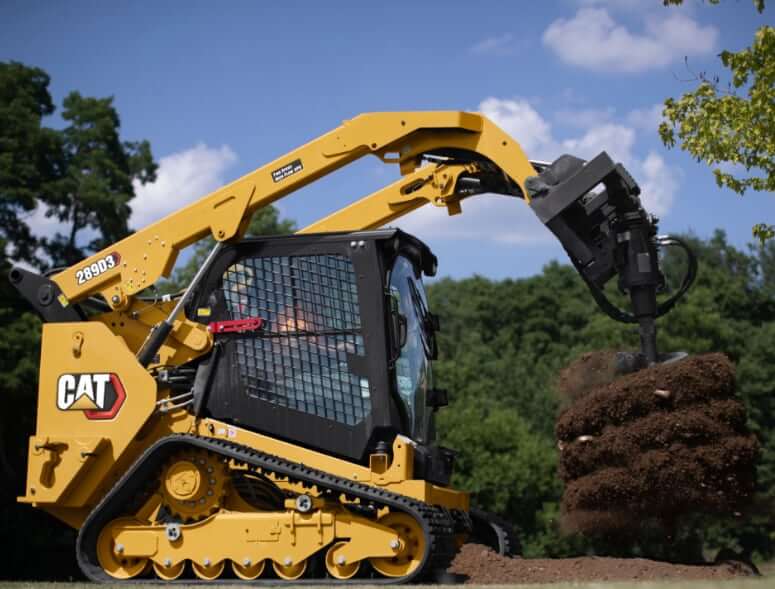

CAT 289D3 Attachments
The CAT 289D3 Compact Track Loader is a high-performance machine designed to work seamlessly with a wide range of attachments and work tools, offering exceptional versatility for construction, landscaping, agriculture, snow removal, and more. As part of the CAT D3 Series, the 289D3 is Smart Attachment-compatible, allowing automatic recognition and control customization for certain tools.
| Work Tool | Specifications |
|---|---|
| Angle Blades | 1829 mm (72 in), 30 degrees 2134 mm (84 in), 30 degrees |
| Augers | A23 1699.3 lb/ft A41 3037.3 lb/ft A68 5034.6 lb/ft |
| Dozer Blades | 2007 mm (79 in), 30 degrees 2337 mm (92 in), 30 degrees 2337 mm (92 in), 30 degrees |
| General Purpose Buckets (Bolt-On Teeth) | 1576 mm (62 in), 0.47 yd3, 407.9 lb 1730 mm (68 in), 0.52 yd3, 509.3 lb 1883 mm (74 in), 0.58 yd3, 549 lb 2036 mm (80 in), 0.63 yd3, 582 lb 2188 mm (86 in), 0.82 yd3, 670.2 lb |
| Grader Blades | GB120, Smart 78.4 in, 78 in, 68.8 in GB124, Smart 96.4 in, 96 in, 84.4 in |
| Industrial Grapple Buckets (Bolt-On Cutting Edge) | 1576 mm (62 in), 1062.6 lb 1730 mm (68 in), 1111.1 lb 1883 mm (74 in), 1159.6 lb 2036 mm (80 in), 1201.5 lb |
| Industrial Grapple Forks | 1676 mm (66 in), 31.9 in, 38 in 1829 mm (72 in), 32 in, 38 in |
| Industrial Grapple Rakes | 1829 mm (72 in), 33 in, 1070 lb 2137 mm (84 in), 33 in, 1115 lb |
| Landscape Rakes | LR116 62 in, 0.4 yd3, 1312 lb LR119 74.1 in, 0.4 yd3, 1450 lb |
| Landscape Tillers | LT114 53.3 in, 25-152 mm, 926 lb LT118 72.8 in, 25-152 mm, 926 lb |
| Light Material Buckets (Bolt-On Cutting Edge) | 1883 mm (74 in), 0.9 yd3, 666 lb 2036 mm (80 in), 0.98 yd3, 706 lb 2185 mm (86 in), 1.1 yd3, 747 lb 2490 mm (98 in), 1.22 yd3, 822 lb |
| Low Profile Buckets (Bolt-On Cutting Edge) | 1586 mm (62 in), 0.34 m3 (0.44 yd3), 452 lb 1740 mm (68 in), 0.37 m3 (0.48 yd3), 512 lb 1893 mm (74 in), 0.41 m3 (0.54 yd3), 547 lb |
| Material Handling Arms | Material Handling Arm 51.8 in, 1999.6 lb, 84 in |
| Multi-Purpose Buckets (Bolt-On Cutting Edge) | 1576 mm (62 in), 0.39 yd3, 851 lb 1730 mm (68 in), 0.44 yd3, 906 lb 1883 mm (74 in), 0.48 yd3, 961 lb 2036 mm (80 in), 0.52 yd3, 1016 lb 2188 mm (86 in), 0.56 yd3, 1071 lb |
| Straight Snow Pushes | 2.44 m (8 ft) 96 in, 1083 lb, 45 in 3.05 m (10 ft) 120 in, 1153 lb, 45 in 3.05 m (10 ft) 120 in, 1202 lb, 45 in 3.66 m (12 ft) 144 in, 1402 lb, 45 in 2.44 m (8 ft) 96 in, 1036 lb, 45 in 3.66 m (12 ft) 144 in, 1347 lb, 45 in 2.44 m (8 ft) 96 in, 778 lb, 43.7 in 3.66 m (144 in), 952 lb, 43.7 in 3.05 m (120 in), 866 lb, 43.7 in |
| Stump Grinders | SG16 Standard Flow 21.5 in, 20.5 in SG36 High Flow XPS 21.5 in, 20.5 in |
| Trenchers | T112 Hydraulic Side Shift 48 in, 6 in (Standard Flow) T315 Hydraulic Side Shift 60 in, 6 in (Standard Flow) |
| Utility Buckets (Bolt-On Cutting Edge) | 1576 mm (62 in), 0.56 yd3, 529 lb 1730 mm (68 in), 0.63 yd3, 569 lb 1883 mm (74 in), 0.68 yd3, 609 lb |
| Utility Forks | 1676 mm (66 in), 22.9 in, 436.5 lb 1829 mm (72 in), 22.9 in, 485 lb |
| Utility Grapple Buckets | 1883 mm (74 in), 29.1 in, 35.5 in 1730 mm (68 in), 29.1 in, 35.5 in |
| Utility Grapple Forks | 1676 mm (66 in), 30.3 in, 34.5 in 1829 mm (72 in), 30.3 in, 34.5 in |
| Vibratory Drum Compactors | CV117 66 in, 2063.5 lb (Standard Flow) CV119 73 in, 2138.5 lb |
With High Flow XPS capability, the 289D3 supports power-demanding attachments like mulchers, snow blowers, and cold planers. Its advanced hydraulic system, two-speed travel, and electronic hand/foot controls make it ideal for precision work with maximum efficiency.
Service Refill Capacities
| Fuel Tank Capacity | 27.7 gal (105 L) |
| Engine Oil Capacity | 3.0 gal (11 L) |
| Cooling System Capacity | 3.7 gal (14 L) |
| Hydraulic System Capacity | 13.7 gal (52 L) |
| Hydraulic Tank Capacity | 10.3 gal (39 L) |
