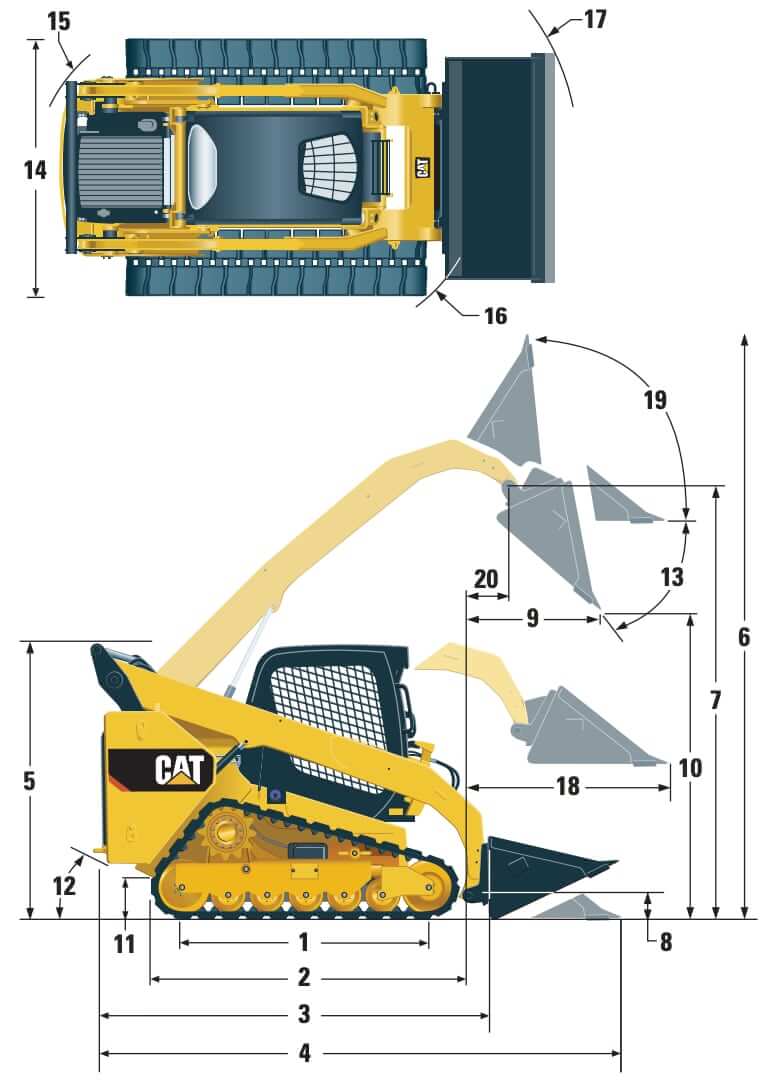

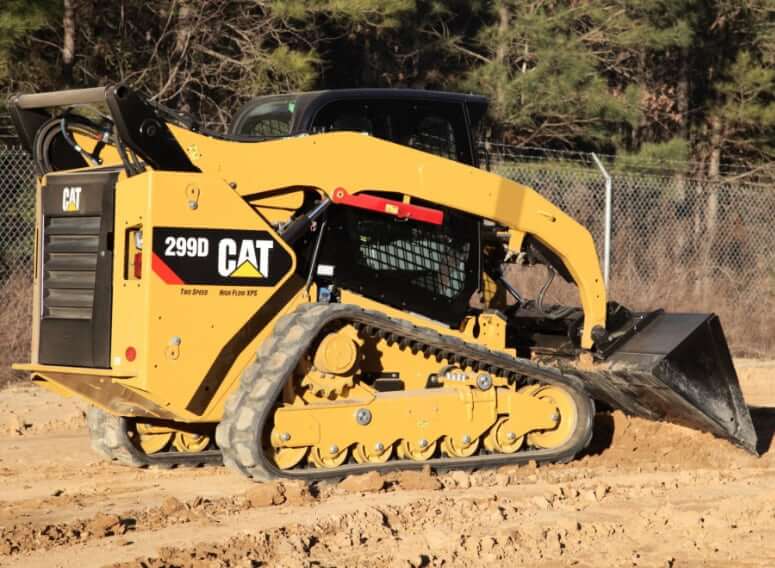

Dimensions
| Height To Top Of Cab | 6.91 ft in (2104 mm) |
| Ground Clearance | 8.7 in (220.98 mm) |
| Length Of Track On Ground | 5.8 ft in (1767 mm) |
| Clearance At Max Lift And Dump | 7.94 ft in (2418 mm) |
| Reach At Max Lift And Dump | 2.59 ft in (787 mm) |
| Dump Angle | 52 degrees |
| Height – Top Of Cab | 6.98 ft in (0.18 m) |
| Length – Track On Ground | 69.6 in (1767.84 mm) |
| Length – With Bucket On Ground | 151.81 in (3855.72 mm) |
| Length – Without Bucket | 123.5 in (3136.9 mm) |
| Vehicle Width | 78 in (1981.2 mm) |
| Bucket Pin Height – Maximum Lift | 10.55 ft in (0.27 m) |
| Bucket Pin Reach – Maximum Lift | 15.6 in (396.24 mm) |
| Clearance At Maximum Lift And Dump | 94.3 in (2395.22 mm) |
| Departure Angle | 30 degrees |
| Turning Radius From Center – Machine Rear | 72.8 in (1849 mm) |
| Bucket Pin Height – Carry Position | 7.9 in (200.66 mm) |
| Length With Bucket | 10.3 ft in (3138 mm) |
| Length With Out Bucket | 12.64 ft in (3850 mm) |
| Maximum Dump Angle | 52 degrees |
| Maximum Overall Height | 158.4 in (4023.36 mm) |
| Maximum Reach – With Arms Parallel | 50.2 in (1275.08 mm) |
| Overall Height | 13.29 ft in (4048 mm) |
| Overall Length – Track | 89.4 in (2270.77 mm) |
| Overall Track Length | 7.45 ft in (2270 mm) |
| Rack Back Angle – Maximum Height | 83 degrees |
| Reach At Maximum Lift/Dump | 30.6 in (777.24 mm) |
| Turn Radius From Center – Bucket | 91.2 in (2316.48 mm) |
| Turn Radius From Center – Coupler | 58 in (1473.2 mm) |
| Turn Radius From Center – Rear | 73.41 in (1864.36 mm) |

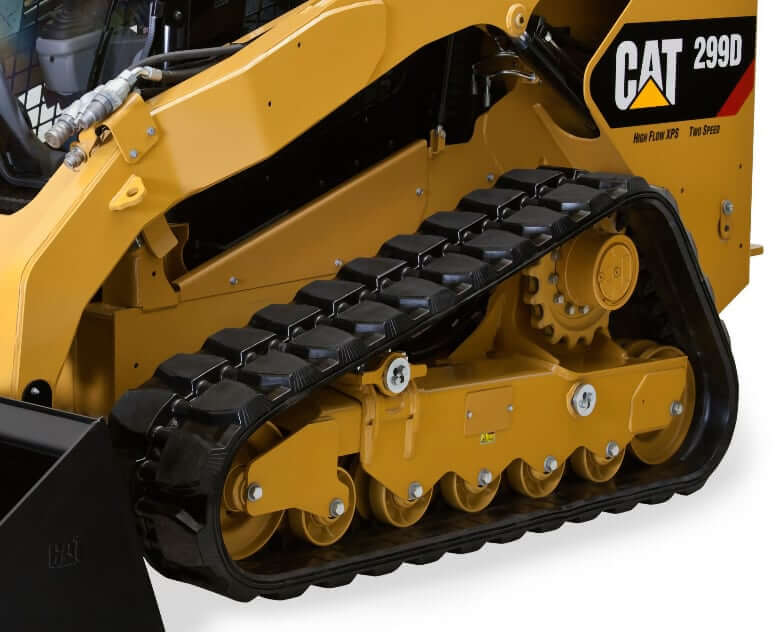

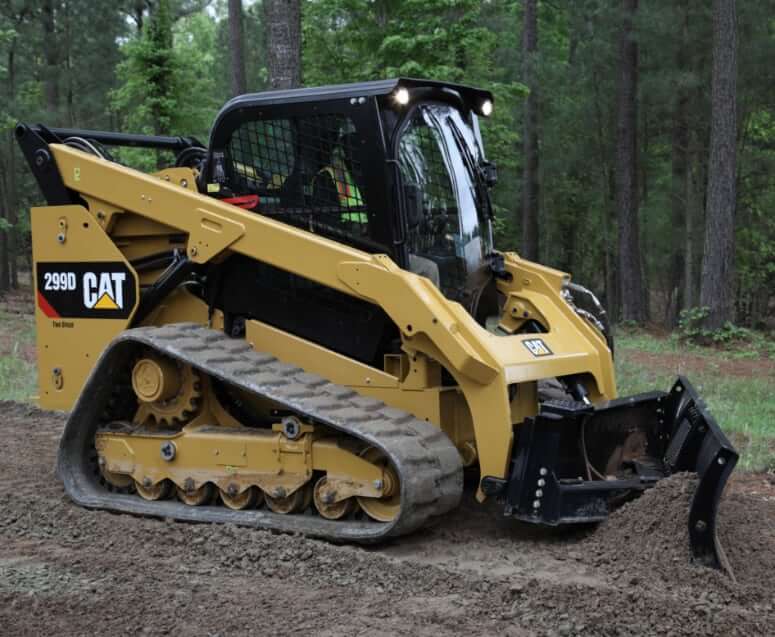

Undercarriage
| Ground Pressure | 4.41 psi (30.34 kPa) |
| Ground Contact Area | 2463 in2 (1.59 m2) |
Engine Details
| Engine Model | Cat® C3.8 |
| Gross Power | 98 hp (73.1 kw) |
| Net Power | 95 hp (70.9 kw) |
| Displacement | 232 cu in (3.9 L) |
| Bore | 3.9 in (99.1 mm) |
| Stroke | 4.7 in (119.4 mm) |
| Aspiration | Turbocharged |
| Gross Power – Sae J1995 | 98 hp (73.1 kw) |
| Engine Model | Cat C3.8 DIT (Turbo) |
| Net Power – Sae 1349 | 95 hp (70.9 kw) |
Operational Specs
| Operating Weight | 10897.5 lb (4943 kg) |
| Cooling System Fluid Capacity | 3.7 gal (14 L) |
| Fuel Tank Capacity | 31 gal (117 L) |
| Hydraulic System Fluid Capacity | 16.2 gal (61 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 100 amps |
| Max Speed – Low Range | 5 mph (8.1 km/h) |
| Max Speed – High Range | 8.5 mph (13.7 km/h) |
Power Train
| Travel Speed Forward – 2-Speed | 8.4 mph (13.6 km/h) |
| Travel Speed Reverse – 2-Speed | 8.4 mph (13.6 km/h) |
| Travel Speed Forward | 5.2 mph (8.4 km/h) |
| Travel Speed Reverse | 5.2 mph (8.4 km/h) |

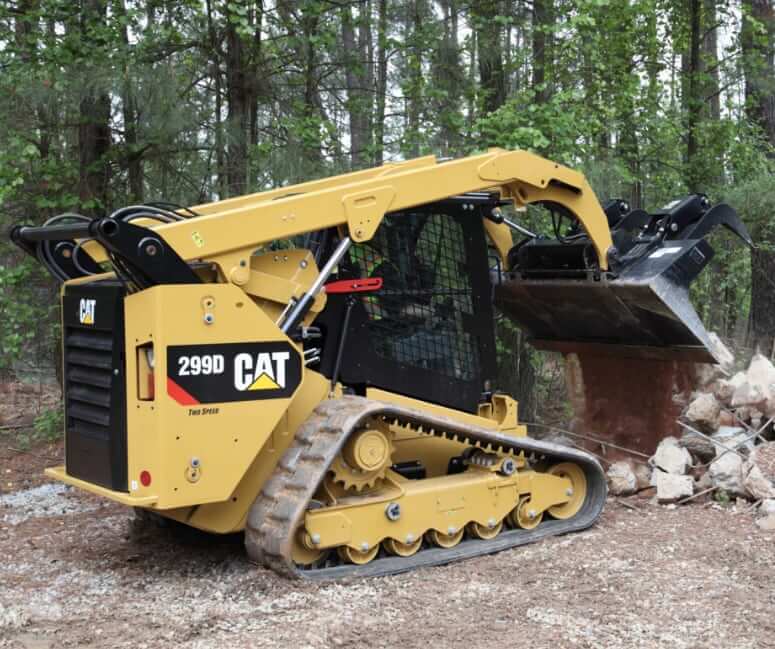

Loader
| Tipping Load | 8498.9 lb (3855 kg) |

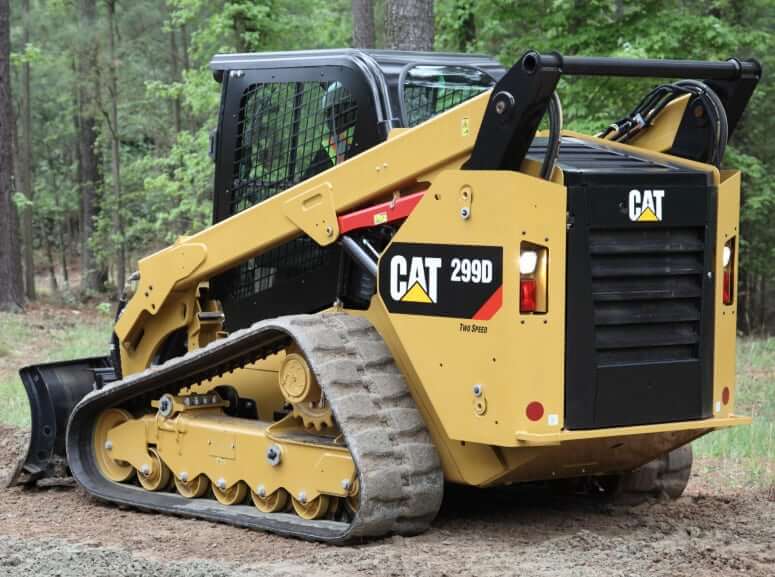

Weights
| Operating Weight | 10718 lb (4861.7 kg) |
Hydraulic
| Pump Flow | 23 gal/min (87.1 L/min) |

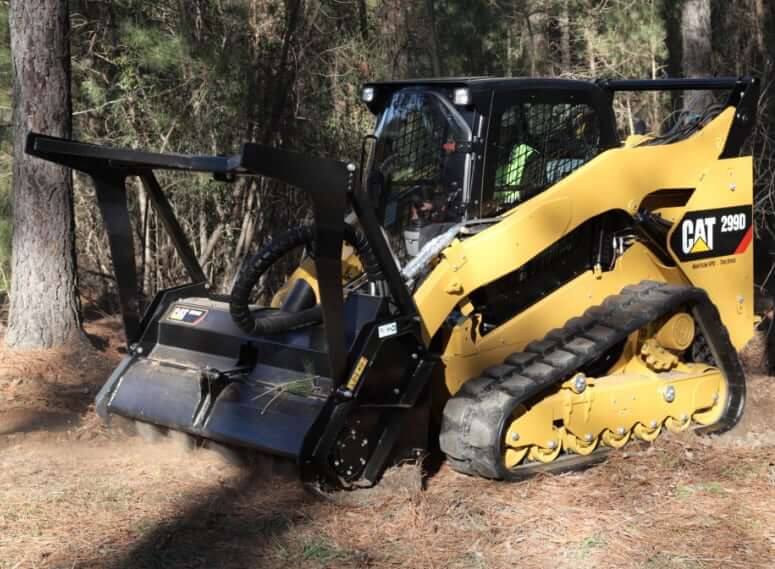

Hydraulic System
| Hydraulic Flow (1) | Standard |
| Hydraulic Power | 44 hp (32.9 kw) |
| Maximum Loader Hydraulic Flow | 32 gal/min |
| Maximum Loader Hydraulic Pressure | 4061 psi |
| Loader Hydraulic Pressure | 3335 psi |
| Loader Hydraulic Flow | 23 gal/min |
| Hydraulic Flow (2) | High Flow XPS |
| Hydraulic Power – Calculated | 76 hp (56.7 kw) |

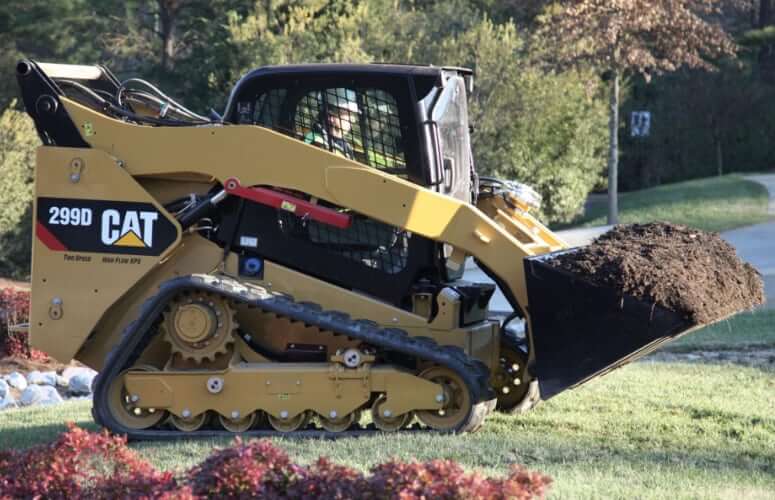

Operating Specifications
| Rated Operating Capacities – 50% Tipping Load | 4250 lb (1927.8 kg) |
| Rated Operating Capacities – 35% Tipping Load | 2975 lb (1349.5 kg) |
| Ground Contact Area | 2463 in2 (1.6 m2) |
| Ground Pressure | 4.4 psi |
| Rated Operating Capacity With Optional Counterweight | 4500 lb (2041.2 kg) |
| Tipping Load | 8500 lb (3855.6 kg) |
| Breakout Force – Tilt Cylinder | 7552 lb (3425.6 kg) |
| Breakout Force – Lift Cylinder | 6122 lb (2776.9 kg) |
Service Refill Capacities
| Cooling System | 4.1 gal (15.6 L) |
| Fuel Tank Capacity | 32.2 gal (121.9 L) |
| Hydraulic Tank | 10.3 gal (39 L) |
| Engine Crankcase | 3.5 gal (13.3 L) |
| Hydraulic System | 14.5 gal (54.9 L) |
Cab
| Rops | ISO 3471:2008 |
| Fops | ISO 3449:2005 Level I |
| Fops Level Ii | ISO 3449:2005 Level II |
