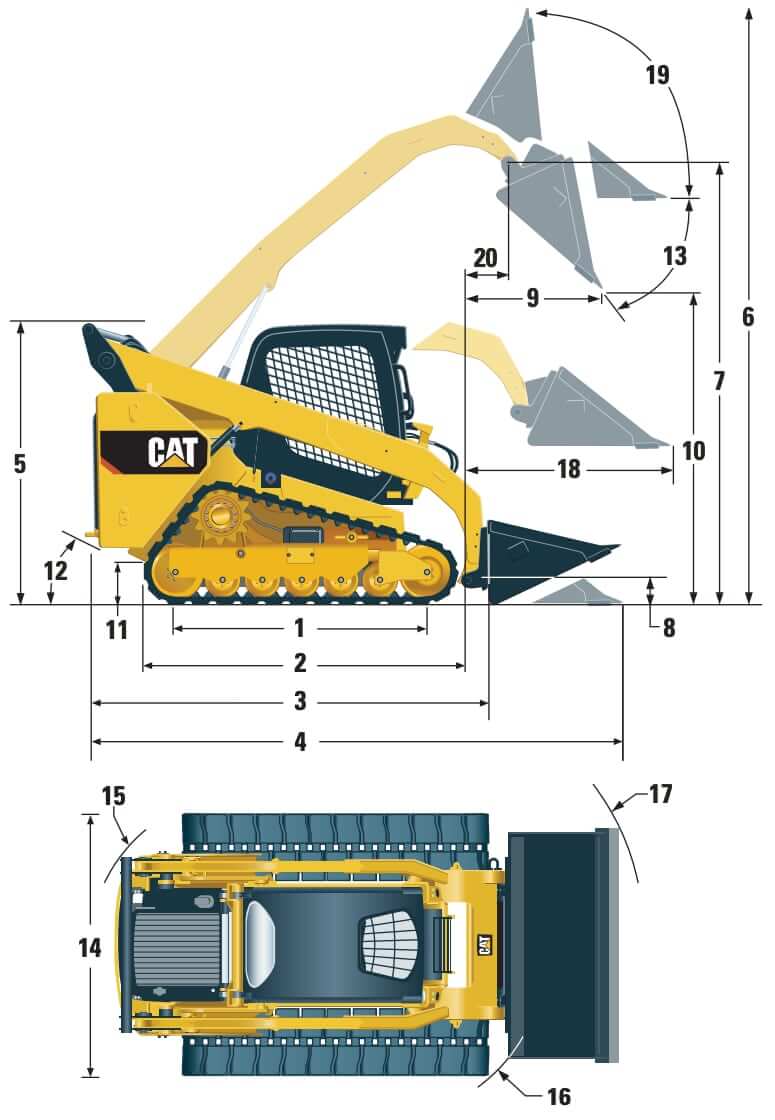

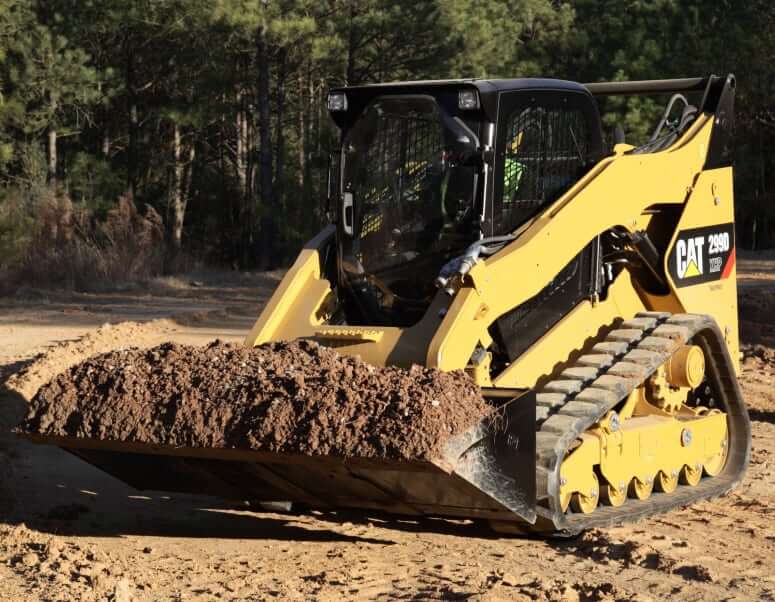

Dimensions

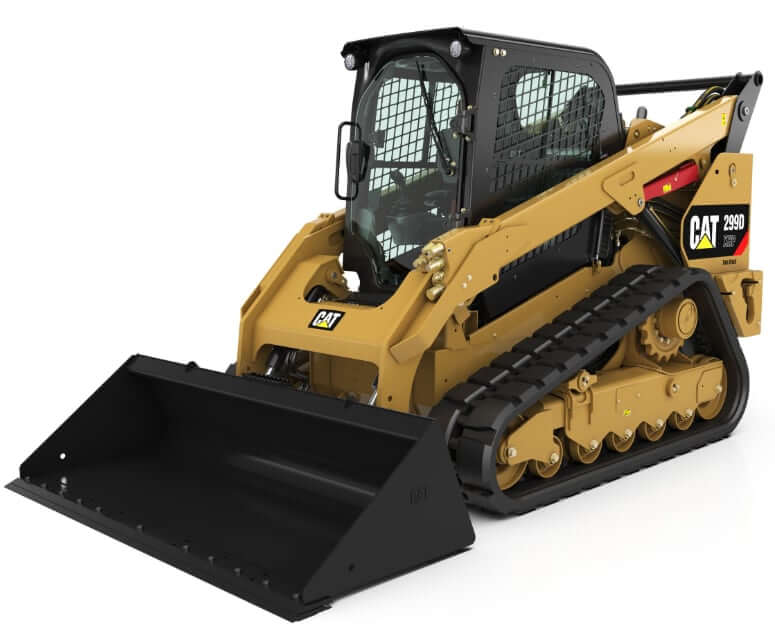

| Ground Clearance | 0.73 ft in (220.98 mm) |
| Bucket Pin Height – Maximum Lift | 10.55 ft in (0.27 m) |
| Bucket Pin Reach – Maximum Lift | 16.11 in (408.94 mm) |
| Clearance At Maximum Lift And Dump | 95.2 in (2418.08 mm) |
| Departure Angle | 39 degrees |
| Height – Top Of Cab | 6.98 ft in (0.18 m) |
| Length – Track On Ground | 69.6 in (1767.84 mm) |
| Length – With Bucket On Ground | 151.6 in (3850.64 mm) |
| Length – Without Bucket | 123.5 in (3136.9 mm) |
| Maximum Dump Angle | 52 degrees |
| Maximum Overall Height | 159.4 in (4048.76 mm) |
| Maximum Reach – With Arms Parallel | 50.7 in (1287.78 mm) |
| Overall Length – Track | 89.4 in (2270.77 mm) |
| Rack Back Angle – Maximum Height | 83 degrees |
| Reach At Maximum Lift/Dump | 31 in (787.4 mm) |
| Turn Radius From Center – Bucket | 92.4 in (2346.96 mm) |
| Turn Radius From Center – Coupler | 60.4 in (1534.16 mm) |
| Turn Radius From Center – Rear | 72.8 in (1849.12 mm) |
| Bucket Pin Height – Carry Position | 7.7 in (195.58 mm) |
| Vehicle Width | 76 in (1930.4 mm) |
Engine Details
| Gross Power | 110 hp (82.1 kw) |
| Net Power | 106 hp (79.1 kw) |
| Displacement | 232 cu in (3.9 L) |
| Bore | 3.9 in (99.1 mm) |
| Stroke | 4.7 in (119.4 mm) |
| Gross Power – Sae J1995 | 110 hp (82.1 kw) |
| Engine Model | Cat C3.8 (turbocharged) |
| Net Power – Sae 1349 | 106 hp (79.1 kw) |

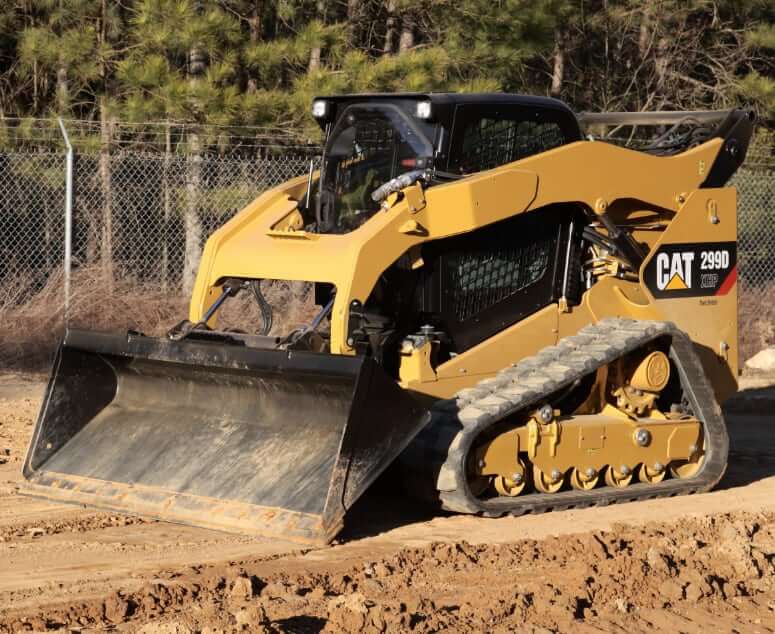

Operational Specs
| Operating Weight | 11647 lb (5283 kg) |

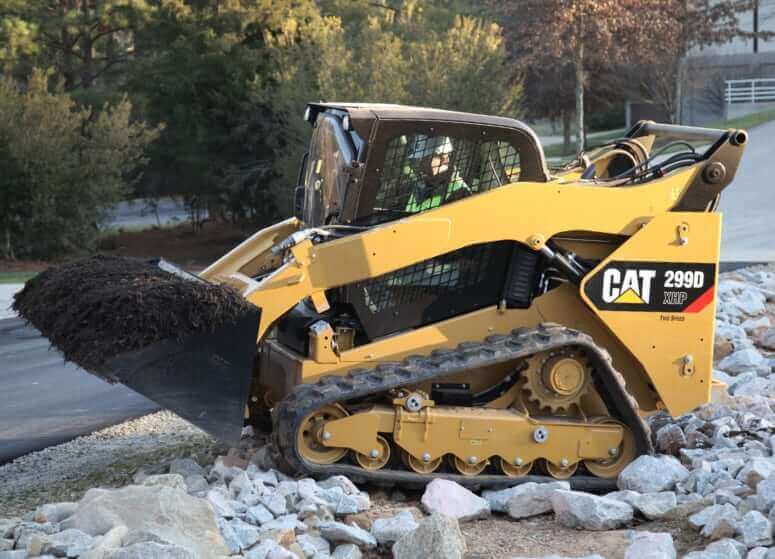

Power Train
| Travel Speed Forward – 2-Speed | 8.5 mph (13.7 km/h) |
| Travel Speed Reverse – 2-Speed | 8.5 mph (13.7 km/h) |
| Travel Speed Forward | 5 mph (8.1 km/h) |
| Travel Speed Reverse | 5 mph (8.1 km/h) |

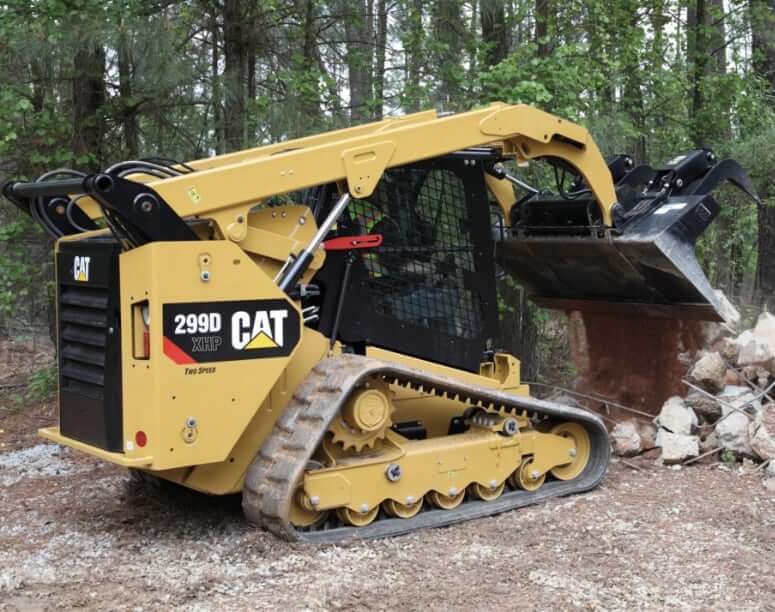

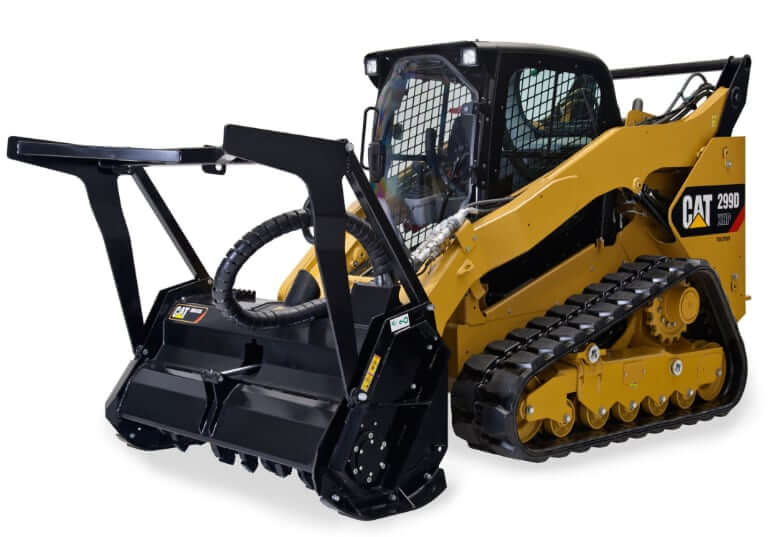

Hydraulic System
| Hydraulic Flow (1) | Standard |
| Hydraulic Power | 44 hp (32.9 kw) |
| Maximum Loader Hydraulic Flow | 40 gal/min |
| Maximum Loader Hydraulic Pressure | 4061 psi |
| Loader Hydraulic Pressure | 3335 psi |
| Loader Hydraulic Flow | 23 gal/min |
| Hydraulic Flow (2) | XHP |
| Hydraulic Power – Calculated | 94 hp (70.1 kw) |

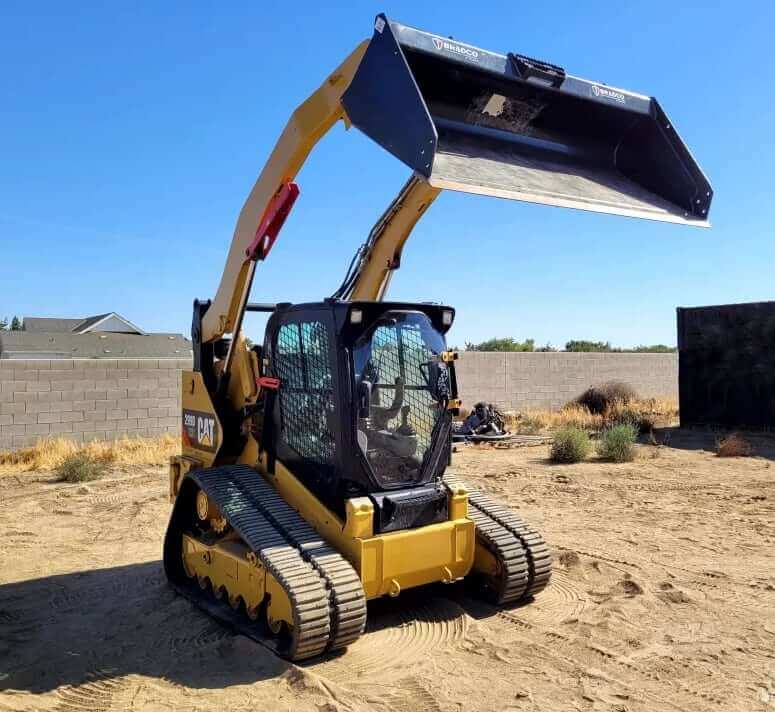

Operating Specifications
| Rated Operating Capacities – 50% Tipping Load | 4550 lb (2063.9 kg) |
| Rated Operating Capacities – 35% Tipping Load | 3185 lb (1444.7 kg) |
| Ground Contact Area | 2184 in2 (1.5 m2) |
| Ground Pressure | 5.3 psi |
| Tipping Load | 9100 lb (4127.7 kg) |
| Breakout Force – Tilt Cylinder | 7381 lb (3348 kg) |
| Breakout Force – Lift Cylinder | 6100 lb (2767 kg) |
Service Refill Capacities
| Cooling System | 3.7 gal (14.1 L) |
| Fuel Tank Capacity | 30.8 gal (116.6 L) |
| Hydraulic Tank | 10.3 gal (39 L) |
| Engine Crankcase | 2.6 gal (9.9 L) |
| Hydraulic System | 16 gal (60.6 L) |
Cab
| Rops | SAE J1040 MAY94, ISO 3471:1994 |
| Fops | SAE J1043 SEPT87, ISO 3449:1992 Level I |
| Fops Level Ii | SAE J231 JAN81, ISO 3449:1992 Level II |
