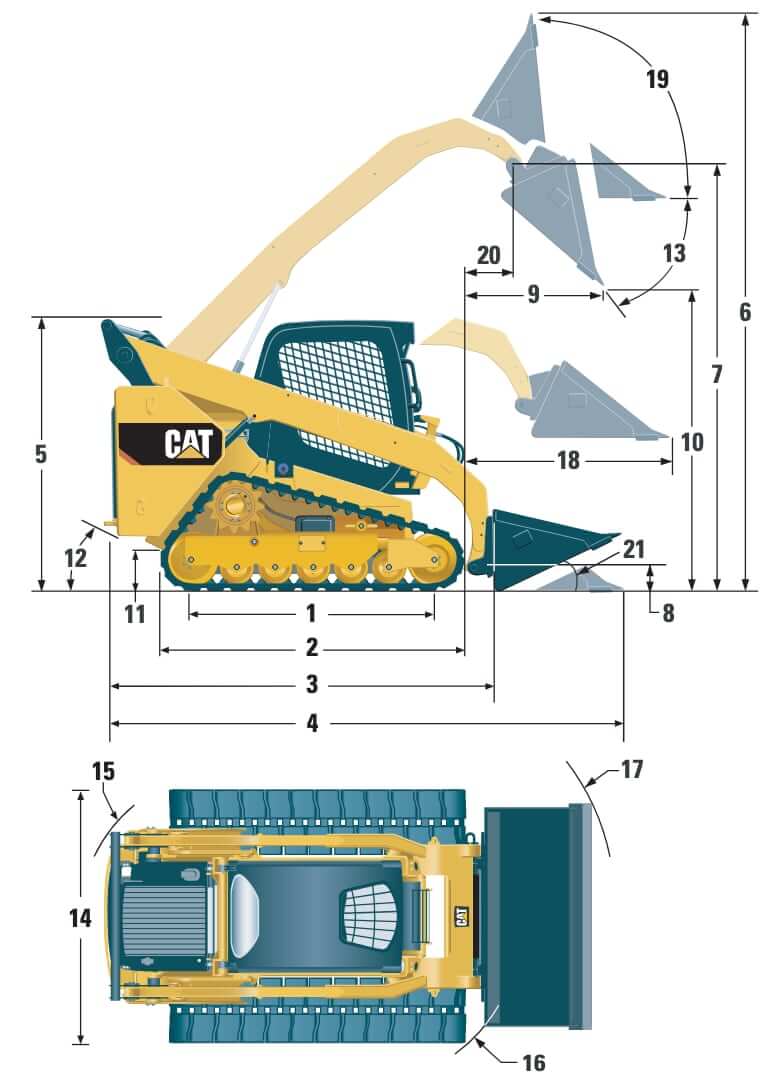

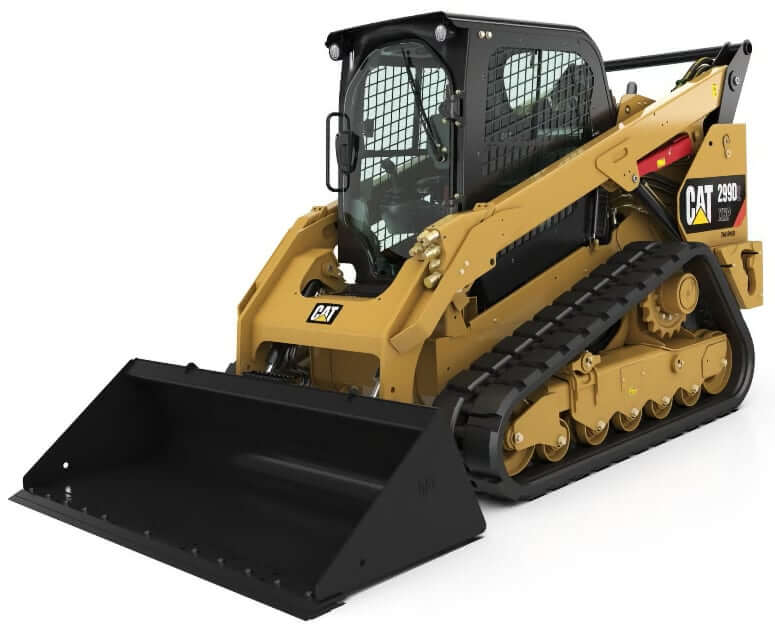

Dimensions
| Ground Clearance | 0.8 ft in (243.84 mm) |
| Bucket Pin Height – Carry Position | 7.1 in (180.34 mm) |
| Bucket Pin Height – Maximum Lift | 10.53 ft in (0.27 m) |
| Bucket Pin Reach – Maximum Lift | 19.4 in (492.76 mm) |
| Clearance At Maximum Lift And Dump | 94.5 in (2400.31 mm) |
| Departure Angle | 33 degrees |
| Height – Top Of Cab | 6.97 ft in (0.18 m) |
| Length – Track On Ground | 69.6 in (1767.84 mm) |
| Length – With Bucket On Ground | 154.7 in (3929.38 mm) |
| Length – Without Bucket | 125.5 in (3187.7 mm) |
| Maximum Dump Angle | 54 degrees |
| Maximum Overall Height | 158.7 in (4030.98 mm) |
| Maximum Reach – With Arms Parallel To Ground | 51.9 in (1318.26 mm) |
| Overall Length – Track | 89.4 in (2270.77 mm) |
| Rack Back Angle – Maximum Height | 81 degrees |
| Reach – Maximum Lift/Dump | 33.6 in (853.44 mm) |
| Roll Back Angle | 25 degrees |
| Turning Radius From Center – Bucket (Racked) | 91.1 in (2313.94 mm) |
| Turning Radius From Center – Coupler | 58.1 in (1475.74 mm) |
| Turning Radius From Center – Machine Rear | 74 in (1879.6 mm) |
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 1981 mm (78 in) dirt bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted). |
| Vehicle Width (400 Mm/15.7 In Tracks) | 76 in (1930.4 mm) |
Engine Details
| Net Power | 106 hp (79.1 kw) |
| Displacement | 232 cu in (3.9 L) |
| Bore | 3.9 in (99.1 mm) |
| Stroke | 4.7 in (119.4 mm) |
| Net Power – Iso 9249 | 107 hp (79.8 kw) |
| Gross Power – Sae J1995 | 110 hp (82.1 kw) |
| Engine Model | Cat C3.8 DIT (turbo) |
| Net Power – Sae 1349 | 106 hp (79.1 kw) |
| Peak Torque – 1,500 Rpm – Sae J1995 | 276 lb ft (374.3 Nm) |
Operational Specs
| Operating Weight | 11608 lb (5265.4 kg) |
Power Train
| Travel Speed – Forward Or Reverse – One Speed | 5.2 mph (8.4 km/h) |
| Travel Speed – Forward Or Reverse – Two Speed | 8.4 mph (13.6 km/h) |
Weights
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 1981 mm (78 in) dirt bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted). |
Hydraulic System
| Hydraulic Flow – Xhp – Maximum Loader Hydraulic Flow* | 40 gal/min |
| Note | *When equipped with Cat 400 Series work tools. |
| Standard Flow Mode – Loader Hydraulic Pressure | 3335 psi |
| Hydraulic Flow – Xhp – Maximum Loader Hydraulic Pressure | 4061 psi |
| Hydraulic Flow – Xhp – Hydraulic Power (Calculated) | 94 hp (70.1 kw) |
| Standard Flow Mode – Loader Hydraulic Flow | 23 gal/min |
| Standard Flow Mode – Hydraulic Power – Calculated | 44 hp (32.9 kw) |

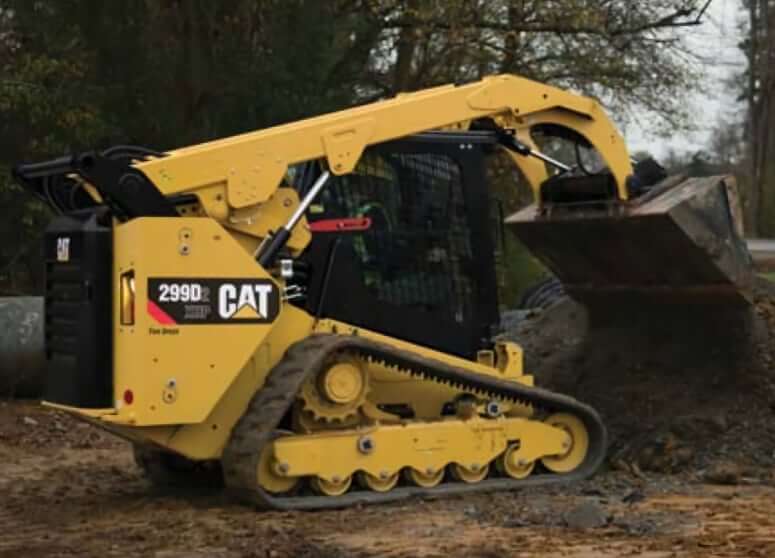

Operating Specifications
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed, ride control, enclosed cab with glass door, side windows, air conditioning, air ride seat, advanced display, rearview camera, 1,000 CCA battery, dual direction self level, 1981 mm (78 in) dirt bucket, 400 mm (15.7 in) tracks, triple flange front/rear idlers, no optional counterweights and manual quick coupler (unless otherwise noted). |
| Rated Operating Capacities – 50% Tipping Load | 4725 lb (2143.3 kg) |
| Rated Operating Capacities – 35% Tipping Load | 3308 lb (1500.5 kg) |
| Ground Contact Area | 2184 in2 (1.5 m2) |
| Ground Pressure | 5.3 psi |
| Rated Operating Capacity With Optional Counterweight | 4975 lb (2256.7 kg) |
| Tipping Load | 9450 lb (4286.5 kg) |
| Breakout Force – Tilt Cylinder | 7270 lb (3297.7 kg) |
| Breakout Force – Lift Cylinder | 6162 lb (2795.1 kg) |
Service Refill Capacities
| Cooling System | 4.1 gal (15.6 L) |
| Fuel Tank Capacity | 32.2 gal (121.9 L) |
| Hydraulic Tank | 10.3 gal (39 L) |
| Engine Crankcase | 3.5 gal (13.3 L) |
| Hydraulic System | 14.5 gal (54.9 L) |
| Diesel Exhaust Fluid (Def) Tank | 5 gal (19 L) |
Cab
| Rops | ISO 3471:2008 |
| Fops | ISO 3449:2005 Level I |
| Fops Level Ii | ISO 3449:2005 Level II |
Air Conditioning System
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes. |
Noise Level
| Inside Cab* | 83 dB(A) |
| Outside Cab** | 104 dB(A) |
| Note (1) | Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. |
| Note (2) | *The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. |
| Note (3) | **The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC. |
