Loader
| Breakout Force (Tilt Cylinder) | 7270 lb (3298 kg) |
| Breakout Force (Lift Cylinder) | 6162 lb (2795 kg) |
| Tipping Load | 9945 lb (4520 kg) |
| Rated Operating Capacity (ROC) (35% Tipping Load) | 3480 lb (1580 kg) |
| Rated Operating Capacity (ROC) (50% Tipping Load) | 4970 lb (2255 kg) |
| Rated Operating Capacity w/ Optional Counterweight | 5240 lb (2380 kg) |

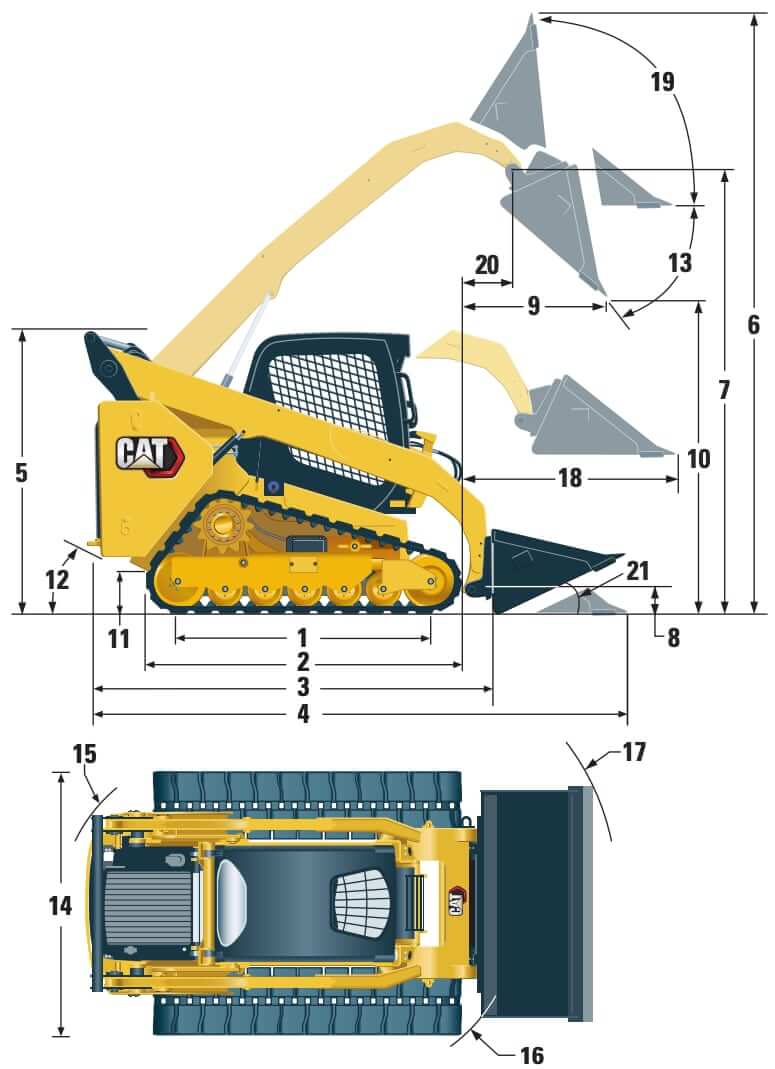

Dimensions
| 1. Length Of Track On Ground | 69.6 in (1767 mm) |
| 2. Overall Length of Track | 89.4 in (2270 mm) |
| 3. Length w/o Bucket | 125.5 in (3189 mm) |
| 4. Length with Bucket on Ground | 154.7 in (3931 mm) |
| 5. Height To Top Of Cab | 83.6 in (2125 mm) |
| 6. Max Overall Height | 158.7 in (4032 mm) |
| 7. Bucket Pin Height – Maximum Lift | 126.3 in (3208 mm) |
| 8. Bucket Pin Height – Carry Position | 7.1 in (180 mm) |
| 9. Reach At Max Lift And Dump | 33.6 in (852 mm) |
| 10. Clearance At Max Lift And Dump | 94.5 in (2399 mm) |
| 11. Ground Clearance | 9.6 in (245 mm) |
| 12. Departure Angle | 33° |
| 13. Maximum Dump Angle | 54° |
| 14. Overall Width Over Tracks (15.7 in / 400 mm shoe) | 76 in (1931 mm) |
| 14. Overall Width Over Tracks (17.7 in / 450 mm shoe) | 78 in (1981 mm) |
| 15. Turn Radius from Center – Machine Rear | 74 in (1881 mm) |
| 16. Turn Radius from Center – Coupler | 58.1 in (1476 mm) |
| 17. Turn Radius from Center – Bucket (racked) | 91.1 in (2314 mm) |
| 18. Maximum Reach – With Arms Parallel to Ground | 51.9 in (1319 mm) |
| 19. Rack Back Angle at Max Height | 81° |
| 20. Bucket Pin Reach at Maximum Lift | 19.4 in (493 mm) |
| 21. Roll Back Angle | 25° |

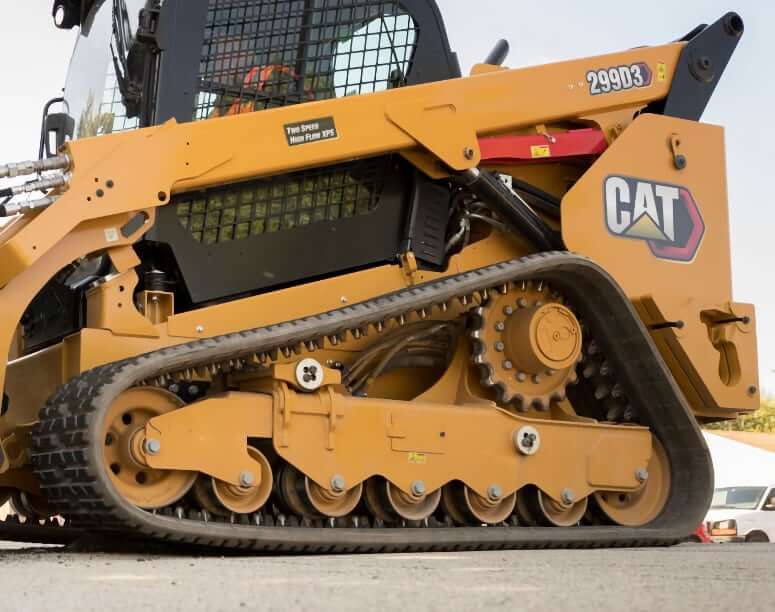

Undercarriage
| Length Of Track On Ground | 69.6 in (1767 mm) |
| Ground Contact Area (15.7 in / 400 mm shoe) | 2184 in2 (1.41 m2) |
| Ground Contact Area (17.7 in / 450 mm shoe) | 2463 in2 (1.59 m2) |
| Ground Pressure (15.7 in / 400 mm shoe) | 5.3 psi (36.4 kPa) |
| Ground Pressure (17.7 in / 450 mm shoe) | 4.7 psi (32.1 kPa) |
| Suspension | Independent Torsion Axles (4) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Caterpillar |
| Engine Model | Cat C3.8B DIT |
| Displacement | 232 cu in (3.8 L) |
| Bore | 3.9 in (100 mm) |
| Stroke | 4.7 in (120 mm) |
| Gross Horsepower | 98 hp (73 kw) |
| Net Horsepower | 95 hp (71 kw) |
| Power Measured @ | 2400 rpm |
| Peak Torque | 246 lb ft (334 Nm) |
| Torque Measured @ | 1500 rpm |
| Aspiration | Turbocharged and aftercooled |
| Emission Standards | US EPA Tier 4 Final and EU Stage V |
Power Train
| Type | Hydrostatic transmission |
| Number of Gears | 2 speed travel and an electronic hand/foot throttle with decel pedal capability |
| 1 Max Travel Speed | 5.2 mph (8.4 km/h) |
| 2 Max Travel Speed | 8.4 mph (13.5 km/h) |

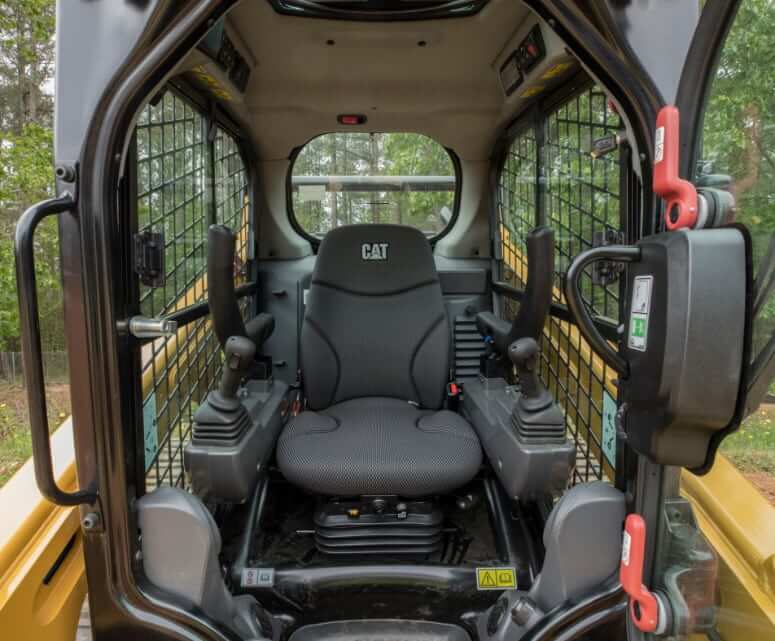

Cab
| ROPS | ISO 3471:2008 |
| FOPS | ISO 3449:2005 Level I / Level II |
| Operator Warning System Indicators | Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Air Inlet Heater Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged, Engine Emission System |
| Performance Package H1 | Standard Flow (No Self Level) |
| Performance Package H2 | Standard Flow, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower) |
| Performance Package H3 | High Flow XPS, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower) |
| Noise Level Inside Cab | 83 dB(A) |
| Noise Level Outside Cab | 104 dB(A) |
Operational Specs
| Operating Weight | 11464 lb (5200 kg) |
| Max Operating Lift Capacity | 5240 lb (2380 kg) |
| Counterweight | 74.7 lb (33.9 kg) |
| Lights | Gauge Backlighting, Two Rear Tail Lights, Two Rear Halogen Working Lights, Two Adjustable Front Halogen Lights, Dome Light |
| Operating Voltage | 12 V |
| Alternator | 100 amps |
| Battery | 12 V, 70 Ah, CCA 850, 65 BCI group size heavy duty battery |
Hydraulic System
| Hydraulics | Standard Flow | High Flow XPS |
|---|---|---|
| Pump Flow | 23 gal/min (86 L/min) | 32 gal/min (121 L/min) |
| Relief Valve Pressure | 3335 psi (23000 kPa) | 4061 psi (28000 kPa) |
| Hydraulic Power | 44 hp (33 kw) | 76 hp (57 kw) |

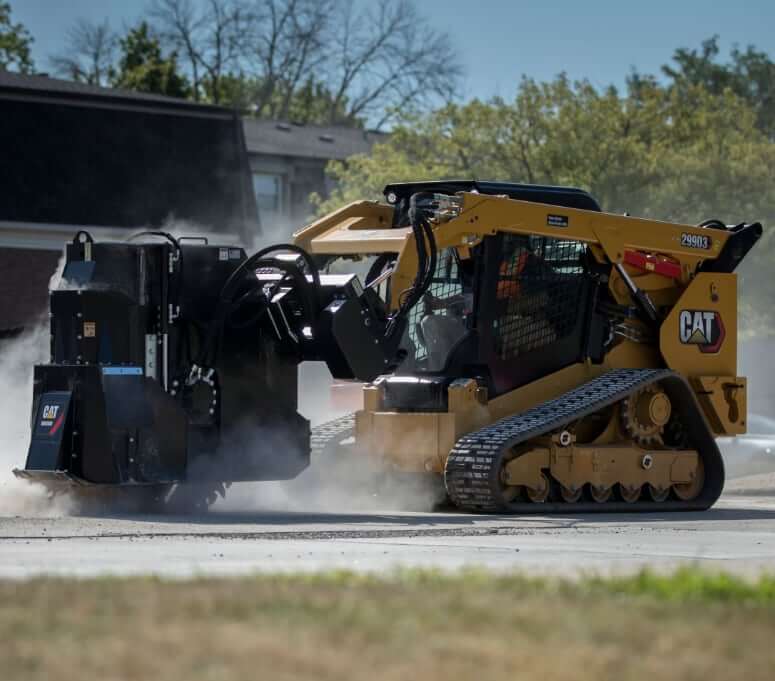

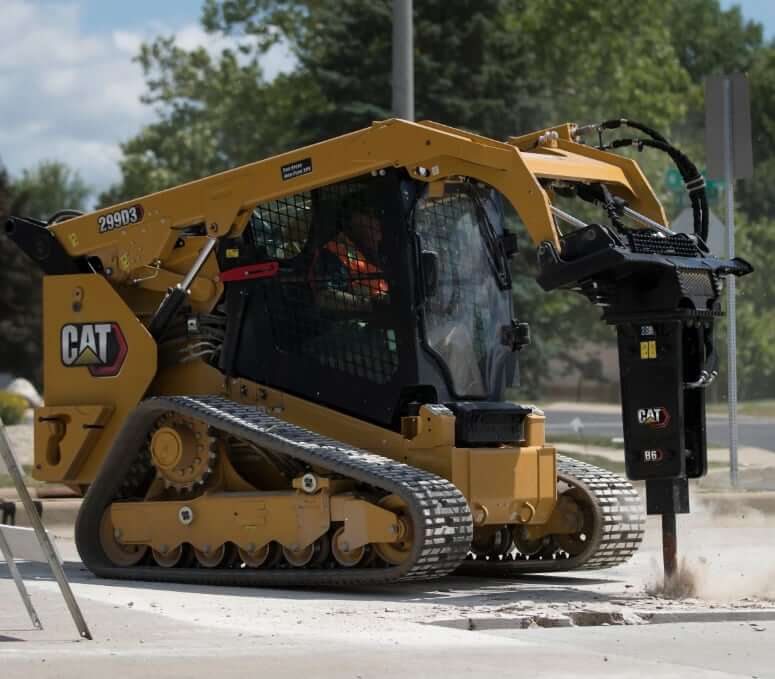

CAT 299D3 Attachments
The CAT 299D3 Compact Track Loader is compatible with a wide array of attachments and work tools, enhancing its versatility across various applications.
| Angle Blades | 1829 mm (72 in), 30 degrees 2134 mm (84 in), 30 degrees |
| Augers | A23 1699.3 lb/ft A41 3037.3 lb/ft A68 5034.6 lb/ft |
| Dozer Blades | 2007 mm (79 in), 30 degrees 2337 mm (92 in), 30 degrees 2337 mm (92 in), 30 degrees |
| General Purpose Buckets | 1576 mm (62 in), 0.47 yd3, 407.9 lb 1730 mm (68 in), 0.52 yd3, 509.3 lb 1883 mm (74 in), 0.58 yd3, 549 lb 2036 mm (80 in), 0.63 yd3, 582 lb 2188 mm (86 in), 0.82 yd3, 670.2 lb |
| Grader Blades | GB120, Smart 78.4 in, 78 in, 68.8 in GB124, Smart 96.4 in, 96 in, 84.4 in |
| Industrial Grapple Buckets | 1576 mm (62 in), 1062.6 lb, 20.7 in 1730 mm (68 in), 1111.1 lb, 20.7 in 1883 mm (74 in), 1159.6 lb, 20.7 in 2036 mm (80 in), 1201.5 lb, 20.7 in |
| Industrial Grapple Forks | 1676 mm (66 in) – 66 in, 31.9 in, 38 in 1829 mm (72 in) – 72 in, 32 in, 38 in |
| Industrial Grapple Rakes | 1829 mm (72 in) – 72 in, 33 in, 1069.9 lb 2137 mm (84 in) – 84 in, 33 in, 1115.1 lb |
| Landscape Rakes | LR116 62 in, 0.4 yd3, 1311.7 lb LR119 74.1 in, 0.4 yd3, 1439.6 lb |
| Landscape Tillers | LT114 53.3 in, 25-152 mm (1-6 in), 925.9 lb LT118 72.8 in, 25-152 mm (1-6 in), 925.9 lb |
| Light Material Buckets | 1883 mm (74 in), 0.9 yd3, 666 lb 2036 mm (80 in), 0.98 yd3, 706 lb 2185 mm (86 in), 1.1 yd3, 747 lb 2490 mm (98 in), 1.22 yd3, 822 lb |
| Low Profile Buckets | 1586 mm (62 in), 0.34 m3 (0.44 yd3), 452 lb 1740 mm (68 in), 0.37 m3 (0.48 yd3), 512 lb 1893 mm (74 in), 0.41 m3 (0.54 yd3), 547 lb |
| Material Handling Arms | Material Handling Arm 51.8 in, 1999.6 lb, 84 in |
| Multi-Purpose Buckets | 1576 mm (62 in), 0.39 yd3, 851 lb 1730 mm (68 in), 0.44 yd3, 906 lb 1883 mm (74 in), 0.48 yd3, 961 lb 2036 mm (80 in), 0.52 yd3, 1016 lb 2188 mm (86 in), 0.56 yd3, 1071 lb |
| Straight Snow Pushes | 2.44 m (8 ft), 96 in, 1082.5 lb, 45 in 3.05 m (10 ft), 120 in, 1153 lb, 45 in 3.05 m (10 ft), 120 in, 1201.5 lb, 45 in 3.66 m (12 ft), 144 in, 1402.1 lb, 45 in 2.44 m (8 ft), 96 in, 1036.2 lb, 45 in 3.66 m (12 ft), 144 in, 1347 lb, 45 in 2.44 m (8 ft), 96 in, 778.2 lb, 43.7 in 3.66 m (12 ft), 144 in, 952.4 lb, 43.7 in 3.05 m (10 ft), 120 in, 866.4 lb, 43.7 in |
| Stump Grinders | SG16 Standard Flow, 21.5 in, 20.5 in SG36 High Flow XPS, 21.5 in, 20.5 in |
| Trenchers | T112 Hydraulic Side Shift 48 in, 6 in, Standard Flow T315 Hydraulic Side Shift 60 in, 6 in, Standard Flow |
| Utility Buckets | 1576 mm (62 in), 0.56 yd3, 529 lb 1730 mm (68 in), 0.63 yd3, 569 lb 1883 mm (74 in), 0.68 yd3, 609 lb |
| Utility Forks | 1676 mm (66 in) x 22.9 x 436.5 lb 1829 mm (72 in) x 22.9 x 485 lb |
| Utility Grapple Buckets | 1883 mm (74 in): 29.1 in, 35.5 in 1730 mm (68 in): 29.1 in, 35.5 in |
| Utility Grapple Forks | 1676 mm (66 in) x 30.3 x 34.5 in 1829 mm (72 in) x 30.3 x 34.5 in |
| Vibratory Drum Compactors | CV117 66 in, 2063.5 lb, Standard Flow CV119 73 in, 2138.5 lb, Standard Flow |
Service Refill Capacities
| Fuel Tank Capacity | 31.7 gal (120 L) |
| DEF Tank Capacity | 5 gal (19 L) |
| Engine Oil Capacity | 3.5 gal (13 L) |
| Cooling System Capacity | 4.1 gal (16 L) |
| Hydraulic System Capacity | 14.5 gal (55 L) |
| Hydraulic Tank Capacity | 10.3 gal (39 L) |
