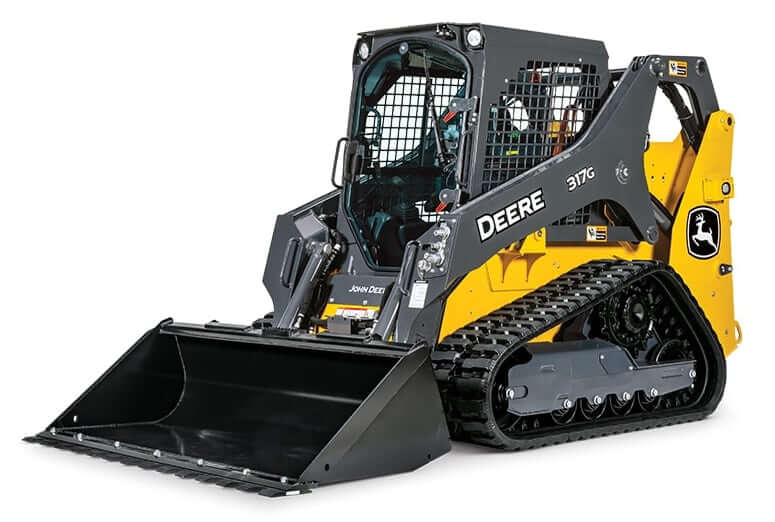

Loader Performance
| Tipping Load w/ Foundry Bucket | 6070 lb (2756 kg) |
| Rated Operating Capacity at 35% Tipping Load (SAE) | 2125 lb (965 kg) |
| Rated Operating Capacity at 50% Tipping Load (SAE) | 3035 lb (1378 kg) |
| Rated Operating Capacity w/ Counterweight | 2250 lb (1022 kg) |
| Boom Breakout Force w/ Foundry Bucket | 5250 lbf (23.38 kN) |
| Boom Breakout Force w/ Construction Bucket | 5000 lbf (22.26 kN) |
| Bucket Breakout Force w/ Foundry Bucket | 6000 lbf (26.71 kN) |
| Bucket Breakout Force w/ Construction Bucket | 4250 lbf (18.93 kN) |

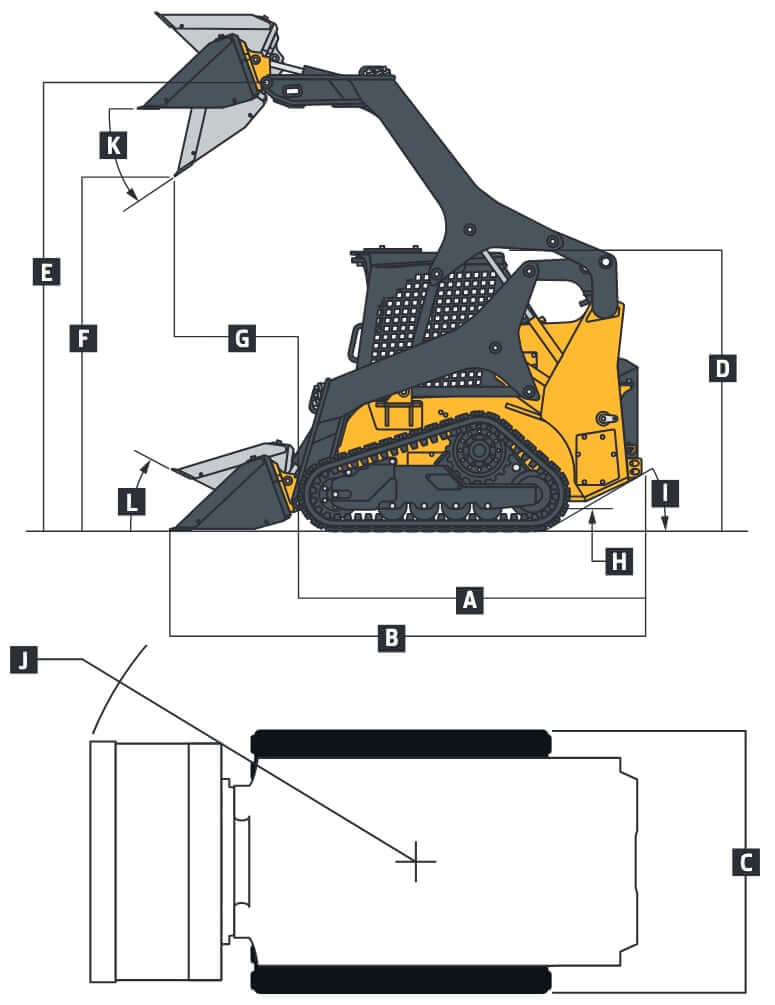

Dimensions
| A. Length Without Bucket | 103 in (2630 mm) |
| B. Length With Foundry Bucket | 127.6 in (3240 mm) |
| B. Length With Construction Bucket | 137.4 in (3490 mm) |
| C. Width w/o Bucket, 12.6″ (320 mm) Shoe | 65.1 in (1650 mm) |
| C. Width w/o Bucket, 15.8″ (400 mm) Shoe | 71.5 in (1820 mm) |
| D. Height to Top of ROPS | 78.5 in (1990 mm) |
| E. Height to Hinge Pin | 121 in (3070 mm) |
| F. Dump Height w/ Foundry Bucket | 95.6 in (2430 mm) |
| F. Dump Height w/ Construction Bucket | 89.0 in (2260 mm) |
| G. Dump Reach w/ Foundry Bucket | 31 in (790 mm) |
| G. Dump Reach w/ Construction Bucket (with edge) | 38.6 in (980 mm) |
| H. Ground Clearance | 8.3 in (210 mm) |
| I. Angle of Departure | 32.3° |
| J. Front Turn Radius w/ Foundry Bucket | 77.7 in (1970 mm) |
| K. Dump Angle (full lift height) | 42° |
| L. Bucket Rollback (ground level) | 30° |

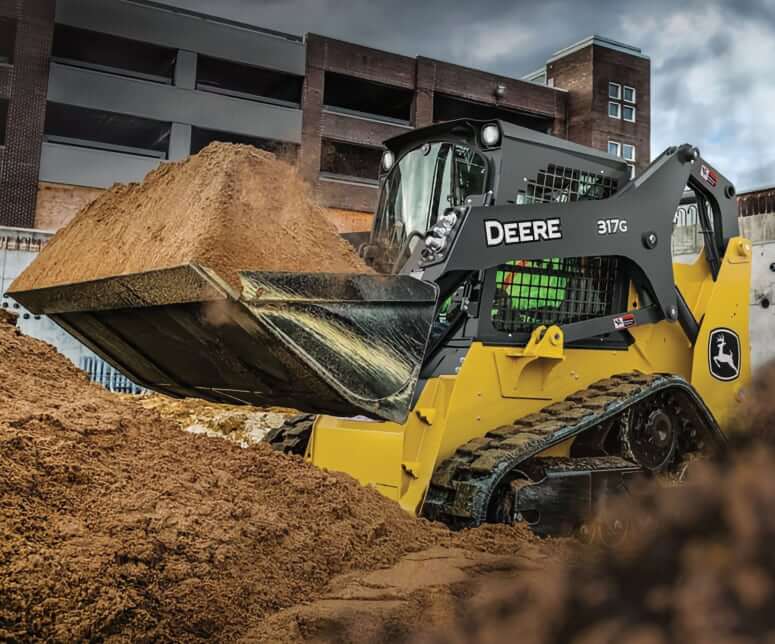

Weight
| Operating Weight, 12.6″ (320 mm) Shoe | 8423 lb (3824 kg) |
| Operating Weight, 15.8″ (400 mm) Shoe | 8683 lb (3942 kg) |
| Rear Counterweights (each set) | 100 lb (45.36 kg) |
| Ground Pressure (Standart Track) | 5.5 psi (38 kPa) |
| Ground Pressure (Wide Track) | 4.5 psi (31 kPa) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Yanmar |
| Engine Model | Yanmar 4TNV86CHT |
| Displacement | 128 cu in (2.1 L) |
| Net Power | 61 hp (45.6 kw) |
| Gross Power | 65 hp (48.5 kw) |
| Power Measured @ | 2600 rpm |
| Peak Torque | 153 lb ft (207 Nm) |
| Torque Measured @ | 1690 rpm |
| Torque Rise | 16% |
| Air Cleaner | Dry dual element |
| Aspiration | Turbocharged |
| Emission Standards | US EPA Final Tier 4 / EU Stage IV |
Electrical System
| Operating Voltage | 12 V |
| Alternator | 70 amps with no air conditioning (A/C) / 90 amps with A/C |
| Battery | 12V, T387973, CCA 750 standard / optional – 12 V, CCA 925 with cold weather start package |
| Working Lights | Standard: 2 front and 1 rear halogen lights / Optional: 2 front, 2 side, and 1 rear LED lights |

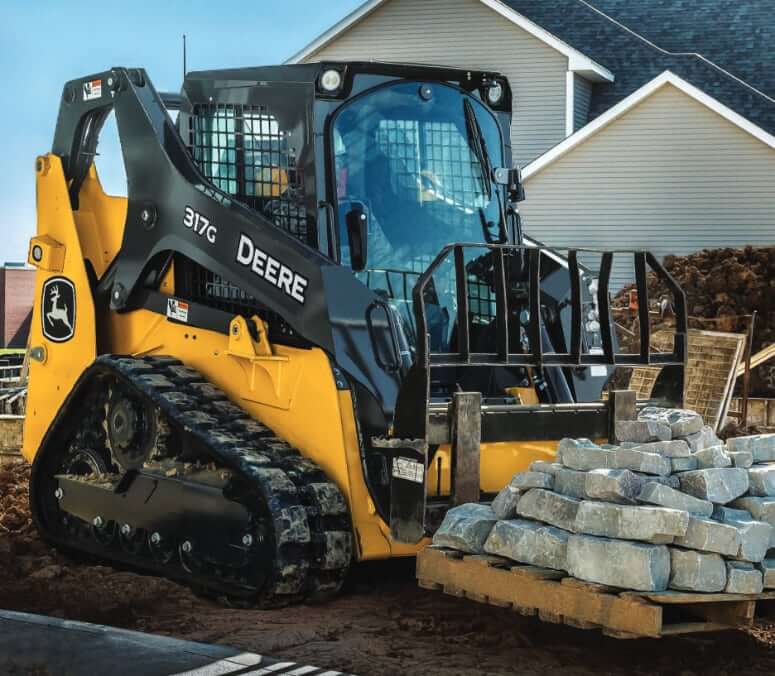

Operator Environment

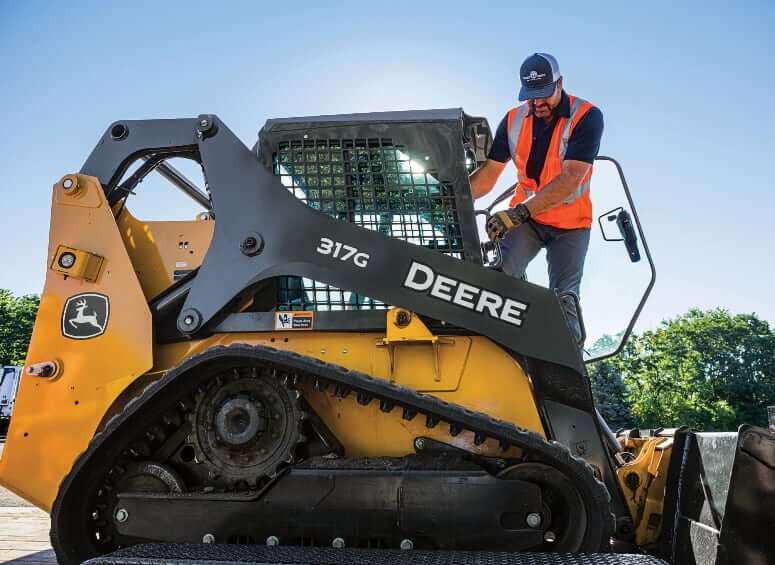

| Cab | ROPS (ISO 3471) / FOPS (ISO 3449) structure with quick pivot standard |
| Seat | Water-shedding deluxe vinyl seat with retractable seat belt, 2 in (51 mm) |
| Keyless-start | Keyless-start option with sealed-switch module |
| Joystick Controls (Standart) | Electrohydraulic (EH) ISO-pattern joystick controls |
| Joystick Controls (Optional) | EH joystick performance package: Switchable ISO-H pattern / Creeper mode / Boom/bucket speed settings / Adjustable propel settings / Attachment controls |
| Displays & Instrumentation | Deluxe instrumentation EMU with: Operator-selectable monitoring – Hour meter, engine rpm, battery voltage, diagnostics, EMU configuration, engine coolant temperature, hydraulic oil temperature / LED warning indicators – Glow plug, seat switch, seat belt, door open, auxiliary hydraulics, park brake engaged, 2-speed engaged, stop, low engine oil pressure, engine coolant over-temperature, battery not charging, air filter restriction, and hydraulic filter restriction |
Undercarriage
| Type of Tracks | Smooth-ride long-life rubber with steel inserts |
| Track Width (Standart / Optional) | 12.6 in (320 mm) / 15.8 in (400 mm) |
| Ground Pressure (Standart / Optional) | 5.5 psi (38 kPa) / 4.5 psi (31 kPa) |
| Track Rollers (per side) | 4 triple-flange smooth-ride all-steel rollers |
| Track Idlers (per side) | 1 double-flange and 1 single-flange smooth-ride all-steel rollers |
| Bearings/Seals (rollers/idlers) | Heavy-duty journal bearings and metal face seals |
| Tractive Effort | 8000 lbf (35.62 kN) |
Powertrain
| Powertrain Type | Axial-piston hydrostatic pump |
| Gearbox | High-drive direct-drive motor |
| Number of Gears | Transmission, single speed |
| Max Travel Speed | 7.0 mph (11.3 km/h) |
| Service Brakes | Integral, automatic, spring-applied, hydraulically released wet-disc brakes |
| Parking Brake | Wet disc brake |
Hydraulic System
| Type | 3-spool open-center valve |
| Pump Flow | 17 gal/min (63 L/min) |
| System Pressure at Couplers | 3450 psi (23787 kPa) |
| Hydraulic Power | 33 hp (25 kw) |

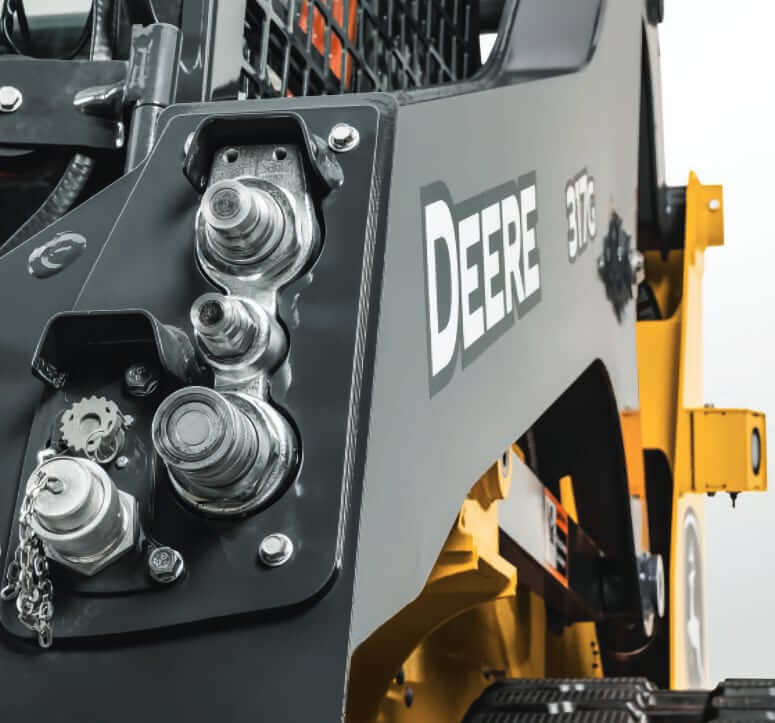

| Auxiliary Hydraulics | Standard connect-under-pressure with flat-faced couplers |
| Type of Cylinders | John Deere heat-treated, chrome-plated cylinder rods with replaceable bushings |
Service Refill Capacities
| Fuel Tank Capacity | 19 gal (71 L) |
| Engine Oil Capacity | 2.0 gal (7.5 L) |
| Cooling System Capacity | 3.2 gal (12 L) |
| Hydraulic and Hydrostatic Oil Capacity | 6.0 gal (22.7 L) |
| Hydrostatic Motor Brake Cavity Oil (per side) | 0.09 gal (0.35 L) |
John Deere 317G Filters
| Cab Fresh Air Filter | AT441536 |
| Cab Recirculation Air Filter | AT359416 |
| Dust Unloader Valve | M89679 |
| Hydraulics Oil Filter | AT314164 |
| Hydraulic Oil Reservoir Breather | AT443309 |
| Diesel Particulate Filter (DPF) (Component of Exhaust Filter) | MIU802216 |
| Engine Air Filter Primary | AT338105 |
| Engine Air Filter Secondary | AT336803 |
| Engine Oil Filter Element | MIU800650 |
| Primary Fuel Filter and Water Separator | MIU802421 |
| Final Fuel Filter | MIU805005 |
| Fuel Tank Breather | H216169 |
| Engine Rocker Arm Cover Gasket | MIU802182 |
| John Deere 317G 1000 Hour Filter Pak | AT535118 |
