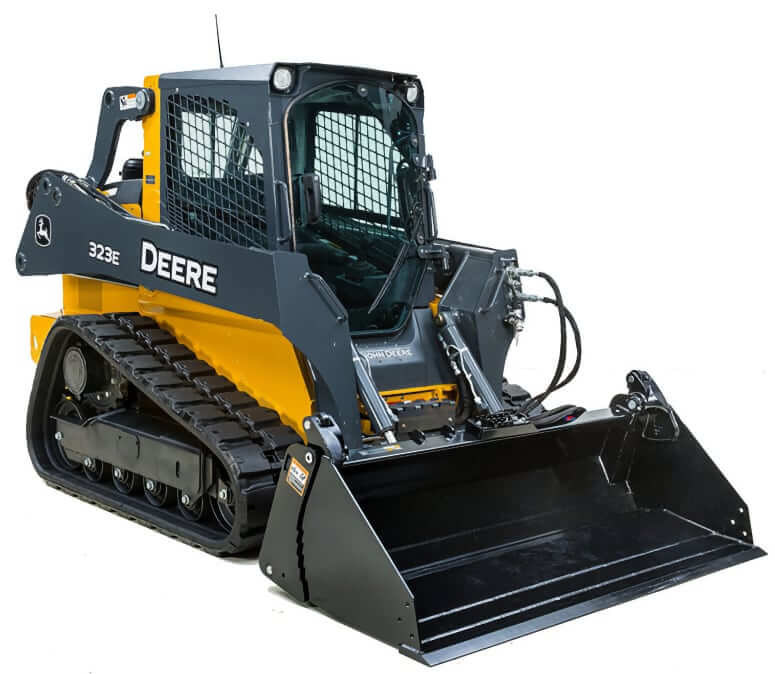

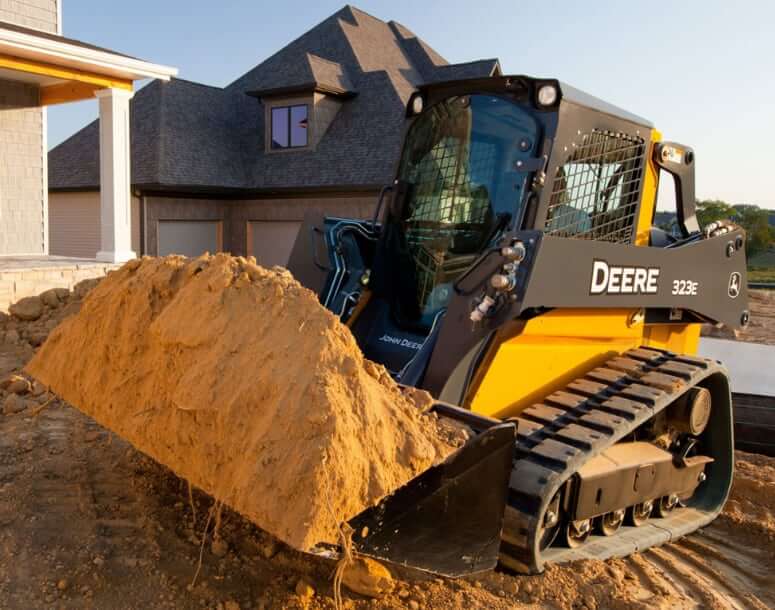

Loader Performance
| Tipping Load w/ Foundry Bucket | 7400 lb (3360 kg) |
| Rated Operating Capacity at 35% Tipping Load (SAE) | 2590 lb (1176 kg) |
| Rated Operating Capacity at 50% Tipping Load (SAE) | 3600 lb (1634 kg) |
| Boom Breakout Force w/ Foundry Bucket | 4300 lbf (19.13 kN) |
| Bucket Breakout Force w/ Foundry Bucket | 7000 lbf (31.14 kN) |

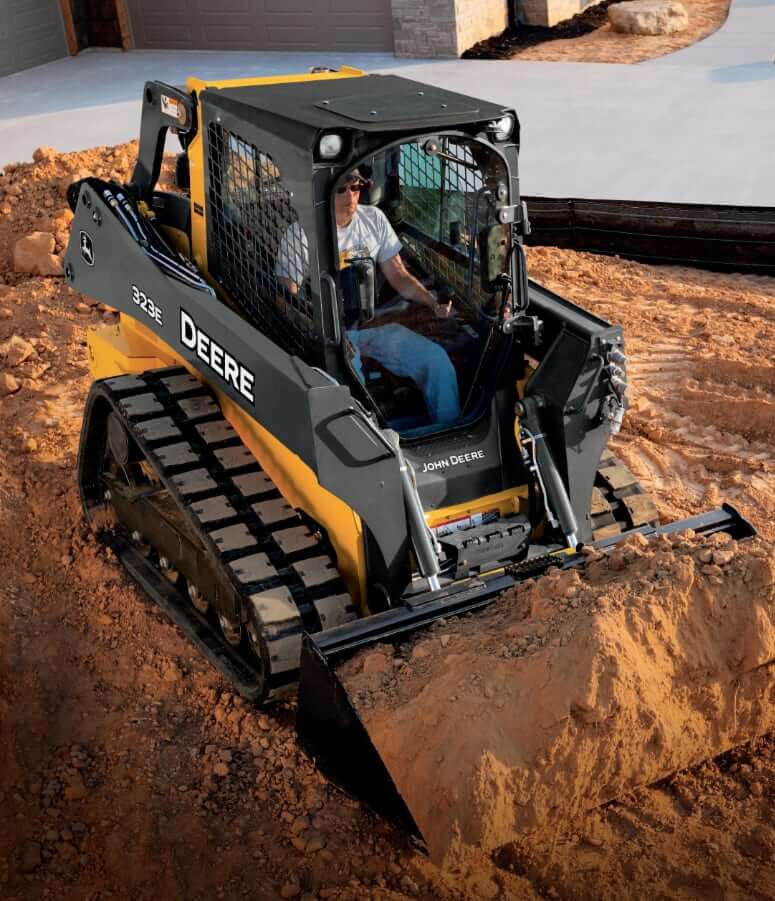

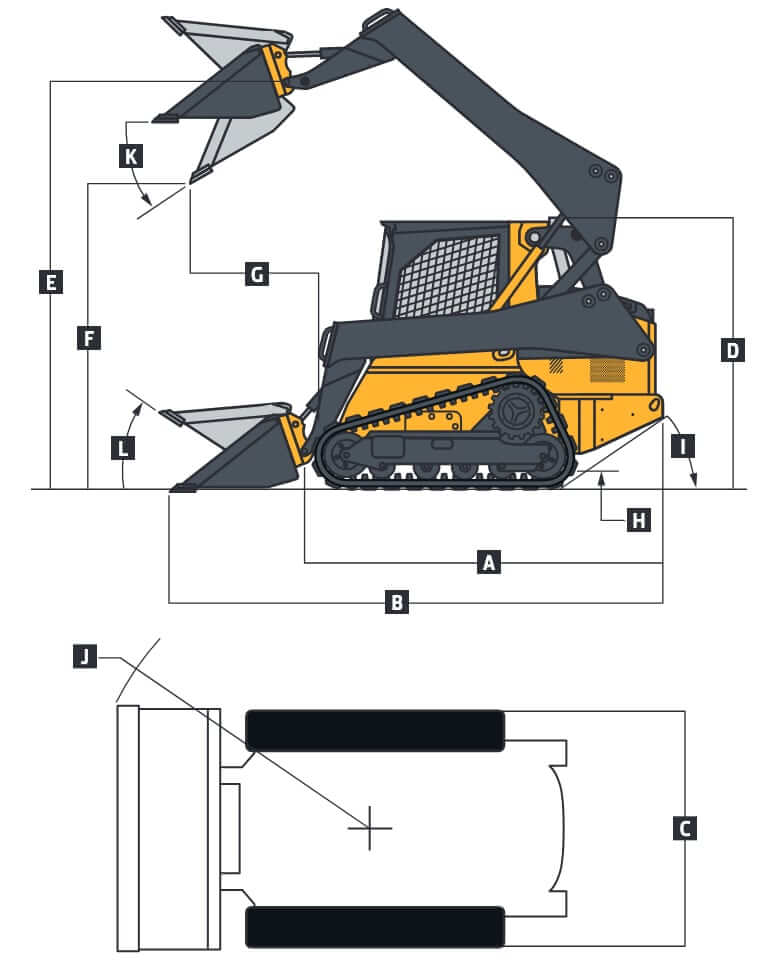

Dimensions
| A. Length w/o Bucket | 112 in (2850 mm) |
| B. Length w/ Foundry Bucket | 136.8 in (3470 mm) |
| C. Width w/o Bucket, 12.6″ (320 mm) Shoe | 71.8 in (1820 mm) |
| C. Width w/o Bucket, 15.8″ (400 mm) Shoe | 75.2 in (1910 mm) |
| D. Height to Top of ROPS | 80.6 in (2050 mm) |
| E. Height to Hinge Pin | 122.8 in (3120 mm) |
| F. Dump Height w/ Foundry Bucket | 98.4 in (2500 mm) |
| G. Dump Reach w/ Foundry Bucket | 28.5 in (720 mm) |
| G. Dump Reach w/ Construction Bucket (no edge) | 36.1 in (920 mm) |
| H. Ground Clearance | 9.8 in (250 mm) |
| I. Angle of Departure | 31.4° |
| J. Front Turn Radius w/ Foundry Bucket | 80.1 in (2030 mm) |
| K. Dump Angle (full lift height) | 42° |
| L. Bucket Rollback (ground level) | 32° |
Weight
| Operating Weight, 12.6″ (320 mm) Shoe | 9440 lb (4286 kg) |
| Operating Weight, 15.8″ (400 mm) Shoe | 9600 lb (4358 kg) |
| Rear Counterweights (each set) | 172 lb (78 kg) |
Engine Details
| Number of Cylinders | 4 |
| Engine Manufacturer | Yanmar |
| Engine Model | Yanmar 4TNV98CT |
| Displacement | 203 cu in (3.3 L) |
| Gross Power | 74 hp (54.8 kw) |
| Net Power | 70 hp (52.5 kw) |
| Power Measured @ | 2500 rpm |
| Peak Torque | 207 lb ft (280 Nm) |
| Torque Measured @ | 1800 rpm |
| Torque Rise | 34% |
| Air Cleaner | Dry dual element |
| Aspiration | Turbocharged |
| Emission Standards | US EPA Final Tier 4 / EU Stage IV |
Electrical System
| Operating Voltage | 12 V |
| Alternator | 70 amps |
| Battery | 12 V, CCA 750 / 925 (Optional) |
| Working Lights | Halogen, 2 front and 1 rear |
Operator Environment
| Cab | ROPS (ISO 3471) / FOPS (ISO 3449) structure with quick-pivot standard |
| Seat | Water-shedding deluxe vinyl suspension seat with retractable seat belt, 2 in (51 mm) |
| Keyless-start | Keyless-start sealed-switch module with integrated anti- theft system |
| Controls | Electronic push-button auxiliary controls |
| Displays & Instrumentation | Operator-selectable monitoring – Hour meter, engine rpm, battery voltage, diagnostics, EMU confguration, engine coolant temperature, hydraulic oil temperature / LED warning indicators – Glow plug, seat switch, seat belt, door open, auxiliary hydraulics, park brake engaged, 2-speed engaged, stop, low engine oil pressure, engine coolant over-temperature, battery not charging, air flter restriction, hydraulic flter restriction |

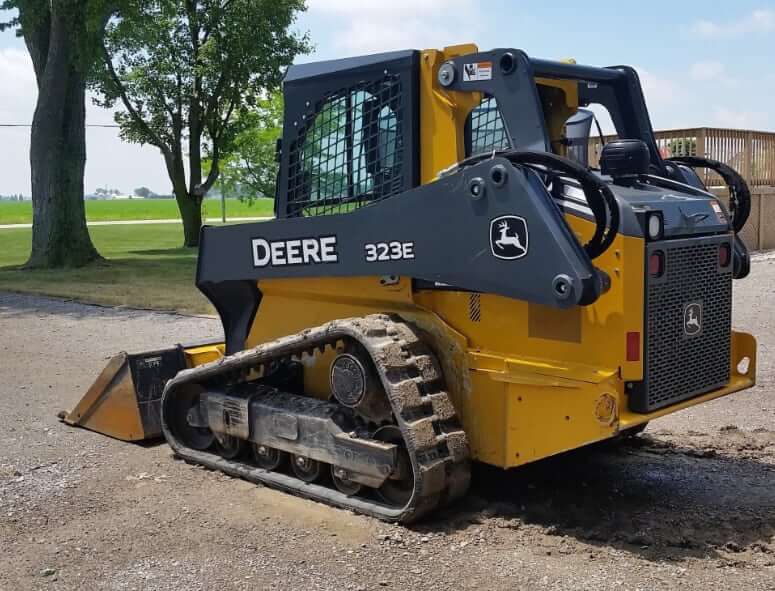

Undercarriage
| Tractive Effort | 8500 lbf (37.84 kN) |
| Type of Tracks | Smooth-ride long-life rubber with steel inserts |
| Track Width (Standart / Optional) | 12.6 in (320 mm) / 15.8 in (400 mm) |
| Ground Pressure (Standart / Optional) | 5.7 psi (39.3 kPa) / 4.7 psi (32.4 kPa) |
| Track Rollers (per side) | 4 triple-flange smooth-ride all-steel rollers |
| Track Idlers (per side) | 2 double-flange smooth-ride all-steel rollers |
| Bearings/Seals (rollers/idlers) | Heavy-duty journal bearings and metal face seals |
Powertrain
| Pump Type | Axial-piston hydrostatic |
| Controls | Manual or electrohydraulic |
| Number of Gears | Single Speed / 2-Speed (Optional) |
| Max Travel Speed, Single Speed | 6.2 mph (10 km/h) |
| Max Travel Speed, Low / High Speed (Optional) | 5.6 mph (9 km/h) / 8.7 mph (14 km/h) |
| Service Brakes | Integral, automatic, spring-applied, hydraulically released wet-disc brakes |
| Parking Brake | Wet-disc park brakes |
Hydraulic System
| Standart Pump Flow | 18 gal/min (68 L/min) |
| Pump Flow with High-Flow Option | 25 gal/min (95 L/min) |
| System Pressure at Couplers | 3250 psi (22408 kPa) |
| Hydraulic Power | 34.1 hp (25.5 kw) |
| Hydraulic Power with High-Flow Option | 47.4 hp (35.3 kw) |
| Type of Cylinders | John Deere heat-treated, chrome-plated, polished cylinder rods, hardened steel (replaceable bushings) pivot pins |

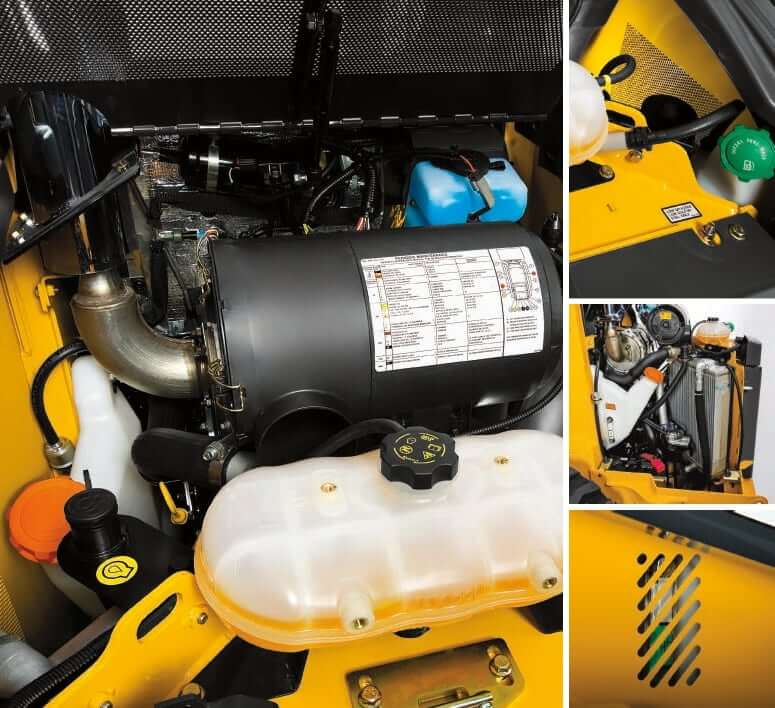

Service Refill Capacities
| Fuel Tank Capacity | 20 gal (76 L) |
| Engine Oil Capacity | 3.3 gal (12.5 L) |
| Cooling System Capacity | 3.3 gal (12.5 L) |
| Hydraulic and Hydrostatic Oil Capacity | 6.6 gal (24.9 L) |
| Final Drive Planetary Capacity (per side) | 0.21 gal (0.8 L) |
John Deere 323E Filters
| Engine Oil Filter | MIU800650 |
| Primary Fuel Filter | MIU802421 |
| Final Fuel Filter | MIU802154 |
| Hydraulics Oil Filter | AT435649 |
| Engine Air Filter Primary | AT338105 |
| Engine Air Filter Secondary | AT336803 |
