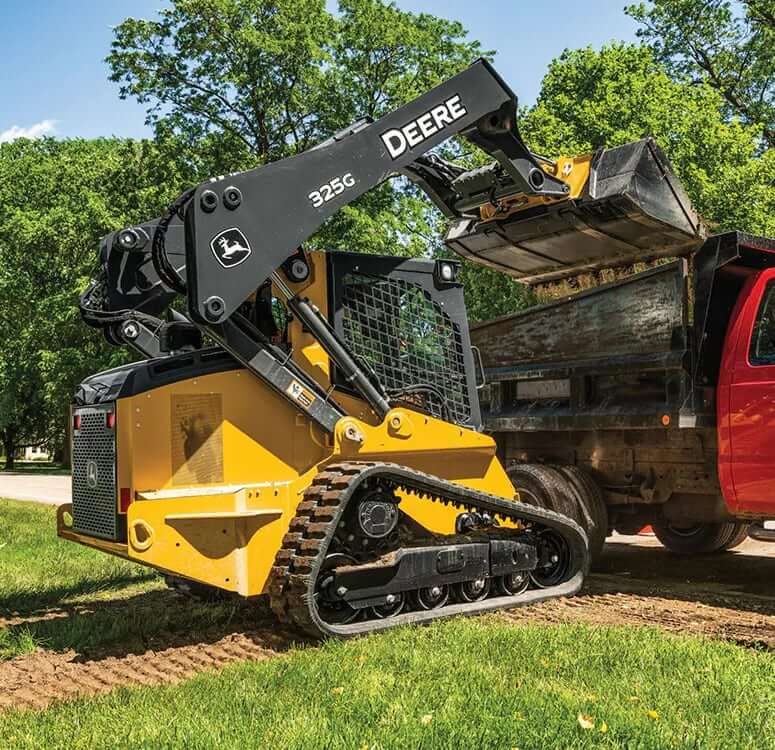

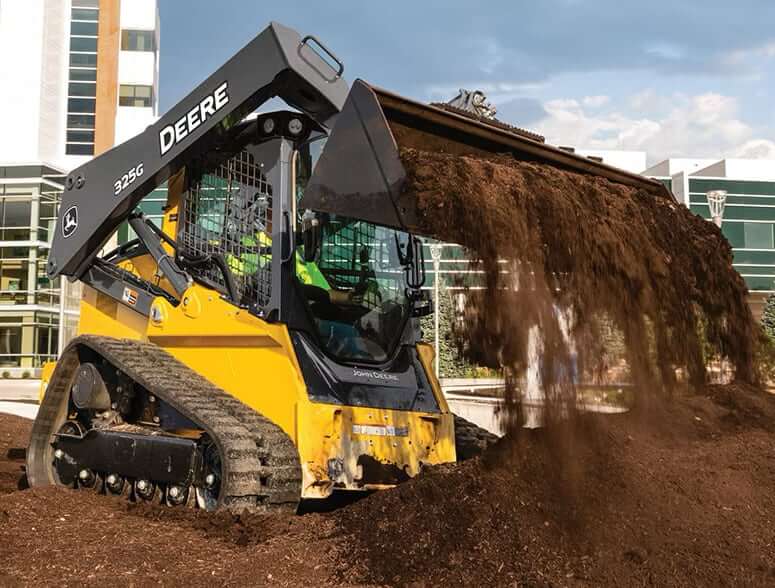

Loader Performance
| Tipping Load w/ Foundry Bucket | 7400 lb (3360 kg) |
| Rated Operating Capacity at 35% Tipping Load (SAE) | 2590 lb (1176 kg) |
| Rated Operating Capacity at 50% Tipping Load (SAE) | 3700 lb (1680 kg) |
| Boom Breakout Force w/ Foundry Bucket | 5250 lbf (23.38 kN) |
| Boom Breakout Force w/ Construction Bucket | 4750 lbf (21.15 kN) |
| Bucket Breakout Force w/ Foundry Bucket | 8750 lbf (38.96 kN) |
| Bucket Breakout Force w/ Heavy-Duty Construction Bucket | 6000 lbf (26.71 kN) |

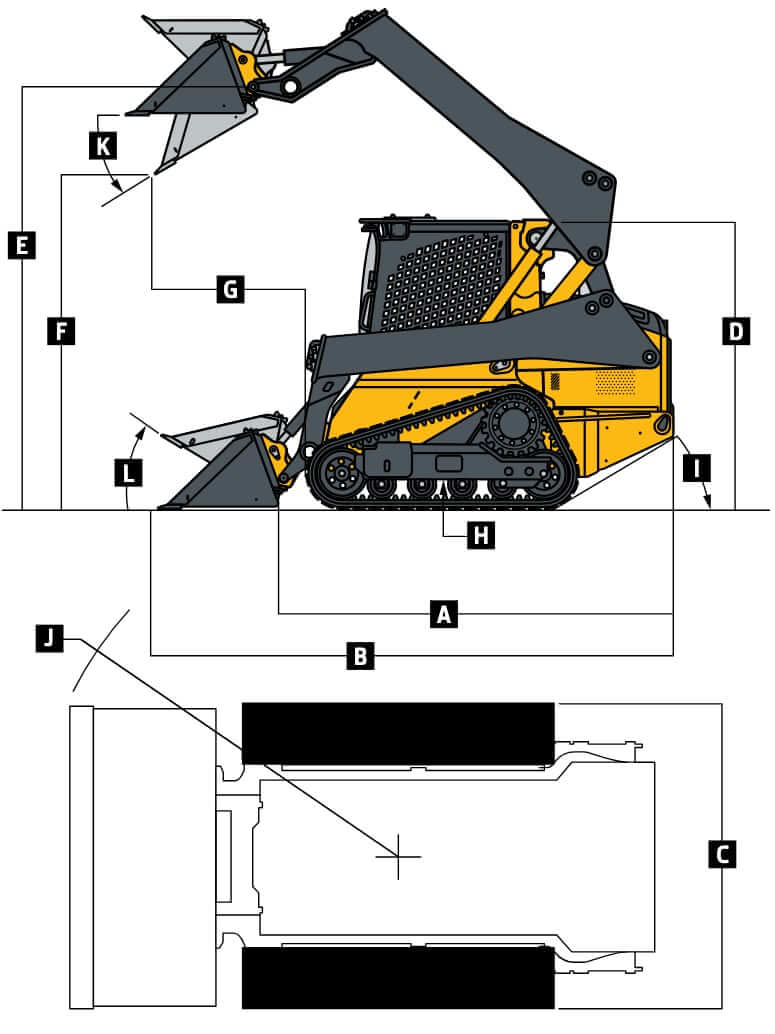

Dimensions
| A. Length w/o Bucket | 112.3 in (2850 mm) |
| B. Length w/ Foundry Bucket | 136.3 in (3460 mm) |
| C. Width w/o Bucket, 12.6″ (320 mm) Shoe | 71.5 in (1820 mm) |
| C. Width w/o Bucket, 15.8″ (400 mm) Shoe | 74.7 in (1900 mm) |
| D. Height to Top of ROPS | 81.1 in (2060 mm) |
| E. Height to Hinge Pin | 126.1 in (3200 mm) |
| F. Dump Height w/ Foundry Bucket | 102.1 in (2590 mm) |
| G. Dump Reach w/ Foundry Bucket | 29.7 in (750 mm) |
| G. Dump Reach w/ Construction Bucket (no edge) | 37 in (940 mm) |
| H. Ground Clearance | 9.3 in (240 mm) |
| I. Angle of Departure | 30.5° |
| J. Front Turn Radius w/ Foundry Bucket | 80 in (2030 mm) |
| K. Dump Angle (full lift height) | 41° |
| L. Bucket Rollback (ground level) | 34° |
Weight
| Operating Weight, 12.6″ (320 mm) Shoe | 9500 lb (4313 kg) |
| Operating Weight, 15.8″ (400 mm) Shoe | 9650 lb (4381 kg) |
| Rear Counterweights (each set) | 172 lb (78 kg) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Yanmar |
| Engine Model | Yanmar 4TNV98CT |
| Displacement | 203 cu in (3.3 L) |
| Gross Power | 74 hp (54.8 kw) |
| Net Power | 70 hp (52.5 kw) |
| Power Measured @ | 2500 rpm |
| Peak Torque | 207 lb ft (280 Nm) |
| Torque Measured @ | 1800 rpm |
| Torque Rise | 34% |
| Air Cleaner | Dry dual element |
| Aspiration | Turbocharged |
| Emission Standards | US EPA Final Tier 4 / EU Stage IV |
Electrical System
| Operating Voltage | 12 V |
| Alternator | 75 amps |
| Battery | 12 V, CCA 750 / 925 (Optional) |
| Working Lights | Standard: Front and rear halogen work lights / Optional: LED lighting package with additional 2 cab-integrated side lights |

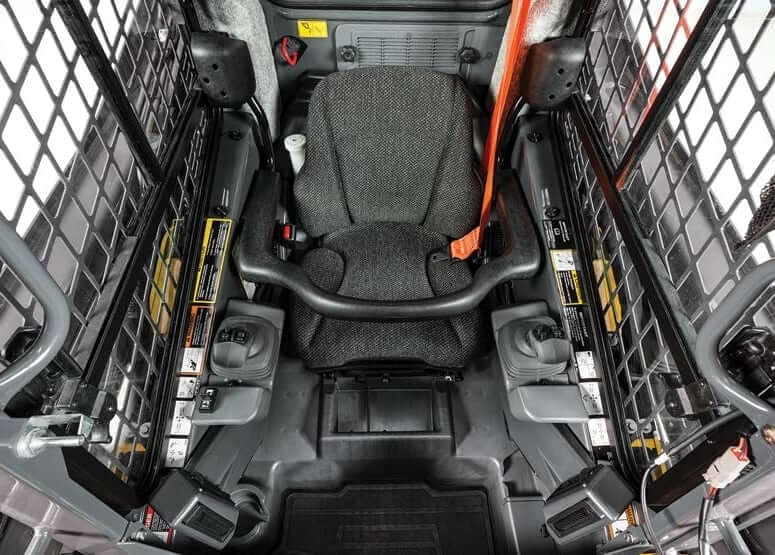

Operator Environment
| Cab | Quick-pivot ROPS with FOPS |
| Seat | Water-shedding deluxe vinyl suspension seat with retractable seat belt, 2 in (51 mm) |
| Keyless-start | Keyless-start sealed-switch module with integrated anti-theft system and operator memory preference settings |
| Joystick Controls | Electrohydraulic (EH) ISO-pattern joystick controls |
| Displays & Instrumentation | Deluxe instrumentation EMU with: Operator-selectable monitoring – Hour meter, engine rpm, battery voltage, diagnostics, EMU configuration, engine coolant temperature, hydraulic oil temperature / LED warning indicators – Glow plug, seat switch, seat belt, door open, auxiliary hydraulics, park brake engaged, 2-speed engaged, stop, low engine oil pressure, engine coolant over-temperature, battery not charging, air filter restriction, and hydraulic filter restriction |
Undercarriage
| Type of Tracks | New-Generation smooth-ride long-life rubber with steel inserts |
| Track Width (Standart / Optional) | 12.6 in (320 mm) / 15.8 in (400 mm) |
| Ground Pressure (Standart / Optional) | 5.7 psi (39.3 kPa) / 4.7 psi (32.4 kPa) |
| Track Rollers (per side) | 4 triple-flange smooth-ride all-steel rollers |
| Track Idlers (per side) | 2 double-flange smooth-ride all-steel rollers |
| Bearings/Seals (rollers/idlers) | Heavy-duty journal bearings and metal face seals |
| Tractive Effort | 8500 lbf (37.84 kN) |
Powertrain
| Powertrain Type | Axial-piston hydrostatic pump |
| Controls | Electrohydraulic |
| Number of Gears | 2 |
| Max Travel Speed, Low | 5.2 mph (8.4 km/h) |
| Max Travel Speed, High | 8.2 mph (13.2 km/h) |
| Final Drive | High-torque heavy-duty planetary-reduction final drive |
| Service Brakes | Integral, automatic, spring-applied, hydraulically released wet-disc brakes |
| Parking Brake | Automatic spring-applied hydraulically released wet disc park brake |
Hydraulic System
| Standart Pump Flow | 21 gal/min (78 L/min) |
| Pump Flow with High-Flow Option | 32 gal/min (120 L/min) |
| System Pressure at Couplers | 3450 psi (23787 kPa) |
| Hydraulic Power | 41.7 hp (31.1 kw) |
| Hydraulic Power with High-Flow Option | 63.6 hp (47.4 kw) |
| Type of Cylinders | John Deere heat-treated, chrome-plated polished cylinder rods, hardened steel (replaceable bushings) pivot pins |

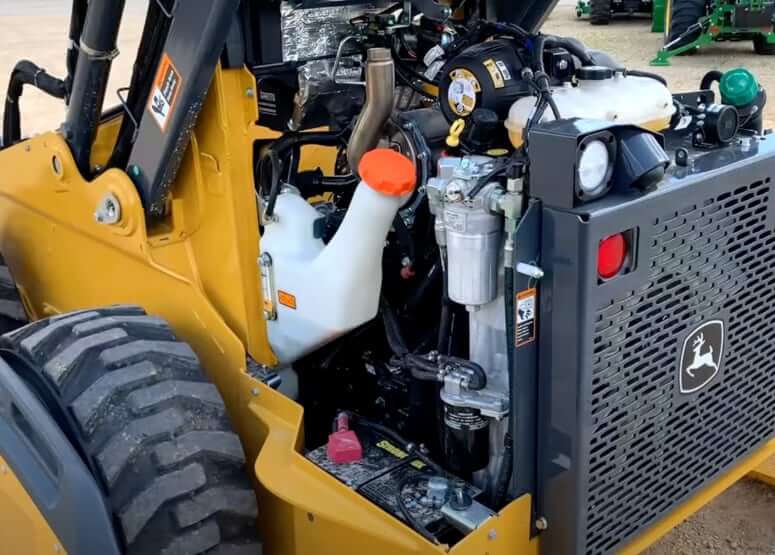

Service Refill Capacities
| Fuel Tank Capacity | 21 gal (79 L) |
| Engine Oil Capacity | 3.3 gal (12.5 L) |
| Cooling System Capacity | 3.3 gal (12.5 L) |
| Hydraulic and Hydrostatic Oil Capacity | 7.0 gal (26.5 L) |
| Final Drive Planetary Capacity (per side) | 0.21 gal (0.8 L) |
John Deere 325G Filters
| Cab Fresh Air Filter | AT441536 |
| Cab Recirculation Air Filter | AT359416 |
| Dust Unloader Valve | M89679 |
| Hydraulics Oil Filter | AT435649 |
| Hydraulic Oil Reservoir Breather | AT101565 |
| Engine Air Filter Primary | AT338105 |
| Engine Air Filter Secondary | AT336803 |
| Engine Oil Filter | MIU800650 |
| Engine Rocker Arm Cover Gasket | MIU801150 |
| Primary Fuel Filter | MIU801025 |
| Final Fuel Filter | MIU801090 |
| Fuel Tank Breather | H216169 |
