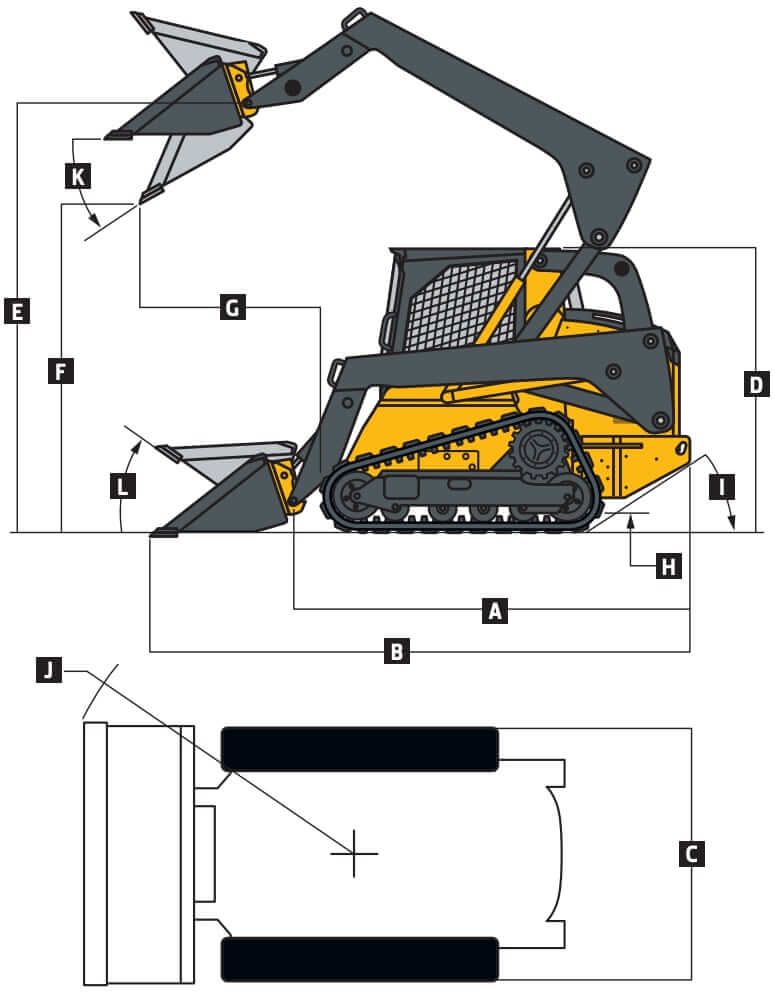

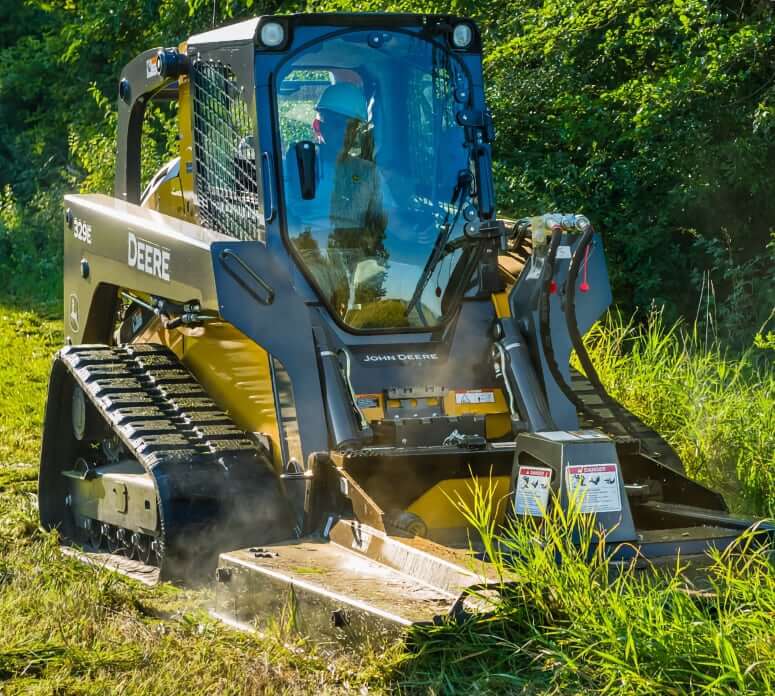

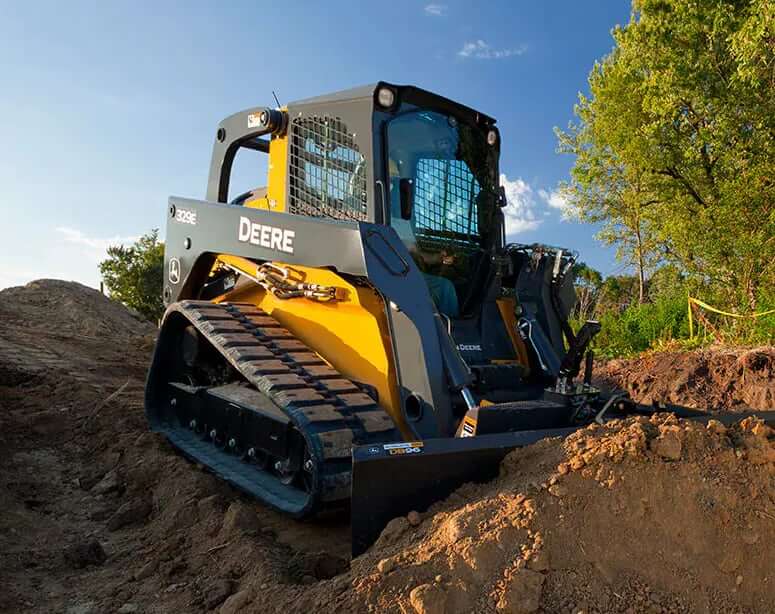

Dimensions
| Width Over Tracks | 1.32 ft in (400 mm) |
| Ground Clearance | 10.4 in (264.17 mm) |
| Dump Reach | 39.38 in (1000 mm) |
| Height To Top Of Rops | 84.65 in (2150 mm) |
| Dump Angle | 45 degrees |
| Length With Bucket | 12.01 ft in (3660 mm) |
| Length With Out Bucket | 10.01 ft in (3050 mm) |
| Hinge Pin Height, Maximum Height | 125.99 in (3200 mm) |
| Dump Height – Maximum | 101.97 in (2590 mm) |
| Turning Radius | 7.12 ft in (2170 mm) |

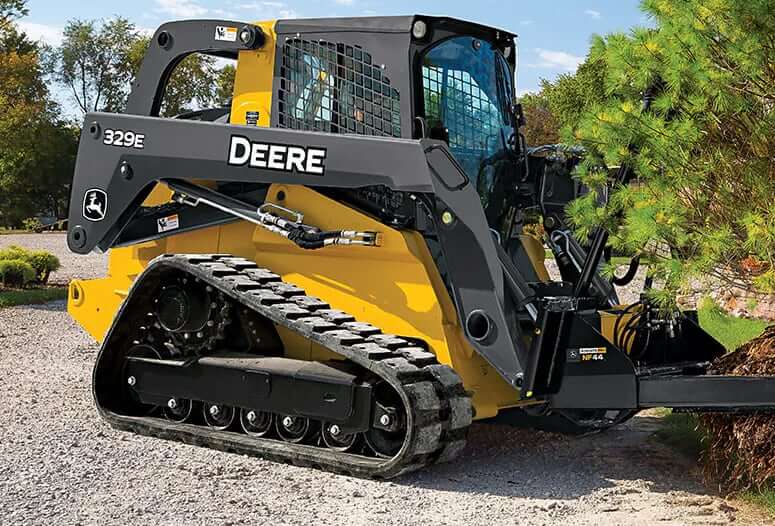

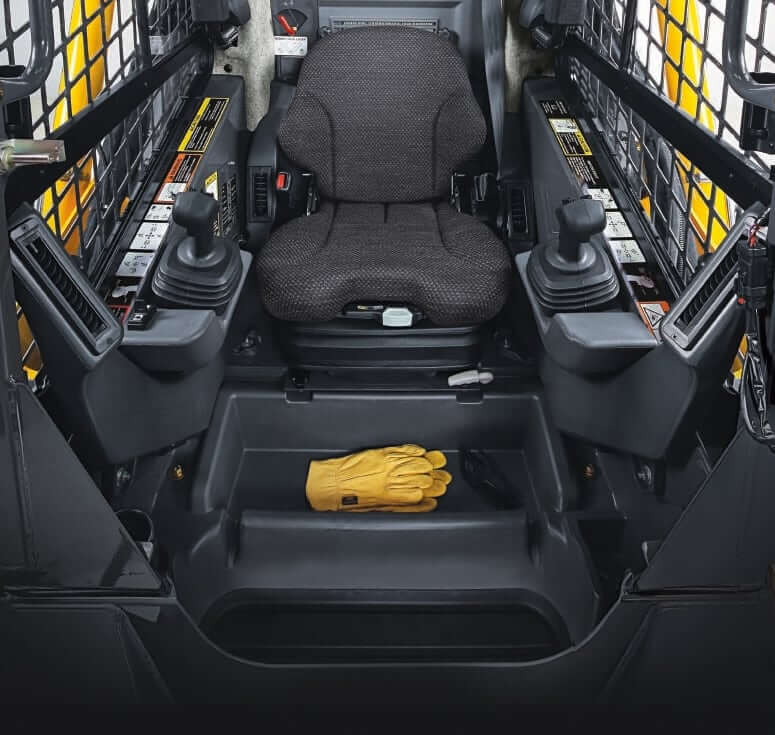

Undercarriage
| Ground Pressure | 4.97 psi (34.21 kPa) |
| Number Of Track Rollers Per Side | 5 |
Engine Details
| Number Of Cylinders | 4 |
| Engine Make | Yanmar |
| Engine Model | 4TNV94CHT |
| Gross Power | 85.9 hp (64 kw) |
| Net Power | 83.2 hp (62 kw) |
| Power Measured @ | 2500 rpm |
| Peak Torque | 265.6 lb ft (360 Nm) |
| Torque Measured @ | 1700 rpm |
| Displacement | 428 cu in (7.1 L) |
| Bore | 4.2 in (105 mm) |
| Stroke | 5.4 in (134.9 mm) |
| Aspiration | Turbocharged |
| Gross Power – Sae J1995 | 241 hp (179.8 kw) |
| Engine Model | Cat C7.1 ACERT |
| Net Flywheel Power | 228 hp (170.1 kw) |
| Net Power – Sae J1349/Iso 9249 | 228 hp (170.1 kw) |
Operational Specs
| Operating Weight | 11510.4 lb (5221 kg) |
| Fuel Tank Capacity | 25.5 gal (96.5 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 70 amps |
| Max Speed – Low Range | 5.3 mph (8.5 km/h) |
| Max Speed – High Range | 7.9 mph (12.6 km/h) |
Swing Mechanism
| Swing Speed | 9.8 rpm |
| Swing Torque | 60628 lb ft (82200.6 Nm) |
Loader
| Breakout Force | 10335.3 lb (4688 kg) |
| Tipping Load | 8307.1 lb (3768 kg) |
| Operating Load | 2903.5 lb (1317 kg) |
| Boom Breakout Force | 4600 lb (20.5 kN) |
Weights
| Operating Weight | 68958 lb (31278.9 kg) |
| Maximum Operating Weight | 68958 lb (31278.9 kg) |
| Minimum Operating Weight | 64060 lb (29057.2 kg) |
| Minimum Operating Weight* | 64060 lb (29057.2 kg) |
| Maximum Operating Weight** | 68958 lb (31278.9 kg) |
Hydraulic
| Pump Flow | 21.2 gal/min (80 L/min) |
| Relief Valve Pressure | 3450.1 psi (23787 kPa) |
| Hydraulic Horsepower-Standard Flow | 42 hp (31.3 kw) |
Hydraulic System
| Pilot System – Maximum Flow | 6.1 gal/min |
| Pilot System – Maximum Pressure | 569 psi |
| Maximum Pressure – Travel | 5076 psi |
| Maximum Pressure – Swing | 3989 psi |
| Boom Cylinder – Bore | 6 in (152.4 mm) |
| Boom Cylinder – Stroke | 55 in (1397 mm) |
| Stick Cylinder – Bore | 6 in (152.4 mm) |
| Stick Cylinder – Stroke | 65 in (1651 mm) |
| Main System – Maximum Flow – Total | 130 gal/min |
| Maximum Pressure – Equipment – Heavy Lift | 5511 psi |
| Maximum Pressure – Equipment – Normal | 5076 psi |
| Db Bucket Cylinder – Bore | 5 in (127 mm) |
| Db Bucket Cylinder – Stroke | 46 in (1168.4 mm) |
| Tb Bucket Cylinder – Bore | 6 lb/in |
| Tb Bucket Cylinder – Stroke | 45 lb/in |

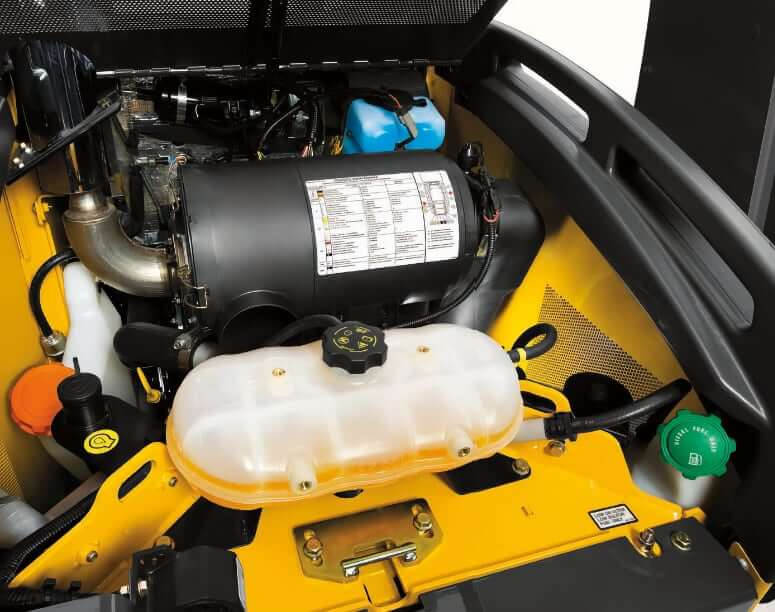

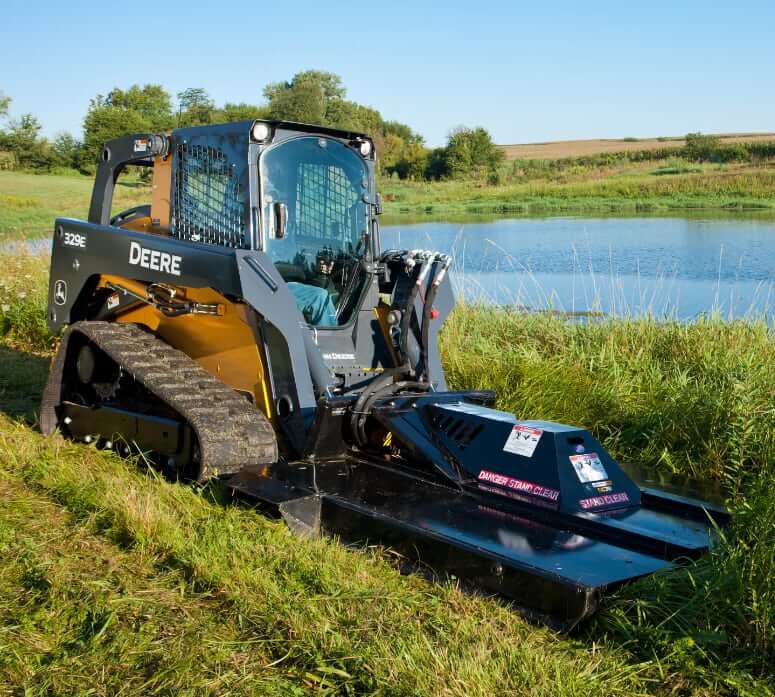

Service Refill Capacities
| Cooling System | 11.7 gal (44 L) |
| Final Drive – Each | 1.6 gal (6.1 L) |
| Hydraulic Tank | 41 gal (155.1 L) |
| Hydraulic System – Including Tank | 81.9 gal (310 L) |
| Fuel Tank Capacity | 137.4 gal (520.1 L) |
| Swing Drive – Each | 2.7 gal (10 L) |
| Engine Oil – With Filter | 6 gal (22.5 L) |
Standards
| Brakes | ISO 10265 2008 |
| Cab/Fogs | ISO 10262 1998 |
Sound Performance
| Iso 6396 – Operator Noise (Closed) | 72 dB(A) |
| Iso 6395 – Spectator Noise | 105 dB(A) |
| Iso 6396 – Operator Noise (Open) | 77 dB(A) |
Track
| Number Of Track Rollers – Each Side – Long Undercarriage | 9 |
| Number Of Shoes – Each Side – Long Undercarriage | 50 |
| Number Of Carrier Rollers – Each Side – Long Undercarriage | 2 |
Drive
| Maximum Travel Speed | 3.2 mph (5.2 km/h) |
| Maximum Drawbar Pull | 55977 lb (25390.8 kg) |
