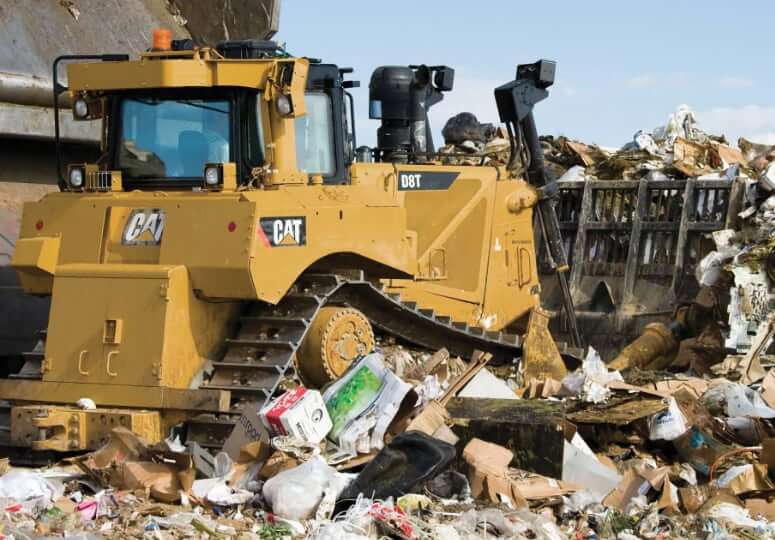

Blades
| Su – Blade Width | 12.9 ft in (3.94 m) |
| Blade Type | SU, U |
| Lgp Su-Blade Capacity With Trash Rack | 27.6 yd3 (21.11 m3) |
| U-Blade Capacity With Trash Rack | 32.4 yd3 (24.78 m3) |
| Su-Blade Capacity – With Trash Rack | 26.1 yd3 (19.96 m3) |
| U-Blade Width | 14 ft in (4.27 m) |

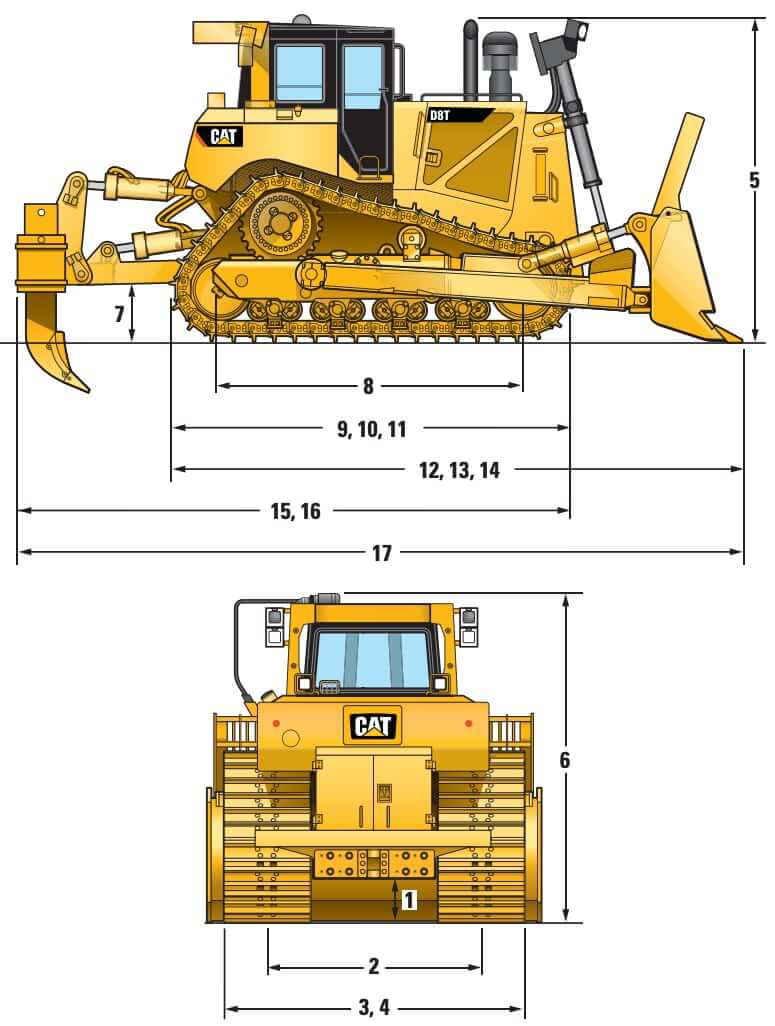

Dimensions
| Length W/ Blade | 19.99 ft in (6090 mm) |
| Width Over Tracks | 8.66 ft in (2640 mm) |
| Height To Top Of Cab | 11.35 ft in (3460 mm) |
| Length Of Track On Ground | 10.53 ft in (3210 mm) |
| Ground Clearance | 2.03 ft in (617.22 mm) |
| Length W/O Blade | 15.22 ft in (4640 mm) |
| Overall Length – Basic Tractor | 15.22 ft in (4.64 m) |
| Width – Over Trunnions | 10 ft in (3.05 m) |
| Width – Without Blade | 120 in (3048 mm) |
| Width – With Blade | 155 in (3937 mm) |
| Overall Length – With Blade | 240 in (6096 mm) |
| Width – Without Trunnions – Standard Shoe | 8.66 ft in (2.64 m) |
| Height – Rops/Canopy | 11.35 ft in (3.46 m) |
| Height – Stripped Top | 8.76 ft in (2.68 m) |
Dimensions – Lgp
| Track Gauge | 92 in (2336.81 mm) |
| Machine Height – Grouser Tip – Exhaust Stack | 129.7 in (3294.38 mm) |
| Length – Basic Tractor – With Striker Bars With Two Counterweights* | 206.4 in (5242.57 mm) |
| Width – Tractor – Over Trunnions | 130.4 in (3312.16 mm) |
| Height – Top Of Roof-Mounted Precleaner | 145.2 in (3688.08 mm) |
| Note | *With the following attachments add: SU Blade 1844 mm/72.6 in; U Blade 2241 mm/88.2 in; Drawbar 406 mm/16.0 in. |
| Height – Grouser | 3.1 in (78.74 mm) |
| Machine Height – Grouser Tip – Length Of Track On Ground | 126.2 in (3205.48 mm) |
| Without Trunnions – Standard Shoe Width | 130 in (3302 mm) |
| Machine Height – Grouser Tip – Erops (Top Of Railing) | 140.4 in (3566.16 mm) |
| Length – Basic Tractor – Tag Link Trunnion To Tip – Rear Grouser* | 183 in (4648.2 mm) |
| Machine Height – Grouser Tip – Ground Clearance | 24.1 in (612.14 mm) |
Dimensions – Non-Suspended
| Track Gauge | 82 in (2082.81 mm) |
| Width – Tractor – Over Trunnions | 120.4 in (3058.16 mm) |
| Note | *With the following attachments add: SU Blade 1844 mm/72.6 in; U Blade 2241 mm/88.2 in; Drawbar 406 mm/16.0 in. |
| Height – Grouser | 3.1 in (78.74 mm) |
| Height – Top Of Roof-Mounted Precleaner | 145.2 in (3688.08 mm) |
| Length – Basic Tractor – Tag Link Trunnion To Tip – Rear Grouser* | 183 in (4648.2 mm) |
| Length – Basic Tractor – With Striker Bars With Two Counterweights* | 206.4 in (5242.57 mm) |
| Machine Height – Grouser Tip – Erops (Top Of Railing) | 140.7 in (3573.78 mm) |
| Machine Height – Grouser Tip – Exhaust Stack | 136.31 in (3462.02 mm) |
| Machine Height – Grouser Tip – Ground Clearance | 23.8 in (604.52 mm) |
| Machine Height – Grouser Tip – Length Of Track On Ground | 128.31 in (3258.82 mm) |
| Without Trunnions – Standard Shoe Width | 106 in (2692.4 mm) |
Dimensions – Standard
| Track Gauge | 82 in (2082.81 mm) |
| Length – Basic Tractor – With Striker Bars With Two Counterweights* | 206.4 in (5242.57 mm) |
| Length – Basic Tractor – Tag Link Trunnion To Tip – Rear Grouser* | 183 in (4648.2 mm) |
| Height – Top Of Roof-Mounted Precleaner | 145.2 in (3688.08 mm) |
| Height – Grouser | 3.1 in (78.74 mm) |
| Machine Height – Grouser Tip – Ground Clearance | 24.1 in (612.14 mm) |
| Without Trunnions – Standard Shoe Width | 106 in (2692.4 mm) |
| Note | *With the following attachments add: SU Blade 1844 mm/72.6 in; U Blade 2241 mm/88.2 in; Drawbar 406 mm/16.0 in. |
| Machine Height – Grouser Tip – Length Of Track On Ground | 126.2 in (3205.48 mm) |
| Machine Height – Grouser Tip – Erops (Top Of Railing) | 140.4 in (3566.16 mm) |
| Width – Tractor – Over Trunnions | 120.4 in (3058.16 mm) |
| Machine Height – Grouser Tip – Exhaust Stack | 136.7 in (3472.18 mm) |
Undercarriage
| Track Gauge | 6.84 ft in (2082.81 mm) |
| Standard Shoe Size | 22 in (560 mm) |
| Length – Track On Ground | 10.53 ft in (3.21 m) |
| Track Gauge – Lgp | 92 in (2336.81 mm) |
| Track On Ground – Lgp | 126 in (3200.4 mm) |
| Track Rollers/Side | 8 |
| Track Rollers/Side – Lgp | 8 |
| Track Width | 1.84 ft in (0.57 m) |
| Number Of Track Rollers Per Side | 8 |
| Width – Shoe – Lgp | 38 in (965.2 mm) |
| Ground Contact Area – Lgp | 9610 in2 (6.2 m2) |
| Ground Contact Area | 5549 in2 (3.58 m2) |
Engine Details
| Number Of Cylinders | 6 |
| Engine Make | CAT |
| Engine Model | C15 ACERT |
| Gross Power | 347 hp (258.8 kw) |
| Net Power | 310 hp (231 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 928 cu in (15.3 L) |
| Bore | 5.4 in (137.2 mm) |
| Stroke | 6.8 in (171.5 mm) |
| Emissions | Tier 4 Final/Stage IV/Korea Tier 4 |
| Engine Model | Cat C15 ACERT |
| Flywheel Power | 335 hp (249.9 kw) |
| Note (1) | All non road Tier 4 Interim and Final, Stage IIIB and IV, and Korea Tier 4 diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm EPA/10 ppm EU (mg/kg) sulfur or less. Biodiesel blends up to B20 (20% blend by volume) are acceptable when blended with 15 ppm EPA/10 ppm EU (mg/kg) sulfur or less ULSD. B20 should meet ASTM D7467 specification (biodiesel blend stock should meet Cat biodiesel spec, ASTM D6751 or EN 14214). Cat DEO-ULS or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specification are required. Consult your OMM for further machine specific fuel recommendations. |
| Note (2) | Diesel Exhaust Fluid (DEF) used in Cat Selective Catalytic Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241. |
| Note (3) | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 2.5 kg of refrigerant which has a CO2 equivalent of 3.575 metric tonnes. |
| Rpm | 1850 rpm |
| Net Power – 1,900 Rpm – Iso 9249/Sae J1349 | 312 hp (232.7 kw) |
| Net Power – 1,900 Rpm – Iso 9249/Sae J1349 (Din) | 317 hp (236.4 kw) |
| Net Power – Maximum – Iso 9249/Sae J1349 At 1,700 Rpm | 335 hp (249.9 kw) |
| Net Power – Maximum – Iso 9249/Sae J1349 Din At 1,700 Rpm | 343 hp (255.8 kw) |
Operational Specs
| Operating Weight | 85150 lb (38660 kg) |
| Fuel Tank Capacity | 170 gal (643 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 100 amps |

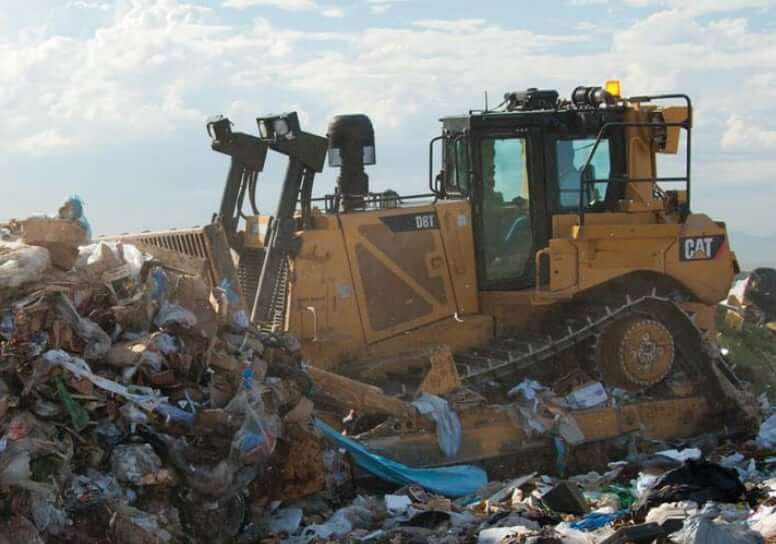

Transmission
| 1 Forward | 2.1 mph (3.4 km/h) |
| 2 Forward | 3.8 mph (6.2 km/h) |
| 3 Forward | 6.6 mph (10.7 km/h) |
| 1 Reverse | 2.8 mph (4.6 km/h) |
| 2 Reverse | 5 mph (8.1 km/h) |
| 3 Reverse | 8.8 mph (14.2 km/h) |
| 1.0 Forward | 2.1 mph (3.4 km/h) |
| 2.0 Forward | 3.8 mph (6.2 km/h) |
| 3.0 Forward | 6.6 mph (10.7 km/h) |
| 1.0 Reverse | 2.8 mph (4.6 km/h) |
| 2.0 Reverse | 5 mph (8.1 km/h) |
| 3.0 Reverse | 8.8 mph (14.2 km/h) |

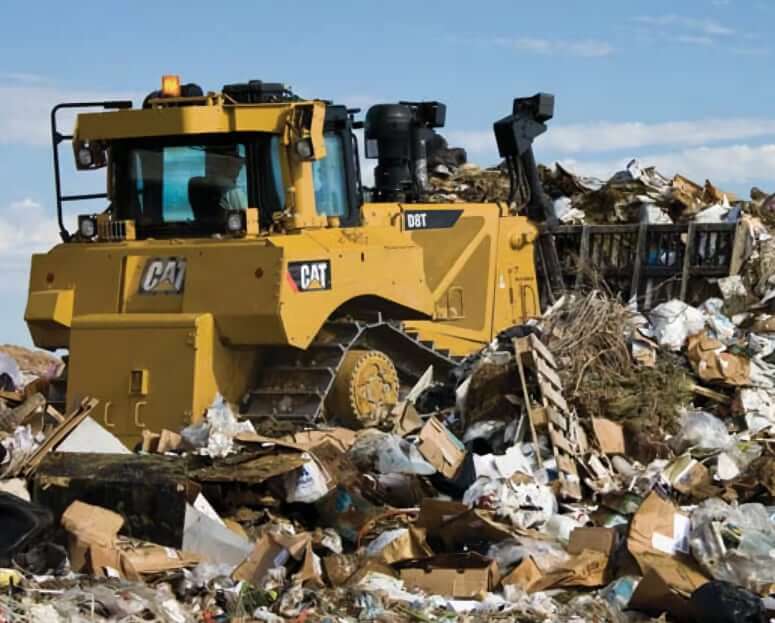

Weights
| Operating Weight | 86710 lb (39331 kg) |
Standard Blade
| Width | 12.9 ft in (3940 mm) |
| Capacity | 26.1 yd3 (19.9 m3) |
Service Refill Capacities
| Fuel Tank Capacity | 170 gal (643.6 L) |
Standards
| Rops | SAE J1040 MAY94, ISO 3471:1994 |
| Fops | SAE J/ISO 3349 APR98 Level II, ISO 3449:1992 Level II |
Rippers
| Each Additional Shank | 732 lb (332.1 kg) |
Operating Weights
| Lgp Waste Handler | 91600 lb (41549.1 kg) |
| Standard Waste Handler | 86710 lb (39331 kg) |
Blades – Capacity (Sae J1265)
| 8 U Landfill | 27.7 yd3 (21.2 m3) |
| 8 Su Landfill | 25.6 yd3 (19.6 m3) |
| 8 Su Lgp Landfill | 28.9 yd3 (22.1 m3) |
Blades – Width – Over End Bits
| 8 Su Landfill | 12.9 ft in (4 m) |
| 8 U Landfill | 13.9 ft in (4.3 m) |
| 8 Su Lgp Landfill | 14.9 ft in (4.6 m) |
Shipping Weight
| Lgp Waste Handler | 77900 lb (35334.9 kg) |
| Standard Waste Handler | 73400 lb (33293.7 kg) |
