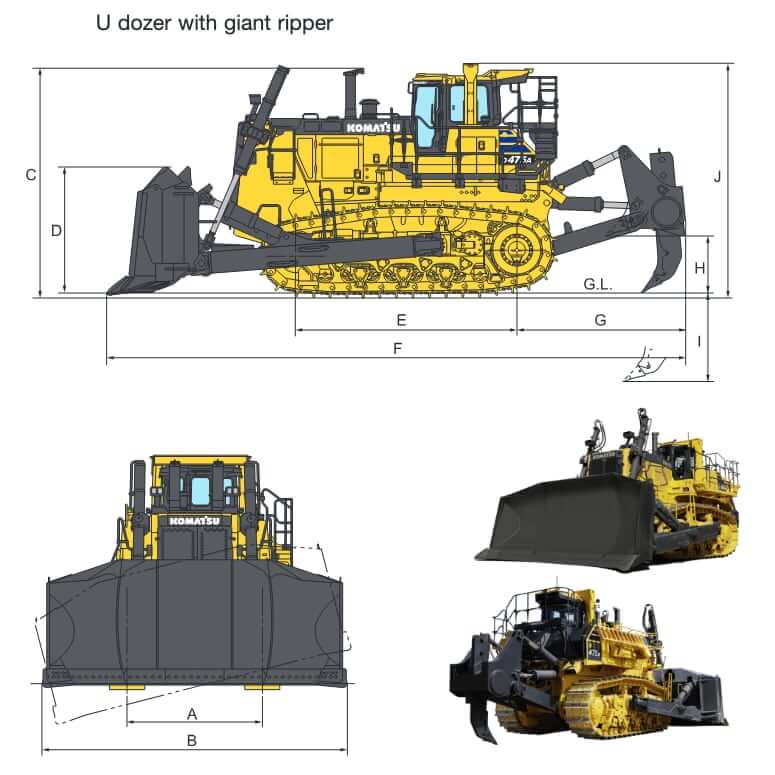

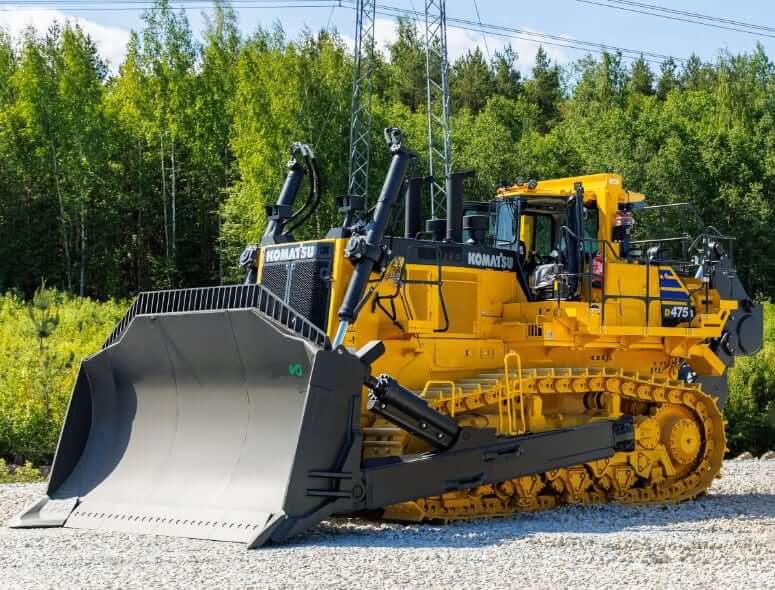

Dimensions
| A. Track Gauge | 109 in (2770 mm) |
| B. Overall Width over Blade | 244.3 in (6205 mm) |
| C. Height to Top of Exhaust | 185.4 in (4710 mm) |
| D. Height of Dozer Blade | 102.8 in (2610 mm) |
| E. Length of Track on Ground | 178.1 in (4525 mm) |
| F. Overall Length w/ Blade | 464.6 in (11800 mm) |
| G. Sprocket Center to Ripper | 135 in (3430 mm) |
| H. Ripper Lift Height | 47.6 in (1210 mm) |
| I. Ripping Depth | 72.6 in (1845 mm) |
| J. Height to Top of Cab | 188.8 in (4795 mm) |
| Ground Clearance | 24.2 in (615 mm) |
Weight
| Operating Weight | 254195 lb (115300 kg) |
| Ground Pressure | 19.35 psi (133.4 kPa) |
| Base Tractor Weight | 194450 lb (88200 kg) |
| Dual Tilt Semi-U Blade | 40345 lb (18300 kg) |
| Dual Tilt U Blade | 43872 lb (19900 kg) |
| Dual Tilt Super Dozer Blade | 48722 lb (22100 kg) |
| Multi-Shank Ripper | 20430 lb (9270 kg) |
| Variable Giant Ripper | 15895 lb (7210 kg) |
| Counterweight w/ Hitch | 13395 lb (6076 kg) |
| Additional Counterweight | 14509 lb (6581 kg) |

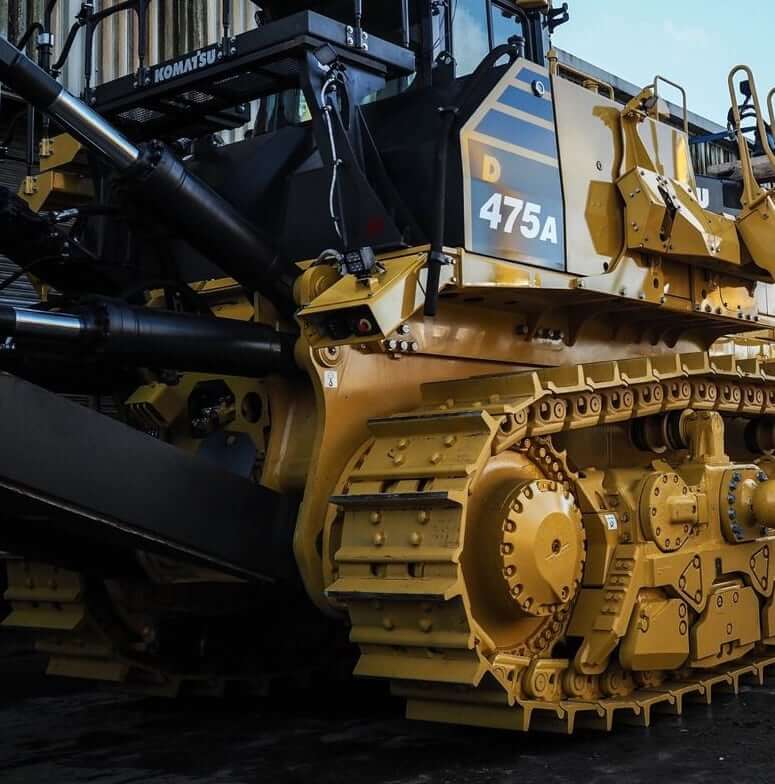

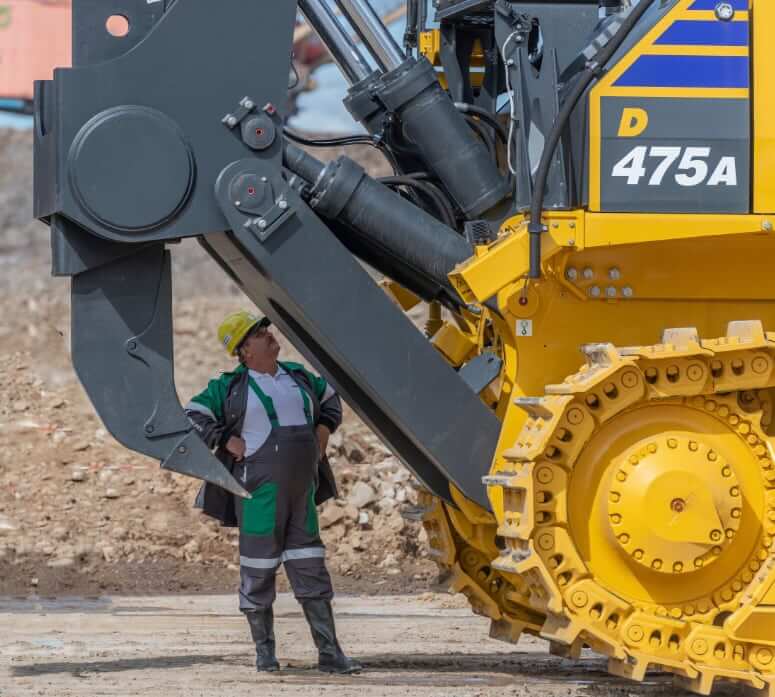

Undercarriage
| Grouser Height | 4.1″ (105 mm) |
| Track Gauge | 9’1″ (2770 mm) |
| Shoe Size (Standard) | 28″ (710 mm) |
| Shoe Size (Optional) | 32″ (810 mm) |
| Ground Contact Area | 9957 in2 (64240 cm2) |
| Ground Pressure (tractor) | 16.71 psi (115.2 kPa) |
| Number Of Carrier Rollers Per Side | 2 |
| Number Of Track Rollers Per Side | 8 |
| Number Of Shoes Per Side | 41 |
| Suspension | Oscillating equalizer bar with shoulder pad and pivot shaft |
| Track Roller Frame | Cylindrical, high-tensile-strength steel construction |
| Rollers and Idlers | Lubricated track rollers |
| 32″ (810 mm) Extreme Service Shoes | 2028 lb (920 kg), 11360 in2 (73290 cm2), 17.1 psi (118 kPa) |
| 36″ (910 mm) Extreme Service Shoes | 4034 lb (1830 kg), 12763 in2 (82340 cm2), 15.4 psi (106.1 kPa) |

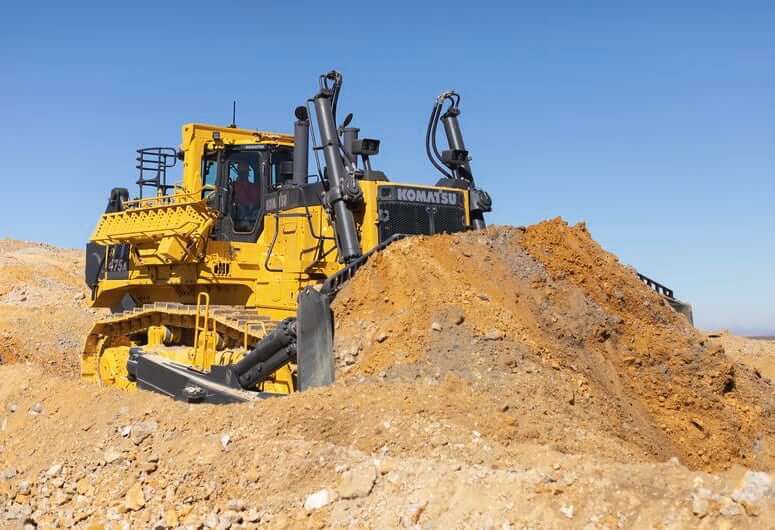

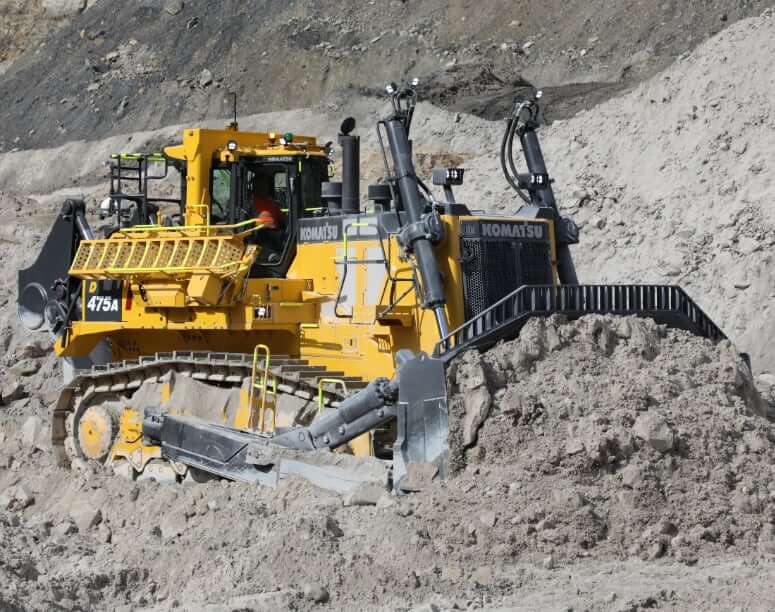

Dozer Blades
| Type | Dual Tilt SU | Dual Tilt U | Dual Tilt Super Dozer |
|---|---|---|---|
| Blade Capacity | 35.6 yd3 (27.2 m3) | 44.5 yd3 (34.4 m3) | 58.9 yd3 (45.0 m3) |
| Blade Width | 17’3″ (5265 mm) | 20’4″ (6205 mm) | 21’3″ (6465 mm) |
| Blade Height | 8’10” (2690 mm) | 8’7″ (2610 mm) | 9’5″ (2874 mm) |
| Max Lift above Ground | 5’5″ (1650 mm) | 5’5″ (1650 mm) | 5’7″ (1700 mm) |
| Max Drop below Ground | 2’11” (900 mm) | 2’11” (900 mm) | 3’3″ (1000 mm) |
| Max Tilt | 3’9″ (1145 mm) | 4’5″ (1350 mm) | 2’9″ (850 mm) |
| Blade Weight | 40345 lb (18300 kg) | 43872 lb (19900 kg) | 48722 lb (22100 kg) |
Engine Details
| Number Of Cylinders | 12 |
| Engine Make | Komatsu |
| Engine Model | Komatsu SAA12V140E-7 |
| Displacement | 1860 cu in (30.48 L) |
| Bore | 5.5 in (140 mm) |
| Stroke | 6.5 in (165 mm) |
| Gross Power, Forward | 934 hp (697 kw) |
| Gross Power, Reverse | 1040 hp (777 kw) |
| Net Power, Forward | 890 hp (664 kw) |
| Net Power, Reverse | 968 hp (722 kw) |
| Power Measured @ | 2000 rpm |
| Peak Torque | 3739 lb ft (5070 Nm) |
| Aspiration | Turbocharged, air-to-air charge air cooler, cooled EGR |
| Engine Lubrication | Gear pump, force lubrication with full-flow oil filter |
| Emission Standards | U.S. EPA Tier 4 Final + EU Stage V |
Operational Specs
| Operating Weight | 254195 lb (115300 kg) |
| SU-Blade Capacity | 35.6 yd3 (27.2 m3) |
| U-Blade Capacity | 45.5 yd3 (34.4 m3) |
| Super Dozer Capacity | 58.9 yd3 (45.0 m3) |
| Operating Voltage | 24 V |
| Alternator | 140 amps |
| Battery | 4x 12 V, 160 Ah |
| Starter | 20 hp (2 x 7.5 kw), 24 V |
| Minimum Turning Radius | 15’1″ (4.6 m) |
Transmission
| Transmission Type | Auto/manual gearshift (3F/3R) TORQFLOW transmission |
| Number Of Gears | 3F / 3R |
| Gearshift Lock | Gearshift lock lever and neutral safety switch help prevent accidental starts |
| Torque Converter | Torque converter with lock-up clutch |
| Clutch | Multiple-disc clutch transmission which is hydraulically-actuated and force-lubricated for optimum heat dissipation |
| Max Forward Speed | 7.2 mph (11.6 km/h) |
Speeds
| Gear | Forward | Reverse |
|---|---|---|
| 1st | 2.1 mph (3.4 km/h) | 2.7 mph (4.4 km/h) |
| 2nd | 3.9 mph (6.3 km/h) | 5.2 mph (8.4 km/h) |
| 3rd L | 4.6 mph (7.4 km/h) | 5.6 mph (9.0 km/h) |
| 3rd | 7.2 mph (11.6 km/h) | 8.9 mph (14.3 km/h) |
Hydraulic System
| Type | Closed-center load sensing system (CLSS) |
| Pump Type | Variable piston pump |
| Pump Flow Capacity | 142.9 gpm (541 L/min) |
| Relief Valve Pressure | 3983 psi (27500 kPa) |
| Control Valves | Spool control valves for Semi-U tilt blade and U tilt blade |
| Additional Control Valve | Additional control valve required for variable digging angle multi-shank ripper and giant ripper |
| Hydraulic Cylinders | Double-acting, piston type |
| Blade Lift | 2x cylinders – 7.1″ (180 mm) |
| Blade Tilt (single tilt) | 1x cylinder – 9.8″ (250 mm) |
| Blade Tilt (dual tilt) | 2x cylinders – 9.8″ (250 mm) |
| Ripper Lift | 2x cylinders – 8.9″ (225 mm) |
| Ripper Tilt | 2x cylinders – 8.9″ (225 mm) |
Service Refill Capacities
| Fuel Tank Capacity | 507.2 gal (1920 L) |
| Engine Oil Capacity | 31.7 gal (120 L) |
| Cooling System Capacity | 72.6 gal (275 L) |
| Transmission Oil Capacity | 55.5 gal (210 L) |
| Final Drives (each side) | 19.8 gal (75 L) |
| Hydraulic System Capacity | 50.2 gal (190 L) |
| Giant Ripper (additional) | 34.3 gal (130 L) |
| Multishank Ripper (additional) | 34.3 gal (130 L) |

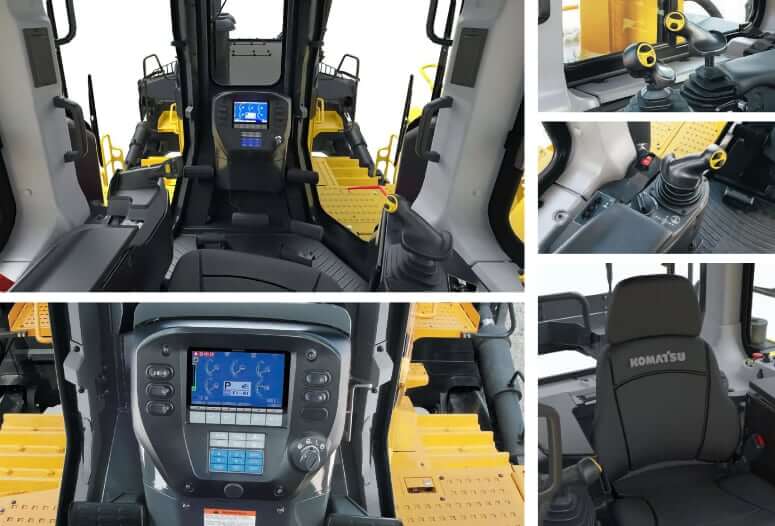

Operator Environment
| Operator’s Seat | Heated/ventilated operator’s seat with improved air suspension system |
| Cab Damper | Larger cab damper mounts |
| Steering Console | Electronic steering console height adjustment (optional) |
| Travel Joystick | Palm Command Control System (PCCS) joystick controls |
| Equipment Joystick | An electronically controlled joystick for work equipment enables faster and more accurate blade and ripper control. |
| Main Monitor | Large multi-lingual high-resolution LCD monitor with troubleshooting function |
| LED lighting package | 4x access lamps, 4x additional cab mount, 2x front fender mount, 2x high mount on hood, 2x rear fender mount, ripper point light |
| HVAC | Automatic climate control system |
| ROPS | Meets ISO 3471 standards |
