Dimensions
| Length w/ Dozer Blade | 132.7 in (3370 mm) |
| Length w/o Dozer Blade | 95.1 in (2415 mm) |
| Length of Track on Ground | 68.5 in (1740 mm) |
| Width Over Tracks | 59.1 in (1500 mm) |
| Height to Top of Cab | 94.5 in (2400 mm) |
| Ground Clearance | 11.8 in (300 mm) |
Dozer Blade
| Blade Type | Power Tilt Blade or Power Angling / Tilt Blade |
| Blade Width (Option 1) | 87.8 in (2230 mm) |
| Blade Width (Option 2) | 100 in (2540 mm) |
| Blade Width (Option 3) | 125.2 in (3180 mm) |
| Blade Height (Option 1) | 23.5 in (595 mm) |
| Blade Height (Option 2) | 23.5 in (595 mm) |
| Blade Height (Option 3) | 19.7 in (500 mm) |
| Maximum Dozer Blade Raise | 34.1 in (865 mm) |
| Maximum Dozer Blade Lower | 16.5 in (420 mm) |
| Tilt Stroke | 13.4 in (340 mm) |
| Blade Angle | 25° |
Weight
| Operating Weight, BD2G-2B0 | 8047 lb (3650 kg) |
| Operating Weight, BD2G-2B5 | 8223 lb (3730 kg) |
| Operating Weight, BD2G-2-2B0 | 8157 lb (3700 kg) |
| Operating Weight, BD2G-2-2B5 | 8334 lb (3780 kg) |
| Operating Weight, BD2GS-2B1 | 8819 lb (4000 kg) |
| Operating Weight, BD2GS-2B6 | 8995 lb (4080 kg) |
| Operating Weight, BD2GS-2-2B1 | 8929 lb (4050 kg) |
| Operating Weight, BD2GS-2-2B6 | 9105 lb (4130 kg) |
| Operating Weight, BD2GSS-2B2 | 9039 lb (4100 kg) |
| Operating Weight, BD2GSS-2B7 | 9215 lb (4180 kg) |
| Operating Weight, BD2GSS-2-2B2 | 9480 lb (4300 kg) |
| Operating Weight, BD2GSSS-2-2B3 | 10693 lb (4850 kg) |
| Operating Weight, BD2GSS-2-2B7 | 9656 lb (4380 kg) |
| Power Angling / Tilt Blade Weight | 1213 lb (550 kg) |
| Power Tilt Blade Weight | 882 lb (400 kg) |
| Loader Bucket Weight | 529 lb (240 kg) |
S – Swamp Dozer with Broad Straight Blade and Track Shoe Width 20 in (500 mm)
SS – Super Swamp Dozer with Broad Straight Blade and Track Shoe Width 28 in (710 mm)

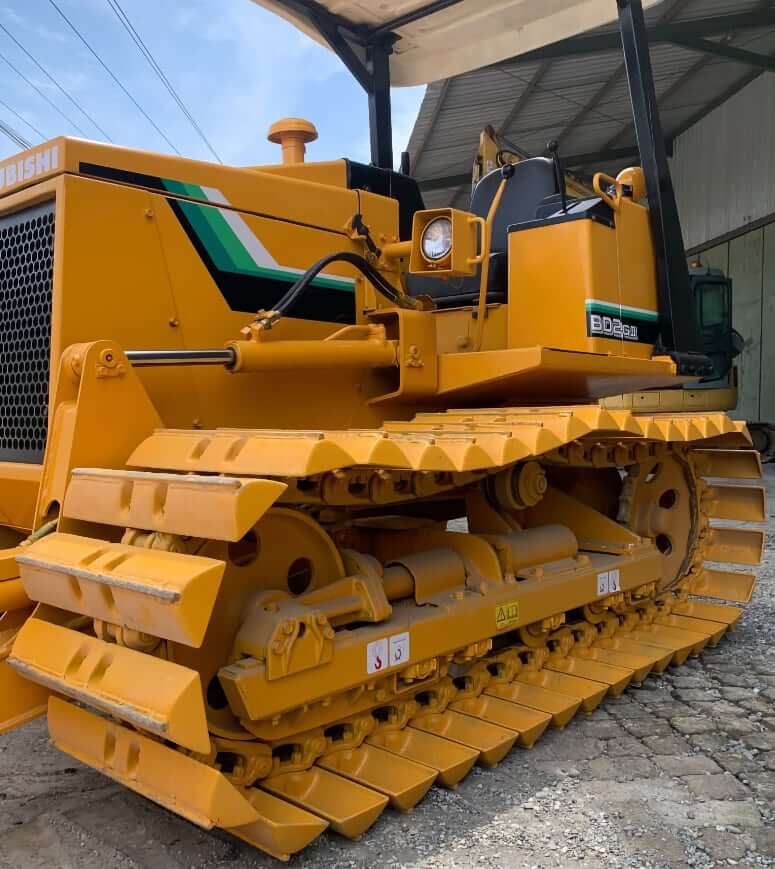

Undercarriage
| Track Gauge | 47.2 in (1200 mm) |
| Track Shoe Width (Standard) | 11.8 in (300 mm) |
| Track Shoe Width (Optional for Swamp Dozer) | 20 in (500 mm) |
| Track Shoe Width (Optional for Super Swamp Dozer) | 28 in (710 mm) |
| Length of Track on Ground | 68.5 in (1740 mm) |
| Ground Pressure (DD transmission) | 5.12 psi (35.3 kPa) |
| Ground Pressure (DPS transmission) | 7.11 psi (49.3 kPa) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Mitsubishi |
| Engine Model | Mitsubishi S4E2 |
| Displacement | 180.3 cu in (2.956 L) |
| Bore | 3.86 in (98 mm) |
| Stroke | 3.86 in (98 mm) |
| Gross Power | 40 hp (29.9 kw) |
| Power Measured @ | 2400 rpm |
| Peak Torque | 112.1 lb ft (152 Nm) |
| Torque Measured @ | 1200 rpm |
| Lubrication System | Pressure feed by gear pump |
| Fuel Filter | Cartridge, paper element |
| Combustion Chamber | Swirl chamber |
| Air Cleaner | Paper element |
| Aspiration | Naturally aspirated |
Operational Specs
| Operating Voltage | 24 V |
| Alternator | 20 amps |
| Battery | 2x 12 V, 60 Ah |
| Indicators, Gauges, Switches | Water temperature gauge; Service meter; OK monitor; Battery switch; Fuel gauge; Lighting switch; Glow plug indicator; Starter switch |
| Blade Controls | Power angling/tilt control lever and safety lock lever |
| Noise Level | 66 dB(A) |
Transmission
| Mitsubishi BD2G | DD | DPS |
|---|---|---|
| Transmission Type | Direct Drive transmission | Direct Power Shift |
| Number Of Forward Gears | 3 | 3 |
| Number Of Reverse Gears | 2 | 3 |
| Max Travel Speed (forward) | 4.7 mph (7.6 km/h) | 4.5 mph (7.2 km/h) |
| Max Travel Speed (reverse) | 3.9 mph (6.2 km/h) | 5.3 mph (8.5 km/h) |
Hydraulic System
| Main Pump Flow Capacity | 14.3 gal/min (54 L/min) |
| Main Relief Valve | 2560 psi (17700 kPa) |
| Main Pump Speed | 2400 rpm |
Service Refill Capacities
| Fuel Tank Capacity | 15.8 gal (60 L) |
| Engine Oil Capacity | 1.8 gal (7 L) |
| Cooling System Capacity (w/ radiator) | 3.4 gal (13 L) |
| Main Clutch Capacity (DD) | 1.5 gal (5.5 L) |
| Damper Case Capacity (DPS) | 0.9 gal (3.5 L) |
| Transmission Case Capacity (DD) | 2.5 gal (9.5 L) |
| Transmission Case Capacity (DPS) | 2.9 gal (11 L) |
| Transfer/Bevel Gear Capacity (DPS) | 1.8 gal (7 L) |
| Final Drives Capacity | 1.7 gal (6.5 L) |
| Hydraulic Tank Capacity | 8.7 gal (33 L) |
Factory-Filled Lubricants
| Compartment | Brand Name |
|---|---|
| Engine | SAE 30 (Diamond HD30 special) |
| Main Clutch Case [DD] | SAE 10W (Diamond HD S-3 10W) |
| Damper Case [DPS] | SAE 10W (Diamond HD S-3 10W) |
| Transmission Case [DD] | SAE 90 (Apolloil Gear HE90) |
| Transmission Case [DPS] | SAE 10W (Diamond HD S-3 10W) |
| Transfer/Bevel Gear Case [DPS] | SAE 90 (Apolloil Gear HE90) |
| Final Drive Gear Cases | SAE 90 (Apolloil Gear HE90) |
| Hydraulic Tank | SAE 10W (Diamond HD 10W special) |

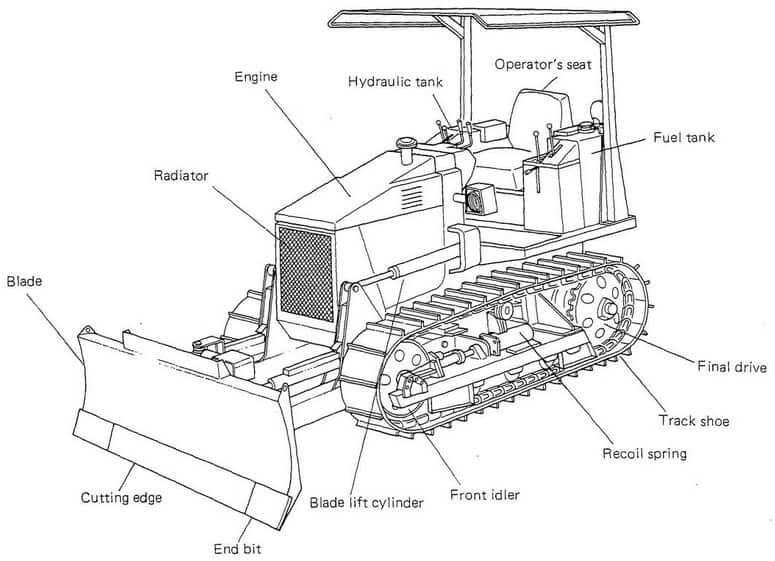

The Mitsubishi BD2G Dozer is a compact, agile crawler dozer designed for light-to-medium duty earthmoving and grading operations in construction, agriculture, and forestry. Built on a reliable and fuel-efficient platform, the BD2G series is offered in a variety of configurations to meet different terrain and operational requirements. The dozer comes with two main transmission types: the DD (Direct Drive) transmission, offering 3 forward and 2 reverse speeds, featured in models such as BD2G-2-2B0, BD2G-2B0, BD2GS-2-2B1, BD2GS-2B1, BD2GSS-2-2B2, and BD2GSS-2B2; and the DPS (Direct Power Shift) transmission, which enhances versatility with 3 forward and 3 reverse speeds, available in BD2G-2-2B5, BD2G-2B5, BD2GS-2-2B6, BD2GS-2B6, BD2GSS-2-2B7, and BD2GSS-2B7.
For extreme ground conditions such as wetlands and rice paddies, Mitsubishi offers Super Swamp and Ultra Super Swamp variants, engineered with extra-wide tracks and specialized undercarriage components to deliver superior flotation and reduced ground pressure. These features make the BD2G lineup highly adaptable, durable, and operator-friendly across challenging job sites.
