Bobcat Engine Error Codes are diagnostic codes generated by the onboard electronic control unit (ECU) of Bobcat machines, such as mini excavators, compact track & skid steer loaders, telehandlers, wheel loaders, and other construction equipment. These codes serve as a communication system between the machine and the operator, indicating specific issues or potential problems with the engine or its associated systems.
Each error code corresponds to a specific problem, such as fuel system malfunctions, engine overheating, sensor failures, or electrical faults. Bobcat engine codes pinpoint the exact component or system requiring attention, reducing the time spent diagnosing issues. Some codes may indicate minor issues (warnings), while others signal critical problems that may require immediate action. Codes are typically displayed on the machine’s control panel or digital screen, often accompanied by warning lights or audible alarms.
Bobcat Engine Error Codes
General engine issues codes indicate problems such as low oil pressure, high coolant temperature, or emissions system faults. Electrical system errors include battery issues, alternator malfunctions, or sensor communication errors. Enhanced Efficiency: Accurate diagnostics reduce machine downtime and improve overall productivity. By decoding these error messages, operators and technicians can maintain Bobcat equipment in peak operating condition, ensuring both performance and longevity.
Bobcat Engine Error Codes from P0002 to P0400
| Error Code | Bobcat Engine Error Description |
|---|---|
| P0002 | Rail Pressure Control Fault |
| P0002 | Fuel Rail Pressure Fault |
| P0003 | Rail Pressure Control Fault |
| P0003 | Fuel Rail Pressure Fault |
| P0004 | Rail Pressure Control Fault |
| P0004 | Fuel Rail Pressure Fault |
| P0006 | Rail Pressure Control Fault |
| P0007 | Rail Pressure Control Fault |
| P000F | Fuel Rail Pressure High – Over Relief |
| P0016 | Cam or Crank Sensor – Fault |
| P0070 | Intake Air Temperature Sensor Fault |
| P0072 | MAF Sensor – Fault |
| P0072 | Intake Air Temperature – Fault |
| P0072 | Engine Compartment Temperature Sensor Out of Range Low |
| P0073 | MAF Sensor – Fault |
| P0073 | Intake Air Temperature – Fault |
| P0073 | Engine Compartment Temperature Sensor Out of Range High |
| P0074 | Intake Air Temperature Sensor Fault |
| P007C | Inlet Air Temperature Sensor Out of Range Low |
| P007D | Inlet Air Temperature Sensor Out of Range High |
| P0087 | Rail Pressure Fault |
| P0087 | Rail Pressure – Fault |
| P0087 | Fuel Rail Pressure Fault |
| P0088 | Rail Pressure Control Fault |
| P0088 | Rail Pressure – Fault |
| P0089 | Rail Pressure Control Fault |
| P009B | Common Rail Pressure Relief Valve Open Count Exceeds Limit |
| P009C | Common Rail Pressure Relief Valve Opened |
| P009D | Common Rail Pressure Relief Valve Opened |
| P009F | High Rail Pressure |
| P00AC | Intake Manifold Temperature Sensor Out of Range Low |
| P00AD | Intake Manifold Temperature Sensor Out of Range High |
| P00BC | Intake Air Volume – Fault |
| P00BC | Low Manifold Absolute Pressure (Low boost) |
| P00BD | Intake Air Volume – Fault |
| P00BE | Air Flow Fault (MAF / MAP agreement) |
| P0100 | MAF Sensor – Fault |
| P0100 | Mass Air Flow Sensor Short to Battery or Open Circuit |
| P0101 | Intake Air Volume – Fault |
| P0101 | Mass Air Flow Sensor Electrical Fault |
| P0102 | MAF Sensor – Fault |
| P0102 | Mass Air Flow Sensor Out of Range Low |
| P0103 | MAF Sensor – Fault |
| P0103 | Mass Air Flow Sensor Out of Range High |
| P0105 | Manifold Pressure Sensor Fault |
| P0107 | Manifold Pressure Sensor Fault |
| P0107 | Manifold Absolute Pressure Sensor Out of Range Low |
| P0108 | Manifold Pressure Sensor Fault |
| P0108 | Manifold Absolute Pressure Sensor Out of Range High |
| P0110 | Intake Manifold Temperature Sensor Fault |
| P0111 | Intake Manifold Temperature Fault |
| P0111 | Intake Air Temperature – High |
| P0112 | Intake Air Temperature – Fault |
| P0112 | Intake Manifold Temperature Sensor Fault |
| P0113 | Intake Manifold Temperature Sensor Fault |
| P0113 | Intake Air Temperature – Fault |
| P0114 | Intake Manifold Temperature Sensor Fault |
| P0116 | Engine Coolant Temperature Fault |
| P0117 | Water Temp Sensor Fault |
| P0117 | Coolant Temperature Sensor Out of Range Low |
| P0118 | Water Temp Sensor Fault |
| P0118 | Coolant Temperature Sensor Out of Range High |
| P011E | Coolant Temperature Low Fault |
| P0121 | Engine Speed Control Signal Fault |
| P0122 | Engine Speed Control Signal Fault |
| P0123 | Engine Speed Control Signal Fault |
| P0124 | Engine Speed Control Signal Fault |
| P0180 | Fuel Temp Sensor Fault |
| P0181 | Fuel Temperature Fault |
| P0181 | Fuel Temperature – High |
| P0182 | Fuel Temp Sensor Fault |
| P0182 | Fuel Temperature Sensor Out of Range Low |
| P0183 | Fuel Temp Sensor Fault |
| P0183 | Fuel Temperature Sensor Out of Range High |
| P018C | Low Fuel Filter Pressure |
| P018D | High Fuel Filter Pressure |
| P018F | Common Rail Pressure Relief Valve Open Time Exceeds Limit |
| P0190 | Rail Pressure Sensor Fault |
| P0191 | Rail Pressure Fault |
| P0192 | Rail Pressure Sensor Fault |
| P0192 | Rail Pressure Sensor Out of Range Low |
| P0193 | Rail Pressure Sensor Fault |
| P0193 | Rail Pressure Sensor Out of Range High |
| P0195 | Engine Oil Temperature Sensor Fault |
| P0196 | Engine Oil Temperature Fault |
| P0196 | Oil Level/Temp Sensor Fault |
| P01C2 | Fuel Filter Pressure Sensor Out of Range Low |
| P01C4 | Low Fuel Filter Pressure Warning |
| P01C5 | Low Fuel Filter Pressure – Derate |
| P01C6 | Fuel Filter Pressure Sensor Out of Range High |
| P0200 | Injector Fault |
| P0201 | Injector #1 Fault |
| P0201 | Injector #1 Open Circuit |
| P0202 | Injector #3 Fault |
| P0202 | Injector #2 Fault |
| P0202 | Injector #2 Open Circuit |
| P0203 | Injector #4 Fault |
| P0203 | Injector #3 Fault |
| P0203 | Injector #3 Open Circuit |
| P0204 | Injector #4 Fault |
| P0204 | Injector #2 Fault |
| P0204 | Injector #4 Open Circuit |
| P0215 | Engine Shutoff Request Signal Detected |
| P0217 | Engine Temp Extremely High |
| P0218 | CAN Communication Fault – Transmission Oil Temperature |
| P0219 | Engine Speed Extremely High |
| P0219 | Engine Overspeed Detected |
| P0221 | Engine Speed Control Signal Fault |
| P0222 | Engine Speed Control Signal Fault |
| P0223 | Engine Speed Control Signal Fault |
| P0224 | Engine Speed Control Signal Fault |
| P0237 | Engine Oil Pressure Sensor Fault |
| P0237 | Intake Air Pressure Sensor Fault |
| P0238 | Intake Air Pressure Sensor Fault |
| P0238 | Engine Oil Pressure Sensor Fault |
| P0241 | Boost Control Fault |
| P0242 | Boost Control Fault |
| P0251 | Rail Pressure Control Fault |
| P0252 | Rail Pressure Control Fault |
| P0252 | Low Fuel Rail Pressure |
| P0253 | Rail Pressure Control Fault |
| P0254 | Rail Pressure Control Fault |
| P0254 | Fuel Rail Pressure Control Fault |
| P0258 | Rail Pressure Control Fault |
| P0259 | Rail Pressure Control Fault |
| P025A | Inlet Metering Valve Fault |
| P025A | Fuel Metering Unit Open Circuit |
| P025B | Inlet Metering Valve Fault |
| P025B | Fuel Metering Unit Fault |
| P025C | Inlet Metering Valve Fault |
| P025C | Fuel Metering Unit Short to Ground |
| P025D | Inlet Metering Valve Fault |
| P025D | Fuel Metering Unit Short to Battery |
| P0261 | Injector #1 Fault |
| P0262 | Injector #1 Fault |
| P0264 | Injector #2 Fault |
| P0265 | Injector #2 Fault |
| P0267 | Injector #3 Fault |
| P0268 | Injector #3 Fault |
| P0270 | Injector #4 Fault |
| P0271 | Injector #4 Fault |
| P028A | Fan PWM Open Circuit |
| P028D | Fan PWM Short to Ground |
| P028E | Fan PWM Short to Battery |
| P029A | Injector #1 Fault |
| P029B | Injector #1 Fault |
| P029E | Injector #2 Fault |
| P029F | Injector #2 Fault |
| P02A2 | Injector #3 Fault |
| P02A3 | Injector #3 Fault |
| P02A6 | Injector #4 Fault |
| P02A7 | Injector #4 Fault |
| P02E0 | Air Control Valve H-Bridge Drive Open Circuit |
| P02E2 | Air Control Valve H-Bridge Drive Short to Ground |
| P02E3 | Air Control Valve H-Bridge Drive Short to Battery |
| P02E4 | Air Control Valve Position Fault |
| P02E5 | Air Control Valve Position Fault |
| P02E7 | Air Control Valve Close Position Fault |
| P02E8 | Air Control Valve Sensor Out of Range Low |
| P02E9 | Air Control Valve Sensor Out of Range High |
| P02EA | Air Control Valve Close Position Fault |
| P02EB | Air Control Valve Close Position Fault |
| P02EE | Injector #1 Fault |
| P02EE | Injector #1 Short Circuit |
| P02EF | Injector #2 Fault |
| P02EF | Injector #2 Short Circuit |
| P02F0 | Injector #3 Fault |
| P02F0 | Injector #3 Short Circuit |
| P02F1 | Injector #4 Fault |
| P02F1 | Injector #4 Short Circuit |
| P0325 | Accelerometer Fault |
| P0330 | Accelerometer Fault |
| P0335 | Crank position sensor fault |
| P0336 | Crank position sensor fault |
| P0339 | Crank position sensor fault |
| P0340 | Camshaft position sensor fault |
| P0340 | CAM Signal Fault |
| P0340 | Cam Sensor Signal Fault |
| P0341 | CAM Signal Fault |
| P0341 | Camshaft position sensor fault |
| P0342 | CAM Signal Fault |
| P0342 | Cam Sensor Signal Fault |
| P0344 | CAM Signal Fault |
| P0344 | Cam Sensor Signal Fault |
| P0371 | Crank position sensor fault |
| P0372 | Crank position sensor fault |
| P0372 | Crank Sensor Signal Fault |
| P0374 | Crank position sensor fault |
| P0374 | Crank Sensor Signal Fault |
| P037E | Glow Plug Signal – Fault |
| P037F | Glow Plug Signal – Fault |
| P0380 | Glow Plug Relay Fault |
| P0380 | Intake heater fault |
| P0380 | Glow Plug Relay Open Circuit |
| P0381 | Glow Plug Lamp Open Circuit |
| P0383 | Glow Plug Relay Fault |
| P0383 | Glow Plug Relay Short to Ground |
| P0384 | Glow Plug Relay Fault |
| P0384 | Glow Plug Relay Short to Battery |
| P0400 | EGR Fault |
| P0400 | EGR Blocked Fault |
Bobcat Engine Error Codes from P0401 to P160F
| Error Code | Bobcat Engine Error Description |
|---|---|
| P0401 | EGR Control Fault |
| P0402 | EGR Control Fault |
| P0403 | EGR Actuator – Fault |
| P0404 | EGR Fault |
| P0404 | EGR Position Fault |
| P0404 | EGR Actuator – Fault |
| P0405 | EGR Fault |
| P0406 | EGR Fault |
| P0406 | EGR Actuator Position Fault |
| P0406 | EGR Position Sensor Out of Range High |
| P0407 | EGR Actuator Position Fault |
| P0407 | EGR Position Sensor Out of Range Low |
| P0408 | EGR Flow Rate Error |
| P0409 | EGR Position Sensor – Fault |
| P0409 | EGR Actuator Position Fault |
| P0421 | DOC Exothermal Efficiency Fault |
| P0421 | DOC Efficiency Fault (During Regen) |
| P0426 | SCR Pre-Treatment Temperature Sensor Tampering |
| P0427 | SCR Pre-Treatment Temperature Sensor Out of Range Low |
| P0428 | SCR Pre-Treatment Temperature Sensor Out of Range High |
| P042E | EGR Control Position Fault |
| P042F | EGR Control Position Fault |
| P046D | EGR Actuator Position Fault |
| P049B | EGR Flow Rate Error |
| P0512 | Engine Start Switch Stuck On |
| P0522 | Engine Oil Pressure Sensor Out of Range Low |
| P0523 | Engine Oil Pressure Sensor Out of Range High |
| P0524 | Engine Oil Pressure Low |
| P0527 | Fan Speed Timeout Fault |
| P0528 | Cooling Fan Overspeed |
| P0529 | Cooling Fan Underspeed |
| P0543 | Exhaust Gas Temperature Sensor – Fault |
| P0544 | Exhaust Gas Temperature Sensor – Fault |
| P0544 | Turbine Inlet Temperature Fault |
| P0545 | Turbo Temperature Sensor Fault |
| P0545 | Turbine Inlet Temperature Sensor Out of Range Low |
| P0546 | Turbo Temperature Sensor Fault |
| P0546 | Exhaust Gas Temperature Sensor – Fault |
| P0546 | Turbine Inlet Temperature Sensor Out of Range High |
| P0547 | Exhaust Gas Temperature Sensor – Fault |
| P055B | Oil Pressure Warning Lamp Open Circuit |
| P055C | Oil Pressure Warning Lamp Short to Ground |
| P055D | Oil Pressure Warning Lamp Short to Battery |
| P0562 | Battery Voltage Low |
| P0562 | ECU Battery Voltage Extremely Low |
| P0563 | Battery Voltage High |
| P0563 | ECU Battery Voltage Extremely High |
| P056D | DEF Supply Module Communication Fault |
| P0591 | PTO Lamp Open Circuit |
| P0592 | PTO Lamp Short to Ground |
| P0593 | PTO Lamp Short to Battery |
| P05ED | DEF Heater Line Short to Battery |
| P0602 | ECU Fault |
| P0602 | Injector Data Fault |
| P0603 | ECU Fault |
| P0604 | ECU Fault |
| P0605 | ECU Fault |
| P0606 | ECU Fault |
| P060B | ECU Fault |
| P060B | ECU Calculation Error |
| P060C | ECU Communication Fault |
| P0611 | Injector Fault |
| P0615 | Starter Relay Open Circuit |
| P0616 | Starter Relay Short to Ground |
| P0617 | Starter Relay Short to Battery |
| P061B | ECU Safety Monitoring – Fault |
| P0628 | High Pressure Pump Fault |
| P0629 | High Pressure Pump Fault |
| P062D | Injector #1 and #4 Fault |
| P062D | Injector Bank Short Circuit 1 |
| P062E | Injector #2 and #3 Fault |
| P062E | Injector Bank Short Circuit 2 |
| P062F | ECU Fault |
| P062F | ECU Data Read Fault |
| P0630 | ECU Data Write Fault |
| P0641 | 5V Sensor Supply #1 Fault |
| P0641 | ECU 5V Sensor Supply Voltage Out of Range High |
| P0642 | ECU 5V Sensor Supply Voltage Out of Range Low |
| P0651 | 5V Sensor Supply #2 Fault |
| P0652 | Sensor Supply Voltage Fault |
| P0653 | Sensor Supply Voltage Fault |
| P0657 | ECU Sensor Supply 1 Short to Ground |
| P0658 | DCU Fault |
| P0658 | ECU Sensor Supply 1 Voltage Low |
| P0659 | DCU Fault |
| P0659 | ECU Sensor 1 Voltage High |
| P0669 | High ECU Temperature |
| P0685 | ECU Main Relay Fault |
| P0687 | ECU Main Relay Fault |
| P068A | DCU Fault |
| P068A | ECU Main Relay Fault |
| P0697 | 5V Aux Sensor Supply #2 Fault |
| P06AD | ECU Temperature Sensor Short to Ground |
| P06AE | ECU Temperature Sensor Short to Battery |
| P06F0 | DEF Supply Module Fault |
| P06F1 | DEF Supply Module Fault |
| P0C17 | EGR Position Learning – Fault |
| P0C17 | EGR Closed Position Fault |
| P0C18 | EGR Position Learning – Fault |
| P0C18 | EGR Closed Position Fault |
| P0C19 | EGR Closed Position Fault |
| P1013 | Engine Speed Fault |
| P101A | ECU Internal Fault |
| P1033 | High DPF Inlet Temperature |
| P1044 | DEF Tank Temperature Sensor Error Low |
| P1045 | DEF Tank Temperature Sensor Error High |

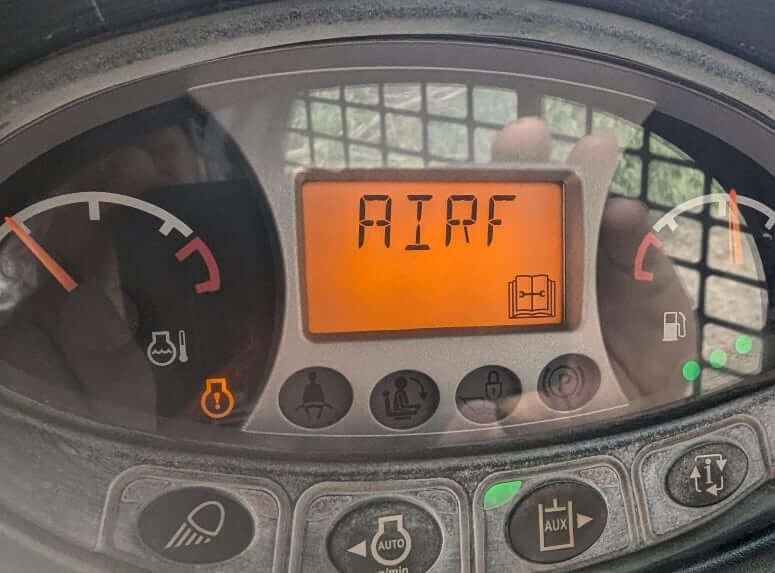

| P1060 | Air Filter Out of Range Low |
| P1060-17 | Air Filter Out of Range High |
| P1061-97 | Air Filter Pressure – Component or System Operation Obstructed or Blocked |
| P1061-97 | Air Filter Plugged |
| P1062-00 | Air Filter Pressure Derate Level 1 |
| P1062-00 | Air Filter Plugged |
| P1063-00 | Air Filter Pressure Derate Level 2 |
| P1063-00 | Air Filter Plugged |
| P1065-31 | Air Filter Switch – No Signal |
| P1065-31 | Air Filter Switch Not Connected |
| P106C | Low DEF Quality |
| P106D | High DEF Quality |
| P1073 | High Engine Compartment Temperature |
| P107D | High Inlet Air Temperature |
| P108A | DEF Supply Pump Motor Speed Fault |
| P108B | DEF Supply Pump Motor Speed Fault |
| P108C | DEF Supply Pump Motor Fault |
| P10AD | High Intake Manifold Temperature |
| P1118 | High Engine Coolant Temp |
| P115A | DEF Temperature Sensor Failure |
| P115C | DEF Temperature Sensor Short to Ground |
| P115D | DEF Temperature Sensor Open Circuit |
| P1183 | High Fuel Temperature |
| P1219 | ECU Safety Monitoring – Fault |
| P1220 | DEF Temperature Fault |
| P1221 | DEF Temperature Fault |
| P1223 | DEF Temperature Too High |
| P1224 | DEF Temperature Too Low |
| P1227 | DEF Temperature Sensor Fault |
| P1227 | Low DEF Tank Temperature Fault |
| P1228 | ECU Safety Monitoring – Fault |
| P1229 | DEF Temperature Signal Fault |
| P1230 | DEF Level Signal Fault |
| P1230 | DEF Tank Level Signal Error |
| P1231 | DEF Level Sensor Fault |
| P123A | DEF Fill Level Fault |
| P123B | DEF Fill Level Fault |
| P123C | DEF Level Extremely Low |
| P123D | DEF Level Empty |
| P1274 | Fuel Pump Fault |
| P1275 | Fuel Pump Fault |
| P12E5 | EGR Fault – Level 1 Inducement |
| P12E6 | EGR Fault – Level 2 Inducement |
| P12E7 | EGR Fault – Level 3 Inducement |
| P12E8 | EGR Fault – Warning |
| P12E9 | SCR Dosing Interrupted – Level 1 Inducement |
| P12EA | SCR Dosing Interrupted – Level 2 Inducement |
| P12EB | SCR Dosing Interrupted – Level 3 Inducement |
| P12EC | SCR Dosing Interrupted – Warning |
| P12F2 | DEF Quality – Level 1 Inducement |
| P12F3 | DEF Quality – Level 2 Inducement |
| P12F4 | DEF Quality – Level 3 Inducement |
| P12F5 | DEF Quality – Warning |
| P12F6 | SCR Tampering – Level 1 Inducement |
| P12F7 | SCR Tampering – Level 2 Inducement |
| P12F8 | SCR Tampering – Level 3 Inducement |
| P12F9 | SCR Tampering – Warning |
| P1303 | SCR Fault Repeat Offense – Level 1 Inducement |
| P1304 | SCR Fault Repeat Offense – Level 2 Inducement |
| P1305 | SCR Fault Repeat Offense – Level 3 Inducement |
| P1332 | Dosing Valve Tip Temperature Fault |
| P1337 | Dosing Valve Tip Temperature Fault |
| P1350 | DOC Pre-Treatment Temperature Too High |
| P1351 | DOC Pre-Treatment Temperature Too Low |
| P1353 | DOC Pre-Treatment Temperature Sensor Out of Range High |
| P1354 | DOC Pre-Treatment Temperature Sensor Out of Range Low |
| P1360 | SCR Pre-Treatment Temperature Too High |
| P1361 | SCR Pre-Treatment Temperature Too Low |
| P1443 | DEF Pump Pressure Max |
| P1444 | DEF Pump Pressure Min |
| P1450 | Metering Control Overpressure |
| P1450 | High DEF Pump Pressure |
| P1451 | Metering Control Underpressure |
| P1451 | Low DEF Pump Pressure |
| P1452 | Monitoring of Overpressure |
| P1452 | High DEF Pump Pressure |
| P1453 | Pressure Stabilization Fault |
| P1453 | DEF Pump Pressure Stabilization Fault |
| P1454 | Low DPF Differential Pressure |
| P1455 | Monitoring of Pressure Build-up |
| P1457 | Low DEF Pump Pressure |
| P1459 | DEF Pressure Reduction Fault |
| P1460 | DEF Afterrun Error |
| P1461 | DEF Reverting Valve Pressure Fault |
| P1511 | DEF Quality Sensor Fault |
| P1522 | Low Engine Oil Pressure |
| P1531 | DEF Quality Sensor Fault |
| P1546 | High Turbine Inlet Temperature |
| P1560 | DEF Quality Too High |
| P1561 | DEF Quality Too Low |
| P1561 | Battery Voltage Fault |
| P1562 | Battery Voltage Low |
| P1562 | ECU Battery Voltage Low |
| P1563 | Battery Voltage High |
| P1563 | ECU Battery Voltage High |
| P1564 | ECU Battery Voltage Extremely High |
| P1565 | ECU Battery Voltage Extremely Low |
| P1601 | ECU Safety Monitoring – Fault |
| P1602 | DCU Sensor Supply Error |
| P1602 | ECU Safety Monitoring – Fault |
| P1604 | ECU Safety Monitoring – Fault |
| P1606 | ECU Safety Monitoring – Fault |
| P1607 | ECU Safety Monitoring – Fault |
| P160B | ECU Safety Monitoring – Fault |
| P160B | ECU Internal Fault |
| P160C | ECU Safety Monitoring – Fault |
| P160C | ECU Internal Fault |
| P160D | ECU Internal Fault |
| P160E | ECU Internal Fault |
| P160F | DCU Fault |
| P160F | ECU Memory Fault |
Bobcat Engine Error Codes from P1610 to P2151
| Error Code | Bobcat Engine Error Description |
|---|---|
| P1610 | ECU Internal Fault |
| P1611 | ECU Safety Monitoring – Fault |
| P1611 | ECU Internal Fault |
| P1612 | ECU Safety Monitoring – Fault |
| P1612 | ECU Internal Fault |
| P1613 | ECU Internal Fault |
| P1614 | ECU Internal Fault |
| P1615 | ECU Internal Fault |
| P1616 | ECU Internal Fault |
| P1617 | ECU Internal Fault |
| P1618 | ECU Internal Fault |
| P1619 | ECU Internal Fault |
| P1620 | ECU Safety Monitoring – Fault |
| P1621 | ECU Safety Monitoring – Fault |
| P1622 | ECU Safety Monitoring – Fault |
| P1623 | ECU Safety Monitoring – Fault |
| P1624 | ECU Safety Monitoring – Fault |
| P1625 | ECU Safety Monitoring – Fault |
| P1626 | ECU Safety Monitoring – Fault |
| P1627 | ECU Safety Monitoring – Fault |
| P162B | ECU Safety Monitoring – Fault |
| P1630 | DCU Fault |
| P1630 | ECU Safety Monitoring – Fault |
| P1631 | DCU Fault |
| P1631 | ECU Safety Monitoring – Fault |
| P1632 | ECU Safety Monitoring – Fault |
| P1633 | ECU Safety Monitoring – Fault |
| P1634 | ECU Safety Monitoring – Fault |
| P1635 | ECU Safety Monitoring – Fault |
| P1636 | ECU Safety Monitoring – Fault |
| P1637 | ECU Safety Monitoring – Fault |
| P1638 | ECU Safety Monitoring – Fault |
| P1657 | ECU Sensor Suplly 1 Voltage Fault |
| P1660 | ECU Safety Monitoring – Fault |
| P1661 | ECU Safety Monitoring – Fault |
| P1662 | ECU Safety Monitoring – Fault |
| P1663 | ECU Safety Monitoring – Fault |
| P1669 | ECU Sensor Supply 2 Voltage Fault |
| P1684 | ECU Sensor Suplly 3 Voltage Fault |
| P1690 | ECU Safety Monitoring – Fault |
| P1691 | ECU Safety Monitoring – Fault |
| P1692 | ECU Safety Monitoring – Fault |
| P16C0 | DCU Fault |
| P16C1 | DCU Fault |
| P16C2 | DCU Fault |
| P16C3 | DCU Fault |
| P16C4 | DCU Fault |
| P16C5 | DCU Fault |
| P16D2 | ECU Safety Monitoring – Fault |
| P16D6 | ECU Safety Monitoring – Fault |
| P16D8 | ECU Safety Monitoring – Fault |
| P1710 | Enviroment Temperature Too High |
| P1711 | Enviroment Temperature Too Low |
| P1712 | Enviroment Temperature Sensor Fault |
| P1713 | Enviroment Temperature Sensor Fault |
| P1880 | Outlet Line Heater Fault |
| P1882 | Outlet Line Heater Fault |
| P1884 | Outlet Line Heater Over-temperature |
| P1885 | Outlet Line Heater Open Circuit |
| P1892 | Backflow Line Heater Fault |
| P1893 | Backflow fault |
| P1893 | DEF Backflow Line Pressure Fault |
| P1894 | Backflow Line Heater Over-Temperature |
| P1895 | Backflow Line Heater Open Circuit |
| P18A2 | Inlet Line Heater Fault |
| P18A3 | Inlet Line Heater Short to Battery |
| P18A4 | Inlet Line Heater Over-Temperature |
| P18A5 | Inlet Line Heater Open Circuit |
| P18B0 | DEF Line Heater Short to Battery |
| P18B2 | DEF Heater Relay Over-Temperature |
| P18B5 | DEF Heater Relay Open Circuit |
| P1904 | Glow Plug Lamp Short to Ground |
| P1906 | DPF Regeneration Switch Inhibit Lamp Open Circuit |
| P1907 | DPF Regeneration Switch Inhibit Lamp Short to Ground |
| P1908 | DPF Regeneration Switch Inhibit Lamp Short to Battery |
| P190B | High Fuel Rail Pressure |
| P190C | Low Fuel Rail Pressure |
| P192E | Check Engine Lamp Open Circuit |
| P192F | Check Engine Lamp Short to Ground |
| P1931 | Check Engine Lamp Short to Battery |
| P1934 | Pressure Relief Valve Fault |
| P1990 | ECU – Fault |
| P1A32 | Nox Sensor Self Diagnostics |
| P1A37 | Nox Sensor Self Diagnostics |
| P1A39 | Nox Sensor Self Diagnostics |
| P1A42 | Nox Sensor Self Diagnostics |
| P1A47 | Nox Sensor Self Diagnostics |
| P1A49 | Nox Sensor Self Diagnostics |
| P201F | DEF Pump Motor Speed Fault |
| P202A | DEF Tank Coolant Valve Open Circuit |
| P202B | DEF Tank Coolant Valve Short to Ground |
| P202C | DEF Tank Coolant Valve Short to Battery |
| P202D | DEF Leakage Fault |
| P202E | Dosing Valve Temperature Too High |
| P202E | DEF Dosing Valve Error |
| P2032 | DPF Inlet Temperature Sensor Out of Range Low |
| P2033 | DPF Inlet Temperature Sensor Out of Range High |
| P2034 | DPF Inlet Temperature Fault |
| P203A | DEF Level Sensor Open Circuit |
| P203C | DEF Level Sensor Fault |
| P203D | DEF Level Sensor Fault |
| P203F | DEF Tank Empty |
| P2041 | DEF Level Sensor Short Circuit |
| P2043 | DEF Temperature Sensor Open Circuit |
| P2046 | DEF Temperature Sensor Short Circuit |
| P2047 | Dosing Valve Short to Battery |
| P2047 | DEF Dosing Valve Short to Battery |
| P2048 | Dosing Valve Short to Ground |
| P2048 | DEF Dosing Valve Short to Ground |
| P2049 | Dosing Valve Short to Battery |
| P2049 | DEF Dosing Valve Open Circuit |
| P204A | General Pressure Check Fault |
| P204A | DEF Pressure Fault |
| P204C | DEF Supply Pump Pressure Sensor Out of Range Low |
| P204D | DEF Supply Pump Pressure Sensor Out of Range High |
| P204E | Backflow Pump Fault |
| P2050 | DEF Dosing Valve Short to Battery |
| P2051 | DEF Dosing Valve Short to Ground |
| P205E | DEF Overheating |
| P205E | High DEF Tank Temperature |
| P206C | DEF Quality Sensor Fault |
| P206D | DEF Quality Sensor Fault |
| P2080 | Turbo Temperature Fault |
| P2081 | Turbo Temperature Sensor Fault |
| P208A | DEF Pump Motor Open Circuit |
| P208A | DEF Supply Pump Motor Open Circuit |
| P208B | DEF Pump Motor Overtemperature |
| P208B | DEF Supply Pump Motor Signal Error |
| P208C | DEF Pump Motor Short to Ground |
| P208C | DEF Supply Pump Motor Short to Ground |
| P208D | DEF Pump Motor Short to Battery |
| P208D | DEF Supply Pump Motor Short to Battery |
| P208E | Dosing Valve Blocked |
| P208E | DEF Dosing Valve Blocked |
| P209F | DEF Tank Coolant Valve Temperature Too High |
| P20A0 | DEF Reverting Valve Open Circuit |
| P20A1 | High DEF Reverting Valve Temperature |
| P20A2 | DEF Reverting Valve Short to Ground |
| P20A3 | DEF Reverting Valve Short to Battery |
| P20A5 | DEF Reverting Valve Pressure Fault |
| P20AC | DEF Supply Module Heater Fault |
| P20AD | DEF Supply Module Heater Fault |
| P20B0 | DEF Supply Module Temperature Fault |
| P20B1 | DEF Tank Heater Valve Open Circuit |
| P20B3 | DEF Tank Heater Valve Short to Ground |
| P20B4 | DEF Tank Heating/Coolant Valve Short to Battery |
| P20B9 | Supply Module Heater Open Circuit |
| P20B9 | DEF Supply Module Heater Relay Open Circuit |
| P20BA | Supply Module Heater Overtemperature |
| P20BA | DEF Supply Module Heater Fault |
| P20BB | DEF Supply Module Heater Relay Short to Ground |
| P20BC | Supply Module Heater Short to Battery |
| P20BC | DEF Supply Module Heater Relay Short to Battery |
| P20BD | DEF Outlet Line Heater Short to Ground or Open Circuit |
| P20BD | DEF Pressure Line Heater Relay Open Circuit |
| P20BE | DEF Pressure Line Heater Fault |
| P20BF | Outlet Line Heater Short to Ground |
| P20BF | DEF Pressure Line Heater Relay Short to Ground |
| P20C0 | Outlet Line Heater Short to Battery |
| P20C0 | DEF Pressure Line Heater Relay Short to Battery |
| P20C1 | DEF Backflow Line Heater Short to Ground or Open Circuit |
| P20C1 | DEF Backflow Line Heater Relay Open Circuit |
| P20C2 | DEF Backflow Line Heater Fault |
| P20C3 | Backflow Line Heater Short to Ground |
| P20C3 | DEF Backflow Line Heater Relay Short to Ground |
| P20C4 | Backflow Line Heater Short to Battery |
| P20C4 | DEF Backflow Line Heater Relay Short to Battery |
| P20C5 | DEF Inlet Line Heater Short to Ground or Open Circuit |
| P20C5 | DEF Suction Line Heater Relay Open Circuit |
| P20C6 | DEF Suction Line Heater Fault |
| P20C7 | Inlet Line Heater Short to Ground |
| P20C7 | DEF Suction Line Heater Relay Short to Ground |
| P20C8 | DEF Suction Line Heater Relay Short to Battery |
| P20E8 | DEF Pump Pressure Too Low |
| P20EE | SCR Efficiency Fault |
| P20EE | SCR Efficiency Low |
| P20FA | DEF Backflow Pump Open Circuit |
| P20FB | DEF Backflow Pump Overtemperature |
| P20FC | DEF Backflow Pump Short to Ground |
| P20FD | DEF Backflow Pump Short to Battery |
| P20FF | DEF Supply Module Communication Timeout |
| P2108 | Intake Throttle – Fault |
| P2131 | Throttle Position Sensor Fault |
| P2135 | Engine Speed Control Signal Fault |
| P2136 | Engine Speed Control Signal Fault |
| P213E | ECU Internal Shutdown |
| P2143 | EGR Motor – Fault |
| P2143 | EGR H-Bridge Driver Open Circuit |
| P2144 | EGR Motor – Fault |
| P2144 | EGR H-Bridge Driver Short to Ground |
| P2145 | EGR Motor – Fault |
| P2145 | EGR H-Bridge Driver Short to Battery |
| P2146 | Injector #1 and #4 Fault |
| P2147 | Injector #1 and #4 Fault |
| P2148 | Injector #1 and #4 Fault |
| P2149 | Injector #2 and #3 Fault |
| P214F | DEF Supply Module Heater Open Circuit |
| P2150 | Injector #2 and #3 Fault |
| P2151 | Injector #2 and #3 Fault |
Bobcat Engine Error Codes from P215E to P3611
| Error Code | Bobcat Engine Error Description |
|---|---|
| P215E | DEF Suction Line Heater SC/STG Fault |
| P215F | DEF Suction Line Heater Open Circuit |
| P21C2 | DEF Main Heater Relay Open Circuit |
| P21C3 | DEF Heater Relay Short to Ground |
| P21C3 | DEF Main Heater Relay Short to Ground |
| P21C4 | DEF Heater Relay Short to Battery |
| P21C4 | DEF Main Heater Relay Short to Battery |
| P21C7 | SCR System Main Relay Fault |
| P21C8 | SCR System Main Relay Short to Ground |
| P21C9 | SCR System Main Relay Short to Battery |
| P21DD | DEF Supply Module Heater Short to Ground |
| P2202 | NOx Pre-treatment Sensor Short Circuit |
| P2202 | Upstream NOx Sensor Short Circuit |
| P2203 | NOx Pre-treatment Sensor Open Circuit |
| P2203 | Upstream NOx Sensor Open Circuit |
| P2215 | NOx Post-treatement Sensor Short Circuit |
| P2215 | Downstream NOx Sensor Short Circuit |
| P2216 | NOx Post-treatement Sensor Open Circuit |
| P2216 | Downstream NOx Sensor Open Circuit |
| P221C | DEF Pressure Line Heater Electrical Fault |
| P221D | DEF Pressure Line Heater Open Circuit |
| P221E | DEF Backflow Line Heater Electrical Fault |
| P221F | DEF Backflow Line Heater Open Circuit |
| P2226 | Barometric Pressure Fault |
| P2228 | Barometric Pressure Fault |
| P2228 | Atmospheric Pressure Low Fault |
| P2229 | Barometric Pressure Fault |
| P2229 | Atmospheric Pressure High Fault |
| P225D | Low Upstream NOx Concentration |
| P2264 | Water in Fuel Sensor Fault |
| P2265 | Water in Fuel Detected – Derate |
| P2266 | Water in Fuel Sensor Fault |
| P2266 | Water in Fuel Sensor Out of Range Low |
| P2267 | Water in Fuel Sensor Fault |
| P2267 | Water in Fuel Sensor Out of Range High |
| P2269 | Water in Fuel Detected |
| P2381 | Nox Pre-Treatment Fault |
| P2381 | Glow Plug Lamp Short to Battery |
| P2382 | Nox Post-Treatment Fault |
| P2383 | Nox Pre-Treatment Fault |
| P2383 | Upstream NOx Sensor Installation Fault |
| P2384 | Nox Post-Treatment Fault |
| P2384 | Downstream NOx Sensor Installation Fault |
| P2385 | Nox Pre-Treatment Fault |
| P2386 | Nox Post-Treatment Fault |
| P2387 | Nox Pre-Treatment Fault |
| P2388 | Nox Pre-Treatment Fault |
| P2391 | NOx Pre-treatment Sensor Fault |
| P2392 | NOx Post-treatement Sensor Fault |
| P2393 | NOx Pre-treatment Sensor Fault |
| P2394 | NOx Post-treatement Sensor Fault |
| P2395 | NOx Pre-treatment Sensor Fault |
| P2396 | NOx Post-treatement Sensor Fault |
| P2397 | NOx Pre-treatment Sensor Fault |
| P2397 | Upstream NOx Concentration Low |
| P2398 | NOx Post-treatement Sensor Fault |
| P2398 | Downstream NOx Concentration Low |
| P23A1 | NOx Pre-treatment Sensor Fault |
| P23A2 | NOx Post-treatement Sensor Fault |
| P23A3 | NOx Pre-treatment Sensor Fault |
| P23A4 | NOx Post-treatement Sensor Fault |
| P23A5 | NOx Pre-treatment Sensor Fault |
| P23A6 | NOx Post-treatement Sensor Fault |
| P23A7 | NOx Pre-treatment Sensor Fault |
| P23A8 | NOx Post-treatement Sensor Fault |
| P23A9 | NOx Pre-treatment Sensor Fault |
| P23AA | NOx Post-treatement Sensor Fault |
| P23B0 | DEF Hose Leak |
| P23B1 | Evaluate Filter Clog |
| P23B2 | Supply Module Heater Fault |
| P23B2 | DEF Supply Module Heater Fault |
| P23B3 | Supply Module Heater Temperature Fault |
| P23B3 | DEF Supply Module Heater Temperature Fault |
| P23B4 | Supply Module Heater Temperature Fault |
| P23B4 | DEF Supply Module Heater Temperature Fault |
| P23B5 | Supply Modlue Temperature Fault |
| P23B5 | DEF Supply Module Temperature Fault |
| P23B6 | Supply Module Temperature Fault |
| P23B6 | DEF Supply Module Temperature Fault |
| P23BA | DEF Pump Pressure Too Low |
| P23BB | DEF Pump Pressure Too High |
| P2413 | EGR Actuator – Fault |
| P2414 | EGR Motor – Fault |
| P2415 | EGR Temperature Sensor – Fault |
| P2428 | Exhaust Over Temperature Fault |
| P242B | SCR Inlet Temperature Sensor Fault |
| P242C | EGR Temperature Sensor – Fault |
| P242D | EGR Temperature Sensor – Fault |
| P242F | High DPF Ash Content – Ash Cleaning Needed |
| P2454 | DPF Differential Pressure Sensor Out of Range Low |
| P2455 | DPF Differential Pressure Sensor Out of Range High |
| P2463 | SCR Fault |
| P2463 | High DPF Soot Mass – Regen Required |
| P246B | DPF Regeneration Failure |
| P246C | High DPF Differential Pressure – DPF Plugged |
| P24A3 | Very High DPF Soot Mass – Service Regen Required |
| P24F4 | SCR Pre-Treatment Temperature Fault |
| P24F5 | SCR Pre-Treatment Temperature Fault |
| P24F6 | SCR Pre-Treatment Temperature Fault |
| P2505 | High ECU Temperature |
| P2506 | ECU Software Reset |
| P2507 | ECU Internal Fault |
| P2508 | ECU Internal Fault |
| P2509 | ECU Internal Fault |
| P250A | Oil Level/Temp Sensor Open Circuit |
| P250C | Oil Level/Temp Sensor Short to Ground |
| P250D | Oil Level/Temp Sensor Short to Battery |
| P250F | Check Engine Oil Level |
| P2510 | DCU Fault |
| P2511 | ECU Internal Fault |
| P2530 | DCU Activation Signal Fault |
| P2546 | Multi-Torque Switch Out of Range Low |
| P2547 | Multi-Torque Switch Out of Range High |
| P25BA | DPF Regeneration Inhibit and Enable Switch Fault |
| P25BB | DPF Regeneration Enable Switch Short to Battery |
| P25BC | DPF Regeneration Inhibit Switch Short to Battery |
| P25E0 | Supply Module Heater Fault |
| P25E1 | Supply Module Heater Fault |
| P25E2 | Supply Module Temperature Duty Low |
| P25E3 | Supply Module Temperature Duty High |
| P260E | DPF Regeneration Enable Switch Lamp Open Circuit |
| P260F | DPF Regeneration Enable Switch Lamp Short to Ground |
| P2611 | DPF Regeneration Enable Switch Lamp Short to Battery |
| P2621 | Intake Throttle Lift Sensor – Fault |
| P2622 | Intake Throttle Lift Sensor – Fault |
| P2632 | Fuel Feed Pump Open Circuit |
| P2633 | Fuel Feed Pump Short to Ground |
| P2634 | Fuel Feed Pump Short to Battery |
| P2635 | Fuel Feed Pump Fault |
| P263D | DEF Pressure Line Heating Fault |
| P2669 | ECU Sensor Supply 2 Short to Ground |
| P2670 | DCU Fault |
| P2670 | ECU Sensor Supply 2 Out of Range Low |
| P2671 | DCU Fault |
| P2671 | ECU Sensor Supply 2 Out of Range High |
| P2684 | ECU Sensor Supply 3 Short to Ground |
| P2685 | DCU Fault |
| P2685 | ECU Sensor Supply 3 Out of Range Low |
| P2686 | DCU Fault |
| P2686 | ECU Sensor 3 Out of Range High |
| P268C | Injector #1 IQA Code Missing |
| P268D | Injector #2 IQA Code Missing |
| P268E | Injector #3 IQA Code Missing |
| P268F | Injector #4 IQA Code Missing |
| P26E8 | DCU Fault |
| P26E9 | DCU Fault |
| P273F | High Transmission Oil Temperature (CAN) |
| P274F | High Transmission Oil Temperature (H/W Switch) |
| P2A8C | DEF Pump Motor Speed Fault |
| P2A8D | DEF Pump Motor Speed Fault |
| P2B8C | DEF Pump Motor Fault |
| P2B8D | DEF Pump Motor Fault |
| P2BB1 | SCR Inducement – Blocked EGR |
| P2BB2 | SCR Inducement – Dosing Interrupted |
| P2BB4 | SCR Inducement – DEF Quality |
| P2BB5 | SCR Inducement – Tampering |
| P2BB6 | SCR Inducement – Repeat Offense |
| P2BC1 | DEF Level – Low |
| P2BC2 | DEF Level – Very Low |
| P2BC3 | DEF Level – Extremely Low |
| P2BC4 | Unknown SCR fault |
| P2BC4 | DEF Level – Empty |
| P2BD0 | DCU CAN Communication Fault |
| P2C11 | DEF Dosing Valve Fault |
| P3002 | Exhaust Temperature – Extremely High |
| P3003 | Exhaust Temperature – Extremely High |
| P3004 | Exhaust Temperature – Extremely High |
| P3006 | Particulate Matter – Warning |
| P3007 | Particulate Matter – High |
| P3008 | Particulate Matter – Extremely High |
| P3011 | Boost Pressure – Fault |
| P3012 | Low Water Temperature in Parked Regeneration |
| P3013 | Parked Regeneration – Time Out |
| P3018 | Exhaust Temperature Sensor – Fault |
| P3019 | Pump Calibration – Error |
| P3023 | Exhaust Gas Temperature Sensor – Fault |
| P3024 | DPF Fault |
| P3025 | Water Temp Sensor Fault |
| P304C | Low DEF Supply Pump Pressure |
| P304D | High DEF Supply Pump Pressure |
| P3052 | DPF Differential Pressure Sensor Fault |
| P30B1 | High DEF Tank Heating/Coolant Valve Fault |
| P30B9 | High DEF Supply Module Heater Relay Fault |
| P30BD | High DEF Pressure Line Heater Relay Fault |
| P30C1 | High DEF Backflow Line Heater Relay Fault |
| P30C5 | High DEF Suction Line Heater Relay Fault |
| P31C5 | High DEF Main Heater Relay Fault |
| P32EE | Injector #1 Short Circuit |
| P32EF | Injector #2 Short Circuit |
| P32F0 | Injector #3 Short Circuit |
| P32F1 | Injector #4 Short Circuit |
| P350D | Oil Level/Temp Sensor Communication Fault |
| P350E | Oil Level/Temp Sensor Fault |
| P350F | Low Engine Oil Level |
| P360E | DPF Regeneration Active Lamp Open Circuit |
| P360F | DPF Regeneration Active Lamp Short to Ground |
| P3611 | DPF Regeneration Active Lamp Short to Battery |
| 3251-03 | EGR Temperature Sensor – Fault |
| 3251-04 | EGR Temperature Sensor – Fault |
| 3252-00 | Exhaust Temperature – High |
| 3509-03 | Sensor Supply Voltage Fault |
| 3509-04 | Sensor Supply Voltage Fault |
Bobcat Engine Error Codes from U0028 to U1923
| Error Code | Bobcat Engine Error Description |
|---|---|
| U0028 | ECU CAN Communication Fault |
| U0029 | ECU CAN Communication Fault |
| U0075 | ECU Communication Error |
| U0076 | EGR Fault |
| U0077 | ECU COMMUNICATION FAULT |
| U0081 | ECU Communication Error |
| U0082 | ECU Communication – Fault |
| U0083 | ECU Communication – Fault |
| U0084 | ECU COMMUNICATION FAULT |
| U0085 | ECU Communication – Fault |
| U0086 | ECU Communication – Fault |
| U0087 | ECU COMMUNICATION FAULT |
| U0089 | ECU COMMUNICATION FAULT |
| U0100 | ECU Communication Fault |
| U010E | DCU Communication Fault |
| U010F | ECU CAN Communication Fault |
| U013C | ECU CAN Communication Fault – Engine Speed |
| U0140 | Throttle Position Sensor Fault |
| U01B7 | ECU CAN Communication Fault – Regeneration Switch |
| U01B8 | ECU CAN Communication Fault – Multiple Torque Switch |
| U01B9 | ECU CAN Communication Fault – Engine Shut Down |
| U029D | ECU CAN Communication Fault – Upstream NOx Sensor |
| U029E | ECU CAN Communication Fault – Downstream NOx Sensor |
| U02A2 | ECU CAN Communication Fault – DEF Tank |
| U030D | Upstream NOx Sensor Heating Fault |
| U030E | Downstream NOx Sensor Heating Fault |
| U0401 | DCU Communication Fault |
| U040F | DEF Pump Motor Fault |
| U043D | ECU CAN Communication Fault – Engine Speed Control |
| U0606 | ECU CAN Communication Fault – Engine Speed Control |
| U0607 | ECU CAN Communication Fault |
| U0608 | ECU CAN Communication Fault – Engine Speed Control |
| U0619 | ECU CAN Communication Fault – DEF Sensor |
| U0632 | ECU CAN Communication Fault – Cooling Fan Control |
| U1001 | CAN Communication Fault – Hydraulic Oil Temperature |
| U1003 | ECU Received Engine Shutdown Request from Machine Controller |
| U1024 | Nox Pre-Treatment CAN communication Fault |
| U1025 | Nox Pre-Treatment CAN communication Fault |
| U1026 | Nox Pre-Treatment CAN communication Fault |
| U1027 | Nox Pre-Treatment CAN communication Fault |
| U1028 | Nox Pre-Treatment CAN communication Fault |
| U1028 | DEF Quality Sensor Open Circuit |
| U1029 | Nox Pre-Treatment CAN communication Fault |
| U102A | Nox Pre-Treatment CAN communication Fault |
| U102B | Nox Post-Treatement CAN communication Fault |
| U102C | Nox Post-Treatement CAN communication Fault |
| U102D | Nox Post-Treatement CAN communication Fault |
| U102E | Nox Post-Treatement CAN communication Fault |
| U102F | Nox Post-Treatement CAN communication Fault |
| U1030 | Nox Post-Treatement CAN communication Fault |
| U1030 | DEF Quality Sensor Short Circuit |
| U1031 | Nox Post-Treatement CAN communication Fault |
| U1031 | ECU CAN Communication Fault |
| U1032 | ECU CAN Communication Fault – PTO |
| U1033 | ECU CAN Communication Fault – Starter Relay |
| U111A | CAN Communications Fault |
| U1164 | CAN Communications Fault |
| U116D | CAN Communications Fault |
| U1216 | NOx Pre-treatment Sensor Fault |
| U1219 | NOx Pre-treatment Sensor Fault |
| U121A | CAN Communications Fault |
| U1223 | NOx Pre-treatment Sensor Fault |
| U1224 | NOx Pre-treatment Sensor Fault |
| U1225 | NOx Post-treatement Sensor Fault |
| U1226 | NOx Post-treatement Sensor Fault |
| U1227 | NOx Post-treatement Sensor Fault |
| U1229 | NOx Post-treatement Sensor Fault |
| U1233 | NOx Post-treatement Sensor Fault |
| U1235 | NOx Post-treatement Sensor Fault |
| U1444 | CAN Communications Fault |
| U1661 | CAN Communications Fault |
| U1923 | CAN Communications Fault |
How To Clear Bobcat Engine Error Codes
Clearing Bobcat engine error codes typically involves diagnosing and resolving the issue that triggered the code, followed by resetting the machine’s onboard computer. Here’s a step-by-step guide to clearing error codes on Bobcat equipment:
Identify and Address the Cause
- Consult the Operator’s Manual: Look up the error code in the manual to understand its meaning and possible causes.
- Inspect the Machine: Check the relevant system or component (e.g., sensors, wiring, fuel lines) for faults or damage.
- Perform Necessary Repairs: Fix or replace faulty parts, refill fluids, or recalibrate as needed to resolve the issue.
Reset the Error Code
- Turn Off the Machine: Shut down the engine and turn off the ignition. Wait a few minutes to ensure the ECU powers down completely.
- Restart the Machine: Turn the ignition back on without starting the engine. Wait for the diagnostic system to complete its self-check.
- Check the Control Panel: If the issue is resolved, the error code may clear automatically. If the code persists, proceed to the manual reset or ECU tools.
Perform a Manual Reset (if needed)
For some models, the following steps may help reset the code:
- Access Service Mode: Press and hold specific buttons on the control panel (consult your operator’s manual for exact instructions).
- Navigate to Error Code Settings: Use the control interface to locate the error code list.
- Clear the Code: Follow the prompts to clear the displayed codes.
Use Diagnostic Tools
- Bobcat Diagnostic Software or Scanner: Connect a diagnostic tool compatible with Bobcat’s system. Access the ECU and use the software to erase error codes after resolving the underlying issue.
- Dealership Assistance: For persistent codes, visit a Bobcat dealership or authorized service center for professional diagnostics and resetting.
Confirm the Reset
- Run the Machine: Operate the equipment to ensure the error does not reappear.
- Monitor Performance: Check for smooth operation and verify that no new codes are triggered.
If the error code returns immediately after resetting, the issue has not been fully resolved. Double-check diagnostics and repairs. Disconnect the machine’s battery for 10–15 minutes, then reconnect it. This may reset the ECU and clear codes. Use caution, as this method might erase other settings. Always follow safety procedures when working on heavy equipment.
By following these steps, you can effectively clear error codes and maintain optimal performance of your Bobcat equipment.
Understanding engine error codes is vital for maintaining the performance and reliability of Bobcat mini excavators and skid steer loaders. These codes are part of the advanced diagnostic system designed to alert operators to potential issues within the machine’s engine or related systems. From minor maintenance needs to critical malfunctions, error codes play a crucial role in identifying problems early, minimizing downtime, and reducing repair costs.
