Massey Ferguson Diagnostic Trouble Codes are alphanumeric codes generated by the tractor’s onboard diagnostic system to indicate potential issues or faults within the vehicle’s various systems. These codes provide valuable diagnostic information to technicians and operators, helping them identify and troubleshoot problems efficiently.
DTCs provide specific information about the nature and location of the fault within the corresponding system, aiding operators and technicians in diagnosing and resolving issues efficiently. Each Diagnostic Trouble Codes consists of a letter followed by a series of numbers and decimals, providing specific information about the nature and location of the fault. These codes can be retrieved using a diagnostic tool or interface device compatible with Massey Ferguson tractors (4707, 4708, 4709, 4710 – T4 2015-2021; 5608, 5609, 5610, 5611, 5612, 5613; 5710SL, 5711SL, 5712SL, 5713SL – T4 2017-2023; 7614, 7615, 7616, 7618, 7619, 7620, 7622, 7624, 7626 Tier 4 2012-2015; 7714, 7715, 7715S, 7716, 7716S, 7718, 7718S, 7719, 7720, 7720S, 7722, 7722S, 7724, 7724S, 7726, 7726S – Tier 4 2015-2021), allowing operators and technicians to diagnose and address issues effectively.
Massey Ferguson Diagnostic Trouble Codes List
Understanding Massey Ferguson DTCs is essential for maintaining the tractor’s optimal performance, ensuring safety, and minimizing downtime. Operators should refer to the tractor’s service manual or consult with qualified technicians to interpret and address DTCs correctly.
MF Error Codes from 06.X.1B to 08.1.22
| MF Error Code | Massey Ferguson Error Code Description |
|---|---|
| 06.X.1B | Issue With Voltage To PTO ECO Speed Solenoid Dyna VT (TRANS1) |
| 06.X.1C | Issue With Voltage To 540 PTO Speed Solenoid Dyna VT (TRANS1) |
| 06.X.1D | Issue With Voltage To 1000 PTO Speed Solenoid Dyna VT (TRANS1) |
| 06.X.1E | Issue With PTO Circuit (Hitch) |
| 06.X.41 | Rear PTO Switch Signal Issue Dyna VT (TRANS1) |
| 06.X.43 | Issue With Signal From External PTO On/Off Button Dyna VT (TRANS1) |
| 06.X.45 | Issue With Values Received From Rear PTO Speed Sensors Dyna VT (TRANS1) |
| 06.X.49 | There Is A Speed Reading from The PTO Speed Sensor That Does Not Match The Speed Selected Switch Dyna 6 (TRANS2) |
| 06.X.4A | There Is A Speed Reading from The PTO Speed Sensor That Does Not Match The Speed Selected Switch Dyna 6 (TRANS2) |
| 06.X.4B | Issue With PTO Slipping (Hitch) |
| 06.X.4C | Issue With PTO Over Speed Compared To Engine Speed. (HITCH) |
| 06.X.4D | Issue With PTO Stub Shaft 540/1000 (HITCH) |
| 06.X.4E | Issue With PTO Stub Shaft 1000 (HITCH) |
| 06.X.50 | Issue With Values Received From Rear PTO Speed Sensors Dyna VT (TRANS1) |
| 06.X.55 | Issue With Signal From PTO Neutral Button Dyna VT (TRANS1) |
| 06.X.60 | Issue With Signal Values From PTO Clutch Speed Sensor And PTO Output Speed Sensor DYNA VT (TRANS1) |
| 06.X.A1 | Issue With Message On The CAN BUS From PTO Switch DYNA VT (TRANS1) |
| 06.X.B0 | Issue With Message On The CAN BUS From PTO Switch DYNA VT (TRANS1) |
| 06.X.B5 | Issue With CAN BUS From PTO Neutral Button Dyna VT (TRANS1) |
| 06.X.B6 | Issue With CAN BUS From PTO 540 Button Dyna VT (TRANS1) |
| 06.X.B7 | Issue With CAN BUS From PTO 540 ECO Button Dyna VT (TRANS1) |
| 06.X.B8 | Issue With CAN BUS From PTO 1000 Button Dyna VT (TRANS1) |
| 06.X.B9 | Issue With CAN BUS From PTO 1000 ECO Button Dyna VT (TRANS1) |
| 06.X.E0 | Transmission Internal Software Issue (TRANS) |
| 06.X.E1 | Transmission Internal Software Issue (TRANS) |
| 06.X.E2 | Issue With PTO Speed Too Fast In ECO (Hitch) / Issue With Rear PTO On/Off Solenoid Power Supply Dyna VT (TRANS1) / Engine Speed Too High For Eco PTO Speed Mode Dyna 6 (TRANS2) |
| 06.X.E3 | Issue With Rear PTO On/Off Solenoid Power Supply Dyna VT (TRANS1) |
| 06.X.E4 | Issue With Rear PTO On/Off Solenoid Power Supply Dyna VT (TRANS1) |
| 06.X.E5 | Issue With Values Received From Rear PTO Speed Sensors Dyna VT (TRANS1) |
| 06.X.E6 | Issue With Values Received From Rear PTO Speed Sensors Dyna VT (TRANS1) |
| 06.X.E7 | Issue With Rear PTO On/Off Solenoid Power Supply Dyna VT (TRANS1) / Transmission Module 1 Software Issue Detected For Rear PTO Circuit Dyna 6 (TRANS1) |
| 06.X.E8 | Issue With Rear PTO On/Off Solenoid Power Supply Dyna VT (TRANS1) |
| 08.0.12 | Rear Linkage Lower Solenoid High Voltage (HITCH) |
| 08.0.16 | Rear Hitch Module Voltage Issue (HITCH) |
| 08.0.18 | Rear Hitch Raise/Lower Rocker Switch Signal Issue (HITCH) |
| 08.0.1A | Engine Speed Too Slow To Operate Hitch (HITCH) |
| 08.0.1B | Rear Hitch External Control Buttons Signal Issue (HITCH) |
| 08.0.22 | Rear Hitch Position Sensor Signal Voltage Issue (HITCH) |
| 08.0.23 | Rear Hitch Depth Control Lever Signal Voltage Issue (HITCH) |
| 08.0.27 | Issue With Signal From Hitch Maximum Height Dial (HITCH) |
| 08.0.28 | Issue With Signal From Hitch Draft Control Dial (HITCH) |
| 08.0.29 | Issue With Signal From Hitch Drop Rate Control Dial (HITCH) |
| 08.0.32 | Issue With Signal From Rear Hitch Top Link Draft Pin (HITCH) |
| 08.0.60 | Rear Linkage Lower Solenoid Open Circuit (HITCH) |
| 08.0.61 | Rear Linkage Lower Solenoid Short Circuit (HITCH) |
| 08.0.A0 | Rear Hitch Module Internal Issue (HITCH) |
| 08.0.A1 | Rear Hitch Module Internal Issue (HITCH) |
| 08.0.B6 | Rear Hitch Module Internal Issue, Lost Calibration(HITCH) |
| 08.00.10 | Rear Linkage Raise Solenoid Open Circuit (HITCH) |
| 08.00.11 | Rear Linkage Lower Solenoid High Voltage (HITCH) |
| 08.00.12 | Rear Linkage Raise Solenoid High Voltage (HITCH) |
| 08.00.16 | Rear Hitch Module Voltage Issue (HITCH) |
| 08.00.18 | Rear Hitch Raise/Lower Rocker Switch Signal Issue (HITCH) |
| 08.00.1A | Engine Speed Too Slow (HITCH) |
| 08.00.1B | Mud Guard Rear Hitch Buttons Signal Voltage Issue (HITCH) |
| 08.00.1C | Rear Hitch Raise/Lower Rocker Switch Signal Issue (HITCH) |
| 08.00.22 | Rear Hitch Position Sensor Signal Voltage Issue (HITCH) |
| 08.00.23 | Rear Hitch Depth Control Dial Signal Voltage Issue (HITCH) |
| 08.00.27 | Issue With Signal From Hitch Maximum Height Dial (HITCH) |
| 08.00.28 | Issue With Signal From Hitch Draft Control Dial (HITCH) |
| 08.00.29 | Issue With Signal From Hitch Drop Rate Control Dial (HITCH) |
| 08.00.2B | Issue With Signal From Hitch Transport Dampening Button (HITCH) |
| 08.00.31 | Issue With Signal From Rear Hitch Right Draft Pin (HITCH) |
| 08.00.32 | Issue With Signal From Rear Hitch Left Draft Pin (HITCH) |
| 08.00.50 | Issue With Signal From Rear Hitch Right Draft Pin (HITCH) |
| 08.00.51 | Issue With Signal From Rear Hitch Left Draft Pin (HITCH) |
| 08.00.60 | Rear Linkage Lower Solenoid Open Circuit (HITCH) |
| 08.00.61 | Rear Linkage Lower Solenoid High Amp Draw (HITCH) |
| 08.00.62 | Rear Linkage Raise Solenoid High Amp Draw (HITCH) |
| 08.00.A0 | Rear Hitch Module Internal Issue (HITCH) |
| 08.00.A1 | Rear Hitch Module Internal Issue (HITCH) |
| 08.00.B4 | Rear Hitch Module Calibration Issue (HITCH) |
| 08.01.10 | Rear Linkage Raise Solenoid Open Circuit (HITCH) |
| 08.01.11 | Rear Linkage Lower Solenoid High Voltage (HITCH) |
| 08.01.12 | Rear Linkage Raise Solenoid High Voltage (HITCH) |
| 08.01.16 | Rear Hitch Module Voltage Issue (HITCH) |
| 08.01.18 | Rear Hitch Raise/Lower Rocker Switch Signal Issue (HITCH) |
| 08.01.1A | Engine Speed Too Slow (HITCH) |
| 08.01.1B | Mud Guard Rear Hitch Buttons Signal Voltage Issue (HITCH) |
| 08.01.1C | Rear Hitch Raise/Lower Rocker Switch Signal Issue (HITCH) |
| 08.01.22 | Rear Hitch Position Sensor Signal Voltage Issue (HITCH) |
| 08.01.23 | Rear Hitch Depth Control Dial Signal Voltage Issue (HITCH) |
| 08.01.27 | Issue With Signal From Hitch Maximum Height Dial (HITCH) |
| 08.01.28 | Issue With Signal From Hitch Draft Control Dial (HITCH) |
| 08.01.29 | Issue With Signal From Hitch Drop Rate Control Dial (HITCH) |
| 08.01.2B | Issue With Signal From Hitch Transport Dampening Button (HITCH) |
| 08.01.31 | Issue With Signal From Rear Hitch Right Draft Pin (HITCH) |
| 08.01.32 | Issue With Signal From Rear Hitch Left Draft Pin (HITCH) |
| 08.01.50 | Issue With Signal From Rear Hitch Right Draft Pin (HITCH) |
| 08.01.51 | Issue With Signal From Rear Hitch Left Draft Pin (HITCH) |
| 08.01.60 | Rear Linkage Lower Solenoid Open Circuit (HITCH) |
| 08.01.61 | Rear Linkage Lower Solenoid High Amp Draw (HITCH) |
| 08.01.62 | Rear Linkage Raise Solenoid High Amp Draw (HITCH) |
| 08.01.A0 | Rear Hitch Module Internal Issue (HITCH) |
| 08.01.A1 | Rear Hitch Module Internal Issue (HITCH) |
| 08.01.B4 | Rear Hitch Module Calibration Issue (HITCH) |
| 08.02.10 | Rear Linkage Raise Solenoid Open Circuit (HITCH) |
| 08.02.11 | Rear Linkage Lower Solenoid High Voltage (HITCH) |
| 08.02.12 | Rear Linkage Raise Solenoid High Voltage (HITCH) |
| 08.02.16 | Rear Hitch Module Voltage Issue (HITCH) |
| 08.02.18 | Rear Hitch Raise/Lower Rocker Switch Signal Issue (HITCH) |
| 08.02.1A | Engine Speed Too Slow (HITCH) |
| 08.02.1B | Mud Guard Rear Hitch Buttons Signal Voltage Issue (HITCH) |
| 08.02.1C | Rear Hitch Raise/Lower Rocker Switch Signal Issue (HITCH) |
| 08.02.22 | Rear Hitch Position Sensor Signal Voltage Issue (HITCH) |
| 08.02.23 | Rear Hitch Depth Control Dial Signal Voltage Issue (HITCH) |
| 08.02.27 | Issue With Signal From Hitch Maximum Height Dial (HITCH) |
| 08.02.28 | Issue With Signal From Hitch Draft Control Dial (HITCH) |
| 08.02.29 | Issue With Signal From Hitch Drop Rate Control Dial (HITCH) |
| 08.02.2B | Issue With Signal From Hitch Transport Dampening Button (HITCH) |
| 08.02.31 | Issue With Signal From Rear Hitch Right Draft Pin (HITCH) |
| 08.02.32 | Issue With Signal From Rear Hitch Left Draft Pin (HITCH) |
| 08.02.50 | Issue With Signal From Rear Hitch Right Draft Pin (HITCH) |
| 08.02.51 | Issue With Signal From Rear Hitch Left Draft Pin (HITCH) |
| 08.02.60 | Rear Linkage Lower Solenoid Open Circuit (HITCH) |
| 08.02.61 | Rear Linkage Lower Solenoid High Amp Draw (HITCH) |
| 08.02.62 | Rear Linkage Raise Solenoid High Amp Draw (HITCH) |
| 08.02.A0 | Rear Hitch Module Internal Issue (HITCH) |
| 08.02.A1 | Rear Hitch Module Internal Issue (HITCH) |
| 08.02.B4 | Rear Hitch Module Calibration Issue (HITCH) |
| 08.03.10 | Rear Linkage Raise Solenoid Open Circuit (HITCH) |
| 08.03.11 | Rear Linkage Lower Solenoid High Voltage (HITCH) |
| 08.03.12 | Rear Linkage Raise Solenoid High Voltage (HITCH) |
| 08.03.16 | Rear Hitch Module Voltage Issue (HITCH) |
| 08.03.18 | Rear Hitch Raise/Lower Rocker Switch Signal Issue (HITCH) |
| 08.03.1A | Engine Speed Too Slow (HITCH) |
| 08.03.1B | Mud Guard Rear Hitch Buttons Signal Voltage Issue (HITCH) |
| 08.03.1C | Rear Hitch Raise/Lower Rocker Switch Signal Issue (HITCH) |
| 08.03.22 | Rear Hitch Position Sensor Signal Voltage Issue (HITCH) |
| 08.03.23 | Rear Hitch Depth Control Dial Signal Voltage Issue (HITCH) |
| 08.03.27 | Issue With Signal From Hitch Maximum Height Dial (HITCH) |
| 08.03.28 | Issue With Signal From Hitch Draft Control Dial (HITCH) |
| 08.03.29 | Issue With Signal From Hitch Drop Rate Control Dial (HITCH) |
| 08.03.2B | Issue With Signal From Hitch Transport Dampening Button (HITCH) |
| 08.03.31 | Issue With Signal From Rear Hitch Right Draft Pin (HITCH) |
| 08.03.32 | Issue With Signal From Rear Hitch Left Draft Pin (HITCH) |
| 08.03.50 | Issue With Signal From Rear Hitch Right Draft Pin (HITCH) |
| 08.03.51 | Issue With Signal From Rear Hitch Left Draft Pin (HITCH) |
| 08.03.60 | Rear Linkage Lower Solenoid Open Circuit (HITCH) |
| 08.03.61 | Rear Linkage Lower Solenoid High Amp Draw (HITCH) |
| 08.03.62 | Rear Linkage Raise Solenoid High Amp Draw (HITCH) |
| 08.03.A0 | Rear Hitch Module Internal Issue (HITCH) |
| 08.03.A1 | Rear Hitch Module Internal Issue (HITCH) |
| 08.03.B4 | Rear Hitch Module Calibration Issue (HITCH) |
| 08.1.12 | Rear Linkage Lower Solenoid High Voltage (HITCH) |
| 08.1.16 | Rear Hitch Module Voltage Issue (HITCH) |
| 08.1.18 | Rear Hitch Raise/Lower Rocker Switch Signal Issue (HITCH) |
| 08.1.1A | Engine Speed Too Slow To Operate Hitch (HITCH) |
| 08.1.1B | Rear Hitch External Control Buttons Signal Issue (HITCH) |
| 08.1.22 | Rear Hitch Position Sensor Signal Voltage Issue (HITCH) |
MF Error Codes from 08.1.23 to 0A.1X.21
| MF Error Code | Massey Ferguson Error Code Description |
|---|---|
| 08.1.23 | Rear Hitch Depth Control Lever Signal Voltage Issue (HITCH) |
| 08.1.27 | Issue With Signal From Hitch Maximum Height Dial (HITCH) |
| 08.1.28 | Issue With Signal From Hitch Draft Control Dial (HITCH) |
| 08.1.29 | Issue With Signal From Hitch Drop Rate Control Dial (HITCH) |
| 08.1.32 | Issue With Signal From Rear Hitch Top Link Draft Pin (HITCH) |
| 08.1.60 | Rear Linkage Lower Solenoid Open Circuit (HITCH) |
| 08.1.61 | Rear Linkage Lower Solenoid Short Circuit (HITCH) |
| 08.1.A0 | Rear Hitch Module Internal Issue (HITCH) |
| 08.1.A1 | Rear Hitch Module Internal Issue (HITCH) |
| 08.1.B6 | Rear Hitch Module Internal Issue, Lost Calibration(HITCH) |
| 08.2.12 | Rear Linkage Lower Solenoid High Voltage (HITCH) |
| 08.2.16 | Rear Hitch Module Voltage Issue (HITCH) |
| 08.2.18 | Rear Hitch Raise/Lower Rocker Switch Signal Issue (HITCH) |
| 08.2.1A | Engine Speed Too Slow To Operate Hitch (HITCH) |
| 08.2.1B | Rear Hitch External Control Buttons Signal Issue (HITCH) |
| 08.2.22 | Rear Hitch Position Sensor Signal Voltage Issue (HITCH) |
| 08.2.23 | Rear Hitch Depth Control Lever Signal Voltage Issue (HITCH) |
| 08.2.27 | Issue With Signal From Hitch Maximum Height Dial (HITCH) |
| 08.2.28 | Issue With Signal From Hitch Draft Control Dial (HITCH) |
| 08.2.29 | Issue With Signal From Hitch Drop Rate Control Dial (HITCH) |
| 08.2.32 | Issue With Signal From Rear Hitch Top Link Draft Pin (HITCH) |
| 08.2.60 | Rear Linkage Lower Solenoid Open Circuit (HITCH) |
| 08.2.61 | Rear Linkage Lower Solenoid Short Circuit (HITCH) |
| 08.2.A0 | Rear Hitch Module Internal Issue (HITCH) |
| 08.2.A1 | Rear Hitch Module Internal Issue (HITCH) |
| 08.2.B6 | Rear Hitch Module Internal Issue, Lost Calibration(HITCH) |
| 08.X.10 | Rear Linkage Raise Solenoid Open Circuit (HITCH) |
| 08.X.11 | Rear Linkage Lower Solenoid High Voltage (HITCH) |
| 08.X.12 | Rear Linkage Lower Solenoid High Voltage (HITCH) |
| 08.X.16 | Rear Hitch Module Voltage Issue (HITCH) |
| 08.X.18 | Rear Hitch Raise/Lower Rocker Switch Signal Issue (HITCH) |
| 08.X.1A | Engine Speed Too Slow To Operate Hitch (HITCH) / Engine Speed Too Slow (HITCH) |
| 08.X.1B | Rear Hitch External Control Buttons Signal Issue (HITCH) / Mud Guard Rear Hitch Buttons Signal Voltage Issue (HITCH) |
| 08.X.1C | Rear Hitch Raise/Lower Rocker Switch Signal Issue (HITCH) |
| 08.X.22 | Rear Hitch Position Sensor Signal Voltage Issue (HITCH) |
| 08.X.23 | Rear Hitch Depth Control Lever Signal Voltage Issue (HITCH) / Rear Hitch Depth Control Dial Signal Voltage Issue (HITCH) |
| 08.X.27 | Issue With Signal From Hitch Maximum Height Dial (HITCH) |
| 08.X.28 | Issue With Signal From Hitch Draft Control Dial (HITCH) |
| 08.X.29 | Issue With Signal From Hitch Drop Rate Control Dial (HITCH) |
| 08.X.2B | Issue With Signal From Hitch Transport Dampening Button (HITCH) |
| 08.X.31 | Issue With Signal From Rear Hitch Right Draft Pin (HITCH) |
| 08.X.32 | Issue With Signal From Rear Hitch Top Link Draft Pin (HITCH) / Issue With Signal From Rear Hitch Left Draft Pin (HITCH) |
| 08.X.50 | Issue With Signal From Rear Hitch Right Draft Pin (HITCH) |
| 08.X.51 | Issue With Signal From Rear Hitch Left Draft Pin (HITCH) |
| 08.X.60 | Rear Linkage Lower Solenoid Open Circuit (HITCH) |
| 08.X.61 | Rear Linkage Lower Solenoid Short Circuit (HITCH) / Rear Linkage Lower Solenoid High Amp Draw (HITCH) |
| 08.X.62 | Rear Linkage Raise Solenoid High Amp Draw (HITCH) |
| 08.X.A0 | Rear Hitch Module Internal Issue (HITCH) |
| 08.X.A1 | Rear Hitch Module Internal Issue (HITCH) |
| 08.X.B4 | Rear Hitch Module Calibration Issue (HITCH) |
| 08.X.B6 | Rear Hitch Module Internal Issue, Lost Calibration(HITCH) |
| 09.00.02 | Front Hitch External Control Buttons Signal Issue (HITCH) |
| 09.01.02 | Front Hitch External Control Buttons Signal Issue (HITCH) |
| 09.02.02 | Front Hitch External Control Buttons Signal Issue (HITCH) |
| 09.03.02 | Front Hitch External Control Buttons Signal Issue (HITCH) |
| 09.X.02 | Front Hitch External Control Buttons Signal Issue (HITCH) |
| 0A.01.36 | Switch On Mud Guard For Hydraulics Spool Valve Signal Voltage Issue (HITCH) |
| 0A.02.36 | Switch On Mud Guard For Hydraulics Spool Valve Signal Voltage Issue (HITCH) |
| 0A.03.36 | Switch On Mud Guard For Hydraulics Spool Valve Signal Voltage Issue (HITCH) |
| 0A.10.11 | External Hydraulic Valve 1 Issue |
| 0A.10.12 | External Hydraulic Valve 1 Issue |
| 0A.10.13 | External Hydraulic Valve 1 Issue |
| 0A.10.18 | External Hydraulic Valve 1 Issue |
| 0A.10.19 | External Hydraulic Valve 1 Issue |
| 0A.10.1A | External Hydraulic Valve 1 Issue |
| 0A.10.1B | External Hydraulic Valve 1 Issue |
| 0A.10.1E | External Hydraulic Valve 1 Issue |
| 0A.10.1F | External Hydraulic Valve 1 Issue |
| 0A.10.20 | External Hydraulic Valve 1 Issue |
| 0A.10.21 | External Hydraulic Valve 1 Issue |
| 0A.10.22 | External Hydraulic Valve 1 Issue |
| 0A.10.23 | External Hydraulic Valve 1 Issue |
| 0A.10.24 | External Hydraulic Valve 1 Issue |
| 0A.10.25 | External Hydraulic Valve 1 Issue |
| 0A.10.26 | External Hydraulic Valve 1 Issue |
| 0A.10.27 | External Hydraulic Valve 1 Issue |
| 0A.10.28 | External Hydraulic Valve 1 Issue |
| 0A.10.29 | External Hydraulic Valve 1 Issue |
| 0A.10.2A | External Hydraulic Valve 1 Issue |
| 0A.11.11 | External Hydraulic Valve 1 Issue |
| 0A.11.12 | External Hydraulic Valve 1 Issue |
| 0A.11.13 | External Hydraulic Valve 1 Issue |
| 0A.11.18 | External Hydraulic Valve 1 Issue |
| 0A.11.19 | External Hydraulic Valve 1 Issue |
| 0A.11.1A | External Hydraulic Valve 1 Issue |
| 0A.11.1B | External Hydraulic Valve 1 Issue |
| 0A.11.1E | External Hydraulic Valve 1 Issue |
| 0A.11.1F | External Hydraulic Valve 1 Issue |
| 0A.11.20 | External Hydraulic Valve 1 Issue |
| 0A.11.21 | External Hydraulic Valve 1 Issue |
| 0A.11.22 | External Hydraulic Valve 1 Issue |
| 0A.11.23 | External Hydraulic Valve 1 Issue |
| 0A.11.24 | External Hydraulic Valve 1 Issue |
| 0A.11.25 | External Hydraulic Valve 1 Issue |
| 0A.11.26 | External Hydraulic Valve 1 Issue |
| 0A.11.27 | External Hydraulic Valve 1 Issue |
| 0A.11.28 | External Hydraulic Valve 1 Issue |
| 0A.11.29 | External Hydraulic Valve 1 Issue |
| 0A.11.2A | External Hydraulic Valve 1 Issue |
| 0A.12.11 | External Hydraulic Valve 1 Issue |
| 0A.12.12 | External Hydraulic Valve 1 Issue |
| 0A.12.13 | External Hydraulic Valve 1 Issue |
| 0A.12.18 | External Hydraulic Valve 1 Issue |
| 0A.12.19 | External Hydraulic Valve 1 Issue |
| 0A.12.1A | External Hydraulic Valve 1 Issue |
| 0A.12.1B | External Hydraulic Valve 1 Issue |
| 0A.12.1E | External Hydraulic Valve 1 Issue |
| 0A.12.1F | External Hydraulic Valve 1 Issue |
| 0A.12.20 | External Hydraulic Valve 1 Issue |
| 0A.12.21 | External Hydraulic Valve 1 Issue |
| 0A.12.22 | External Hydraulic Valve 1 Issue |
| 0A.12.23 | External Hydraulic Valve 1 Issue |
| 0A.12.24 | External Hydraulic Valve 1 Issue |
| 0A.12.25 | External Hydraulic Valve 1 Issue |
| 0A.12.26 | External Hydraulic Valve 1 Issue |
| 0A.12.27 | External Hydraulic Valve 1 Issue |
| 0A.12.28 | External Hydraulic Valve 1 Issue |
| 0A.12.29 | External Hydraulic Valve 1 Issue |
| 0A.12.2A | External Hydraulic Valve 1 Issue |
| 0A.13.11 | External Hydraulic Valve 1 Issue |
| 0A.13.12 | External Hydraulic Valve 1 Issue |
| 0A.13.13 | External Hydraulic Valve 1 Issue |
| 0A.13.18 | External Hydraulic Valve 1 Issue |
| 0A.13.19 | External Hydraulic Valve 1 Issue |
| 0A.13.1A | External Hydraulic Valve 1 Issue |
| 0A.13.1B | External Hydraulic Valve 1 Issue |
| 0A.13.1E | External Hydraulic Valve 1 Issue |
| 0A.13.1F | External Hydraulic Valve 1 Issue |
| 0A.13.20 | External Hydraulic Valve 1 Issue |
| 0A.13.21 | External Hydraulic Valve 1 Issue |
| 0A.13.22 | External Hydraulic Valve 1 Issue |
| 0A.13.23 | External Hydraulic Valve 1 Issue |
| 0A.13.24 | External Hydraulic Valve 1 Issue |
| 0A.13.25 | External Hydraulic Valve 1 Issue |
| 0A.13.26 | External Hydraulic Valve 1 Issue |
| 0A.13.27 | External Hydraulic Valve 1 Issue |
| 0A.13.28 | External Hydraulic Valve 1 Issue |
| 0A.13.29 | External Hydraulic Valve 1 Issue |
| 0A.13.2A | External Hydraulic Valve 1 Issue |
| 0A.1X.11 | External Hydraulic Valve 1 Issue |
| 0A.1X.12 | External Hydraulic Valve 1 Issue |
| 0A.1X.13 | External Hydraulic Valve 1 Issue |
| 0A.1X.18 | External Hydraulic Valve 1 Issue |
| 0A.1X.19 | External Hydraulic Valve 1 Issue |
| 0A.1X.1A | External Hydraulic Valve 1 Issue |
| 0A.1X.1B | External Hydraulic Valve 1 Issue |
| 0A.1X.1E | External Hydraulic Valve 1 Issue |
| 0A.1X.1F | External Hydraulic Valve 1 Issue |
| 0A.1X.20 | External Hydraulic Valve 1 Issue |
| 0A.1X.21 | External Hydraulic Valve 1 Issue |
MF Error Codes from 0A.1X.22 to 0A.32.11
| MF Error Code | Massey Ferguson Error Code Description |
|---|---|
| 0A.1X.22 | External Hydraulic Valve 1 Issue |
| 0A.1X.23 | External Hydraulic Valve 1 Issue |
| 0A.1X.24 | External Hydraulic Valve 1 Issue |
| 0A.1X.25 | External Hydraulic Valve 1 Issue |
| 0A.1X.26 | External Hydraulic Valve 1 Issue |
| 0A.1X.27 | External Hydraulic Valve 1 Issue |
| 0A.1X.28 | External Hydraulic Valve 1 Issue |
| 0A.1X.29 | External Hydraulic Valve 1 Issue |
| 0A.1X.2A | External Hydraulic Valve 1 Issue |
| 0A.20.11 | External Hydraulic Valve 2 Issue |
| 0A.20.12 | External Hydraulic Valve 2 Issue |
| 0A.20.13 | External Hydraulic Valve 2 Issue |
| 0A.20.18 | External Hydraulic Valve 2 Issue |
| 0A.20.19 | External Hydraulic Valve 2 Issue |
| 0A.20.1A | External Hydraulic Valve 2 Issue |
| 0A.20.1B | External Hydraulic Valve 2 Issue |
| 0A.20.1E | External Hydraulic Valve 2 Issue |
| 0A.20.1F | External Hydraulic Valve 2 Issue |
| 0A.20.20 | External Hydraulic Valve 2 Issue |
| 0A.20.21 | External Hydraulic Valve 2 Issue |
| 0A.20.22 | External Hydraulic Valve 2 Issue |
| 0A.20.23 | External Hydraulic Valve 2 Issue |
| 0A.20.24 | External Hydraulic Valve 2 Issue |
| 0A.20.25 | External Hydraulic Valve 2 Issue |
| 0A.20.26 | External Hydraulic Valve 2 Issue |
| 0A.20.27 | External Hydraulic Valve 2 Issue |
| 0A.20.28 | External Hydraulic Valve 2 Issue |
| 0A.20.29 | External Hydraulic Valve 2 Issue |
| 0A.20.2A | External Hydraulic Valve 2 Issue |
| 0A.21.11 | External Hydraulic Valve 2 Issue |
| 0A.21.12 | External Hydraulic Valve 2 Issue |
| 0A.21.13 | External Hydraulic Valve 2 Issue |
| 0A.21.18 | External Hydraulic Valve 2 Issue |
| 0A.21.19 | External Hydraulic Valve 2 Issue |
| 0A.21.1A | External Hydraulic Valve 2 Issue |
| 0A.21.1B | External Hydraulic Valve 2 Issue |
| 0A.21.1E | External Hydraulic Valve 2 Issue |
| 0A.21.1F | External Hydraulic Valve 2 Issue |
| 0A.21.20 | External Hydraulic Valve 2 Issue |
| 0A.21.21 | External Hydraulic Valve 2 Issue |
| 0A.21.22 | External Hydraulic Valve 2 Issue |
| 0A.21.23 | External Hydraulic Valve 2 Issue |
| 0A.21.24 | External Hydraulic Valve 2 Issue |
| 0A.21.25 | External Hydraulic Valve 2 Issue |
| 0A.21.26 | External Hydraulic Valve 2 Issue |
| 0A.21.27 | External Hydraulic Valve 2 Issue |
| 0A.21.28 | External Hydraulic Valve 2 Issue |
| 0A.21.29 | External Hydraulic Valve 2 Issue |
| 0A.21.2A | External Hydraulic Valve 2 Issue |
| 0A.22.11 | External Hydraulic Valve 2 Issue |
| 0A.22.12 | External Hydraulic Valve 2 Issue |
| 0A.22.13 | External Hydraulic Valve 2 Issue |
| 0A.22.18 | External Hydraulic Valve 2 Issue |
| 0A.22.19 | External Hydraulic Valve 2 Issue |
| 0A.22.1A | External Hydraulic Valve 2 Issue |
| 0A.22.1B | External Hydraulic Valve 2 Issue |
| 0A.22.1E | External Hydraulic Valve 2 Issue |
| 0A.22.1F | External Hydraulic Valve 2 Issue |
| 0A.22.20 | External Hydraulic Valve 2 Issue |
| 0A.22.21 | External Hydraulic Valve 2 Issue |
| 0A.22.22 | External Hydraulic Valve 2 Issue |
| 0A.22.23 | External Hydraulic Valve 2 Issue |
| 0A.22.24 | External Hydraulic Valve 2 Issue |
| 0A.22.25 | External Hydraulic Valve 2 Issue |
| 0A.22.26 | External Hydraulic Valve 2 Issue |
| 0A.22.27 | External Hydraulic Valve 2 Issue |
| 0A.22.28 | External Hydraulic Valve 2 Issue |
| 0A.22.29 | External Hydraulic Valve 2 Issue |
| 0A.22.2A | External Hydraulic Valve 2 Issue |
| 0A.23.11 | External Hydraulic Valve 2 Issue |
| 0A.23.12 | External Hydraulic Valve 2 Issue |
| 0A.23.13 | External Hydraulic Valve 2 Issue |
| 0A.23.18 | External Hydraulic Valve 2 Issue |
| 0A.23.19 | External Hydraulic Valve 2 Issue |
| 0A.23.1A | External Hydraulic Valve 2 Issue |
| 0A.23.1B | External Hydraulic Valve 2 Issue |
| 0A.23.1E | External Hydraulic Valve 2 Issue |
| 0A.23.1F | External Hydraulic Valve 2 Issue |
| 0A.23.20 | External Hydraulic Valve 2 Issue |
| 0A.23.21 | External Hydraulic Valve 2 Issue |
| 0A.23.22 | External Hydraulic Valve 2 Issue |
| 0A.23.23 | External Hydraulic Valve 2 Issue |
| 0A.23.24 | External Hydraulic Valve 2 Issue |
| 0A.23.25 | External Hydraulic Valve 2 Issue |
| 0A.23.26 | External Hydraulic Valve 2 Issue |
| 0A.23.27 | External Hydraulic Valve 2 Issue |
| 0A.23.28 | External Hydraulic Valve 2 Issue |
| 0A.23.29 | External Hydraulic Valve 2 Issue |
| 0A.23.2A | External Hydraulic Valve 2 Issue |
| 0A.2X.11 | External Hydraulic Valve 2 Issue |
| 0A.2X.12 | External Hydraulic Valve 2 Issue |
| 0A.2X.13 | External Hydraulic Valve 2 Issue |
| 0A.2X.18 | External Hydraulic Valve 2 Issue |
| 0A.2X.19 | External Hydraulic Valve 2 Issue |
| 0A.2X.1A | External Hydraulic Valve 2 Issue |
| 0A.2X.1B | External Hydraulic Valve 2 Issue |
| 0A.2X.1E | External Hydraulic Valve 2 Issue |
| 0A.2X.1F | External Hydraulic Valve 2 Issue |
| 0A.2X.20 | External Hydraulic Valve 2 Issue |
| 0A.2X.21 | External Hydraulic Valve 2 Issue |
| 0A.2X.22 | External Hydraulic Valve 2 Issue |
| 0A.2X.23 | External Hydraulic Valve 2 Issue |
| 0A.2X.24 | External Hydraulic Valve 2 Issue |
| 0A.2X.25 | External Hydraulic Valve 2 Issue |
| 0A.2X.26 | External Hydraulic Valve 2 Issue |
| 0A.2X.27 | External Hydraulic Valve 2 Issue |
| 0A.2X.28 | External Hydraulic Valve 2 Issue |
| 0A.2X.29 | External Hydraulic Valve 2 Issue |
| 0A.2X.2A | External Hydraulic Valve 2 Issue |
| 0A.30.11 | External Hydraulic Valve 3 Issue |
| 0A.30.12 | External Hydraulic Valve 3 Issue |
| 0A.30.13 | External Hydraulic Valve 3 Issue |
| 0A.30.18 | External Hydraulic Valve 3 Issue |
| 0A.30.19 | External Hydraulic Valve 3 Issue |
| 0A.30.1A | External Hydraulic Valve 3 Issue |
| 0A.30.1B | External Hydraulic Valve 3 Issue |
| 0A.30.1E | External Hydraulic Valve 3 Issue |
| 0A.30.1F | External Hydraulic Valve 3 Issue |
| 0A.30.20 | External Hydraulic Valve 3 Issue |
| 0A.30.21 | External Hydraulic Valve 3 Issue |
| 0A.30.22 | External Hydraulic Valve 3 Issue |
| 0A.30.23 | External Hydraulic Valve 3 Issue |
| 0A.30.24 | External Hydraulic Valve 3 Issue |
| 0A.30.25 | External Hydraulic Valve 3 Issue |
| 0A.30.26 | External Hydraulic Valve 3 Issue |
| 0A.30.27 | External Hydraulic Valve 3 Issue |
| 0A.30.28 | External Hydraulic Valve 3 Issue |
| 0A.30.29 | External Hydraulic Valve 3 Issue |
| 0A.30.2A | External Hydraulic Valve 3 Issue |
| 0A.31.11 | External Hydraulic Valve 3 Issue |
| 0A.31.12 | External Hydraulic Valve 3 Issue |
| 0A.31.13 | External Hydraulic Valve 3 Issue |
| 0A.31.18 | External Hydraulic Valve 3 Issue |
| 0A.31.19 | External Hydraulic Valve 3 Issue |
| 0A.31.1A | External Hydraulic Valve 3 Issue |
| 0A.31.1B | External Hydraulic Valve 3 Issue |
| 0A.31.1E | External Hydraulic Valve 3 Issue |
| 0A.31.1F | External Hydraulic Valve 3 Issue |
| 0A.31.20 | External Hydraulic Valve 3 Issue |
| 0A.31.21 | External Hydraulic Valve 3 Issue |
| 0A.31.22 | External Hydraulic Valve 3 Issue |
| 0A.31.23 | External Hydraulic Valve 3 Issue |
| 0A.31.24 | External Hydraulic Valve 3 Issue |
| 0A.31.25 | External Hydraulic Valve 3 Issue |
| 0A.31.26 | External Hydraulic Valve 3 Issue |
| 0A.31.27 | External Hydraulic Valve 3 Issue |
| 0A.31.28 | External Hydraulic Valve 3 Issue |
| 0A.31.29 | External Hydraulic Valve 3 Issue |
| 0A.31.2A | External Hydraulic Valve 3 Issue |
| 0A.32.11 | External Hydraulic Valve 3 Issue |
MF Error Codes from 0A.32.12 to 0A.4X.21
| MF Error Code | Massey Ferguson Error Code Description |
|---|---|
| 0A.32.12 | External Hydraulic Valve 3 Issue |
| 0A.32.13 | External Hydraulic Valve 3 Issue |
| 0A.32.18 | External Hydraulic Valve 3 Issue |
| 0A.32.19 | External Hydraulic Valve 3 Issue |
| 0A.32.1A | External Hydraulic Valve 3 Issue |
| 0A.32.1B | External Hydraulic Valve 3 Issue |
| 0A.32.1E | External Hydraulic Valve 3 Issue |
| 0A.32.1F | External Hydraulic Valve 3 Issue |
| 0A.32.20 | External Hydraulic Valve 3 Issue |
| 0A.32.21 | External Hydraulic Valve 3 Issue |
| 0A.32.22 | External Hydraulic Valve 3 Issue |
| 0A.32.23 | External Hydraulic Valve 3 Issue |
| 0A.32.24 | External Hydraulic Valve 3 Issue |
| 0A.32.25 | External Hydraulic Valve 3 Issue |
| 0A.32.26 | External Hydraulic Valve 3 Issue |
| 0A.32.27 | External Hydraulic Valve 3 Issue |
| 0A.32.28 | External Hydraulic Valve 3 Issue |
| 0A.32.29 | External Hydraulic Valve 3 Issue |
| 0A.32.2A | External Hydraulic Valve 3 Issue |
| 0A.33.11 | External Hydraulic Valve 3 Issue |
| 0A.33.12 | External Hydraulic Valve 3 Issue |
| 0A.33.13 | External Hydraulic Valve 3 Issue |
| 0A.33.18 | External Hydraulic Valve 3 Issue |
| 0A.33.19 | External Hydraulic Valve 3 Issue |
| 0A.33.1A | External Hydraulic Valve 3 Issue |
| 0A.33.1B | External Hydraulic Valve 3 Issue |
| 0A.33.1E | External Hydraulic Valve 3 Issue |
| 0A.33.1F | External Hydraulic Valve 3 Issue |
| 0A.33.20 | External Hydraulic Valve 3 Issue |
| 0A.33.21 | External Hydraulic Valve 3 Issue |
| 0A.33.22 | External Hydraulic Valve 3 Issue |
| 0A.33.23 | External Hydraulic Valve 3 Issue |
| 0A.33.24 | External Hydraulic Valve 3 Issue |
| 0A.33.25 | External Hydraulic Valve 3 Issue |
| 0A.33.26 | External Hydraulic Valve 3 Issue |
| 0A.33.27 | External Hydraulic Valve 3 Issue |
| 0A.33.28 | External Hydraulic Valve 3 Issue |
| 0A.33.29 | External Hydraulic Valve 3 Issue |
| 0A.33.2A | External Hydraulic Valve 3 Issue |
| 0A.3X.11 | External Hydraulic Valve 3 Issue |
| 0A.3X.12 | External Hydraulic Valve 3 Issue |
| 0A.3X.13 | External Hydraulic Valve 3 Issue |
| 0A.3X.18 | External Hydraulic Valve 3 Issue |
| 0A.3X.19 | External Hydraulic Valve 3 Issue |
| 0A.3X.1A | External Hydraulic Valve 3 Issue |
| 0A.3X.1B | External Hydraulic Valve 3 Issue |
| 0A.3X.1E | External Hydraulic Valve 3 Issue |
| 0A.3X.1F | External Hydraulic Valve 3 Issue |
| 0A.3X.20 | External Hydraulic Valve 3 Issue |
| 0A.3X.21 | External Hydraulic Valve 3 Issue |
| 0A.3X.22 | External Hydraulic Valve 3 Issue |
| 0A.3X.23 | External Hydraulic Valve 3 Issue |
| 0A.3X.24 | External Hydraulic Valve 3 Issue |
| 0A.3X.25 | External Hydraulic Valve 3 Issue |
| 0A.3X.26 | External Hydraulic Valve 3 Issue |
| 0A.3X.27 | External Hydraulic Valve 3 Issue |
| 0A.3X.28 | External Hydraulic Valve 3 Issue |
| 0A.3X.29 | External Hydraulic Valve 3 Issue |
| 0A.3X.2A | External Hydraulic Valve 3 Issue |
| 0A.40.11 | External Hydraulic Valve 4 Issue |
| 0A.40.12 | External Hydraulic Valve 4 Issue |
| 0A.40.13 | External Hydraulic Valve 4 Issue |
| 0A.40.18 | External Hydraulic Valve 4 Issue |
| 0A.40.19 | External Hydraulic Valve 4 Issue |
| 0A.40.1A | External Hydraulic Valve 4 Issue |
| 0A.40.1B | External Hydraulic Valve 4 Issue |
| 0A.40.1E | External Hydraulic Valve 4 Issue |
| 0A.40.1F | External Hydraulic Valve 4 Issue |
| 0A.40.20 | External Hydraulic Valve 4 Issue |
| 0A.40.21 | External Hydraulic Valve 4 Issue |
| 0A.40.22 | External Hydraulic Valve 4 Issue |
| 0A.40.23 | External Hydraulic Valve 4 Issue |
| 0A.40.24 | External Hydraulic Valve 4 Issue |
| 0A.40.25 | External Hydraulic Valve 4 Issue |
| 0A.40.26 | External Hydraulic Valve 4 Issue |
| 0A.40.27 | External Hydraulic Valve 4 Issue |
| 0A.40.28 | External Hydraulic Valve 4 Issue |
| 0A.40.29 | External Hydraulic Valve 4 Issue |
| 0A.40.2A | External Hydraulic Valve 4 Issue |
| 0A.41.11 | External Hydraulic Valve 4 Issue |
| 0A.41.12 | External Hydraulic Valve 4 Issue |
| 0A.41.13 | External Hydraulic Valve 4 Issue |
| 0A.41.18 | External Hydraulic Valve 4 Issue |
| 0A.41.19 | External Hydraulic Valve 4 Issue |
| 0A.41.1A | External Hydraulic Valve 4 Issue |
| 0A.41.1B | External Hydraulic Valve 4 Issue |
| 0A.41.1E | External Hydraulic Valve 4 Issue |
| 0A.41.1F | External Hydraulic Valve 4 Issue |

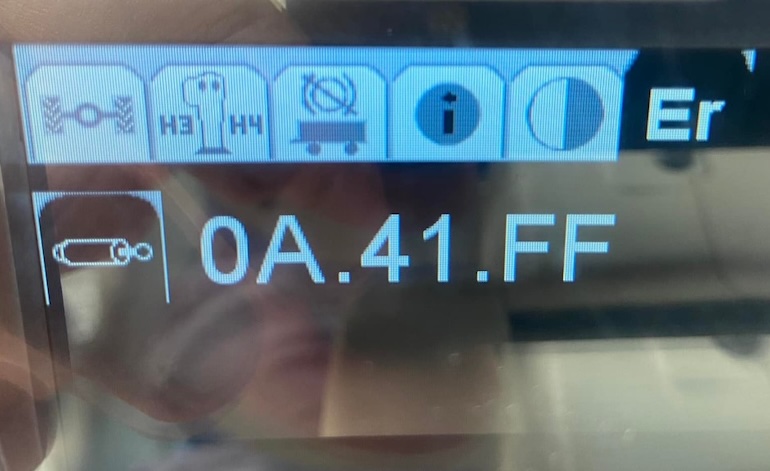

| 0A.41.FF | Connection problem on a hydraulic valve |
| 0A.41.20 | External Hydraulic Valve 4 Issue |
| 0A.41.21 | External Hydraulic Valve 4 Issue |
| 0A.41.22 | External Hydraulic Valve 4 Issue |
| 0A.41.23 | External Hydraulic Valve 4 Issue |
| 0A.41.24 | External Hydraulic Valve 4 Issue |
| 0A.41.25 | External Hydraulic Valve 4 Issue |
| 0A.41.26 | External Hydraulic Valve 4 Issue |
| 0A.41.27 | External Hydraulic Valve 4 Issue |
| 0A.41.28 | External Hydraulic Valve 4 Issue |
| 0A.41.29 | External Hydraulic Valve 4 Issue |
| 0A.41.2A | External Hydraulic Valve 4 Issue |
| 0A.42.11 | External Hydraulic Valve 4 Issue |
| 0A.42.12 | External Hydraulic Valve 4 Issue |
| 0A.42.13 | External Hydraulic Valve 4 Issue |
| 0A.42.18 | External Hydraulic Valve 4 Issue |
| 0A.42.19 | External Hydraulic Valve 4 Issue |
| 0A.42.1A | External Hydraulic Valve 4 Issue |
| 0A.42.1B | External Hydraulic Valve 4 Issue |
| 0A.42.1E | External Hydraulic Valve 4 Issue |
| 0A.42.1F | External Hydraulic Valve 4 Issue |
| 0A.42.20 | External Hydraulic Valve 4 Issue |
| 0A.42.21 | External Hydraulic Valve 4 Issue |
| 0A.42.22 | External Hydraulic Valve 4 Issue |
| 0A.42.23 | External Hydraulic Valve 4 Issue |
| 0A.42.24 | External Hydraulic Valve 4 Issue |
| 0A.42.25 | External Hydraulic Valve 4 Issue |
| 0A.42.26 | External Hydraulic Valve 4 Issue |
| 0A.42.27 | External Hydraulic Valve 4 Issue |
| 0A.42.28 | External Hydraulic Valve 4 Issue |
| 0A.42.29 | External Hydraulic Valve 4 Issue |
| 0A.42.2A | External Hydraulic Valve 4 Issue |
| 0A.43.11 | External Hydraulic Valve 4 Issue |
| 0A.43.12 | External Hydraulic Valve 4 Issue |
| 0A.43.13 | External Hydraulic Valve 4 Issue |
| 0A.43.18 | External Hydraulic Valve 4 Issue |
| 0A.43.19 | External Hydraulic Valve 4 Issue |
| 0A.43.1A | External Hydraulic Valve 4 Issue |
| 0A.43.1B | External Hydraulic Valve 4 Issue |
| 0A.43.1E | External Hydraulic Valve 4 Issue |
| 0A.43.1F | External Hydraulic Valve 4 Issue |
| 0A.43.20 | External Hydraulic Valve 4 Issue |
| 0A.43.21 | External Hydraulic Valve 4 Issue |
| 0A.43.22 | External Hydraulic Valve 4 Issue |
| 0A.43.23 | External Hydraulic Valve 4 Issue |
| 0A.43.24 | External Hydraulic Valve 4 Issue |
| 0A.43.25 | External Hydraulic Valve 4 Issue |
| 0A.43.26 | External Hydraulic Valve 4 Issue |
| 0A.43.27 | External Hydraulic Valve 4 Issue |
| 0A.43.28 | External Hydraulic Valve 4 Issue |
| 0A.43.29 | External Hydraulic Valve 4 Issue |
| 0A.43.2A | External Hydraulic Valve 4 Issue |
| 0A.4X.11 | External Hydraulic Valve 4 Issue |
| 0A.4X.12 | External Hydraulic Valve 4 Issue |
| 0A.4X.13 | External Hydraulic Valve 4 Issue |
| 0A.4X.18 | External Hydraulic Valve 4 Issue |
| 0A.4X.19 | External Hydraulic Valve 4 Issue |
| 0A.4X.1A | External Hydraulic Valve 4 Issue |
| 0A.4X.1B | External Hydraulic Valve 4 Issue |
| 0A.4X.1E | External Hydraulic Valve 4 Issue |
| 0A.4X.1F | External Hydraulic Valve 4 Issue |
| 0A.4X.20 | External Hydraulic Valve 4 Issue |
| 0A.4X.21 | External Hydraulic Valve 4 Issue |
MF Error Codes from 0A.4X.22 to 0A.62.11
| MF Error Code | Massey Ferguson Error Code Description |
|---|---|
| 0A.4X.22 | External Hydraulic Valve 4 Issue |
| 0A.4X.23 | External Hydraulic Valve 4 Issue |
| 0A.4X.24 | External Hydraulic Valve 4 Issue |
| 0A.4X.25 | External Hydraulic Valve 4 Issue |
| 0A.4X.26 | External Hydraulic Valve 4 Issue |
| 0A.4X.27 | External Hydraulic Valve 4 Issue |
| 0A.4X.28 | External Hydraulic Valve 4 Issue |
| 0A.4X.29 | External Hydraulic Valve 4 Issue |
| 0A.4X.2A | External Hydraulic Valve 4 Issue |
| 0A.50.11 | External Hydraulic Valve 5 Issue |
| 0A.50.12 | External Hydraulic Valve 5 Issue |
| 0A.50.13 | External Hydraulic Valve 5 Issue |
| 0A.50.18 | External Hydraulic Valve 5 Issue |
| 0A.50.19 | External Hydraulic Valve 5 Issue |
| 0A.50.1A | External Hydraulic Valve 5 Issue |
| 0A.50.1B | External Hydraulic Valve 5 Issue |
| 0A.50.1E | External Hydraulic Valve 5 Issue |
| 0A.50.1F | External Hydraulic Valve 5 Issue |
| 0A.50.20 | External Hydraulic Valve 5 Issue |
| 0A.50.21 | External Hydraulic Valve 5 Issue |
| 0A.50.22 | External Hydraulic Valve 5 Issue |
| 0A.50.23 | External Hydraulic Valve 5 Issue |
| 0A.50.24 | External Hydraulic Valve 5 Issue |
| 0A.50.25 | External Hydraulic Valve 5 Issue |
| 0A.50.26 | External Hydraulic Valve 5 Issue |
| 0A.50.27 | External Hydraulic Valve 5 Issue |
| 0A.50.28 | External Hydraulic Valve 5 Issue |
| 0A.50.29 | External Hydraulic Valve 5 Issue |
| 0A.50.2A | External Hydraulic Valve 5 Issue |
| 0A.51.11 | External Hydraulic Valve 5 Issue |
| 0A.51.12 | External Hydraulic Valve 5 Issue |
| 0A.51.13 | External Hydraulic Valve 5 Issue |
| 0A.51.18 | External Hydraulic Valve 5 Issue |
| 0A.51.19 | External Hydraulic Valve 5 Issue |
| 0A.51.1A | External Hydraulic Valve 5 Issue |
| 0A.51.1B | External Hydraulic Valve 5 Issue |
| 0A.51.1E | External Hydraulic Valve 5 Issue |
| 0A.51.1F | External Hydraulic Valve 5 Issue |
| 0A.51.20 | External Hydraulic Valve 5 Issue |
| 0A.51.21 | External Hydraulic Valve 5 Issue |
| 0A.51.22 | External Hydraulic Valve 5 Issue |
| 0A.51.23 | External Hydraulic Valve 5 Issue |
| 0A.51.24 | External Hydraulic Valve 5 Issue |
| 0A.51.25 | External Hydraulic Valve 5 Issue |
| 0A.51.26 | External Hydraulic Valve 5 Issue |
| 0A.51.27 | External Hydraulic Valve 5 Issue |
| 0A.51.28 | External Hydraulic Valve 5 Issue |
| 0A.51.29 | External Hydraulic Valve 5 Issue |
| 0A.51.2A | External Hydraulic Valve 5 Issue |
| 0A.52.11 | External Hydraulic Valve 5 Issue |
| 0A.52.12 | External Hydraulic Valve 5 Issue |
| 0A.52.13 | External Hydraulic Valve 5 Issue |
| 0A.52.18 | External Hydraulic Valve 5 Issue |
| 0A.52.19 | External Hydraulic Valve 5 Issue |
| 0A.52.1A | External Hydraulic Valve 5 Issue |
| 0A.52.1B | External Hydraulic Valve 5 Issue |
| 0A.52.1E | External Hydraulic Valve 5 Issue |
| 0A.52.1F | External Hydraulic Valve 5 Issue |
| 0A.52.20 | External Hydraulic Valve 5 Issue |
| 0A.52.21 | External Hydraulic Valve 5 Issue |
| 0A.52.22 | External Hydraulic Valve 5 Issue |
| 0A.52.23 | External Hydraulic Valve 5 Issue |
| 0A.52.24 | External Hydraulic Valve 5 Issue |
| 0A.52.25 | External Hydraulic Valve 5 Issue |
| 0A.52.26 | External Hydraulic Valve 5 Issue |
| 0A.52.27 | External Hydraulic Valve 5 Issue |
| 0A.52.28 | External Hydraulic Valve 5 Issue |
| 0A.52.29 | External Hydraulic Valve 5 Issue |
| 0A.52.2A | External Hydraulic Valve 5 Issue |
| 0A.53.11 | External Hydraulic Valve 5 Issue |
| 0A.53.12 | External Hydraulic Valve 5 Issue |
| 0A.53.13 | External Hydraulic Valve 5 Issue |
| 0A.53.18 | External Hydraulic Valve 5 Issue |
| 0A.53.19 | External Hydraulic Valve 5 Issue |
| 0A.53.1A | External Hydraulic Valve 5 Issue |
| 0A.53.1B | External Hydraulic Valve 5 Issue |
| 0A.53.1E | External Hydraulic Valve 5 Issue |
| 0A.53.1F | External Hydraulic Valve 5 Issue |
| 0A.53.20 | External Hydraulic Valve 5 Issue |
| 0A.53.21 | External Hydraulic Valve 5 Issue |
| 0A.53.22 | External Hydraulic Valve 5 Issue |
| 0A.53.23 | External Hydraulic Valve 5 Issue |
| 0A.53.24 | External Hydraulic Valve 5 Issue |
| 0A.53.25 | External Hydraulic Valve 5 Issue |
| 0A.53.26 | External Hydraulic Valve 5 Issue |
| 0A.53.27 | External Hydraulic Valve 5 Issue |
| 0A.53.28 | External Hydraulic Valve 5 Issue |
| 0A.53.29 | External Hydraulic Valve 5 Issue |
| 0A.53.2A | External Hydraulic Valve 5 Issue |
| 0A.5X.11 | External Hydraulic Valve 5 Issue |
| 0A.5X.12 | External Hydraulic Valve 5 Issue |
| 0A.5X.13 | External Hydraulic Valve 5 Issue |
| 0A.5X.18 | External Hydraulic Valve 5 Issue |
| 0A.5X.19 | External Hydraulic Valve 5 Issue |
| 0A.5X.1A | External Hydraulic Valve 5 Issue |
| 0A.5X.1B | External Hydraulic Valve 5 Issue |
| 0A.5X.1E | External Hydraulic Valve 5 Issue |
| 0A.5X.1F | External Hydraulic Valve 5 Issue |
| 0A.5X.20 | External Hydraulic Valve 5 Issue |
| 0A.5X.21 | External Hydraulic Valve 5 Issue |
| 0A.5X.22 | External Hydraulic Valve 5 Issue |
| 0A.5X.23 | External Hydraulic Valve 5 Issue |
| 0A.5X.24 | External Hydraulic Valve 5 Issue |
| 0A.5X.25 | External Hydraulic Valve 5 Issue |
| 0A.5X.26 | External Hydraulic Valve 5 Issue |
| 0A.5X.27 | External Hydraulic Valve 5 Issue |
| 0A.5X.28 | External Hydraulic Valve 5 Issue |
| 0A.5X.29 | External Hydraulic Valve 5 Issue |
| 0A.5X.2A | External Hydraulic Valve 5 Issue |
| 0A.60.11 | External Hydraulic Valve 6 Issue |
| 0A.60.12 | External Hydraulic Valve 6 Issue |
| 0A.60.13 | External Hydraulic Valve 6 Issue |
| 0A.60.18 | External Hydraulic Valve 6 Issue |
| 0A.60.19 | External Hydraulic Valve 6 Issue |
| 0A.60.1A | External Hydraulic Valve 6 Issue |
| 0A.60.1B | External Hydraulic Valve 6 Issue |
| 0A.60.1E | External Hydraulic Valve 6 Issue |
| 0A.60.1F | External Hydraulic Valve 6 Issue |
| 0A.60.20 | External Hydraulic Valve 6 Issue |
| 0A.60.21 | External Hydraulic Valve 6 Issue |
| 0A.60.22 | External Hydraulic Valve 6 Issue |
| 0A.60.23 | External Hydraulic Valve 6 Issue |
| 0A.60.24 | External Hydraulic Valve 6 Issue |
| 0A.60.25 | External Hydraulic Valve 6 Issue |
| 0A.60.26 | External Hydraulic Valve 6 Issue |
| 0A.60.27 | External Hydraulic Valve 6 Issue |
| 0A.60.28 | External Hydraulic Valve 6 Issue |
| 0A.60.29 | External Hydraulic Valve 6 Issue |
| 0A.60.2A | External Hydraulic Valve 6 Issue |
| 0A.61.11 | External Hydraulic Valve 6 Issue |
| 0A.61.12 | External Hydraulic Valve 6 Issue |
| 0A.61.13 | External Hydraulic Valve 6 Issue |
| 0A.61.18 | External Hydraulic Valve 6 Issue |
| 0A.61.19 | External Hydraulic Valve 6 Issue |
| 0A.61.1A | External Hydraulic Valve 6 Issue |
| 0A.61.1B | External Hydraulic Valve 6 Issue |
| 0A.61.1E | External Hydraulic Valve 6 Issue |
| 0A.61.1F | External Hydraulic Valve 6 Issue |
| 0A.61.20 | External Hydraulic Valve 6 Issue |
| 0A.61.21 | External Hydraulic Valve 6 Issue |
| 0A.61.22 | External Hydraulic Valve 6 Issue |
| 0A.61.23 | External Hydraulic Valve 6 Issue |
| 0A.61.24 | External Hydraulic Valve 6 Issue |
| 0A.61.25 | External Hydraulic Valve 6 Issue |
| 0A.61.26 | External Hydraulic Valve 6 Issue |
| 0A.61.27 | External Hydraulic Valve 6 Issue |
| 0A.61.28 | External Hydraulic Valve 6 Issue |
| 0A.61.29 | External Hydraulic Valve 6 Issue |
| 0A.61.2A | External Hydraulic Valve 6 Issue |
| 0A.62.11 | External Hydraulic Valve 6 Issue |
MF Error Codes from 0A.62.12 to 0A.82.20
| MF Error Code | Massey Ferguson Error Code Description |
|---|---|
| 0A.62.12 | External Hydraulic Valve 6 Issue |
| 0A.62.13 | External Hydraulic Valve 6 Issue |
| 0A.62.18 | External Hydraulic Valve 6 Issue |
| 0A.62.19 | External Hydraulic Valve 6 Issue |
| 0A.62.1A | External Hydraulic Valve 6 Issue |
| 0A.62.1B | External Hydraulic Valve 6 Issue |
| 0A.62.1E | External Hydraulic Valve 6 Issue |
| 0A.62.1F | External Hydraulic Valve 6 Issue |
| 0A.62.20 | External Hydraulic Valve 6 Issue |
| 0A.62.21 | External Hydraulic Valve 6 Issue |
| 0A.62.22 | External Hydraulic Valve 6 Issue |
| 0A.62.23 | External Hydraulic Valve 6 Issue |
| 0A.62.24 | External Hydraulic Valve 6 Issue |
| 0A.62.25 | External Hydraulic Valve 6 Issue |
| 0A.62.26 | External Hydraulic Valve 6 Issue |
| 0A.62.27 | External Hydraulic Valve 6 Issue |
| 0A.62.28 | External Hydraulic Valve 6 Issue |
| 0A.62.29 | External Hydraulic Valve 6 Issue |
| 0A.62.2A | External Hydraulic Valve 6 Issue |
| 0A.63.11 | External Hydraulic Valve 6 Issue |
| 0A.63.12 | External Hydraulic Valve 6 Issue |
| 0A.63.13 | External Hydraulic Valve 6 Issue |
| 0A.63.18 | External Hydraulic Valve 6 Issue |
| 0A.63.19 | External Hydraulic Valve 6 Issue |
| 0A.63.1A | External Hydraulic Valve 6 Issue |
| 0A.63.1B | External Hydraulic Valve 6 Issue |
| 0A.63.1E | External Hydraulic Valve 6 Issue |
| 0A.63.1F | External Hydraulic Valve 6 Issue |
| 0A.63.20 | External Hydraulic Valve 6 Issue |
| 0A.63.21 | External Hydraulic Valve 6 Issue |
| 0A.63.22 | External Hydraulic Valve 6 Issue |
| 0A.63.23 | External Hydraulic Valve 6 Issue |
| 0A.63.24 | External Hydraulic Valve 6 Issue |
| 0A.63.25 | External Hydraulic Valve 6 Issue |
| 0A.63.26 | External Hydraulic Valve 6 Issue |
| 0A.63.27 | External Hydraulic Valve 6 Issue |
| 0A.63.28 | External Hydraulic Valve 6 Issue |
| 0A.63.29 | External Hydraulic Valve 6 Issue |
| 0A.63.2A | External Hydraulic Valve 6 Issue |
| 0A.6X.11 | External Hydraulic Valve 6 Issue |
| 0A.6X.12 | External Hydraulic Valve 6 Issue |
| 0A.6X.13 | External Hydraulic Valve 6 Issue |
| 0A.6X.18 | External Hydraulic Valve 6 Issue |
| 0A.6X.19 | External Hydraulic Valve 6 Issue |
| 0A.6X.1A | External Hydraulic Valve 6 Issue |
| 0A.6X.1B | External Hydraulic Valve 6 Issue |
| 0A.6X.1E | External Hydraulic Valve 6 Issue |
| 0A.6X.1F | External Hydraulic Valve 6 Issue |
| 0A.6X.20 | External Hydraulic Valve 6 Issue |
| 0A.6X.21 | External Hydraulic Valve 6 Issue |
| 0A.6X.22 | External Hydraulic Valve 6 Issue |
| 0A.6X.23 | External Hydraulic Valve 6 Issue |
| 0A.6X.24 | External Hydraulic Valve 6 Issue |
| 0A.6X.25 | External Hydraulic Valve 6 Issue |
| 0A.6X.26 | External Hydraulic Valve 6 Issue |
| 0A.6X.27 | External Hydraulic Valve 6 Issue |
| 0A.6X.28 | External Hydraulic Valve 6 Issue |
| 0A.6X.29 | External Hydraulic Valve 6 Issue |
| 0A.6X.2A | External Hydraulic Valve 6 Issue |
| 0A.70.11 | External Hydraulic Valve 7 Issue |
| 0A.70.12 | External Hydraulic Valve 7 Issue |
| 0A.70.13 | External Hydraulic Valve 7 Issue |
| 0A.70.18 | External Hydraulic Valve 7 Issue |
| 0A.70.19 | External Hydraulic Valve 7 Issue |
| 0A.70.1A | External Hydraulic Valve 7 Issue |
| 0A.70.1B | External Hydraulic Valve 7 Issue |
| 0A.70.1E | External Hydraulic Valve 7 Issue |
| 0A.70.1F | External Hydraulic Valve 7 Issue |
| 0A.70.20 | External Hydraulic Valve 7 Issue |
| 0A.70.21 | External Hydraulic Valve 7 Issue |
| 0A.70.22 | External Hydraulic Valve 7 Issue |
| 0A.70.23 | External Hydraulic Valve 7 Issue |
| 0A.70.24 | External Hydraulic Valve 7 Issue |
| 0A.70.25 | External Hydraulic Valve 7 Issue |
| 0A.70.27 | External Hydraulic Valve 7 Issue |
| 0A.70.28 | External Hydraulic Valve 7 Issue |
| 0A.70.29 | External Hydraulic Valve 7 Issue |
| 0A.70.2A | External Hydraulic Valve 7 Issue |
| 0A.71.11 | External Hydraulic Valve 7 Issue |
| 0A.71.12 | External Hydraulic Valve 7 Issue |
| 0A.71.13 | External Hydraulic Valve 7 Issue |
| 0A.71.18 | External Hydraulic Valve 7 Issue |
| 0A.71.19 | External Hydraulic Valve 7 Issue |
| 0A.71.1A | External Hydraulic Valve 7 Issue |
| 0A.71.1B | External Hydraulic Valve 7 Issue |
| 0A.71.1E | External Hydraulic Valve 7 Issue |
| 0A.71.1F | External Hydraulic Valve 7 Issue |
| 0A.71.20 | External Hydraulic Valve 7 Issue |
| 0A.71.21 | External Hydraulic Valve 7 Issue |
| 0A.71.22 | External Hydraulic Valve 7 Issue |
| 0A.71.23 | External Hydraulic Valve 7 Issue |
| 0A.71.24 | External Hydraulic Valve 7 Issue |
| 0A.71.25 | External Hydraulic Valve 7 Issue |
| 0A.71.27 | External Hydraulic Valve 7 Issue |
| 0A.71.28 | External Hydraulic Valve 7 Issue |
| 0A.71.29 | External Hydraulic Valve 7 Issue |
| 0A.71.2A | External Hydraulic Valve 7 Issue |
| 0A.72.11 | External Hydraulic Valve 7 Issue |
| 0A.72.12 | External Hydraulic Valve 7 Issue |
| 0A.72.13 | External Hydraulic Valve 7 Issue |
| 0A.72.18 | External Hydraulic Valve 7 Issue |
| 0A.72.19 | External Hydraulic Valve 7 Issue |
| 0A.72.1A | External Hydraulic Valve 7 Issue |
| 0A.72.1B | External Hydraulic Valve 7 Issue |
| 0A.72.1E | External Hydraulic Valve 7 Issue |
| 0A.72.1F | External Hydraulic Valve 7 Issue |
| 0A.72.20 | External Hydraulic Valve 7 Issue |
| 0A.72.21 | External Hydraulic Valve 7 Issue |
| 0A.72.22 | External Hydraulic Valve 7 Issue |
| 0A.72.23 | External Hydraulic Valve 7 Issue |
| 0A.72.24 | External Hydraulic Valve 7 Issue |
| 0A.72.25 | External Hydraulic Valve 7 Issue |
| 0A.72.27 | External Hydraulic Valve 7 Issue |
| 0A.72.28 | External Hydraulic Valve 7 Issue |
| 0A.72.29 | External Hydraulic Valve 7 Issue |
| 0A.72.2A | External Hydraulic Valve 7 Issue |
| 0A.73.11 | External Hydraulic Valve 7 Issue |
| 0A.73.12 | External Hydraulic Valve 7 Issue |
| 0A.73.13 | External Hydraulic Valve 7 Issue |
| 0A.73.18 | External Hydraulic Valve 7 Issue |
| 0A.73.19 | External Hydraulic Valve 7 Issue |
| 0A.73.1A | External Hydraulic Valve 7 Issue |
| 0A.73.1B | External Hydraulic Valve 7 Issue |
| 0A.73.1E | External Hydraulic Valve 7 Issue |
| 0A.73.1F | External Hydraulic Valve 7 Issue |
| 0A.73.20 | External Hydraulic Valve 7 Issue |
| 0A.73.21 | External Hydraulic Valve 7 Issue |
| 0A.73.22 | External Hydraulic Valve 7 Issue |
| 0A.73.23 | External Hydraulic Valve 7 Issue |
| 0A.73.24 | External Hydraulic Valve 7 Issue |
| 0A.73.25 | External Hydraulic Valve 7 Issue |
| 0A.73.27 | External Hydraulic Valve 7 Issue |
| 0A.73.28 | External Hydraulic Valve 7 Issue |
| 0A.73.29 | External Hydraulic Valve 7 Issue |
| 0A.73.2A | External Hydraulic Valve 7 Issue |
| 0A.7X.11 | External Hydraulic Valve 7 Issue |
| 0A.7X.12 | External Hydraulic Valve 7 Issue |
| 0A.7X.13 | External Hydraulic Valve 7 Issue |
| 0A.7X.18 | External Hydraulic Valve 7 Issue |
| 0A.7X.19 | External Hydraulic Valve 7 Issue |
| 0A.7X.1A | External Hydraulic Valve 7 Issue |
| 0A.7X.1B | External Hydraulic Valve 7 Issue |
| 0A.7X.1E | External Hydraulic Valve 7 Issue |
| 0A.7X.1F | External Hydraulic Valve 7 Issue |
| 0A.7X.20 | External Hydraulic Valve 7 Issue |
| 0A.7X.21 | External Hydraulic Valve 7 Issue |
| 0A.7X.22 | External Hydraulic Valve 7 Issue |
| 0A.7X.23 | External Hydraulic Valve 7 Issue |
| 0A.7X.24 | External Hydraulic Valve 7 Issue |
| 0A.7X.25 | External Hydraulic Valve 7 Issue |
| 0A.7X.27 | External Hydraulic Valve 7 Issue |
| 0A.7X.28 | External Hydraulic Valve 7 Issue |
| 0A.7X.29 | External Hydraulic Valve 7 Issue |
| 0A.7X.2A | External Hydraulic Valve 7 Issue |
| 0A.80.11 | External Hydraulic Valve 8 Issue |
| 0A.80.12 | External Hydraulic Valve 8 Issue |
| 0A.80.13 | External Hydraulic Valve 8 Issue |
| 0A.80.18 | External Hydraulic Valve 8 Issue |
| 0A.80.19 | External Hydraulic Valve 8 Issue |
| 0A.80.1A | External Hydraulic Valve 8 Issue |
| 0A.80.1B | External Hydraulic Valve 8 Issue |
| 0A.80.1E | External Hydraulic Valve 8 Issue |
| 0A.80.1F | External Hydraulic Valve 8 Issue |
| 0A.80.20 | External Hydraulic Valve 8 Issue |
| 0A.80.21 | External Hydraulic Valve 8 Issue |
| 0A.80.22 | External Hydraulic Valve 8 Issue |
| 0A.80.23 | External Hydraulic Valve 8 Issue |
| 0A.80.24 | External Hydraulic Valve 8 Issue |
| 0A.80.25 | External Hydraulic Valve 8 Issue |
| 0A.80.28 | External Hydraulic Valve 8 Issue |
| 0A.80.29 | External Hydraulic Valve 8 Issue |
| 0A.80.2A | External Hydraulic Valve 8 Issue |
| 0A.81.11 | External Hydraulic Valve 8 Issue |
| 0A.81.12 | External Hydraulic Valve 8 Issue |
| 0A.81.13 | External Hydraulic Valve 8 Issue |
| 0A.81.18 | External Hydraulic Valve 8 Issue |
| 0A.81.19 | External Hydraulic Valve 8 Issue |
| 0A.81.1A | External Hydraulic Valve 8 Issue |
| 0A.81.1B | External Hydraulic Valve 8 Issue |
| 0A.81.1E | External Hydraulic Valve 8 Issue |
| 0A.81.1F | External Hydraulic Valve 8 Issue |
| 0A.81.20 | External Hydraulic Valve 8 Issue |
| 0A.81.21 | External Hydraulic Valve 8 Issue |
| 0A.81.22 | External Hydraulic Valve 8 Issue |
| 0A.81.23 | External Hydraulic Valve 8 Issue |
| 0A.81.24 | External Hydraulic Valve 8 Issue |
| 0A.81.25 | External Hydraulic Valve 8 Issue |
| 0A.81.28 | External Hydraulic Valve 8 Issue |
| 0A.81.29 | External Hydraulic Valve 8 Issue |
| 0A.81.2A | External Hydraulic Valve 8 Issue |
| 0A.82.11 | External Hydraulic Valve 8 Issue |
| 0A.82.12 | External Hydraulic Valve 8 Issue |
| 0A.82.13 | External Hydraulic Valve 8 Issue |
| 0A.82.18 | External Hydraulic Valve 8 Issue |
| 0A.82.19 | External Hydraulic Valve 8 Issue |
| 0A.82.1A | External Hydraulic Valve 8 Issue |
| 0A.82.1B | External Hydraulic Valve 8 Issue |
| 0A.82.1E | External Hydraulic Valve 8 Issue |
| 0A.82.1F | External Hydraulic Valve 8 Issue |
| 0A.82.20 | External Hydraulic Valve 8 Issue |
MF Error Codes from 0A.82.21 to 0B.X.24
| MF Error Code | Massey Ferguson Error Code Description |
|---|---|
| 0A.82.21 | External Hydraulic Valve 8 Issue |
| 0A.82.22 | External Hydraulic Valve 8 Issue |
| 0A.82.23 | External Hydraulic Valve 8 Issue |
| 0A.82.24 | External Hydraulic Valve 8 Issue |
| 0A.82.25 | External Hydraulic Valve 8 Issue |
| 0A.82.28 | External Hydraulic Valve 8 Issue |
| 0A.82.29 | External Hydraulic Valve 8 Issue |
| 0A.82.2A | External Hydraulic Valve 8 Issue |
| 0A.83.11 | External Hydraulic Valve 8 Issue |
| 0A.83.12 | External Hydraulic Valve 8 Issue |
| 0A.83.13 | External Hydraulic Valve 8 Issue |
| 0A.83.18 | External Hydraulic Valve 8 Issue |
| 0A.83.19 | External Hydraulic Valve 8 Issue |
| 0A.83.1A | External Hydraulic Valve 8 Issue |
| 0A.83.1B | External Hydraulic Valve 8 Issue |
| 0A.83.1E | External Hydraulic Valve 8 Issue |
| 0A.83.1F | External Hydraulic Valve 8 Issue |
| 0A.83.20 | External Hydraulic Valve 8 Issue |
| 0A.83.21 | External Hydraulic Valve 8 Issue |
| 0A.83.22 | External Hydraulic Valve 8 Issue |
| 0A.83.23 | External Hydraulic Valve 8 Issue |
| 0A.83.24 | External Hydraulic Valve 8 Issue |
| 0A.83.25 | External Hydraulic Valve 8 Issue |
| 0A.83.28 | External Hydraulic Valve 8 Issue |
| 0A.83.29 | External Hydraulic Valve 8 Issue |
| 0A.83.2A | External Hydraulic Valve 8 Issue |
| 0A.8X.11 | External Hydraulic Valve 8 Issue |
| 0A.8X.12 | External Hydraulic Valve 8 Issue |
| 0A.8X.13 | External Hydraulic Valve 8 Issue |
| 0A.8X.18 | External Hydraulic Valve 8 Issue |
| 0A.8X.19 | External Hydraulic Valve 8 Issue |
| 0A.8X.1A | External Hydraulic Valve 8 Issue |
| 0A.8X.1B | External Hydraulic Valve 8 Issue |
| 0A.8X.1E | External Hydraulic Valve 8 Issue |
| 0A.8X.1F | External Hydraulic Valve 8 Issue |
| 0A.8X.20 | External Hydraulic Valve 8 Issue |
| 0A.8X.21 | External Hydraulic Valve 8 Issue |
| 0A.8X.22 | External Hydraulic Valve 8 Issue |
| 0A.8X.23 | External Hydraulic Valve 8 Issue |
| 0A.8X.24 | External Hydraulic Valve 8 Issue |
| 0A.8X.25 | External Hydraulic Valve 8 Issue |
| 0A.8X.28 | External Hydraulic Valve 8 Issue |
| 0A.8X.29 | External Hydraulic Valve 8 Issue |
| 0A.8X.2A | External Hydraulic Valve 8 Issue |
| 0A.X.36 | Switch On Mud Guard For Hydraulics Spool Valve Signal Voltage Issue (HITCH) |
| 0B.00.01 | Loader Mid Mount Electro Valve Solenoid Open Circuit |
| 0B.00.02 | Loader Mid Mount Electro Valve Solenoid Low Amp Draw |
| 0B.00.03 | Loader Mid Mount Electro Valve Solenoid High Amp Draw |
| 0B.00.04 | Loader Mid Mount Electro Valve Solenoid Open Circuit |
| 0B.00.05 | Loader Mid Mount Electro Valve Solenoid Low Amp Draw |
| 0B.00.06 | Loader Mid Mount Electro Valve Solenoid High Amp Draw |
| 0B.00.07 | Loader Mid Mount Electro Valve Solenoid Open Circuit |
| 0B.00.08 | Loader Mid Mount Electro Valve Solenoid Low Amp Draw |
| 0B.00.09 | Loader Mid Mount Electro Valve Solenoid High Amp Draw |
| 0B.00.10 | Loader Mid Mount Electro Valve Solenoid Open Circuit |
| 0B.00.11 | Loader Mid Mount Electro Valve Solenoid Low Amp Draw |
| 0B.00.12 | Loader Mid Mount Electro Valve Solenoid High Amp Draw |
| 0B.00.13 | Loader Mid Mount Electro Valve Supply Solenoid Open Circuit |
| 0B.00.14 | Loader Mid Mount Electro Valve Solenoid Low Amp Draw |
| 0B.00.15 | Loader Mid Mount Electro Valve Solenoid High Amp Draw |
| 0B.00.16 | No Communication Between The Dash and The Mid Mount Valve Module. |
| 0B.00.17 | Issue With Spool Position Sensor Value |
| 0B.00.18 | Issue With Spool Position Sensor Value |
| 0B.00.19 | Issue With Spool Position Sensor Value |
| 0B.00.20 | Issue With Spool Position Sensor Value |
| 0B.00.21 | Issue With Spool Position Sensor Value |
| 0B.00.22 | Issue With Calibration OF Valves |
| 0B.00.23 | Issue With Calibration OF Valves |
| 0B.00.24 | Issue With Voltage From Loader Selector Switch In Cab |
| 0B.01.01 | Loader Mid Mount Electro Valve Solenoid Open Circuit |
| 0B.01.02 | Loader Mid Mount Electro Valve Solenoid Low Amp Draw |
| 0B.01.03 | Loader Mid Mount Electro Valve Solenoid High Amp Draw |
| 0B.01.04 | Loader Mid Mount Electro Valve Solenoid Open Circuit |
| 0B.01.05 | Loader Mid Mount Electro Valve Solenoid Low Amp Draw |
| 0B.01.06 | Loader Mid Mount Electro Valve Solenoid High Amp Draw |
| 0B.01.07 | Loader Mid Mount Electro Valve Solenoid Open Circuit |
| 0B.01.08 | Loader Mid Mount Electro Valve Solenoid Low Amp Draw |
| 0B.01.09 | Loader Mid Mount Electro Valve Solenoid High Amp Draw |
| 0B.01.10 | Loader Mid Mount Electro Valve Solenoid Open Circuit |
| 0B.01.11 | Loader Mid Mount Electro Valve Solenoid Low Amp Draw |
| 0B.01.12 | Loader Mid Mount Electro Valve Solenoid High Amp Draw |
| 0B.01.13 | Loader Mid Mount Electro Valve Supply Solenoid Open Circuit |
| 0B.01.14 | Loader Mid Mount Electro Valve Solenoid Low Amp Draw |
| 0B.01.15 | Loader Mid Mount Electro Valve Solenoid High Amp Draw |
| 0B.01.16 | No Communication Between The Dash and The Mid Mount Valve Module. |
| 0B.01.17 | Issue With Spool Position Sensor Value |
| 0B.01.18 | Issue With Spool Position Sensor Value |
| 0B.01.19 | Issue With Spool Position Sensor Value |
| 0B.01.20 | Issue With Spool Position Sensor Value |
| 0B.01.21 | Issue With Spool Position Sensor Value |
| 0B.01.22 | Issue With Calibration OF Valves |
| 0B.01.23 | Issue With Calibration OF Valves |
| 0B.01.24 | Issue With Voltage From Loader Selector Switch In Cab |
| 0B.02.01 | Loader Mid Mount Electro Valve Solenoid Open Circuit |
| 0B.02.02 | Loader Mid Mount Electro Valve Solenoid Low Amp Draw |
| 0B.02.03 | Loader Mid Mount Electro Valve Solenoid High Amp Draw |
| 0B.02.04 | Loader Mid Mount Electro Valve Solenoid Open Circuit |
| 0B.02.05 | Loader Mid Mount Electro Valve Solenoid Low Amp Draw |
| 0B.02.06 | Loader Mid Mount Electro Valve Solenoid High Amp Draw |
| 0B.02.07 | Loader Mid Mount Electro Valve Solenoid Open Circuit |
| 0B.02.08 | Loader Mid Mount Electro Valve Solenoid Low Amp Draw |
| 0B.02.09 | Loader Mid Mount Electro Valve Solenoid High Amp Draw |
| 0B.02.10 | Loader Mid Mount Electro Valve Solenoid Open Circuit |
| 0B.02.11 | Loader Mid Mount Electro Valve Solenoid Low Amp Draw |
| 0B.02.12 | Loader Mid Mount Electro Valve Solenoid High Amp Draw |
| 0B.02.13 | Loader Mid Mount Electro Valve Supply Solenoid Open Circuit |
| 0B.02.14 | Loader Mid Mount Electro Valve Solenoid Low Amp Draw |
| 0B.02.15 | Loader Mid Mount Electro Valve Solenoid High Amp Draw |
| 0B.02.16 | No Communication Between The Dash and The Mid Mount Valve Module. |
| 0B.02.17 | Issue With Spool Position Sensor Value |
| 0B.02.18 | Issue With Spool Position Sensor Value |
| 0B.02.19 | Issue With Spool Position Sensor Value |
| 0B.02.20 | Issue With Spool Position Sensor Value |
| 0B.02.21 | Issue With Spool Position Sensor Value |
| 0B.02.22 | Issue With Calibration OF Valves |
| 0B.02.23 | Issue With Calibration OF Valves |
| 0B.02.24 | Issue With Voltage From Loader Selector Switch In Cab |
| 0B.X.01 | Loader Mid Mount Electro Valve Solenoid Open Circuit |
| 0B.X.02 | Loader Mid Mount Electro Valve Solenoid Low Amp Draw |
| 0B.X.03 | Loader Mid Mount Electro Valve Solenoid High Amp Draw |
| 0B.X.04 | Loader Mid Mount Electro Valve Solenoid Open Circuit |
| 0B.X.05 | Loader Mid Mount Electro Valve Solenoid Low Amp Draw |
| 0B.X.06 | Loader Mid Mount Electro Valve Solenoid High Amp Draw |
| 0B.X.07 | Loader Mid Mount Electro Valve Solenoid Open Circuit |
| 0B.X.08 | Loader Mid Mount Electro Valve Solenoid Low Amp Draw |
| 0B.X.09 | Loader Mid Mount Electro Valve Solenoid High Amp Draw |
| 0B.X.10 | Loader Mid Mount Electro Valve Solenoid Open Circuit |
| 0B.X.11 | Loader Mid Mount Electro Valve Solenoid Low Amp Draw |
| 0B.X.12 | Loader Mid Mount Electro Valve Solenoid High Amp Draw |
| 0B.X.13 | Loader Mid Mount Electro Valve Supply Solenoid Open Circuit |
| 0B.X.14 | Loader Mid Mount Electro Valve Solenoid Low Amp Draw |
| 0B.X.15 | Loader Mid Mount Electro Valve Solenoid High Amp Draw |
| 0B.X.16 | No Communication Between The Dash and The Mid Mount Valve Module. |
| 0B.X.17 | Issue With Spool Position Sensor Value |
| 0B.X.18 | Issue With Spool Position Sensor Value |
| 0B.X.19 | Issue With Spool Position Sensor Value |
| 0B.X.20 | Issue With Spool Position Sensor Value |
| 0B.X.21 | Issue With Spool Position Sensor Value |
| 0B.X.22 | Issue With Calibration OF Valves |
| 0B.X.23 | Issue With Calibration OF Valves |
| 0B.X.24 | Issue With Voltage From Loader Selector Switch In Cab |
Can I Clear Massey Ferguson Tractor DTCs Myself?
While some Massey Ferguson diagnostic trouble codes may be simple to clear by following the instructions in the tractor’s manual, others may indicate more significant issues that need professional attention. When dealing with error codes or troubleshooting issues on your tractor, prioritize safety. Follow all safety guidelines provided in the tractor’s manual, and if you’re unsure about any aspect of the troubleshooting process, don’t hesitate to seek professional help.
Here are a few considerations:
- Manual Instructions: Check the tractor’s manual for guidance on clearing error codes. Some simpler error codes may have instructions for resetting or clearing them without the need for specialized equipment.
- Diagnostic Tools: Many modern tractors, including Massey Ferguson models, are equipped with diagnostic ports that allow technicians to connect diagnostic tools. These tools can read error codes, perform diagnostic tests, and sometimes clear codes. However, accessing and using these tools typically requires technical expertise.
- Professional Assistance: For more complex issues or if you’re unsure about how to proceed, it’s best to seek assistance from a qualified technician or service center. They have the necessary expertise, tools, and access to diagnostic software to diagnose and address the problem correctly.
Overall, while some diagnostic trouble codes may be cleared by following instructions in the manual, it’s essential to exercise caution and seek professional assistance if you’re unsure about how to proceed or if the issue seems complex. Trying to clear Massey Ferguson DTC without the necessary knowledge or tools could potentially worsen the problem or lead to safety hazards.
MF Error Codes Part I ➡️ (E / AC / AR / C / D / FA / L / P / R / T / U)
MF Error Codes Part II ➡️ (00.0.30 – 10.X.26)
MF Error Codes Part III ➡️ (10.X.27 – 04.02.E5)
MF Error Codes Part IV ➡️ (04.02.E6 – 06.X.1A)
Hello, I have a Ferguson 6485 tractor. For some time, error 94 is showing on the screen and some warning lights are on. Please help me.
This is low fuel pressure. Check your MF tractor’s fuel pump + check your fuel filters.
