Massey Ferguson Diagnostic Trouble Codes (DTC) are alphanumeric codes generated by the onboard diagnostic (OBD) system of Massey Ferguson agricultural machinery and equipment. These codes are used to identify and communicate specific issues or faults within the vehicle’s electronic systems.
DTCs are triggered when the OBD system detects irregularities or malfunctions in various components, such as the engine, transmission, hydraulic system, or electrical system. Each DTC corresponds to a particular problem or fault condition, allowing technicians to diagnose and troubleshoot issues more effectively.

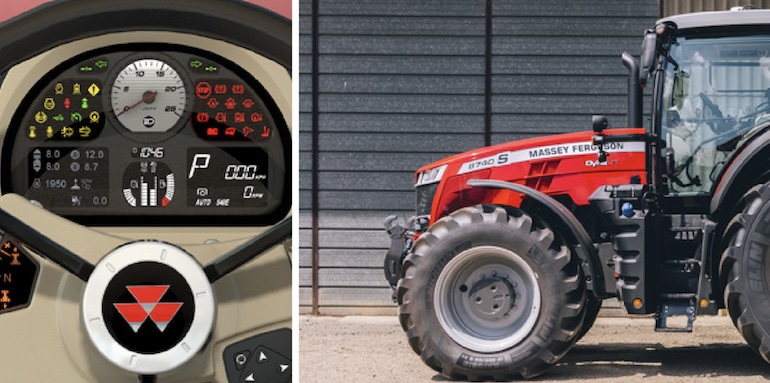

Massey Ferguson DTC Codes List
The DTC system provides valuable diagnostic information by indicating the nature and location of the problem, facilitating prompt repairs and minimizing downtime. Technicians use specialized diagnostic tools to retrieve and interpret DTCs (04.02.E6 – 06.X.1A), enabling them to identify the root cause of the issue and implement appropriate corrective measures.
MF Error Codes from 04.02.E6 to 04.1.92
| Error Code | Massey Ferguson Error Code Description |
|---|---|
| 04.02.E6 | Transmission Internal Software Issue (TRANS) |
| 04.02.E7 | Transmission Internal Software Issue (TRANS) |
| 04.02.E9 | Transmission Internal Software Issue (TRANS) |
| 04.02.EA | Transmission Internal Software Issue (TRANS) |
| 04.02.EB | Transmission Internal Software Issue (TRANS) |
| 04.02.EC | Drive Pedal Not Calibrated (TRANS) |
| 04.02.ED | Clutch Pedal Not Calibrated (TRANS) |
| 04.02.EE | Transmission Calibration Issue (TRANS) |
| 04.02.EF | Transmission Turbo Clutch Calibration Issue (TRANS) |
| 04.02.F0 | Transmission Calibration Issue (TRANS) |
| 04.02.F1 | Transmission Calibration Issue (TRANS) |
| 04.02.F2 | Transmission Calibration Issue (TRANS) |
| 04.02.F3 | Transmission Calibration Issue (TRANS) |
| 04.02.FF | Internal Issue With Transmission Module (TRANS) |
| 04.03.04 | Issue With Signal Voltage From Clutch Pedal Sensor (TRANS) |
| 04.03.05 | Transmission High Pressure Sensor 2 Signal Voltage Issue (TRANS) |
| 04.03.06 | Issue With Signal Voltage From Foot Throttle Sensor (TRANS) |
| 04.03.07 | Transmission High Pressure Sensor 2 Signal Voltage Issue (TRANS) |
| 04.03.08 | Transmission High/Low Range Position Sensor Issue (TRANS) |
| 04.03.09 | Forward Clutch Solenoid Amp Draw Issue (TRANS1) |
| 04.03.0A | Forward Clutch Solenoid Voltage Issue (TRANS1) |
| 04.03.0B | Forward Clutch Solenoid Amp Draw Issue (TRANS1) |
| 04.03.0C | Forward Clutch Solenoid Amp Draw Issue (TRANS1) |
| 04.03.0D | Forward Clutch Solenoid Open Circuit (TRANS1) |
| 04.03.0E | Forward Clutch Solenoid Low Amps (TRANS1) |
| 04.03.0F | Reverse Clutch Solenoid Amp Draw Issue (TRANS1) |
| 04.03.10 | Reverse Clutch Solenoid Voltage Issue (TRANS1) |
| 04.03.11 | Reverse Clutch Solenoid Amp Draw Issue (TRANS1) |
| 04.03.12 | Reverse Clutch Solenoid Amp Draw Issue (TRANS1) |
| 04.03.13 | Reverse Clutch Solenoid Open Circuit (TRANS1) |
| 04.03.14 | Reverse Clutch Solenoid Low Amps (TRANS1) |
| 04.03.15 | Transmission Pressure Switch Open When Engine Is Running (TRANS2) |
| 04.03.16 | Transmission Module Low Supply Voltage (TRANS) |
| 04.03.19 | Issue With The Stored Values For The Foot Throttle (TRANS) |
| 04.03.20 | Issue With Signal Voltage From Foot Throttle Sensor (TRANS) |
| 04.03.22 | Issue With Signal Voltage From Foot Throttle Sensor (TRANS) |
| 04.03.23 | Cruise Control Button Signal Issue (TRANS) |
| 04.03.24 | Park Lock Switch On Steering Column Direction Lever, Signal Issue (TRANS) |
| 04.03.28 | Issue With Signal Voltage From Transmission Actuator (TRANS) |
| 04.03.29 | Issue With Message From Speed Lever On Armrest (TRANS) |
| 04.03.2A | Transmission Output Speed Sensor Issue (TRANS) |
| 04.03.2B | Transmission Range Button Signal Issue (TRANS) |
| 04.03.2C | Steering Column Forward/Reverse Drive Lever Issue (TRANS) |
| 04.03.2D | Steering Column Forward/Reverse Drive Lever Issue (TRANS) |
| 04.03.2E | Steering Column Forward/Reverse Drive Lever Issue (TRANS) |
| 04.03.2F | Steering Column Forward/Reverse Drive Lever Issue (TRANS) |
| 04.03.31 | Transmission Hydrostatic Speed/Direction Sensor Issue (TRANS) |
| 04.03.33 | Issue With Message From Speed Lever On Armrest (TRANS) |
| 04.03.40 | Issue With Speed Sensor Values (TRANS1) |
| 04.03.42 | Transmission Hydrostatic Speed/Direction Sensor Issue (TRANS) / Transmission Output Speed Sensor Issue (TRANS) |
| 04.03.44 | Issue With Signal From Transmission Mounted Engine Speed Sensor (TRANS) |
| 04.03.46 | Pressure Is Not Seen To Drop When Turbo Clutch Solenoid Is Activated |
| 04.03.47 | Transmission Range Has Not Moved After Range Solenoid Has Been Energised (TRANS) |
| 04.03.48 | Transmission Range Has Not Moved To Neutral (TRANS) |
| 04.03.49 | Transmission Filter Blockage Sensor Issue (TRANS) |
| 04.03.50 | Transmission Filter Blocked (TRANS) |
| 04.03.53 | Transmission Oil Temperature High |
| 04.03.54 | Transmission Temperature Signal Out Of Range (TRANS2) |
| 04.03.56 | Transmission Filter Blockage Sensor Issue (TRANS) |
| 04.03.58 | Possible Transmission Slippage Detected |
| 04.03.59 | The Emergency Limp Mode Is Active |
| 04.03.61 | Issue With Low Speed Range Solenoid / Issue With Range 1 Solenoid Valve (TRANS1) |
| 04.03.62 | Issue With High Speed Range Solenoid / Issue With Range 2 Solenoid Valve (TRANS1) |
| 04.03.63 | Speed Limiting Valve Fault |
| 04.03.64 | Transmission Turbo Clutch Solenoid Voltage Supply Issue (TRANS) |
| 04.03.69 | Issue With Range 3 Solenoid Valve (TRANS1) |
| 04.03.6A | Issue With Range 4 Solenoid Valve (TRANS1) |
| 04.03.6B | Issue With Range 1 Engaged Switch Signal (TRANS1) |
| 04.03.6C | Issue With Range 2 Engaged Switch Signal (TRANS1) |
| 04.03.6D | Issue With Range 3 Engaged Switch Signal (TRANS1) |
| 04.03.6E | Issue With Range 4 Engaged Switch Signal (TRANS1) |
| 04.03.70 | Cruise Speed C1 Button Issue (TRANS) |
| 04.03.71 | Cruise Speed C2 Button Issue (TRANS) |
| 04.03.78 | Issue With Signal From Seat Switch (TRANS) |
| 04.03.82 | Transmission Speed Sensors Issue With Signals |
| 04.03.83 | Issue With One Of The Transmission Speed/Direction Sensors |
| 04.03.84 | Issue With Message From Speed Lever On Armrest (TRANS) |
| 04.03.85 | Issue With Signal From Transmission Mounted Engine Speed Sensor (TRANS) / Issue With Speed Sensor Values (TRANS1) |
| 04.03.86 | Transmission High Pressure Sensor Signal Voltage Issue (TRANS) |
| 04.03.89 | Transmission Oil Temperature Signal Issue (TRANS) |
| 04.03.8A | Issue With Signal Voltage From Clutch Pedal Sensor (TRANS) |
| 04.03.8F | Issue With Tyre Size Configuration (TRANS) |
| 04.03.90 | Issue With Speed Sensor Values (TRANS1) |
| 04.03.91 | Issue With Speed Sensor Values (TRANS1) |
| 04.03.92 | Issue With Speed Sensor Values (TRANS1) |
| 04.03.94 | CAN BUS Communication Issue Between Transmission And Arm Rest Module (TRANS) |
| 04.03.95 | Issue With Range 1 Engaged Switch And Range Solenoid 1 (TRANS1) |
| 04.03.96 | Issue With Range 2 Engaged Switch And Range Solenoid 2 (TRANS1) |
| 04.03.97 | Issue With Range 3 Engaged Switch And Range Solenoid 3 (TRANS1) |
| 04.03.98 | Issue With Range 4 Engaged Switch And Range Solenoid 4 (TRANS1) |
| 04.03.99 | Issue With Powershift P Solenoid Supply Voltage (TRANS2) |
| 04.03.9A | Issue With Powershift L Solenoid Supply Voltage (TRANS2) |
| 04.03.9B | Issue With Powershift N Solenoid Supply Voltage (TRANS2) |
| 04.03.9C | Transmission Input Shaft Speed Sensor Open Circuit (TRANS2) |
| 04.03.9D | Transmission Input Shaft Speed Sensor Calibration Fault (TRANS2) |
| 04.03.9E | Transmission Input Shaft Speed Sensor Signal Fault (TRANS2) |
| 04.03.A1 | Issue With Transmission Actuator (TRANS) |
| 04.03.A2 | Issue With Transmission Actuator (TRANS) |
| 04.03.A3 | Issue With Transmission Actuator Internal Position Sensor (TRANS) |
| 04.03.A4 | Issue With Transmission Actuator Internal Position Sensor (TRANS) |
| 04.03.A5 | Issue With Transmission Actuator Internal Position Sensor (TRANS) |
| 04.03.A6 | Issue With Transmission Actuator Internal Position Sensor (TRANS) |
| 04.03.B0 | Issue With Transmission Actuator Communication On CAN BUS (TRANS) |
| 04.03.B1 | Transmission Range Change Issue (TRANS) |
| 04.03.B2 | Transmission Internal Software Issue (TRANS) |
| 04.03.B5 | Transmission Internal Software Issue (TRANS) |
| 04.03.B8 | Issue With Intermediate Speed Sensor Values (TRANS1) |
| 04.03.E1 | Transmission Internal Software Issue (TRANS) |
| 04.03.E2 | Transmission Internal Software Issue (TRANS) |
| 04.03.E3 | Transmission Internal Software Issue (TRANS) |
| 04.03.E4 | Transmission Internal Software Issue (TRANS) |
| 04.03.E5 | Transmission Internal Software Issue (TRANS) |
| 04.03.E6 | Transmission Internal Software Issue (TRANS) |
| 04.03.E7 | Transmission Internal Software Issue (TRANS) |
| 04.03.E9 | Transmission Internal Software Issue (TRANS) |
| 04.03.EA | Transmission Internal Software Issue (TRANS) |
| 04.03.EB | Transmission Internal Software Issue (TRANS) |
| 04.03.EC | Drive Pedal Not Calibrated (TRANS) |
| 04.03.ED | Clutch Pedal Not Calibrated (TRANS) |
| 04.03.EE | Transmission Calibration Issue (TRANS) |
| 04.03.EF | Transmission Turbo Clutch Calibration Issue (TRANS) |
| 04.03.F0 | Transmission Calibration Issue (TRANS) |
| 04.03.F1 | Transmission Calibration Issue (TRANS) |
| 04.03.F2 | Transmission Calibration Issue (TRANS) |
| 04.03.F3 | Transmission Calibration Issue (TRANS) |
| 04.03.FF | Internal Issue With Transmission Module (TRANS) |
| 04.03.FF | Internal Issue With Transmission Module (TRANS) |
| 04.1.03 | Issue With Clutch Pedal Safety Start Switch (TRANS) |
| 04.1.04 | Issue With Signal Voltage From Clutch Pedal Sensor (TRANS) |
| 04.1.09 | Forward Clutch Solenoid Amp Draw Issue (TRANS) |
| 04.1.0A | Forward Clutch Solenoid Voltage Issue (TRANS) |
| 04.1.0B | Forward Clutch Solenoid Amp Draw Issue (TRANS) |
| 04.1.0C | Forward Clutch Solenoid Open Circuit (TRANS) |
| 04.1.0D | Forward Clutch Solenoid Open Circuit (TRANS) |
| 04.1.0E | Forward Clutch Solenoid Amp Draw Issue (TRANS) |
| 04.1.0F | Reverse Clutch Solenoid Amp Draw Issue (TRANS) |
| 04.1.10 | Reverse Clutch Solenoid Voltage Issue (TRANS) |
| 04.1.11 | Reverse Clutch Solenoid Amp Draw Issue (TRANS) |
| 04.1.12 | Reverse Clutch Solenoid Amp Draw Issue (TRANS) |
| 04.1.13 | Reverse Clutch Solenoid Open Circuit (TRANS) |
| 04.1.14 | Reverse Clutch Solenoid Low Amps (TRANS1) |
| 04.1.15 | Gear Lever Clutch Button Signal Received For Over 10 Seconds (TRANS) |
| 04.1.17 | Transmission Module Low Supply Voltage On 10 Volt Sensor Output Pin (TRANs) |
| 04.1.2C | Gear Lever Clutch Button Signal Received For Over 10 Seconds (TRANS) |
| 04.1.40 | Issue With Speed Sensor Values (TRANS) |
| 04.1.55 | Transmission Temperature Signal Out Of Range (TRANS) |
| 04.1.85 | Issue With Speed Sensor Values (TRANS) |
| 04.1.90 | Issue With Speed Sensor Values (TRANS) |
| 04.1.91 | Issue With Speed Sensor Values (TRANS) |
| 04.1.92 | Issue With Speed Sensor Values (TRANS) |
MF Error Codes from 04.1.A2 to 04.X.E7
| MF Error Code | Massey Ferguson Error Code Description |
|---|---|
| 04.1.A2 | CAN BUS Message Missing (TRANS) |
| 04.1.A7 | Issue With Transmission Module (TRANS) |
| 04.1.C0 | Shuttle Lever Neutral Position Signal Error (TRANS) |
| 04.1.C1 | Shuttle Lever Neutral Position Signal Error (TRANS) |
| 04.1.C2 | Shuttle Lever Position Signal Error (TRANS) |
| 04.1.ED | Issue With Top Of Clutch Pedal Switch Or The operator Is Ridding The Clutch Pedal (TRANS) |
| 04.1.FD | Issue With Transmission Module (TRANS) |
| 04.1.FE | Issue With Transmission Module Calibrations Or Parameters (TRANS) |
| 04.1.FF | Issue With Transmission Module Calibrations Or Parameters (TRANS) |
| 04.2.03 | Issue With Clutch Pedal Safety Start Switch (TRANS) |
| 04.2.04 | Issue With Signal Voltage From Clutch Pedal Sensor (TRANS) |
| 04.2.09 | Forward Clutch Solenoid Amp Draw Issue (TRANS) |
| 04.2.0A | Forward Clutch Solenoid Voltage Issue (TRANS) |
| 04.2.0B | Forward Clutch Solenoid Amp Draw Issue (TRANS) |
| 04.2.0C | Forward Clutch Solenoid Open Circuit (TRANS) |
| 04.2.0D | Forward Clutch Solenoid Open Circuit (TRANS) |
| 04.2.0E | Forward Clutch Solenoid Amp Draw Issue (TRANS) |
| 04.2.0F | Reverse Clutch Solenoid Amp Draw Issue (TRANS) |
| 04.2.10 | Reverse Clutch Solenoid Voltage Issue (TRANS) |
| 04.2.11 | Reverse Clutch Solenoid Amp Draw Issue (TRANS) |
| 04.2.12 | Reverse Clutch Solenoid Amp Draw Issue (TRANS) |
| 04.2.13 | Reverse Clutch Solenoid Open Circuit (TRANS) |
| 04.2.14 | Reverse Clutch Solenoid Low Amps (TRANS1) |
| 04.2.15 | Gear Lever Clutch Button Signal Received For Over 10 Seconds (TRANS) |
| 04.2.17 | Transmission Module Low Supply Voltage On 10 Volt Sensor Output Pin (TRANS) |
| 04.2.2C | Gear Lever Clutch Button Signal Received For Over 10 Seconds (TRANS) |
| 04.2.40 | Issue With Speed Sensor Values (TRANS) |
| 04.2.55 | Transmission Temperature Signal Out Of Range (TRANS) |
| 04.2.85 | Issue With Speed Sensor Values (TRANS) |
| 04.2.90 | Issue With Speed Sensor Values (TRANS) |
| 04.2.91 | Issue With Speed Sensor Values (TRANS) |
| 04.2.92 | Issue With Speed Sensor Values (TRANS) |
| 04.2.A2 | CAN BUS Message Missing (TRANS) |
| 04.2.A7 | Issue With Transmission Module (TRANS) |
| 04.2.C0 | Shuttle Lever Neutral Position Signal Error (TRANS) |
| 04.2.C1 | Shuttle Lever Neutral Position Signal Error (TRANS) |
| 04.2.C2 | Shuttle Lever Position Signal Error (TRANS) |
| 04.2.ED | Issue With Top Of Clutch Pedal Switch Or The operator Is Ridding The Clutch Pedal (TRANS) |
| 04.2.FD | Issue With Transmission Module (TRANS) |
| 04.2.FE | Issue With Transmission Module Calibrations Or Parameters (TRANS) |
| 04.2.FF | Issue With Transmission Module Calibrations Or Parameters (TRANS) |
| 04.X.03 | Issue With Clutch Pedal Safety Start Switch (TRANS) |
| 04.X.04 | Issue With Signal Voltage From Clutch Pedal Sensor (TRANS) |
| 04.X.05 | Transmission High Pressure Sensor 2 Signal Voltage Issue (TRANS) |
| 04.X.06 | Issue With Signal Voltage From Foot Throttle Sensor (TRANS) |
| 04.X.07 | Transmission High Pressure Sensor 2 Signal Voltage Issue (TRANS) |
| 04.X.08 | Transmission High/Low Range Position Sensor Issue (TRANS) |
| 04.X.09 | Forward Clutch Solenoid Amp Draw Issue (TRANS / TRANS1) |
| 04.X.0A | Forward Clutch Solenoid Voltage Issue (TRANS / TRANS1) |
| 04.X.0B | Forward Clutch Solenoid Amp Draw Issue (TRANS /TRANS1) |
| 04.X.0C | Forward Clutch Solenoid High Amp Draw (TRANS) / Forward Clutch Solenoid Amp Draw Issue (TRANS1) |
| 04.X.0D | Forward Clutch Solenoid Open Circuit (TRANS / TRANS1) |
| 04.X.0E | Forward Clutch Solenoid Amp Draw Issue (TRANS) / Forward Clutch Solenoid Low Amps (TRANS1) |
| 04.X.0F | Reverse Clutch Solenoid Amp Draw Issue (TRANS / TRANS1) |
| 04.X.10 | Reverse Clutch Solenoid Voltage Issue (TRANS / TRANS1) |
| 04.X.11 | Reverse Clutch Solenoid Amp Draw Issue (TRANS1 / TRANS) |
| 04.X.12 | Reverse Clutch Solenoid Amp Draw Issue (TRANS / TRANS1) |
| 04.X.13 | Reverse Clutch Solenoid Open Circuit (TRANS1 / TRANS) |
| 04.X.14 | Reverse Clutch Solenoid Low Amps (TRANS1) |
| 04.X.15 | Gear Lever Clutch Button Signal Received For Over 10 Seconds (TRANS) / Transmission Pressure Switch Open When Engine Is Running (TRANS2) |
| 04.X.16 | Transmission Module Low Supply Voltage (TRANS) |
| 04.X.17 | Transmission Module Low Supply Voltage On 10 Volt Sensor Output Pin (TRANs) |
| 04.X.19 | Issue With The Stored Values For The Foot Throttle (TRANS) |
| 04.X.20 | Issue With Signal Voltage From Foot Throttle Sensor (TRANS) |
| 04.X.22 | Issue With Signal Voltage From Foot Throttle Sensor (TRANS) |
| 04.X.23 | Cruise Control Button Signal Issue (TRANS) |
| 04.X.24 | Park Lock Switch On Steering Column Direction Lever, Signal Issue (TRANS) |
| 04.X.28 | Issue With Signal Voltage From Transmission Actuator (TRANS) |
| 04.X.29 | Issue With Message From Speed Lever On Armrest (TRANS) |
| 04.X.2A | Transmission Output Speed Sensor Issue (TRANS) |
| 04.X.2B | Transmission Range Button Signal Issue (TRANS) |
| 04.X.2C | Gear Lever Clutch Button Signal Received For Over 10 Seconds (TRANS) |
| 04.X.2C | Steering Column Forward/Reverse Drive Lever Issue (TRANS) |
| 04.X.2D | Steering Column Forward/Reverse Drive Lever Issue (TRANS) |
| 04.X.2E | Steering Column Forward/Reverse Drive Lever Issue (TRANS) |
| 04.X.2F | Steering Column Forward/Reverse Drive Lever Issue (TRANS) |
| 04.X.31 | Transmission Hydrostatic Speed/Direction Sensor Issue (TRANS) |
| 04.X.33 | Issue With Message From Speed Lever On Armrest (TRANS) |
| 04.X.40 | Issue With Speed Sensor Values (TRANS / TRANS1) |
| 04.X.42 | Transmission Hydrostatic Speed/Direction Sensor Issue (TRANS) / Transmission Output Speed Sensor Issue (TRANS) |
| 04.X.44 | Issue With Signal From Transmission Mounted Engine Speed Sensor (TRANS) |
| 04.X.46 | Pressure Is Not Seen To Drop When Turbo Clutch Solenoid Is Activated |
| 04.X.47 | Transmission Range Has Not Moved After Range Solenoid Has Been Energised (TRANS) |
| 04.X.48 | Transmission Range Has Not Moved To Neutral (TRANS) |
| 04.X.49 | Transmission Filter Blockage Sensor Issue (TRANS) |
| 04.X.50 | Transmission Filter Blocked (TRANS) |
| 04.X.53 | Transmission Oil Temperature High |
| 04.X.54 | Transmission Temperature Signal Out Of Range (TRANS2) |
| 04.X.55 | Transmission Temperature Signal Out Of Range (TRANS) |
| 04.X.56 | Transmission Filter Blockage Sensor Issue (TRANS) |
| 04.X.58 | Possible Transmission Slippage Detected |
| 04.X.59 | The Emergency Limp Mode Is Active |
| 04.X.61 | Issue With Low Speed Range Solenoid / Issue With Range 1 Solenoid Valve (TRANS1) |
| 04.X.62 | Issue With High Speed Range Solenoid / Issue With Range 2 Solenoid Valve (TRANS1) |
| 04.X.63 | Speed Limiting Valve Fault |
| 04.X.64 | Transmission Turbo Clutch Solenoid Voltage Supply Issue (TRANS) |
| 04.X.69 | Issue With Range 3 Solenoid Valve (TRANS1) |
| 04.X.6A | Issue With Range 4 Solenoid Valve (TRANS1) |
| 04.X.6B | Issue With Range 1 Engaged Switch Signal (TRANS1) |
| 04.X.6C | Issue With Range 2 Engaged Switch Signal (TRANS1) |
| 04.X.6D | Issue With Range 3 Engaged Switch Signal (TRANS1) |
| 04.X.6E | Issue With Range 4 Engaged Switch Signal (TRANS1) |
| 04.X.70 | Cruise Speed C1 Button Issue (TRANS) |
| 04.X.71 | Cruise Speed C2 Button Issue (TRANS) |
| 04.X.78 | Issue With Signal From Seat Switch (TRANS) |
| 04.X.82 | Transmission Speed Sensors Issue With Signals |
| 04.X.83 | Issue With One Of The Transmission Speed/Direction Sensors |
| 04.X.84 | Issue With Message From Speed Lever On Armrest (TRANS) |
| 04.X.85 | Issue With Speed Sensor Values (TRANS / TRANS1) / Issue With Signal From Transmission Mounted Engine Speed Sensor (TRANS) |
| 04.X.86 | Transmission High Pressure Sensor Signal Voltage Issue (TRANS) |
| 04.X.89 | Transmission Oil Temperature Signal Issue (TRANS) |
| 04.X.8A | Issue With Signal Voltage From Clutch Pedal Sensor (TRANS) |
| 04.X.8F | Issue With Tyre Size Configuration (TRANS) |
| 04.X.90 | Issue With Speed Sensor Values (TRANS / TRANS1) |
| 04.X.91 | Issue With Speed Sensor Values (TRANS1 / TRANS) |
| 04.X.92 | Issue With Speed Sensor Values (TRANS / TRANS1) |
| 04.X.94 | CAN BUS Communication Issue Between Transmission And Arm Rest Module (TRANS) |
| 04.X.95 | Issue With Range 1 Engaged Switch And Range Solenoid 1 (TRANS1) |
| 04.X.96 | Issue With Range 2 Engaged Switch And Range Solenoid 2 (TRANS1) |
| 04.X.97 | Issue With Range 3 Engaged Switch And Range Solenoid 3 (TRANS1) |
| 04.X.98 | Issue With Range 4 Engaged Switch And Range Solenoid 4 (TRANS1) |
| 04.X.99 | Issue With Powershift P Solenoid Supply Voltage (TRANS2) |
| 04.X.9A | Issue With Powershift L Solenoid Supply Voltage (TRANS2) |
| 04.X.9B | Issue With Powershift N Solenoid Supply Voltage (TRANS2) |
| 04.X.9C | Transmission Input Shaft Speed Sensor Open Circuit (TRANS2) |
| 04.X.9D | Transmission Input Shaft Speed Sensor Calibration Fault (TRANS2) |
| 04.X.9E | Transmission Input Shaft Speed Sensor Signal Fault (TRANS2) |
| 04.X.A1 | Issue With Transmission Actuator (TRANS) |
| 04.X.A2 | CAN BUS Message Missing (TRANS) |
| 04.X.A2 | Issue With Transmission Actuator (TRANS) |
| 04.X.A3 | Issue With Transmission Actuator Internal Position Sensor (TRANS) |
| 04.X.A4 | Issue With Transmission Actuator Internal Position Sensor (TRANS) |
| 04.X.A5 | Issue With Transmission Actuator Internal Position Sensor (TRANS) |
| 04.X.A6 | Issue With Transmission Actuator Internal Position Sensor (TRANS) |
| 04.X.A7 | Issue With Transmission Module (TRANS) |
| 04.X.B0 | Issue With Transmission Actuator Communication On CAN BUS (TRANS) |
| 04.X.B1 | Transmission Range Change Issue (TRANS) |
| 04.X.B2 | Transmission Internal Software Issue (TRANS) |
| 04.X.B5 | Transmission Internal Software Issue (TRANS) |
| 04.X.B8 | Issue With Intermediate Speed Sensor Values (TRANS1) |
| 04.X.C0 | Shuttle Lever Neutral Position Signal Error (TRANS) |
| 04.X.C1 | Shuttle Lever Neutral Position Signal Error (TRANS) |
| 04.X.C2 | Shuttle Lever Position Signal Error (TRANS) |
| 04.X.E1 | Transmission Internal Software Issue (TRANS) |
| 04.X.E2 | Transmission Internal Software Issue (TRANS) |
| 04.X.E3 | Transmission Internal Software Issue (TRANS) |
| 04.X.E4 | Transmission Internal Software Issue (TRANS) |
| 04.X.E5 | Transmission Internal Software Issue (TRANS) |
| 04.X.E6 | Transmission Internal Software Issue (TRANS) |
| 04.X.E7 | Transmission Internal Software Issue (TRANS) |
MF Error Codes from 04.X.E9 to 520317-31
| MF Error Code | Massey Ferguson Error Code Description |
|---|---|
| 04.X.E9 | Transmission Internal Software Issue (TRANS) |
| 04.X.EA | Transmission Internal Software Issue (TRANS) |
| 04.X.EB | Transmission Internal Software Issue (TRANS) |
| 04.X.EC | Drive Pedal Not Calibrated (TRANS) |
| 04.X.ED | Clutch Pedal Not Calibrated (TRANS) / Issue With Top Of Clutch Pedal Switch Or The operator Is Ridding The Clutch Pedal (TRANS) |
| 04.X.EE | Transmission Calibration Issue (TRANS) |
| 04.X.EF | Transmission Turbo Clutch Calibration Issue (TRANS) |
| 04.X.F0 | Transmission Calibration Issue (TRANS) |
| 04.X.F1 | Transmission Calibration Issue (TRANS) |
| 04.X.F2 | Transmission Calibration Issue (TRANS) |
| 04.X.F3 | Transmission Calibration Issue (TRANS) |
| 04.X.FD | Issue With Transmission Module (TRANS) |
| 04.X.FE | Issue With Transmission Module Calibrations Or Parameters (TRANS) |
| 04.X.FF | Internal Issue With Transmission Module (TRANS) / Issue With Transmission Module Calibrations Or Parameters (TRANS) |
| 05.0.33 | Issue With 4wd Solenoid Circuit (Hitch) |
| 05.0.51 | Issue With Signal From Rear Hitch Top Link Draft Pin (HITCH) |
| 05.0.53 | Issue With Diff Lock Solenoid Circuit (Hitch) |
| 05.00.31 | Issue With Signal From 4wd Button On Side Pillar Dyna VT |
| 05.00.32 | Issue With Signal From Auto 4wd Button On Side Pillar Dyna VT |
| 05.00.33 | Issue With 4wd Solenoid Circuit Dyna VT (TRANS1) |
| 05.00.51 | Issue With Signal From Diff Lock Button On Side Pillar Dyna VT |
| 05.00.53 | Issue With Diff Lock Solenoid Circuit Dyna VT (TRANS1) |
| 05.00.54 | Issue With Left Brake Pedal Switch Signal Dyna VT (TRANS1) |
| 05.00.55 | Issue With Right Brake Pedal Switch Signal Dyna VT (TRANS1) |
| 05.00.80 | Issue With Front Axle Calibration Stored In Suspension Module Dyna VT (SUSPENSION) |
| 05.00.81 | Issue With Signal Voltage From Suspended Front Axle Position Sensor. (SUSPENSION) |
| 05.00.82 | Issue With Signal Voltage From Suspended Front Axle Position Sensor. (SUSPENSION) |
| 05.00.83 | Issue With Signal Voltage From Suspended Front Axle Position Sensor During Calibration (SUSPENSION) |
| 05.00.84 | Issue With Signal Voltage From Suspended Front Axle Position Sensor During Calibration (SUSPENSION) |
| 05.01.31 | Issue With Signal From 4wd Button On Side Pillar Dyna VT |
| 05.01.32 | Issue With Signal From Auto 4wd Button On Side Pillar Dyna VT |
| 05.01.33 | Issue With 4wd Solenoid Circuit Dyna VT (TRANS1) |
| 05.01.51 | Issue With Signal From Diff Lock Button On Side Pillar Dyna VT |
| 05.01.53 | Issue With Diff Lock Solenoid Circuit Dyna VT (TRANS1) |
| 05.01.54 | Issue With Left Brake Pedal Switch Signal Dyna VT (TRANS1) |
| 05.01.55 | Issue With Right Brake Pedal Switch Signal Dyna VT (TRANS1) |
| 05.01.80 | Issue With Front Axle Calibration Stored In Suspension Module Dyna VT (SUSPENSION) |
| 05.01.81 | Issue With Signal Voltage From Suspended Front Axle Position Sensor. (SUSPENSION) |
| 05.01.82 | Issue With Signal Voltage From Suspended Front Axle Position Sensor. (SUSPENSION) |
| 05.01.83 | Issue With Signal Voltage From Suspended Front Axle Position Sensor During Calibration (SUSPENSION) |
| 05.01.84 | Issue With Signal Voltage From Suspended Front Axle Position Sensor During Calibration (SUSPENSION) |
| 05.02.31 | Issue With Signal From 4wd Button On Side Pillar Dyna VT |
| 05.02.32 | Issue With Signal From Auto 4wd Button On Side Pillar Dyna VT |
| 05.02.33 | Issue With 4wd Solenoid Circuit Dyna VT (TRANS1) |
| 05.02.51 | Issue With Signal From Diff Lock Button On Side Pillar Dyna VT |
| 05.02.53 | Issue With Diff Lock Solenoid Circuit Dyna VT (TRANS1) |
| 05.02.54 | Issue With Left Brake Pedal Switch Signal Dyna VT (TRANS1) |
| 05.02.55 | Issue With Right Brake Pedal Switch Signal Dyna VT (TRANS1) |
| 05.02.80 | Issue With Front Axle Calibration Stored In Suspension Module Dyna VT (SUSPENSION) |
| 05.02.81 | Issue With Signal Voltage From Suspended Front Axle Position Sensor. (SUSPENSION) |
| 05.02.82 | Issue With Signal Voltage From Suspended Front Axle Position Sensor. (SUSPENSION) |
| 05.02.83 | Issue With Signal Voltage From Suspended Front Axle Position Sensor During Calibration (SUSPENSION) |
| 05.02.84 | Issue With Signal Voltage From Suspended Front Axle Position Sensor During Calibration (SUSPENSION) |
| 05.03.31 | Issue With Signal From 4wd Button On Side Pillar Dyna VT |
| 05.03.32 | Issue With Signal From Auto 4wd Button On Side Pillar Dyna VT |
| 05.03.33 | Issue With 4wd Solenoid Circuit Dyna VT (TRANS1) |
| 05.03.51 | Issue With Signal From Diff Lock Button On Side Pillar Dyna VT |
| 05.03.53 | Issue With Diff Lock Solenoid Circuit Dyna VT (TRANS1) |
| 05.03.54 | Issue With Left Brake Pedal Switch Signal Dyna VT (TRANS1) |
| 05.03.55 | Issue With Right Brake Pedal Switch Signal Dyna VT (TRANS1) |
| 05.03.80 | Issue With Front Axle Calibration Stored In Suspension Module Dyna VT (SUSPENSION) |
| 05.03.81 | Issue With Signal Voltage From Suspended Front Axle Position Sensor. (SUSPENSION) |
| 05.03.82 | Issue With Signal Voltage From Suspended Front Axle Position Sensor. (SUSPENSION) |
| 05.03.83 | Issue With Signal Voltage From Suspended Front Axle Position Sensor During Calibration (SUSPENSION) |
| 05.03.84 | Issue With Signal Voltage From Suspended Front Axle Position Sensor During Calibration (SUSPENSION) |
| 05.1.33 | Issue With 4wd Solenoid Circuit (Hitch) |
| 05.1.51 | Issue With Signal From Rear Hitch Top Link Draft Pin (HITCH) |
| 05.1.53 | Issue With Diff Lock Solenoid Circuit (Hitch) |
| 05.2.33 | Issue With 4wd Solenoid Circuit (Hitch) |
| 05.2.51 | Issue With Signal From Rear Hitch Top Link Draft Pin (HITCH) |
| 05.2.53 | Issue With Diff Lock Solenoid Circuit (Hitch) |
| 05.X.31 | Issue With Signal From 4wd Button On Side Pillar Dyna VT |
| 05.X.32 | Issue With Signal From Auto 4wd Button On Side Pillar Dyna VT |
| 05.X.33 | Issue With 4wd Solenoid Circuit (Hitch) / Issue With 4wd Solenoid Circuit Dyna VT (TRANS1) |
| 05.X.51 | Issue With Signal From Rear Hitch Top Link Draft Pin (HITCH) / Issue With Signal From Diff Lock Button On Side Pillar Dyna VT |
| 05.X.53 | Issue With Diff Lock Solenoid Circuit (Hitch) / Issue With Diff Lock Solenoid Circuit Dyna VT (TRANS1) |
| 05.X.54 | Issue With Left Brake Pedal Switch Signal Dyna VT (TRANS1) |
| 05.X.55 | Issue With Right Brake Pedal Switch Signal Dyna VT (TRANS1) |
| 05.X.80 | Issue With Front Axle Calibration Stored In Suspension Module Dyna VT (SUSPENSION) |
| 05.X.81 | Issue With Signal Voltage From Suspended Front Axle Position Sensor. (SUSPENSION) |
| 05.X.82 | Issue With Signal Voltage From Suspended Front Axle Position Sensor. (SUSPENSION) |
| 05.X.83 | Issue With Signal Voltage From Suspended Front Axle Position Sensor During Calibration (SUSPENSION) |
| 05.X.84 | Issue With Signal Voltage From Suspended Front Axle Position Sensor During Calibration (SUSPENSION) |
| 520200-16 | High Battery Voltage Detected (ECU) |
| 520200-18 | Low Battery Voltage Detected (ECU) |
| 520201-19 | Engine CAN BUS Fault (ECU) |
| 520202-03 | High Voltage Issue With Module Supply (ECU) |
| 520202-04 | Low Voltage Issue With Module Supply (ECU) |
| 520203-03 | High Voltage Issue With Module Supply (ECU) |
| 520203-04 | Low Voltage Issue With Module Supply (ECU) |
| 520204-03 | High Voltage Issue With Module Supply (ECU) |
| 520204-04 | Low Voltage Issue With Module Supply (ECU) |
| 520206-31 | Engine Module Internal Issue (ECU) |
| 520207-31 | There Is A Problem With The Fuel Rail Pressure When The Tractor Is In Limp Mode. (ECU) |
| 520208-31 | Fuel Rail Pressure Relief Valve (ECU) |
| 520209-31 | Problem With The Injector Timing (ECU) |
| 520210-12 | Problem With The Injector Timing (ECU) |
| 520211-31 | Engine Module Internal Issue (ECU) |
| 520212-31 | Engine Module Internal Issue (ECU) |
| 520213-31 | Engine Module Internal Issue (ECU) |
| 520214-31 | Engine Module Internal Issue (ECU) |
| 520215-31 | Engine Module Internal Issue (ECU) |
| 520216-31 | Engine Module Internal Issue (ECU) |
| 520217-31 | Engine Module Internal Issue (ECU) |
| 520218-31 | Engine Module Internal Issue (ECU) |
| 520219-31 | Engine Module Internal Issue (ECU) |
| 520220-31 | Engine Module Internal Issue (ECU) |
| 520221-31 | Engine Module Internal Issue (ECU) |
| 520222-31 | Engine Module Internal Issue (ECU) |
| 520224-31 | Engine Module Internal Issue (ECU) |
| 520225-31 | Engine Module Internal Issue (ECU) |
| 520226-31 | Engine Module Internal Issue (ECU) |
| 520227-31 | Engine Module Internal Issue (ECU) |
| 520228-12 | Engine Module Internal Issue (ECU) |
| 520229-13 | Engine Module Internal Issue (ECU) |
| 520229-31 | Fuel Rail Pressure Not Dropping As Expected (ECU) |
| 520230-31 | Engine Module Internal Issue (ECU) |
| 520231-31 | Engine Module Internal Issue (ECU) |
| 520232-31 | Engine Module Internal Issue (ECU) |
| 520233-31 | Fuel Rail Pressure Below Requested Pressure (ECU) / Engine Module Internal Issue (ECU) |
| 520234-31 | Engine Module Internal Issue (ECU) |
| 520235-31 | Engine Module Internal Issue (ECU) |
| 520236-31 | Engine Module Internal Issue (ECU) |
| 520240-31 | Injector Error (ECU) |
| 520241-31 | Injector Error (ECU) |
| 520242-31 | Injector Error (ECU) |
| 520243-31 | Fuel Rail Pressure Relief Valve (ECU) |
| 520244-31 | Fuel Rail Pressure Relief Valve (ECU) |
| 520245-31 | Fuel Rail Pressure Relief Valve (ECU) |
| 520246-31 | Fuel Rail Pressure Relief Valve (ECU) |
| 520247-31 | Engine Module Internal Issue (ECU) |
| 520247-31 | Engine Module Internal Issue (ECU) |
| 520248-31 | Engine Module Internal Issue (ECU) |
| 520249-31 | Engine Module Internal Issue (ECU) |
| 520250-31 | Engine Module Internal Issue (ECU) |
| 520251-31 | Engine Module Internal Issue (ECU) |
| 520260-31 | Engine Module Internal Issue (ECU) |
| 520261-31 | Engine Module Internal Issue (ECU) |
| 520262-31 | Engine Module Internal Issue (ECU) |
| 520263-31 | Engine Module Internal Issue (ECU) |
| 520264-31 | Engine Module Internal Issue (ECU) |
| 520293-31 | Engine Module Internal Issue (ECU) |
| 520295-31 | Engine Module Internal Issue (ECU) |
| 520296-31 | Fuel Rail Pressure High (ECU) |
| 520297-31 | Engine Module Internal Issue (ECU) / CAN BUS Fault (ECU) |
| 520298-31 | CAN BUS Fault (ECU) / Engine Module Internal Issue (ECU) |
| 520307-31 | Fuel Rail Pressure High (ECU) |
| 520309-31 | Fuel Rail Pressure High (ECU) |
| 520312-31 | Fuel Rail Pressure High (ECU) |
| 520317-31 | Fuel Rail Pressure Below Requested Pressure (ECU) |
MF Error Codes from 520318-31 to 06.01.50
| MF Error Code | Massey Ferguson Error Code Description |
|---|---|
| 520318-31 | There Is A Problem With The Fuel Rail Pressure When The Tractor Is In Limp Mode Or Active Derate. (ECU) |
| 520319-31 | There Is A Problem With The Fuel Rail Pressure When The Tractor Is In Limp Mode Or Active Derate. (ECU) |
| 520320-31 | There Is A Problem With The Fuel Rail Pressure When The Tractor Is In Limp Mode Or Active Derate. (ECU) |
| 520327-31 | Fuel Rail Pressure High (ECU) |
| 520336-31 | Fuel Rail Pressure High. Engine Safety Shutdown Active (ECU) |
| 520337-31 | Fuel Rail Pressure High. Engine Derate Active (ECU) |
| 520354-03 | Fuel Rail Pressure Control Valve High Voltage (ECU) |
| 520354-04 | Fuel Rail Pressure Control Valve Low Voltage (ECU) |
| 520356-03 | Fuel Rail Pressure Control Valve High Voltage (ECU) |
| 520356-04 | Fuel Rail Pressure Control Valve Low Voltage (ECU) |
| 520358-31 | Fuel Rail Pressure Control Valve Engine Module Internal Driver Issue (ECU) |
| 520359-03 | Fuel Rail Pressure Control Valve Issue (ECU) |
| 520382-02 | Issue With The Air Intake Mass Air Flow Sensor (ECU) |
| 520382-14 | Issue With The Air Intake Mass Air Flow Sensor (ECU) |
| 520383-14 | Issue With The Air Intake Mass Air Flow Sensor (ECU) |
| 520384-14 | Issue With The Air Intake Mass Air Flow Sensor (ECU) |
| 520384-16 | Issue With The Air Intake Mass Air Flow Sensor (ECU) |
| 520389-31 | Issue With The Air Intake Mass Air Flow Sensor (ECU) |
| 520390-31 | Issue With The Air Intake Mass Air Flow Sensor (ECU) |
| 520391-31 | Issue With The Air Intake Mass Air Flow Sensor (ECU) |
| 521000-02 | DEF Pump Control Issue (ECU) |
| 521000-08 | DEF Pump Control Issue (ECU) |
| 521001-03 | High Voltage Issue With DEF Heater Relay Latching Supply Voltage (ECU) |
| 521001-04 | DEF Module Heater Resistance Is Low (ECU) / Low Voltage Issue With DEF Heater Relay Latching Supply Voltage (ECU) |
| 521001-05 | DEF Module Heater Resistance Is High (ECU) |
| 521001-14 | DEF Module Heater High Voltage (ECU) |
| 521002-03 | The DEF Reverse Flow Solenoid Valve High Voltage (ECU) |
| 521002-04 | The DEF Reverse Flow Solenoid Valve Low Voltage (ECU) |
| 521002-05 | The DEF Reverse Flow Solenoid Valve Low Amps |
| 521002-31 | SCR Heating Issue SCR System Shutdown (ECU) |
| 521003-03 | DEF Module Heater Resistance Is Low (ECU) / High Voltage Issue With DEF Heater Relay Latching Supply Voltage (ECU) |
| 521003-04 | DEF Module Heater Resistance Is Low (ECU) / Low Voltage Issue With DEF Heater Relay Latching Supply Voltage (ECU) |
| 521004-02 | NOx Sensor Top Of Exhaust Signal Issue. (ECU) |
| 521004-11 | NOx Sensor Top Of Exhaust Signal Issue. (ECU) |
| 521004-12 | NOx Sensor Top Of Exhaust Signal Issue. (ECU) |
| 521005-02 | NOx Sensor Before DOC Signal Issue. (ECU) |
| 521005-11 | NOx Sensor Before DOC Signal Issue. (ECU) |
| 521005-12 | NOx Sensor Before DOC Signal Issue. (ECU) |
| 521006-12 | SCR NOx Levels Too High (ECU) |
| 521007-10 | DEF Pressure Issue (ECU) |
| 521007-14 | DEF Pressure Issue (ECU) |
| 521007-31 | DEF Pressure Issue (ECU) |
| 521008-00 | DEF Pressure Issue (ECU) |
| 521008-01 | DEF Pressure Issue (ECU) |
| 521010-03 | The DEF Tank Heater Solenoid Valve High Voltage (ECU) |
| 521010-04 | The DEF Tank Heater Solenoid Valve High Amps |
| 521010-05 | The DEF Tank Heater Solenoid Valve Low Amps |
| 521010-06 | The DEF Tank Heater Solenoid Valve High Amps |
| 521010-14 | The DEF Tank Heater Solenoid Valve High Voltage (ECU) |
| 521012-31 | NOx Sensor Outlet SCR Signal Issue. (ECU) |
| 521013-31 | NOx Sensor Outlet SCR Signal Issue. (ECU) |
| 521016-31 | NOx Sensor Before DOC Signal Issue. (ECU) |
| 521017-31 | NOx Sensor Before DOC Signal Issue. (ECU) |
| 521018-31 | SCR NOx Levels Too High (ECU) |
| 521019-31 | SCR NOx Levels Too High (ECU) |
| 521020-31 | SCR NOx Levels Too High (ECU) |

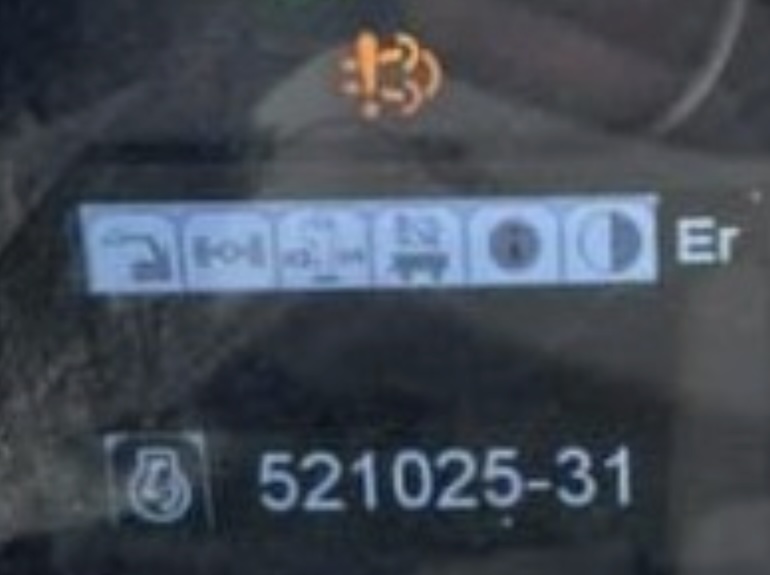

| 521025-31 | SCR NOx Levels Too High (ECU) |
| 521026-31 | SCR NOx Levels Too High (ECU) |
| 06.0.04 | Issue With PTO Solenoid Circuit (Hitch) |
| 06.0.06 | Issue With PTO Solenoid Circuit (Hitch) |
| 06.0.07 | Issue With PTO Solenoid Circuit (Hitch) |
| 06.0.08 | The Engine RPM Has Dropped Too Much When The PTO Was Engauged. (HITCH) |
| 06.0.09 | Issue With PTO Circuit (Hitch) |
| 06.0.1E | Issue With PTO Circuit (Hitch) |
| 06.0.4B | Issue With PTO Slipping (Hitch) |
| 06.0.4C | Issue With PTO Over Speed Compared To Engine Speed. (HITCH) |
| 06.0.4D | Issue With PTO Stub Shaft 540/1000 (HITCH) |
| 06.0.4E | Issue With PTO Stub Shaft 1000 (HITCH) |
| 06.0.E2 | Issue With PTO Speed Too Fast In ECO (Hitch) |
| 06.0.E2 | Issue With PTO Speed Too Fast In ECO (Hitch) |
| 06.00.01 | Rear PTO Switch Signal Issue Dyna VT (TRANS1) |
| 06.00.02 | Issue With Signal From Right External Rear PTO On/Off Button Dyna VT (TRANS1) |
| 06.00.03 | Issue With Signal From External Left PTO On/Off Button Dyna VT (TRANS1) |
| 06.00.04 | Issue With Rear PTO On/Off Solenoid Power Supply Dyna VT / Dyna 6 (TRANS1) / Issue With PTO Solenoid Circuit (Hitch) |
| 06.00.05 | Issue With Rear PTO Clutch Speed Sensor Signal Dyna VT (TRANS1) |
| 06.00.06 | Issue With PTO Solenoid Circuit (Hitch) / Issue With Rear PTO On/Off Solenoid Power Supply Dyna 6 (TRANS1) |
| 06.00.07 | Issue With Rear PTO On/Off Solenoid Power Supply Dyna 6 (TRANS1) / Issue With PTO Solenoid Circuit (Hitch) |
| 06.00.08 | Engine Speed Dropped Too Much During PTO Engagement. Anti Stall Function Dyna 6 (TRANS1) / The Engine RPM Has Dropped Too Much When The PTO Was Engauged. (HITCH) |
| 06.00.09 | PTO Switch Is On But The PTO Is Not Turning Dyna 6 (TRANS1) / Issue With PTO Circuit (Hitch) |
| 06.00.10 | Issue With Rear PTO Shaft Output Speed Sensor Signal Dyna VT (TRANS1) |
| 06.00.11 | Issue With Signal From Auto PTO Button Dyna VT (TRANS1) |
| 06.00.12 | Issue With Signal From PTO Neutral Button Dyna VT (TRANS1) |
| 06.00.13 | Issue With Signal From PTO 540 Button Dyna VT (TRANS1) |
| 06.00.17 | Issue With Signal From PTO 540 ECO Button Dyna VT (TRANS1) |
| 06.00.18 | Issue With Signal From PTO 1000 Button Dyna VT (TRANS1) |
| 06.00.19 | Issue With Signal From PTO 1000 ECO Button Dyna VT (TRANS1) |
| 06.00.1A | Issue With Voltage To PTO Standard Speed Solenoid Dyna VT (TRANS1) |
| 06.00.1B | Issue With Voltage To PTO ECO Speed Solenoid Dyna VT (TRANS1) |
| 06.00.1C | Issue With Voltage To 540 PTO Speed Solenoid Dyna VT (TRANS1) |
| 06.00.1D | Issue With Voltage To 1000 PTO Speed Solenoid Dyna VT (TRANS1) |
| 06.00.1E | Issue With PTO Circuit (Hitch) |
| 06.00.41 | Rear PTO Switch Signal Issue Dyna VT (TRANS1) |
| 06.00.43 | Issue With Signal From External PTO On/Off Button Dyna VT (TRANS1) |
| 06.00.45 | Issue With Values Received From Rear PTO Speed Sensors Dyna VT (TRANS1) |
| 06.00.49 | There Is A Speed Reading from The PTO Speed Sensor That Does Not Match The Speed Selected Switch Dyna 6 (TRANS2) |
| 06.00.4A | There Is A Speed Reading from The PTO Speed Sensor That Does Not Match The Speed Selected Switch Dyna 6 (TRANS2) |
| 06.00.4B | Issue With PTO Slipping (Hitch) |
| 06.00.4C | Issue With PTO Over Speed Compared To Engine Speed. (HITCH) |
| 06.00.4D | Issue With PTO Stub Shaft 540/1000 (HITCH) |
| 06.00.4E | Issue With PTO Stub Shaft 1000 (HITCH) |
| 06.00.50 | Issue With Values Received From Rear PTO Speed Sensors Dyna VT (TRANS1) |
| 06.00.55 | Issue With Signal From PTO Neutral Button Dyna VT (TRANS1) |
| 06.00.60 | Issue With Signal Values From PTO Clutch Speed Sensor And PTO Output Speed Sensor DYNA VT (TRANS1) |
| 06.00.A1 | Issue With Message On The CAN BUS From PTO Switch DYNA VT (TRANS1) |
| 06.00.B0 | Issue With Message On The CAN BUS From PTO Switch DYNA VT (TRANS1) |
| 06.00.B5 | Issue With CAN BUS From PTO Neutral Button Dyna VT (TRANS1) |
| 06.00.B6 | Issue With CAN BUS From PTO 540 Button Dyna VT (TRANS1) |
| 06.00.B7 | Issue With CAN BUS From PTO 540 ECO Button Dyna VT (TRANS1) |
| 06.00.B8 | Issue With CAN BUS From PTO 1000 Button Dyna VT (TRANS1) |
| 06.00.B9 | Issue With CAN BUS From PTO 1000 ECO Button Dyna VT (TRANS1) |
| 06.00.E0 | Transmission Internal Software Issue (TRANS) |
| 06.00.E1 | Transmission Internal Software Issue (TRANS) |
| 06.00.E2 | Issue With Rear PTO On/Off Solenoid Power Supply Dyna VT (TRANS1) / Engine Speed Too High For Eco PTO Speed Mode Dyna 6 (TRANS2) |
| 06.00.E3 | Issue With Rear PTO On/Off Solenoid Power Supply Dyna VT (TRANS1) |
| 06.00.E4 | Issue With Rear PTO On/Off Solenoid Power Supply Dyna VT (TRANS1) |
| 06.00.E5 | Issue With Values Received From Rear PTO Speed Sensors Dyna VT (TRANS1) |
| 06.00.E6 | Issue With Values Received From Rear PTO Speed Sensors Dyna VT (TRANS1) |
| 06.00.E7 | Issue With Rear PTO On/Off Solenoid Power Supply Dyna VT (TRANS1) / Transmission Module 1 Software Issue Detected For Rear PTO Circuit Dyna 6 (TRANS1) |
| 06.00.E8 | Issue With Rear PTO On/Off Solenoid Power Supply Dyna VT (TRANS1) |
| 06.01.01 | Rear PTO Switch Signal Issue Dyna VT (TRANS1) |
| 06.01.02 | Issue With Signal From Right External Rear PTO On/Off Button Dyna VT (TRANS1) |
| 06.01.03 | Issue With Signal From External Left PTO On/Off Button Dyna VT (TRANS1) |
| 06.01.04 | Issue With PTO Solenoid Circuit (Hitch) / Issue With Rear PTO On/Off Solenoid Power Supply Dyna VT / Dyna 6 (TRANS1) |
| 06.01.05 | Issue With Rear PTO Clutch Speed Sensor Signal Dyna VT (TRANS1) |
| 06.01.06 | Issue With PTO Solenoid Circuit (Hitch) / Issue With Rear PTO On/Off Solenoid Power Supply Dyna 6 (TRANS1) |
| 06.01.07 | Issue With Rear PTO On/Off Solenoid Power Supply Dyna 6 (TRANS1) / Issue With PTO Solenoid Circuit (Hitch) |
| 06.01.08 | Engine Speed Dropped Too Much During PTO Engagement. Anti Stall Function Dyna 6 (TRANS1) / The Engine RPM Has Dropped Too Much When The PTO Was Engauged. (HITCH) |
| 06.01.09 | Issue With PTO Circuit (Hitch) / PTO Switch Is On But The PTO Is Not Turning Dyna 6 (TRANS1) |
| 06.01.10 | Issue With Rear PTO Shaft Output Speed Sensor Signal Dyna VT (TRANS1) |
| 06.01.11 | Issue With Signal From Auto PTO Button Dyna VT (TRANS1) |
| 06.01.12 | Issue With Signal From PTO Neutral Button Dyna VT (TRANS1) |
| 06.01.13 | Issue With Signal From PTO 540 Button Dyna VT (TRANS1) |
| 06.01.17 | Issue With Signal From PTO 540 ECO Button Dyna VT (TRANS1) |
| 06.01.18 | Issue With Signal From PTO 1000 Button Dyna VT (TRANS1) |
| 06.01.19 | Issue With Signal From PTO 1000 ECO Button Dyna VT (TRANS1) |

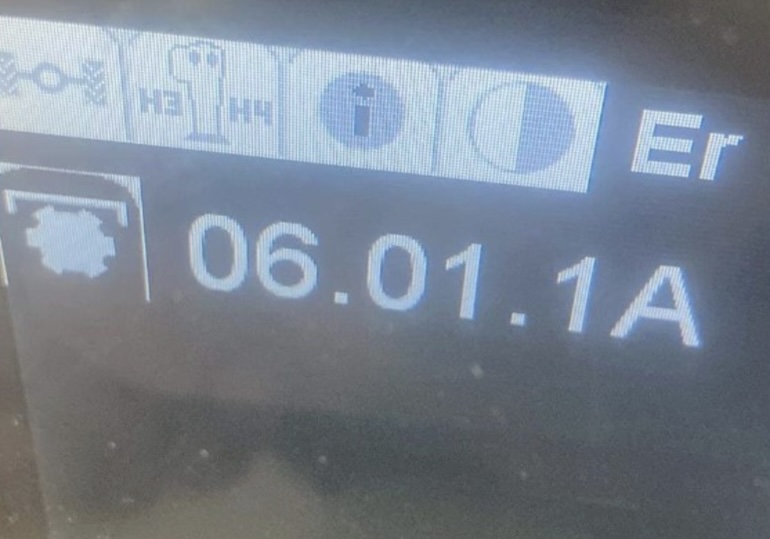

| 06.01.1A | Issue With Voltage To PTO Standard Speed Solenoid Dyna VT (TRANS1) |
| 06.01.1B | Issue With Voltage To PTO ECO Speed Solenoid Dyna VT (TRANS1) |
| 06.01.1C | Issue With Voltage To 540 PTO Speed Solenoid Dyna VT (TRANS1) |
| 06.01.1D | Issue With Voltage To 1000 PTO Speed Solenoid Dyna VT (TRANS1) |
| 06.01.1E | Issue With PTO Circuit (Hitch) |
| 06.01.41 | Rear PTO Switch Signal Issue Dyna VT (TRANS1) |
| 06.01.43 | Issue With Signal From External PTO On/Off Button Dyna VT (TRANS1) |
| 06.01.45 | Issue With Values Received From Rear PTO Speed Sensors Dyna VT (TRANS1) |
| 06.01.49 | There Is A Speed Reading from The PTO Speed Sensor That Does Not Match The Speed Selected Switch Dyna 6 (TRANS2) |
| 06.01.4A | There Is A Speed Reading from The PTO Speed Sensor That Does Not Match The Speed Selected Switch Dyna 6 (TRANS2) |
| 06.01.4B | Issue With PTO Slipping (Hitch) |
| 06.01.4C | Issue With PTO Over Speed Compared To Engine Speed. (HITCH) |
| 06.01.4D | Issue With PTO Stub Shaft 540/1000 (HITCH) |
| 06.01.4E | Issue With PTO Stub Shaft 1000 (HITCH) |
| 06.01.50 | Issue With Values Received From Rear PTO Speed Sensors Dyna VT (TRANS1) |
MF Error Codes from 06.01.55 to 06.X.1A
| MF Error Code | Massey Ferguson Error Code Description |
|---|---|
| 06.01.55 | Issue With Signal From PTO Neutral Button Dyna VT (TRANS1) |
| 06.01.60 | Issue With Signal Values From PTO Clutch Speed Sensor And PTO Output Speed Sensor DYNA VT (TRANS1) |
| 06.01.A1 | Issue With Message On The CAN BUS From PTO Switch DYNA VT (TRANS1) |
| 06.01.B0 | Issue With Message On The CAN BUS From PTO Switch DYNA VT (TRANS1) |
| 06.01.B5 | Issue With CAN BUS From PTO Neutral Button Dyna VT (TRANS1) |
| 06.01.B6 | Issue With CAN BUS From PTO 540 Button Dyna VT (TRANS1) |
| 06.01.B7 | Issue With CAN BUS From PTO 540 ECO Button Dyna VT (TRANS1) |
| 06.01.B8 | Issue With CAN BUS From PTO 1000 Button Dyna VT (TRANS1) |
| 06.01.B9 | Issue With CAN BUS From PTO 1000 ECO Button Dyna VT (TRANS1) |
| 06.01.E0 | Transmission Internal Software Issue (TRANS) |
| 06.01.E1 | Transmission Internal Software Issue (TRANS) |
| 06.01.E2 | Issue With Rear PTO On/Off Solenoid Power Supply Dyna VT (TRANS1) / Engine Speed Too High For Eco PTO Speed Mode Dyna 6 (TRANS2) / Issue With PTO Speed Too Fast In ECO (Hitch) |
| 06.01.E3 | Issue With Rear PTO On/Off Solenoid Power Supply Dyna VT (TRANS1) |
| 06.01.E4 | Issue With Rear PTO On/Off Solenoid Power Supply Dyna VT (TRANS1) |
| 06.01.E5 | Issue With Values Received From Rear PTO Speed Sensors Dyna VT (TRANS1) |
| 06.01.E6 | Issue With Values Received From Rear PTO Speed Sensors Dyna VT (TRANS1) |
| 06.01.E7 | Issue With Rear PTO On/Off Solenoid Power Supply Dyna VT (TRANS1) / Transmission Module 1 Software Issue Detected For Rear PTO Circuit Dyna 6 (TRANS1) |
| 06.01.E8 | Issue With Rear PTO On/Off Solenoid Power Supply Dyna VT (TRANS1) |
| 06.02.01 | Rear PTO Switch Signal Issue Dyna VT (TRANS1) |
| 06.02.02 | Issue With Signal From Right External Rear PTO On/Off Button Dyna VT (TRANS1) |
| 06.02.03 | Issue With Signal From External Left PTO On/Off Button Dyna VT (TRANS1) |
| 06.02.04 | Issue With PTO Solenoid Circuit (Hitch) / Issue With Rear PTO On/Off Solenoid Power Supply Dyna VT / Dyna 6 (TRANS1) |
| 06.02.05 | Issue With Rear PTO Clutch Speed Sensor Signal Dyna VT (TRANS1) |
| 06.02.06 | Issue With PTO Solenoid Circuit (Hitch) / Issue With Rear PTO On/Off Solenoid Power Supply Dyna 6 (TRANS1) |
| 06.02.07 | Issue With Rear PTO On/Off Solenoid Power Supply Dyna 6 (TRANS1) / Issue With PTO Solenoid Circuit (Hitch) |
| 06.02.08 | The Engine RPM Has Dropped Too Much When The PTO Was Engauged. (HITCH) / Engine Speed Dropped Too Much During PTO Engagement. Anti Stall Function Dyna 6 (TRANS1) |
| 06.02.09 | PTO Switch Is On But The PTO Is Not Turning Dyna 6 (TRANS1) / Issue With PTO Circuit (Hitch) |
| 06.02.10 | Issue With Rear PTO Shaft Output Speed Sensor Signal Dyna VT (TRANS1) |
| 06.02.11 | Issue With Signal From Auto PTO Button Dyna VT (TRANS1) |
| 06.02.12 | Issue With Signal From PTO Neutral Button Dyna VT (TRANS1) |
| 06.02.13 | Issue With Signal From PTO 540 Button Dyna VT (TRANS1) |
| 06.02.17 | Issue With Signal From PTO 540 ECO Button Dyna VT (TRANS1) |
| 06.02.18 | Issue With Signal From PTO 1000 Button Dyna VT (TRANS1) |
| 06.02.19 | Issue With Signal From PTO 1000 ECO Button Dyna VT (TRANS1) |
| 06.02.1A | Issue With Voltage To PTO Standard Speed Solenoid Dyna VT (TRANS1) |
| 06.02.1B | Issue With Voltage To PTO ECO Speed Solenoid Dyna VT (TRANS1) |
| 06.02.1C | Issue With Voltage To 540 PTO Speed Solenoid Dyna VT (TRANS1) |
| 06.02.1D | Issue With Voltage To 1000 PTO Speed Solenoid Dyna VT (TRANS1) |
| 06.02.1E | Issue With PTO Circuit (Hitch) |
| 06.02.41 | Rear PTO Switch Signal Issue Dyna VT (TRANS1) |
| 06.02.43 | Issue With Signal From External PTO On/Off Button Dyna VT (TRANS1) |
| 06.02.45 | Issue With Values Received From Rear PTO Speed Sensors Dyna VT (TRANS1) |
| 06.02.49 | There Is A Speed Reading from The PTO Speed Sensor That Does Not Match The Speed Selected Switch Dyna 6 (TRANS2) |
| 06.02.4A | There Is A Speed Reading from The PTO Speed Sensor That Does Not Match The Speed Selected Switch Dyna 6 (TRANS2) |
| 06.02.4B | Issue With PTO Slipping (Hitch) |
| 06.02.4C | Issue With PTO Over Speed Compared To Engine Speed. (HITCH) |
| 06.02.4D | Issue With PTO Stub Shaft 540/1000 (HITCH) |
| 06.02.4E | Issue With PTO Stub Shaft 1000 (HITCH) |
| 06.02.50 | Issue With Values Received From Rear PTO Speed Sensors Dyna VT (TRANS1) |
| 06.02.55 | Issue With Signal From PTO Neutral Button Dyna VT (TRANS1) |
| 06.02.60 | Issue With Signal Values From PTO Clutch Speed Sensor And PTO Output Speed Sensor DYNA VT (TRANS1) |
| 06.02.A1 | Issue With Message On The CAN BUS From PTO Switch DYNA VT (TRANS1) |
| 06.02.B0 | Issue With Message On The CAN BUS From PTO Switch DYNA VT (TRANS1) |
| 06.02.B5 | Issue With CAN BUS From PTO Neutral Button Dyna VT (TRANS1) |
| 06.02.B6 | Issue With CAN BUS From PTO 540 Button Dyna VT (TRANS1) |
| 06.02.B7 | Issue With CAN BUS From PTO 540 ECO Button Dyna VT (TRANS1) |
| 06.02.B8 | Issue With CAN BUS From PTO 1000 Button Dyna VT (TRANS1) |
| 06.02.B9 | Issue With CAN BUS From PTO 1000 ECO Button Dyna VT (TRANS1) |
| 06.02.E0 | Transmission Internal Software Issue (TRANS) |
| 06.02.E1 | Transmission Internal Software Issue (TRANS) |
| 06.02.E2 | Issue With Rear PTO On/Off Solenoid Power Supply Dyna VT (TRANS1) / Engine Speed Too High For Eco PTO Speed Mode Dyna 6 (TRANS2) / Issue With PTO Speed Too Fast In ECO (Hitch) |
| 06.02.E3 | Issue With Rear PTO On/Off Solenoid Power Supply Dyna VT (TRANS1) |
| 06.02.E4 | Issue With Rear PTO On/Off Solenoid Power Supply Dyna VT (TRANS1) |
| 06.02.E5 | Issue With Values Received From Rear PTO Speed Sensors Dyna VT (TRANS1) |
| 06.02.E6 | Issue With Values Received From Rear PTO Speed Sensors Dyna VT (TRANS1) |
| 06.02.E7 | Issue With Rear PTO On/Off Solenoid Power Supply Dyna VT (TRANS1) / Transmission Module 1 Software Issue Detected For Rear PTO Circuit Dyna 6 (TRANS1) |
| 06.02.E8 | Issue With Rear PTO On/Off Solenoid Power Supply Dyna VT (TRANS1) |
| 06.03.01 | Rear PTO Switch Signal Issue Dyna VT (TRANS1) |
| 06.03.02 | Issue With Signal From Right External Rear PTO On/Off Button Dyna VT (TRANS1) |
| 06.03.03 | Issue With Signal From External Left PTO On/Off Button Dyna VT (TRANS1) |
| 06.03.04 | Issue With Rear PTO On/Off Solenoid Power Supply Dyna VT / Dyna 6 (TRANS1) |
| 06.03.05 | Issue With Rear PTO Clutch Speed Sensor Signal Dyna VT (TRANS1) |
| 06.03.06 | Issue With Rear PTO On/Off Solenoid Power Supply Dyna 6 (TRANS1) |
| 06.03.07 | Issue With Rear PTO On/Off Solenoid Power Supply Dyna 6 (TRANS1) |
| 06.03.08 | Engine Speed Dropped Too Much During PTO Engagement. Anti Stall Function Dyna 6 (TRANS1) |
| 06.03.09 | PTO Switch Is On But The PTO Is Not Turning Dyna 6 (TRANS1) |
| 06.03.10 | Issue With Rear PTO Shaft Output Speed Sensor Signal Dyna VT (TRANS1) |
| 06.03.11 | Issue With Signal From Auto PTO Button Dyna VT (TRANS1) |
| 06.03.12 | Issue With Signal From PTO Neutral Button Dyna VT (TRANS1) |
| 06.03.13 | Issue With Signal From PTO 540 Button Dyna VT (TRANS1) |
| 06.03.17 | Issue With Signal From PTO 540 ECO Button Dyna VT (TRANS1) |
| 06.03.18 | Issue With Signal From PTO 1000 Button Dyna VT (TRANS1) |
| 06.03.19 | Issue With Signal From PTO 1000 ECO Button Dyna VT (TRANS1) |
| 06.03.1A | Issue With Voltage To PTO Standard Speed Solenoid Dyna VT (TRANS1) |
| 06.03.1B | Issue With Voltage To PTO ECO Speed Solenoid Dyna VT (TRANS1) |
| 06.03.1C | Issue With Voltage To 540 PTO Speed Solenoid Dyna VT (TRANS1) |
| 06.03.1D | Issue With Voltage To 1000 PTO Speed Solenoid Dyna VT (TRANS1) |
| 06.03.41 | Rear PTO Switch Signal Issue Dyna VT (TRANS1) |
| 06.03.43 | Issue With Signal From External PTO On/Off Button Dyna VT (TRANS1) |
| 06.03.45 | Issue With Values Received From Rear PTO Speed Sensors Dyna VT (TRANS1) |
| 06.03.49 | There Is A Speed Reading from The PTO Speed Sensor That Does Not Match The Speed Selected Switch Dyna 6 (TRANS2) |
| 06.03.4A | There Is A Speed Reading from The PTO Speed Sensor That Does Not Match The Speed Selected Switch Dyna 6 (TRANS2) |
| 06.03.50 | Issue With Values Received From Rear PTO Speed Sensors Dyna VT (TRANS1) |
| 06.03.55 | Issue With Signal From PTO Neutral Button Dyna VT (TRANS1) |
| 06.03.60 | Issue With Signal Values From PTO Clutch Speed Sensor And PTO Output Speed Sensor DYNA VT (TRANS1) |
| 06.03.A1 | Issue With Message On The CAN BUS From PTO Switch DYNA VT (TRANS1) |
| 06.03.B0 | Issue With Message On The CAN BUS From PTO Switch DYNA VT (TRANS1) |
| 06.03.B5 | Issue With CAN BUS From PTO Neutral Button Dyna VT (TRANS1) |
| 06.03.B6 | Issue With CAN BUS From PTO 540 Button Dyna VT (TRANS1) |
| 06.03.B7 | Issue With CAN BUS From PTO 540 ECO Button Dyna VT (TRANS1) |
| 06.03.B8 | Issue With CAN BUS From PTO 1000 Button Dyna VT (TRANS1) |
| 06.03.B9 | Issue With CAN BUS From PTO 1000 ECO Button Dyna VT (TRANS1) |
| 06.03.E0 | Transmission Internal Software Issue (TRANS) |
| 06.03.E1 | Transmission Internal Software Issue (TRANS) |
| 06.03.E2 | Issue With Rear PTO On/Off Solenoid Power Supply Dyna VT (TRANS1) / Engine Speed Too High For Eco PTO Speed Mode Dyna 6 (TRANS2) |
| 06.03.E3 | Issue With Rear PTO On/Off Solenoid Power Supply Dyna VT (TRANS1) |
| 06.03.E4 | Issue With Rear PTO On/Off Solenoid Power Supply Dyna VT (TRANS1) |
| 06.03.E5 | Issue With Values Received From Rear PTO Speed Sensors Dyna VT (TRANS1) |
| 06.03.E6 | Issue With Values Received From Rear PTO Speed Sensors Dyna VT (TRANS1) |
| 06.03.E7 | Issue With Rear PTO On/Off Solenoid Power Supply Dyna VT (TRANS1) / Transmission Module 1 Software Issue Detected For Rear PTO Circuit Dyna 6 (TRANS1) |
| 06.03.E8 | Issue With Rear PTO On/Off Solenoid Power Supply Dyna VT (TRANS1) |
| 06.1.04 | Issue With PTO Solenoid Circuit (Hitch) |
| 06.1.06 | Issue With PTO Solenoid Circuit (Hitch) |
| 06.1.07 | Issue With PTO Solenoid Circuit (Hitch) |
| 06.1.08 | The Engine RPM Has Dropped Too Much When The PTO Was Engauged. (HITCH) |
| 06.1.09 | Issue With PTO Circuit (Hitch) |
| 06.1.1E | Issue With PTO Circuit (Hitch) |
| 06.1.4B | Issue With PTO Slipping (Hitch) |
| 06.1.4C | Issue With PTO Over Speed Compared To Engine Speed. (HITCH) |
| 06.1.4D | Issue With PTO Stub Shaft 540/1000 (HITCH) |
| 06.1.4E | Issue With PTO Stub Shaft 1000 (HITCH) |
| 06.1.E2 | Issue With PTO Speed Too Fast In ECO (Hitch) |
| 06.2.04 | Issue With PTO Solenoid Circuit (Hitch) |
| 06.2.06 | Issue With PTO Solenoid Circuit (Hitch) |
| 06.2.07 | Issue With PTO Solenoid Circuit (Hitch) |
| 06.2.08 | The Engine RPM Has Dropped Too Much When The PTO Was Engauged. (HITCH) |
| 06.2.09 | Issue With PTO Circuit (Hitch) |
| 06.2.1E | Issue With PTO Circuit (Hitch) |
| 06.2.4B | Issue With PTO Slipping (Hitch) |
| 06.2.4C | Issue With PTO Over Speed Compared To Engine Speed. (HITCH) |
| 06.2.4D | Issue With PTO Stub Shaft 540/1000 (HITCH) |
| 06.2.4E | Issue With PTO Stub Shaft 1000 (HITCH) |
| 06.2.4E | Issue With PTO Stub Shaft 1000 (HITCH) |
| 06.2.E2 | Issue With PTO Speed Too Fast In ECO (Hitch) |
| 06.X.01 | Rear PTO Switch Signal Issue Dyna VT (TRANS1) |
| 06.X.02 | Issue With Signal From Right External Rear PTO On/Off Button Dyna VT (TRANS1) |
| 06.X.03 | Issue With Signal From External Left PTO On/Off Button Dyna VT (TRANS1) |
| 06.X.04 | Issue With PTO Solenoid Circuit (Hitch) / Issue With Rear PTO On/Off Solenoid Power Supply Dyna VT / Dyna 6 (TRANS1) |
| 06.X.05 | Issue With Rear PTO Clutch Speed Sensor Signal Dyna VT / Dyna 6 (TRANS1) / Issue With PTO Solenoid Circuit (Hitch) |
| 06.X.07 | Issue With PTO Solenoid Circuit (Hitch) / Issue With Rear PTO On/Off Solenoid Power Supply Dyna 6 (TRANS1) |
| 06.X.08 | The Engine RPM Has Dropped Too Much When The PTO Was Engauged. (HITCH) / Engine Speed Dropped Too Much During PTO Engagement. Anti Stall Function Dyna 6 (TRANS1) |
| 06.X.09 | Issue With PTO Circuit (Hitch) / PTO Switch Is On But The PTO Is Not Turning Dyna 6 (TRANS1) |
| 06.X.10 | Issue With Rear PTO Shaft Output Speed Sensor Signal Dyna VT (TRANS1) |
| 06.X.11 | Issue With Signal From Auto PTO Button Dyna VT (TRANS1) |
| 06.X.12 | Issue With Signal From PTO Neutral Button Dyna VT (TRANS1) |
| 06.X.13 | Issue With Signal From PTO 540 Button Dyna VT (TRANS1) |
| 06.X.17 | Issue With Signal From PTO 540 ECO Button Dyna VT (TRANS1) |
| 06.X.18 | Issue With Signal From PTO 1000 Button Dyna VT (TRANS1) |
| 06.X.19 | Issue With Signal From PTO 1000 ECO Button Dyna VT (TRANS1) |
| 06.X.1A | Issue With Voltage To PTO Standard Speed Solenoid Dyna VT (TRANS1) |
Understanding Massey Ferguson DTC codes is essential for maintenance personnel, as it enables them to diagnose problems accurately, perform timely repairs, and ensure optimal performance and reliability of Massey Ferguson equipment (4707, 4708, 4709, 4710 – T4 2015-2021; 5608, 5609, 5610, 5611, 5612, 5613; 5710SL, 5711SL, 5712SL, 5713SL – T4 2017-2023; 7614, 7615, 7616, 7618, 7619, 7620, 7622, 7624, 7626 Tier 4 2012-2015; 7714, 7715, 7715S, 7716, 7716S, 7718, 7718S, 7719, 7720, 7720S, 7722, 7722S, 7724, 7724S, 7726, 7726S – Tier 4 2015-2021).
How to Clear DTC Codes for Massey Ferguson Tractors?
Yes, it is possible to clear Diagnostic Trouble Codes (DTCs) for Massey Ferguson tractors using diagnostic tools and software designed for this purpose. Here’s a general overview of how to clear DTCs:
- Diagnostic Tool: Obtain a diagnostic tool or interface device that is compatible with Massey Ferguson tractors and capable of communicating with the tractor’s onboard diagnostic system.
- Connect to Diagnostic Port: Locate the diagnostic port on the tractor, usually located near the driver’s seat or under the dashboard. Connect the diagnostic tool to this port using the appropriate cable or adapter.
- Access Diagnostic Menu: Use the diagnostic tool to access the diagnostic menu or settings related to DTCs. Depending on the software and tool used, this menu may offer options to clear or reset DTCs.
- Clear DTCs: Within the diagnostic menu, look for an option to clear or reset DTCs. Follow the prompts provided by the diagnostic tool to initiate the clearing process.
- Confirmation: Once the clearing process is complete, the diagnostic tool should provide confirmation that the DTCs have been successfully cleared. It’s essential to ensure that all DTCs have been cleared before disconnecting the diagnostic tool.
- Verification: After clearing the DTCs, it’s a good practice to verify that they have been successfully cleared. Re-scan the tractor’s onboard diagnostic system using the diagnostic tool to confirm that no DTCs are present.
It’s important to note that clearing DTCs should only be done after addressing the underlying issues that triggered the fault codes. Clearing DTCs without addressing the root cause of the problem may result in recurring issues or unresolved faults.
MF Error Codes Part I ➡️ (E / AC / AR / C / D / FA / L / P / R / T / U)
MF Error Codes Part II ➡️ (00.0.30 – 10.X.26)
MF Error Codes Part III ➡️ (10.X.27 – 04.02.E5)
MF Error Codes Part V ➡️ (06.X.1B – 0B.X.24)
Additionally, any modifications made to the tractor’s diagnostic settings should be documented for future reference and troubleshooting.
