This page provides a list of Massey Ferguson DTCs numbered 00.0.30 through 10.X.26, which includes a number of diagnostic trouble codes specific to Massey Ferguson tractors and agricultural equipment. These codes are necessary to identify and resolve potential hardware problems, ensuring optimal performance and reliability.
From engine faults to hydraulic system anomalies, each code provides valuable information about the condition and operation of the equipment.
Massey Ferguson DTC Fault Codes List
This list serves as a vital reference for technicians and operators, offering detailed descriptions and troubleshooting guidance for efficiently diagnosing and resolving Massey Ferguson tractor faults (4707, 4708, 4709, 4710 – T4 2015-2021; 5608, 5609, 5610, 5611, 5612, 5613; 5710SL, 5711SL, 5712SL, 5713SL – T4 2017-2023; 7614, 7615, 7616, 7618, 7619, 7620, 7622, 7624, 7626 Tier 4 2012-2015; 7714, 7715, 7715S, 7716, 7716S, 7718, 7718S, 7719, 7720, 7720S, 7722, 7722S, 7724, 7724S, 7726, 7726S – Tier 4 2015-2021).
MF Error Codes from 0.0.30 to 0.03.31
| MF Error Code | Error Code Description |
|---|---|
| 00.0.30 | Issue With Alternator Charging Voltage (Dash) |
| 00.0.31 | Issue With Signal Voltage From Fuel Level Sensor Voltage (Dash) |
| 00.0.32 | Issue With Battery Voltage To Dash (Dash) |
| 00.0.33 | Issue With Signal Voltage From Clutch Pedal Sensor, Calibration Missing (Dash) |
| 00.0.34 | Issue With Signal Voltage From Foot Throttle Sensor (Dash) |
| 00.0.35 | Issue With The Signal Voltage From Forward/Reverse Lever (Dash) |
| 00.0.36 | Issue With Signal Voltage From Gear Shift Lever, T Handle, Non Arm Rest Type (Dash) |
| 00.0.37 | Issue With Signal Voltage From Clutch Pedal Sensor (Dash) |
| 00.0.38 | Signal Voltage From Engine Speed Sensor Issue Dyna 4, Dyna 6 (Dash) |
| 00.0.39 | Issue With Signal Voltage From Clutch Pedal Sensor, High Voltage (Dash) |
| 00.0.3A | Issue With Signal Voltage From Clutch Pedal Sensor, High Voltage (Dash) |
| 00.0.3B | Issue With The Signal Voltage From Forward/Reverse Lever Signal Voltage High (Dash) |
| 00.0.3C | Issue With The Signal Voltage From Forward/Reverse Lever Signal Voltage Low (Dash) |
| 00.0.3D | Issue With The Signal Voltage From Forward/Reverse Lever Signal Voltage High (Dash) |
| 00.0.3E | Issue With The Signal Voltage From Forward/Reverse Lever Signal Voltage Low (Dash) |
| 00.0.3F | CAN BUS Message Issue (Dash) |
| 00.0.40 | CAN BUS Message Issue (Dash) |
| 00.0.41 | Tractor Forward Speed Is Too Fast (Dash) |
| 00.0.42 | Service Counter Issue |
| 00.0.43 | Service Counter Issue |
| 00.0.44 | CAN BUS Message Issue (Dash) |
| 00.0.45 | Problem With Dash Configuration (Dash) |
| 00.0.46 | Clutch Pedal Top Clutch pedal Switch Open (Dash) |
| 00.0.47 | Forward/Reverse Lever Neutral Position Switch Issue (Dash) |
| 00.0.48 | Forward/Reverse Lever Not Neutral Position Switch Issue (Dash) |
| 00.0.49 | CAN BUS Message Issue From EEM Engine Module (Dash) |
| 00.0.4A | CAN BUS Message Issue From EEM Engine Module (Dash) |
| 00.0.4B | Issue With Hand Throttle Circuit, Open Circuit (Dash) |
| 00.0.4C | Issue With Signal From Outside Air Temperature Sensor (Dash) |
| 00.0.5E | Issue With Signal Voltage From Front Axle Steering Sensor High Voltage (Dash) |
| 00.0.5F | Issue With Voltage From Navigation Buttons (Dash) |
| 00.0.61 | Issue With 9.5 Volt Output Voltage From Dash To Sensors (Dash) |
| 00.0.63 | Issue With Dash Internal Module Temperature (Dash) |
| 00.0.70 | Dash Module Is Missing Information From The Linkage Module On The CAN BUS System (Dash) |
| 00.0.71 | Dash Module Is Missing Information From The Engine Module On The CAN BUS System (Dash) |
| 00.0.72 | Dash Module Is Missing Information From The Transmission Module On The CAN BUS System (Dash) |
| 00.0.73 | Dash Module Has Noted An Issue With The Transmission Lubrication Pressure (Dash) |
| 00.00.30 | Issue With Alternator Charging (Dash) |
| 00.00.31 | Issue With Signal Voltage From Fuel Level Sensor (Dash) |
| 00.00.32 | Issue With Battery Voltage To Dash (Dash) |
| 00.00.33 | Clutch Pedal Calibration Issue (Dash) |
| 00.00.34 | Issue With Signal Voltage From Foot Throttle Sensor (Dash) |
| 00.00.35 | Issue With The Signal Voltage From Forward/Reverse Lever (Dash) |
| 00.00.36 | Issue With Signal Voltage From Gear Shift Lever, T Handle (Dash) |
| 00.00.37 | Issue With Signal Voltage From Clutch Pedal Sensor (Dash) |
| 00.00.38 | Signal Voltage From Engine Speed Sensor Is Too High (Dash) |
| 00.00.39 | Issue With Signal Voltage From Clutch Pedal Sensor, High Voltage (Dash) |
| 00.00.3A | Issue With Signal Voltage From Clutch Pedal Sensor, High Voltage (Dash) |
| 00.00.3B | Issue With The Signal Voltage From Forward/Reverse Lever, High Voltage (Dash) |
| 00.00.3C | Issue With The Signal Voltage From Forward/Reverse Lever, Low Voltage (Dash) |
| 00.00.3D | Issue With The Signal Voltage From Forward/Reverse Lever, High Voltage (Dash) |
| 00.00.3E | Issue With The Signal Voltage From Forward/Reverse Lever, Low Voltage (Dash) |
| 00.00.3F | CAN BUS Message Issue (Dash) |
| 00.00.40 | CAN BUS Message Issue (Dash) |
| 00.00.41 | Tractor Forward Speed Is Too Fast (Dash) |
| 00.00.42 | Service Counter Issue |
| 00.00.43 | Problem With Dash Configuration (Dash) |
| 00.00.44 | CAN BUS Message Issue (Dash) |
| 00.00.45 | Problem With Dash Configuration (Dash) |
| 00.00.46 | Clutch Pedal Top Clutch pedal Switch Open (Dash) |
| 00.00.47 | Forward/Reverse Lever Neutral Position Switch Issue (Dash) |
| 00.00.48 | Forward/Reverse Lever Neutral Position Switch Issue (Dash) |
| 00.00.49 | CAN BUS Message Issue From EEM (Dash) |
| 00.00.4A | CAN BUS Message Issue From EEM (Dash) |
| 00.00.4B | Issue With Hand Throttle Circuit, Open Circuit (Dash) |
| 00.00.4C | Issue With Signal From Outside Air Temperature Sensor (Dash) |
| 00.00.4E | Issue With Steering Valve Mounted On Steering Orbitrol Unit. (Dash) |
| 00.00.4F | Issue With Output Voltage From Dash To Sensors (Dash) |
| 00.00.54 | Issue With Signal Voltage From Air Brake pressure Sensor (Dash) |
| 00.00.5E | Issue With Signal Voltage From Front Axle Steering Sensor (Dash) |
| 00.00.5F | Issue With Voltage From Navigation Buttons (Dash) |
| 00.00.61 | Dash Output Supply Voltage Too Low (Dash) |
| 00.00.63 | Internal Issue With Dash Temperature (Dash) |
| 00.00.64 | Issue With Hydraulic Oil Temperature Signal Voltage (Dash) |
| 00.01.30 | Issue With Alternator Charging (Dash) |
| 00.01.31 | Issue With Signal Voltage From Fuel Level Sensor (Dash) |
| 00.01.32 | Issue With Battery Voltage To Dash (Dash) |
| 00.01.33 | Clutch Pedal Calibration Issue (Dash) |
| 00.01.34 | Issue With Signal Voltage From Foot Throttle Sensor (Dash) |
| 00.01.35 | Issue With The Signal Voltage From Forward/Reverse Lever (Dash) |
| 00.01.36 | Issue With Signal Voltage From Gear Shift Lever, T Handle (Dash) |
| 00.01.37 | Issue With Signal Voltage From Clutch Pedal Sensor (Dash) |
| 00.01.38 | Signal Voltage From Engine Speed Sensor Is Too High (Dash) |
| 00.01.39 | Issue With Signal Voltage From Clutch Pedal Sensor, High Voltage (Dash) |
| 00.01.3A | Issue With Signal Voltage From Clutch Pedal Sensor, High Voltage (Dash) |
| 00.01.3B | Issue With The Signal Voltage From Forward/Reverse Lever, High Voltage (Dash) |
| 00.01.3C | Issue With The Signal Voltage From Forward/Reverse Lever, Low Voltage (Dash) |
| 00.01.3D | Issue With The Signal Voltage From Forward/Reverse Lever, High Voltage (Dash) |
| 00.01.3E | Issue With The Signal Voltage From Forward/Reverse Lever, Low Voltage (Dash) |
| 00.01.3F | CAN BUS Message Issue (Dash) |
| 00.01.40 | CAN BUS Message Issue (Dash) |
| 00.01.41 | Tractor Forward Speed Is Too Fast (Dash) |
| 00.01.42 | Service Counter Issue |
| 00.01.43 | Problem With Dash Configuration (Dash) |
| 00.01.44 | CAN BUS Message Issue (Dash) |
| 00.01.45 | Problem With Dash Configuration (Dash) |
| 00.01.46 | Clutch Pedal Top Clutch pedal Switch Open (Dash) |
| 00.01.47 | Forward/Reverse Lever Neutral Position Switch Issue (Dash) |
| 00.01.48 | Forward/Reverse Lever Neutral Position Switch Issue (Dash) |
| 00.01.49 | CAN BUS Message Issue From EEM (Dash) |
| 00.01.4A | CAN BUS Message Issue From EEM (Dash) |
| 00.01.4B | Issue With Hand Throttle Circuit, Open Circuit (Dash) |
| 00.01.4C | Issue With Signal From Outside Air Temperature Sensor (Dash) |
| 00.01.4E | Issue With Steering Valve Mounted On Steering Orbitrol Unit. (Dash) |
| 00.01.4F | Issue With Output Voltage From Dash To Sensors (Dash) |
| 00.01.54 | Issue With Signal Voltage From Air Brake pressure Sensor (Dash) |
| 00.01.5E | Issue With Signal Voltage From Front Axle Steering Sensor (Dash) |
| 00.01.5F | Issue With Voltage From Navigation Buttons (Dash) |
| 00.01.61 | Dash Output Supply Voltage Too Low (Dash) |
| 00.01.63 | Internal Issue With Dash Temperature (Dash) |
| 00.01.64 | Issue With Hydraulic Oil Temperature Signal Voltage (Dash) |
| 00.02.30 | Issue With Alternator Charging (Dash) |
| 00.02.31 | Issue With Signal Voltage From Fuel Level Sensor (Dash) |
| 00.02.32 | Issue With Battery Voltage To Dash (Dash) |
| 00.02.33 | Clutch Pedal Calibration Issue (Dash) |
| 00.02.34 | Issue With Signal Voltage From Foot Throttle Sensor (Dash) |
| 00.02.35 | Issue With The Signal Voltage From Forward/Reverse Lever (Dash) |
| 00.02.36 | Issue With Signal Voltage From Gear Shift Lever, T Handle (Dash) |
| 00.02.37 | Issue With Signal Voltage From Clutch Pedal Sensor (Dash) |
| 00.02.38 | Signal Voltage From Engine Speed Sensor Is Too High (Dash) |
| 00.02.39 | Issue With Signal Voltage From Clutch Pedal Sensor, High Voltage (Dash) |
| 00.02.3A | Issue With Signal Voltage From Clutch Pedal Sensor, High Voltage (Dash) |
| 00.02.3B | Issue With The Signal Voltage From Forward/Reverse Lever, High Voltage (Dash) |
| 00.02.3C | Issue With The Signal Voltage From Forward/Reverse Lever, Low Voltage (Dash) |
| 00.02.3D | Issue With The Signal Voltage From Forward/Reverse Lever, High Voltage (Dash) |
| 00.02.3E | Issue With The Signal Voltage From Forward/Reverse Lever, Low Voltage (Dash) |
| 00.02.3F | CAN BUS Message Issue (Dash) |
| 00.02.40 | CAN BUS Message Issue (Dash) |
| 00.02.41 | Tractor Forward Speed Is Too Fast (Dash) |
| 00.02.42 | Service Counter Issue |
| 00.02.43 | Problem With Dash Configuration (Dash) |
| 00.02.44 | CAN BUS Message Issue (Dash) |
| 00.02.45 | Problem With Dash Configuration (Dash) |
| 00.02.46 | Clutch Pedal Top Clutch pedal Switch Open (Dash) |
| 00.02.47 | Forward/Reverse Lever Neutral Position Switch Issue (Dash) |
| 00.02.48 | Forward/Reverse Lever Neutral Position Switch Issue (Dash) |
| 00.02.49 | CAN BUS Message Issue From EEM (Dash) |
| 00.02.4A | CAN BUS Message Issue From EEM (Dash) |
| 00.02.4B | Issue With Hand Throttle Circuit, Open Circuit (Dash) |
| 00.02.4C | Issue With Signal From Outside Air Temperature Sensor (Dash) |
| 00.02.4E | Issue With Steering Valve Mounted On Steering Orbitrol Unit. (Dash) |
| 00.02.4F | Issue With Output Voltage From Dash To Sensors (Dash) |
| 00.02.54 | Issue With Signal Voltage From Air Brake pressure Sensor (Dash) |
| 00.02.5E | Issue With Signal Voltage From Front Axle Steering Sensor (Dash) |
| 00.02.5F | Issue With Voltage From Navigation Buttons (Dash) |
| 00.02.61 | Dash Output Supply Voltage Too Low (Dash) |
| 00.02.63 | Internal Issue With Dash Temperature (Dash) |
| 00.02.64 | Issue With Hydraulic Oil Temperature Signal Voltage (Dash) |
| 00.03.30 | Issue With Alternator Charging (Dash) |
| 00.03.31 | Issue With Signal Voltage From Fuel Level Sensor (Dash) |
MF Error Codes from 0.03.32 to 0.X.73
| MF Error Code | Massey Ferguson DTC Code Description |
|---|---|
| 00.03.32 | Issue With Battery Voltage To Dash (Dash) |
| 00.03.33 | Clutch Pedal Calibration Issue (Dash) |
| 00.03.34 | Issue With Signal Voltage From Foot Throttle Sensor (Dash) |
| 00.03.35 | Issue With The Signal Voltage From Forward/Reverse Lever (Dash) |
| 00.03.36 | Issue With Signal Voltage From Gear Shift Lever, T Handle (Dash) |
| 00.03.37 | Issue With Signal Voltage From Clutch Pedal Sensor (Dash) |
| 00.03.38 | Signal Voltage From Engine Speed Sensor Is Too High (Dash) |
| 00.03.39 | Issue With Signal Voltage From Clutch Pedal Sensor, High Voltage (Dash) |
| 00.03.3A | Issue With Signal Voltage From Clutch Pedal Sensor, High Voltage (Dash) |
| 00.03.3B | Issue With The Signal Voltage From Forward/Reverse Lever, High Voltage (Dash) |
| 00.03.3C | Issue With The Signal Voltage From Forward/Reverse Lever, Low Voltage (Dash) |
| 00.03.3D | Issue With The Signal Voltage From Forward/Reverse Lever, High Voltage (Dash) |
| 00.03.3E | Issue With The Signal Voltage From Forward/Reverse Lever, Low Voltage (Dash) |
| 00.03.3F | CAN BUS Message Issue (Dash) |
| 00.03.40 | CAN BUS Message Issue (Dash) |
| 00.03.41 | Tractor Forward Speed Is Too Fast (Dash) |
| 00.03.42 | Service Counter Issue |
| 00.03.43 | Problem With Dash Configuration (Dash) |
| 00.03.44 | CAN BUS Message Issue (Dash) |
| 00.03.45 | Problem With Dash Configuration (Dash) |
| 00.03.46 | Clutch Pedal Top Clutch pedal Switch Open (Dash) |
| 00.03.47 | Forward/Reverse Lever Neutral Position Switch Issue (Dash) |
| 00.03.48 | Forward/Reverse Lever Neutral Position Switch Issue (Dash) |
| 00.03.49 | CAN BUS Message Issue From EEM (Dash) |
| 00.03.4A | CAN BUS Message Issue From EEM (Dash) |
| 00.03.4B | Issue With Hand Throttle Circuit, Open Circuit (Dash) |
| 00.03.4C | Issue With Signal From Outside Air Temperature Sensor (Dash) |
| 00.03.4E | Issue With Steering Valve Mounted On Steering Orbitrol Unit. (Dash) |
| 00.03.4F | Issue With Output Voltage From Dash To Sensors (Dash) |
| 00.03.54 | Issue With Signal Voltage From Air Brake pressure Sensor (Dash) |
| 00.03.5E | Issue With Signal Voltage From Front Axle Steering Sensor (Dash) |
| 00.03.5F | Issue With Voltage From Navigation Buttons (Dash) |
| 00.03.61 | Dash Output Supply Voltage Too Low (Dash) |
| 00.03.63 | Internal Issue With Dash Temperature (Dash) |
| 00.03.64 | Issue With Hydraulic Oil Temperature Signal Voltage (Dash) |
| 00.1.30 | Issue With Alternator Charging Voltage (Dash) |
| 00.1.31 | Issue With Signal Voltage From Fuel Level Sensor Voltage (Dash) |
| 00.1.32 | Issue With Battery Voltage To Dash (Dash) |
| 00.1.33 | Issue With Signal Voltage From Clutch Pedal Sensor, Calibration Missing (Dash) |
| 00.1.34 | Issue With Signal Voltage From Foot Throttle Sensor (Dash) |
| 00.1.35 | Issue With The Signal Voltage From Forward/Reverse Lever (Dash) |
| 00.1.36 | Issue With Signal Voltage From Gear Shift Lever, T Handle, Non Arm Rest Type (Dash) |
| 00.1.37 | Issue With Signal Voltage From Clutch Pedal Sensor (Dash) |
| 00.1.38 | Signal Voltage From Engine Speed Sensor Issue Dyna 4, Dyna 6 (Dash) |
| 00.1.39 | Issue With Signal Voltage From Clutch Pedal Sensor, High Voltage (Dash) |
| 00.1.3A | Issue With Signal Voltage From Clutch Pedal Sensor, High Voltage (Dash) |
| 00.1.3B | Issue With The Signal Voltage From Forward/Reverse Lever Signal Voltage High (Dash) |
| 00.1.3C | Issue With The Signal Voltage From Forward/Reverse Lever Signal Voltage Low (Dash) |
| 00.1.3D | Issue With The Signal Voltage From Forward/Reverse Lever Signal Voltage High (Dash) |
| 00.1.3E | Issue With The Signal Voltage From Forward/Reverse Lever Signal Voltage Low (Dash) |
| 00.1.3F | CAN BUS Message Issue (Dash) |
| 00.1.40 | CAN BUS Message Issue (Dash) |
| 00.1.41 | Tractor Forward Speed Is Too Fast (Dash) |
| 00.1.42 | Service Counter Issue |
| 00.1.43 | Service Counter Issue |
| 00.1.44 | CAN BUS Message Issue (Dash) |
| 00.1.45 | Problem With Dash Configuration (Dash) |
| 00.1.46 | Clutch Pedal Top Clutch pedal Switch Open (Dash) |
| 00.1.47 | Forward/Reverse Lever Neutral Position Switch Issue (Dash) |
| 00.1.48 | Forward/Reverse Lever Not Neutral Position Switch Issue (Dash) |
| 00.1.49 | CAN BUS Message Issue From EEM Engine Module (Dash) |
| 00.1.4A | CAN BUS Message Issue From EEM Engine Module (Dash) |
| 00.1.4B | Issue With Hand Throttle Circuit, Open Circuit (Dash) |
| 00.1.4C | Issue With Signal From Outside Air Temperature Sensor (Dash) |
| 00.1.5E | Issue With Signal Voltage From Front Axle Steering Sensor High Voltage (Dash) |
| 00.1.5F | Issue With Voltage From Navigation Buttons (Dash) |
| 00.1.61 | Issue With 9.5 Volt Output Voltage From Dash To Sensors (Dash) |
| 00.1.63 | Issue With Dash Internal Module Temperature (Dash) |
| 00.1.70 | Dash Module Is Missing Information From The Linkage Module On The CAN BUS System (Dash) |
| 00.1.71 | Dash Module Is Missing Information From The Engine Module On The CAN BUS System (Dash) |
| 00.1.72 | Dash Module Is Missing Information From The Transmission Module On The CAN BUS System (Dash) |
| 00.1.73 | Dash Module Has Noted An Issue With The Transmission Lubrication Pressure (Dash) |
| 00.2.30 | Issue With Alternator Charging Voltage (Dash) |
| 00.2.31 | Issue With Signal Voltage From Fuel Level Sensor Voltage (Dash) |
| 00.2.32 | Issue With Battery Voltage To Dash (Dash) |
| 00.2.33 | Issue With Signal Voltage From Clutch Pedal Sensor, Calibration Missing (Dash) |
| 00.2.34 | Issue With Signal Voltage From Foot Throttle Sensor (Dash) |
| 00.2.35 | Issue With The Signal Voltage From Forward/Reverse Lever (Dash) |
| 00.2.36 | Issue With Signal Voltage From Gear Shift Lever, T Handle, Non Arm Rest Type (Dash) |
| 00.2.37 | Issue With Signal Voltage From Clutch Pedal Sensor (Dash) |
| 00.2.38 | Signal Voltage From Engine Speed Sensor Issue Dyna 4, Dyna 6 (Dash) |
| 00.2.39 | Issue With Signal Voltage From Clutch Pedal Sensor, High Voltage (Dash) |
| 00.2.3A | Issue With Signal Voltage From Clutch Pedal Sensor, High Voltage (Dash) |
| 00.2.3B | Issue With The Signal Voltage From Forward/Reverse Lever Signal Voltage High (Dash) |
| 00.2.3C | Issue With The Signal Voltage From Forward/Reverse Lever Signal Voltage Low (Dash) |
| 00.2.3D | Issue With The Signal Voltage From Forward/Reverse Lever Signal Voltage High (Dash) |
| 00.2.3E | Issue With The Signal Voltage From Forward/Reverse Lever Signal Voltage Low (Dash) |
| 00.2.3F | CAN BUS Message Issue (Dash) |
| 00.2.40 | CAN BUS Message Issue (Dash) |
| 00.2.41 | Tractor Forward Speed Is Too Fast (Dash) |
| 00.2.42 | Service Counter Issue |
| 00.2.43 | Service Counter Issue |
| 00.2.44 | CAN BUS Message Issue (Dash) |
| 00.2.45 | Problem With Dash Configuration (Dash) |
| 00.2.46 | Clutch Pedal Top Clutch pedal Switch Open (Dash) |
| 00.2.47 | Forward/Reverse Lever Neutral Position Switch Issue (Dash) |
| 00.2.48 | Forward/Reverse Lever Not Neutral Position Switch Issue (Dash) |
| 00.2.49 | CAN BUS Message Issue From EEM Engine Module (Dash) |
| 00.2.4A | CAN BUS Message Issue From EEM Engine Module (Dash) |
| 00.2.4B | Issue With Hand Throttle Circuit, Open Circuit (Dash) |
| 00.2.4C | Issue With Signal From Outside Air Temperature Sensor (Dash) |
| 00.2.5E | Issue With Signal Voltage From Front Axle Steering Sensor High Voltage (Dash) |
| 00.2.5F | Issue With Voltage From Navigation Buttons (Dash) |
| 00.2.61 | Issue With 9.5 Volt Output Voltage From Dash To Sensors (Dash) |
| 00.2.63 | Issue With Dash Internal Module Temperature (Dash) |
| 00.2.70 | Dash Module Is Missing Information From The Linkage Module On The CAN BUS System (Dash) |
| 00.2.71 | Dash Module Is Missing Information From The Engine Module On The CAN BUS System (Dash) |
| 00.2.72 | Dash Module Is Missing Information From The Transmission Module On The CAN BUS System (Dash) |
| 00.2.73 | Dash Module Has Noted An Issue With The Transmission Lubrication Pressure (Dash) |
| 00.X.30 | Issue With Alternator Charging (Dash) |
| 00.X.31 | Issue With Signal Voltage From Fuel Level Sensor (Dash) |
| 00.X.32 | Issue With Battery Voltage To Dash (Dash) |
| 00.X.33 | Clutch Pedal Calibration Issue (Dash) |
| 00.X.34 | Issue With Signal Voltage From Foot Throttle Sensor (Dash) |
| 00.X.35 | Issue With The Signal Voltage From Forward/Reverse Lever (Dash) |
| 00.X.36 | Issue With Signal Voltage From Gear Shift Lever, T Handle (Dash) |
| 00.X.37 | Issue With Signal Voltage From Clutch Pedal Sensor (Dash) |
| 00.X.38 | Signal Voltage From Engine Speed Sensor Is Too High (Dash) |
| 00.X.39 | Issue With Signal Voltage From Clutch Pedal Sensor, High Voltage (Dash) |
| 00.X.3A | Issue With Signal Voltage From Clutch Pedal Sensor, High Voltage (Dash) |
| 00.X.3B | Issue With The Signal Voltage From Forward/Reverse Lever, High Voltage (Dash) |
| 00.X.3C | Issue With The Signal Voltage From Forward/Reverse Lever, Low Voltage (Dash) |
| 00.X.3D | Issue With The Signal Voltage From Forward/Reverse Lever, High Voltage (Dash) |
| 00.X.3E | Issue With The Signal Voltage From Forward/Reverse Lever, Low Voltage (Dash) |
| 00.X.3F | CAN BUS Message Issue (Dash) |
| 00.X.40 | CAN BUS Message Issue (Dash) |
| 00.X.41 | Tractor Forward Speed Is Too Fast (Dash) |
| 00.X.42 | Service Counter Issue |
| 00.X.43 | Problem With Dash Configuration (Dash) |
| 00.X.44 | CAN BUS Message Issue (Dash) |
| 00.X.45 | Problem With Dash Configuration (Dash) |
| 00.X.46 | Clutch Pedal Top Clutch pedal Switch Open (Dash) |
| 00.X.47 | Forward/Reverse Lever Neutral Position Switch Issue (Dash) |
| 00.X.48 | Forward/Reverse Lever Neutral Position Switch Issue (Dash) |
| 00.X.49 | CAN BUS Message Issue From EEM (Dash) |
| 00.X.4A | CAN BUS Message Issue From EEM (Dash) |
| 00.X.4B | Issue With Hand Throttle Circuit, Open Circuit (Dash) |
| 00.X.4C | Issue With Signal From Outside Air Temperature Sensor (Dash) |
| 00.X.4E | Issue With Steering Valve Mounted On Steering Orbitrol Unit. (Dash) |
| 00.X.4F | Issue With Output Voltage From Dash To Sensors (Dash) |
| 00.X.54 | Issue With Signal Voltage From Air Brake pressure Sensor (Dash) |
| 00.X.5E | Issue With Signal Voltage From Front Axle Steering Sensor (Dash) |
| 00.X.5F | Issue With Voltage From Navigation Buttons (Dash) |
| 00.X.61 | Dash Output Supply Voltage Too Low (Dash) |
| 00.X.63 | Internal Issue With Dash Temperature (Dash) |
| 00.X.64 | Issue With Hydraulic Oil Temperature Signal Voltage (Dash) |
| 00.X.70 | Dash Module Is Missing Information From The Linkage Module On The CAN BUS System (Dash) |
| 00.X.71 | Dash Module Is Missing Information From The Engine Module On The CAN BUS System (Dash) |
| 00.X.72 | Dash Module Is Missing Information From The Transmission Module On The CAN BUS System (Dash) |
| 00.X.73 | Dash Module Has Noted An Issue With The Transmission Lubrication Pressure (Dash) |
MF Error Codes from 0.X.74 to 00157.18
| MF Error Code | Massey Ferguson DTC Code Description |
|---|---|
| 00.X.74 | Dash Module Has Noted An Issue With The Transmission Filter Blocked Sensor (Dash) |
| 00.X.74 | Dash Module Has Noted An Issue With The Transmission Filter Blocked Sensor (Dash) |
| 00.X.74 | Dash Module Has Noted An Issue With The Transmission Filter Blocked Sensor (Dash) |
| 00.X.74 | Dash Module Has Noted An Issue With The Transmission Filter Blocked Sensor (Dash) |
| 000027.06 | Engine EGR Valve Issue With EGR Valve (ECU) |
| 000027.07 | EGR Valve Requested Position And Actual Position Mismatch. (ECU) |
| 000027.11 | The Engine Module (ECU) Has Noted The Engine Is Overheating. The EGR Valve Is Closed. |
| 000027.12 | EGR Valve Has An Internal Issue (ECU) |
| 000027.13 | EGR Valve Is Mechanically Sticking. (ECU) |
| 000029.03 | Engine Throttle Sensor Voltage Issue (ECU) |
| 000029.04 | Engine Throttle Sensor Voltage Issue (ECU) |
| 000051.03 | Air Throttle Valve Position Sensor Voltage High. (ECU) |
| 000051.04 | Air Throttle Valve Position Sensor Voltage Low. (ECU) |
| 000051.13 | Air Throttle Valve Position Sensor Calibration Issue |
| 000091.03 | Engine Throttle Sensor Voltage Issue (ECU) |
| 000091.04 | Engine Throttle Sensor Voltage Issue (ECU) |
| 000094.03 | Fuel Filter Pressure Sensor High Voltage. (ECU) |
| 000094.04 | Fuel Filter Pressure Sensor Low Voltage. (ECU) |
| 000094.16 | Fuel Filter Pressure Sensor High Pressure. (ECU) |
| 000094.18 | Fuel Filter Pressure Sensor Low Pressure. (ECU) |
| 000094.31 | Fuel Filter Pressure Sensor Signal Outside Normal Range. (ECU) |
| 000097.31 | Water In Fuel Sensor, Check Filters (ECU) |
| 000100.01 | Low Engine Oil Pressure Detected. (ECU) |
| 000171.03 | Ambient Temperature Sensor Voltage Issue (ECU) |
| 000171.04 | Ambient Temperature Sensor Voltage Issue (ECU) |
| 000171.10 | Ambient Temperature Sensor Voltage Issue (ECU) |
| 000171.19 | Ambient Temperature Sensor Issue (ECU) |
| 000174.00 | Fuel Temperature High (ECU) |
| 000174.03 | Fuel Temperature Sensor High Voltage (ECU) |
| 000174.04 | Fuel Temperature Sensor Low Voltage (ECU) |
| 000190.16 | Engine Over Speed Registered (ECU) |
| 00027.06 | Issue With EGR Valve (ECU) |
| 00027.07 | EGR Valve Requested Position And Actual Position Mismatch. (ECU) |
| 00027.11 | The Engine Module (ECU) Has Noted The Engine Is Overheating. The EGR Valve Is Closed. |
| 00027.12 | EGR Valve Has An Internal Issue (ECU) |
| 00027.13 | EGR Valve Is Mechanically Sticking. (ECU) |
| 00029.03 | Engine Throttle Sensor Voltage Issue (ECU) / Engine Foot Throttle Sensor Voltage Issue (ECU) |
| 00029.04 | Engine Throttle Sensor Voltage Issue (ECU) |
| 000412.03 | EGR Gas Temperature Sensor High Voltage (ECU) |
| 000412.04 | EGR Gas Temperature Sensor Low Voltage (ECU) |
| 00051.03 | Air Throttle Valve Position Sensor Voltage High. (ECU) |
| 00051.04 | Air Throttle Valve Position Sensor Voltage Low. (ECU) |
| 00051.13 | Air Throttle Valve Position Sensor Calibration Issue |
| 000626.03 | Engine Intake Heater High Voltage (ECU) |
| 000626.05 | Engine Intake Heater Low Voltage (ECU) |
| 000626.06 | Engine Intake Heater High Amps (ECU) |
| 000639.19 | CAN BUS Fault (ECU) |
| 000651.05 | Injector Number 1 Low Amp Draw (ECU) |
| 000651.13 | Injector Number 1 Calibration Code Issue. (ECU) |
| 000651.14 | Injector Number 1 Short Circuit (ECU) |
| 000652.05 | Injector Number 2 Low Amp Draw (ECU) |
| 000652.13 | Injector Number 2 Calibration Code Issue. (ECU) |
| 000652.14 | Injector Number 2 Short Circuit (ECU) |
| 000653.05 | Injector Number 3 Low Amp Draw (ECU) |
| 000653.13 | Injector Number 3 Calibration Code Issue. (ECU) |
| 000653.14 | Injector Number 3 Short Circuit (ECU) |
| 000654.05 | Injector Number 4 Low Amp Draw (ECU) |
| 000654.13 | Injector Number 4 Calibration Code Issue. (ECU) |
| 000654.14 | Injector Number 4 Short Circuit (ECU) |
| 000655.05 | Injector Number 5 Low Amp Draw (ECU) |
| 000655.13 | Injector Number 5 Calibration Code Issue. (ECU) |
| 000655.14 | Injector Number 5 Short Circuit (ECU) |
| 000656.05 | Injector Number 6 Low Amp Draw (ECU) |
| 000656.13 | Injector Number 6 Calibration Code Issue. (ECU) |
| 000656.14 | Injector Number 6 Short Circuit (ECU) |
| 000677.03 | Starter Relay Low Voltage |
| 000677.05 | Starter Relay Low Voltage |
| 000677.06 | Starter Relay Low Voltage |
| 000723.02 | Camshaft Speed Sensor Signal Issue. (ECU) |
| 000723.08 | Camshaft Speed Sensor Signal Issue. (ECU) |
| 000723.31 | Camshaft Speed Sensor Signal Missing. (ECU) |
| 000729.03 | Engine Intake Heater High Voltage (ECU) |
| 000729.04 | Engine Intake Heater Low Voltage (ECU) |
| 00091.03 | Engine Throttle Sensor Voltage Issue (ECU) |
| 00091.04 | Engine Throttle Sensor Voltage Issue (ECU) |
| 00094.03 | Fuel Filter Pressure Sensor High Voltage. (ECU) |
| 00094.04 | Fuel Filter Pressure Sensor Low Voltage. (ECU) |
| 00094.16 | Fuel Filter Pressure Sensor High Pressure. (ECU) |
| 00094.18 | Fuel Filter Pressure Sensor Low Pressure. (ECU) |
| 00094.31 | Fuel Filter Pressure Sensor Signal Outside Normal Range. (ECU) |
| 00097.31 | Water In Fuel Sensor, Check Filters (ECU) |
| 000974.03 | Engine Throttle Sensor Voltage Issue (ECU) |
| 000977.03 | Engine Cooling Fan Speed Solenoid Issue. (ECU) |
| 000977.05 | Engine Cooling Fan Speed Solenoid Issue. (ECU) |
| 000977.06 | Engine Cooling Fan Speed Solenoid Issue. (ECU) |
| 00100.01 | Low Engine Oil Pressure Detected. (ECU) |
| 00100.03 | Engine Oil Pressure Sensor High Voltage. (ECU) |
| 00100.04 | Engine Oil Pressure Sensor Low Voltage. (ECU) |
| 00100.16 | Engine Oil Pressure Too High. (ECU) |
| 00100.18 | Engine Oil Pressure Too Low. (ECU) |
| 00102.00 | Intake Boost Pressure Sensor Signal Too High (ECU) |
| 00102.02 | Intake Boost Pressure Sensor Signal Issue (ECU) |
| 00102.03 | Intake Boost Pressure Sensor Signal Too High (ECU) |
| 00102.04 | Intake Boost Pressure Sensor Signal Issue (ECU) |
| 00102.11 | Intake Boost Pressure Sensor Signal Too High (ECU) |
| 00102.12 | Intake Boost Pressure Sensor Signal Erratic (ECU) |
| 00102.14 | Intake Boost Pressure Sensor Signal Erratic (ECU) |
| 00102.17 | Intake Boost Pressure Sensor Signal Too High (ECU) |
| 00102.18 | Intake Boost Pressure Sensor Signal Too Low (ECU) |
| 00102.31 | Intake Boost Pressure Sensor Signal Too Low (ECU) |
| 001043.03 | High Voltage Detected In The Engine Module. (ECU) |
| 001043.04 | Low Voltage Detected In The Engine Module (ECU |
| 00105.03 | Inlet Manifold Temperature Signal Voltage High (ECU) |
| 00105.04 | Inlet Manifold Temperature Signal Voltage Low (ECU) |
| 00105.16 | Inlet Manifold Temperature Too High (ECU) |
| 00107.18 | Air Filter Blocked (ECU) |
| 00107.31 | Air Filter Blocked (ECU) |
| 001076.03 | Voltage Issue On Fuel Solenoid On High Pressure Pump (ECU) |
| 001076.04 | Voltage Issue On Fuel Solenoid On High Pressure Pump (ECU) |
| 001076.05 | Voltage Issue On Fuel Solenoid On High Pressure Pump (ECU) |
| 001076.06 | Voltage Issue On Fuel Solenoid On High Pressure Pump (ECU) |
| 001076.14 | Open Circuit On Fuel Solenoid On High Pressure Pump (ECU) |
| 001077.03 | Fuel Solenoid On High Pressure Pump Issue (ECU) |
| 001077.04 | Fuel Solenoid On High Pressure Pump Issue (ECU) |
| 001077.31 | Fuel Solenoid On High Pressure Pump Issue (ECU) |
| 00108.03 | Ambient Pressure Sensor Issue (ECU) |
| 00108.04 | Ambient Pressure Sensor Issue (ECU) |
| 00109.03 | Coolant Pressure Sensor Signal Voltage High (ECU) |
| 00109.04 | Coolant Pressure Sensor Signal Voltage Low (ECU) |
| 00110.00 | Coolant Temperature High |
| 00110.03 | Coolant Temperature Signal Voltage High (ECU) |
| 00110.04 | Coolant Temperature Signal Voltage Low (ECU) |
| 00110.16 | Coolant Temperature High |
| 001132.03 | Air Inlet Temperature Sensor Signal Voltage High (ECU) |
| 001132.04 | Air Inlet Temperature Sensor Signal Voltage Low (ECU) |
| 001136.00 | There Is A Problem With The Engine Module Internal Temperature Sensor (ECU) |
| 001136.03 | There Is A Problem With The Engine Module Internal Temperature Sensor Voltage (ECU) |
| 001136.04 | There Is A Problem With The Engine Module Internal Temperature Sensor Voltage (ECU) |
| 001188.02 | Turbo Waste Gate Actual Position Not The Same As Requested Position. (ECU) |
| 001188.07 | Turbo Waste Gate Actuator Motor Issue. (ECU) |
| 001188.11 | Turbo Waste Gate Actuator Issue. (ECU) |
| 001188.13 | Turbo Waste Gate Actuator Issue. (ECU) |
| 001239.14 | Fuel Rail Pressure Issue (ECU) |
| 001240.14 | Fuel Rail Pressure Issue (ECU) |
| 00132.02 | Air Flow Sensor Signal Issue (ECU) |
| 00132.13 | Air Flow Sensor Signal Issue (ECU) |
| 00132.19 | Air Flow Sensor Signal Issue (ECU) |
| 001381.03 | Fuel Pressure At The Inlet Of The High Pressure Pump Signal Voltage Issue (ECU) |
| 001381.04 | Fuel Pressure At The Inlet Of The High Pressure Pump Signal Voltage Issue (ECU) |
| 001381.16 | Fuel Pressure At The Inlet Of The High Pressure Pump Signal Voltage Issue (ECU) |
| 001381.18 | Fuel Pressure At The Inlet Of The High Pressure Pump Signal Voltage Issue (ECU) |
| 00157.00 | Fuel Rail Pressure High (ECU) |
| 00157.02 | Fuel Rail Pressure Erratic (ECU) |
| 00157.03 | Fuel Rail Pressure Sensor High Voltage (ECU) |
| 00157.04 | Fuel Rail Pressure Sensor Low Voltage (ECU) |
| 00157.14 | Fuel Rail Pressure Below Requested Pressure (ECU) |
| 00157.15 | Fuel Rail Pressure Below Requested Pressure (ECU) |
| 00157.16 | Fuel Rail Pressure High (ECU) |
| 00157.17 | Fuel Rail Pressure Not Dropping (ECU) |
| 00157.18 | Fuel Rail Pressure Below Requested Pressure (ECU) |
MF Error Codes from 00157.20 to 005028.13
| MF Error Code | Massey Ferguson DTC Code Description |
|---|---|
| 00157.20 | Fuel Rail Pressure Is Not As Expected During Startup Or Shutdown (ECU) |
| 00157.21 | Fuel Rail Pressure Is Not As Expected During Startup Or Shutdown (ECU) |
| 001639.18 | Engine Cooling Vistronic Fan Speed Solenoid Issue. (ECU) |
| 001639.19 | Engine Cooling Vistronic Fan. (ECU) |
| 00168.00 | Battery Voltage High (ECU) |
| 00168.01 | Battery Voltage Low (ECU) |
| 00168.03 | Battery Voltage High (ECU) |
| 00168.04 | Battery Voltage Low (ECU) |
| 001761.01 | DEF Tank Level Low (ECU) |
| 001761.03 | DEF Tank Level Sender High Voltage. (ECU) |
| 001761.04 | DEF Tank Level Sender Low Voltage. (ECU) |
| 001761.11 | DEF Tank Level Sensor Issue (ECU) |
| 001761.18 | DEF Tank Level Low (ECU) |
| 002659.01 | EGR Gas Flow Issue (ECU) |
| 002791.00 | EGR Valve Has An Internal Issue (ECU) |
| 002791.09 | EGR Valve Communication Issue (ECU) |
| 002791.10 | Issue With EGR Valve (ECU) |
| 002791.31 | EGR Valve Communication Issue (ECU) |
| 003031.02 | Issue With The Temperature Of The DEF Tank Temperature Sensor. (ECU) |
| 003031.03 | Issue With The Temperature Of The DEF Tank Temperature Sensor. (ECU) |
| 003031.04 | Issue With The Temperature Of The DEF Tank Temperature Sensor. (ECU) |
| 003031.10 | Issue With The Temperature Of The DEF Tank Temperature Sensor. (ECU) |
| 003031.11 | Issue With The Temperature Of The DEF Tank Temperature Sensor. (ECU) |
| 003031.14 | Issue With The Temperature Of The DEF Tank Temperature Sensor. (ECU) |
| 003031.15 | Issue With The Temperature Of The DEF Tank Temperature Sensor. (ECU) |
| 003031.16 | Issue With The Temperature Of The DEF Tank Temperature Sensor. (ECU) |
| 003031.17 | Issue With The Temperature Of The DEF Tank Temperature Sensor. (ECU) |
| 003216.19 | NOx Sensor Before DOC Signal Missing. (ECU) |
| 003218.14 | Issue With Supply Voltage To NOx Sensor Before DOC. (ECU) |
| 003219.02 | NOx Sensor Before DOC Signal Issue. (ECU) |
| 003220.02 | NOx Sensor Before DOC Signal Issue. (ECU) |
| 003220.12 | NOx Sensor Before DOC Signal Issue. (ECU) |
| 003222.03 | NOx Sensor Before DOC Signal Issue. (ECU) |
| 003222.05 | NOx Sensor Before DOC Signal Issue. (ECU) |
| 003224.03 | NOx Sensor Before DOC Signal Issue. (ECU) |
| 003224.05 | NOx Sensor Before DOC Signal Issue. (ECU) |
| 003225.03 | NOx Sensor Before DOC Signal Issue. (ECU) |
| 003225.05 | NOx Sensor Before DOC Signal Issue. (ECU) |

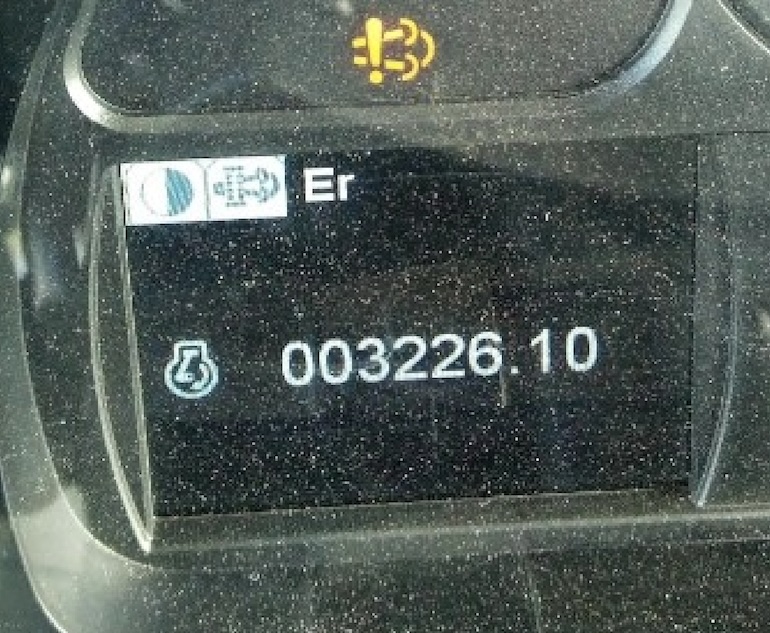

| 003226.10 | NOx sensor exhaust outlet faulty, signal out of range or wrong value |
| 003226.19 | NOx Sensor Outlet SCR Signal Issue. (ECU) |
| 003228.14 | Issue With Supply Voltage To NOx Sensor Outlet SCR. (ECU) |
| 003229.02 | NOx Sensor Outlet SCR Signal Issue. (ECU) |
| 003230.02 | NOx Sensor Outlet SCR Signal Issue. (ECU) |
| 003230.12 | NOx Sensor Outlet SCR Signal Issue. (ECU) |
| 003232.03 | NOx Sensor Outlet SCR Signal Issue. (ECU) |
| 003232.05 | NOx Sensor Outlet SCR Signal Issue. (ECU) |
| 003234.03 | NOx Sensor Outlet SCR Signal Issue. (ECU) |
| 003234.05 | NOx Sensor Outlet SCR Signal Issue. (ECU) |
| 003235.03 | NOx Sensor Outlet SCR Signal Issue. (ECU) |
| 003235.05 | NOx Sensor Outlet SCR Signal Issue. (ECU) |
| 003361.03 | DEF Injector Voltage Issue |
| 003361.04 | DEF Injector Voltage Issue |
| 003361.05 | DEF Injector High Resistance |
| 003361.06 | DEF Injector Low Resistance |
| 003361.07 | DEF Injector Has Not Opened Or Closed As Expected |
| 003361.11 | DEF Injector Has Not Opened Or Closed As Expected |
| 003361.14 | DEF Injector Has Not Opened Or Closed As Expected |
| 003361.31 | DEF Injector Has Not Opened Or Closed As Expected |
| 003363.03 | The DEF Tank Heater Solenoid Valve High Voltage (ECU) |
| 003363.04 | The DEF Tank Heater Solenoid Valve High Amps |
| 003363.05 | The DEF Tank Heater Solenoid Valve Low Amps |
| 003363.06 | The DEF Tank Heater Solenoid Valve High Amps |
| 003363.14 | The DEF Tank Heater Solenoid Valve High Voltage (ECU) |
| 003363.31 | The DEF Tank Heater Solenoid Valve High Voltage (ECU) |
| 003509.31 | Engine Module 5 Volt Sensor Supply Voltage Issue (ECU) |
| 003510.31 | Engine Module 5 Volt Sensor Supply Voltage Issue (ECU) |
| 003511.31 | Engine Module 5 Volt Sensor Supply Voltage Issue (ECU) |
| 003512.03 | Engine Module 12 Volt Sensor Supply Voltage Issue (ECU) |
| 003512.04 | Engine Module 12 Volt Sensor Supply Voltage Issue (ECU) |
| 003515.03 | DEF Tank Temp Sensor Voltage High (ECU) |
| 003515.04 | DEF Tank Temp Sensor Voltage Low (ECU) |
| 003515.11 | DEF Tank Temp Sensor Error (ECU) |
| 003515.15 | DEF Tank Temp Sensor Error High Temperature. (ECU) |
| 003515.17 | DEF Tank Temp Sensor Error Low Temperature. (ECU) |
| 003516.02 | DEF Quality Sensor Has Detected A Low Quality DEF Sample. (ECU) |
| 003516.11 | DEF Quality Sensor Has Detected A Problem With Something Covering The Sensor |
| 003516.15 | DEF Quality Sensor Has Detected A Problem With The DEF Sample. |
| 003516.17 | DEF Quality Sensor Has Detected A Problem With The DEF Sample. |
| 003519.03 | DEF Tank Temperature Sensor Issue (ECU) |
| 003519.04 | DEF Tank Temperature Sensor Issue (ECU) |
| 003521.14 | DEF Quality Sensor Has Detected A Problem With The DEF Sample. |
| 003521.16 | DEF Quality Sensor Has Detected A Problem With The DEF Sample. |
| 003521.18 | DEF Quality Sensor Has Detected A Problem With The DEF Sample. |
| 003521.31 | DEF Quality Sensor Has Detected A Problem With The DEF Sample. |
| 003532.03 | DEF Tank Level Sensor Issue (ECU) |
| 003532.04 | DEF Tank Level Sensor Issue (ECU) |
| 003562.14 | Boost Pressure Sensor Signal Issue (ECU) |
| 003562.31 | Boost Pressure Sensor Signal Issue (ECU) |
| 003573.03 | Air Throttle Valve Position Sensor Voltage High. (ECU) |
| 003573.04 | Air Throttle Valve Position Sensor Voltage Low. (ECU) |
| 003573.13 | Air Throttle Valve Position Sensor Calibration Issue (ECU) |
| 004090.16 | NOx Are High In The Exhaust (ECU) |
| 004090.18 | NOx Are High In The Exhaust (ECU) |
| 004090.31 | NOx Are High In The Exhaust (ECU) |
| 004095.31 | NOx Are High In The Exhaust (ECU) |
| 004201.02 | Crankshaft Speed Sensor Signal Issue (ECU) |
| 004201.31 | Crankshaft Speed Sensor Signal Issue (ECU) |
| 004332.00 | DEF System Pressure High (ECU) |
| 004332.11 | DEF Pump/ Pressure Issue (ECU) |
| 004332.14 | DEF Pressure Issue When System Test Was Performed. (ECU) |
| 004332.16 | DEF System Pressure Issue. (ECU) |
| 004332.18 | DEF System Pressure Issue. (ECU) |
| 004332.31 | DEF System Pressure Did Not Drop During System Purge Cycle (ECU) |
| 004334.03 | DEF System Pressure Sensor Voltage High (ECU) |
| 004334.04 | DEF System Pressure Sensor Voltage Low (ECU) |
| 004340.03 | DEF Suction Supply Pipe Heater Resistance Is High (ECU) |
| 004340.04 | DEF Suction Supply Pipe Heater Resistance Is Low (ECU) |
| 004340.05 | DEF Suction Supply Pipe Heater Open Circuit (ECU) |
| 004342.03 | DEF Return Pipe Heater Resistance Is High (ECU) |
| 004342.04 | DEF Return Pipe Heater Resistance Is Low (ECU) |
| 004342.05 | DEF Return Pipe Heater Open Circuit (ECU) |
| 004344.02 | DEF Unit Internal Temperature Sensor Issue (ECU) |
| 004344.03 | DEF Unit Internal Temperature Sensor Issue (ECU) |
| 004344.04 | DEF Unit Internal Temperature Sensor Issue (ECU) |
| 004344.05 | DEF Unit Internal Temperature Sensor Issue (ECU) |
| 004344.08 | DEF Unit Internal Temperature Sensor Issue (ECU) |
| 004344.12 | DEF Unit Internal Temperature Sensor Issue (ECU) |
| 004344.31 | DEF Unit Internal Temperature Sensor Issue (ECU) |
| 004346.03 | DEF Injector Supply Pipe Heater Resistance Is High (ECU) |
| 004346.04 | DEF Injector Supply Heater Resistance Is Low (ECU) |
| 004346.05 | DEF Injector Supply Heater Open Circuit (ECU) |
| 004354.03 | DEF Suction Supply Pipe Heater Relay Issue (ECU) |
| 004354.04 | DEF Suction Supply Pipe Heater Relay Issue (ECU) |
| 004355.03 | DEF Return Pipe Heater Relay Issue (ECU) |
| 004355.04 | DEF Return Pipe Heater Relay Issue (ECU) |
| 004357.03 | DEF Injector Supply Pipe Heater Resistance Is High (ECU) |
| 004357.04 | DEF Injector Supply Heater Resistance Is Low (ECU) |
| 004360.02 | Issue With The DOC Inlet Temperature Sensor (ECU) |
| 004360.03 | Issue With The DOC Inlet Temperature Sensor (ECU) |
| 004360.04 | Issue With The DOC Inlet Temperature Sensor (ECU) |
| 004360.10 | Issue With The DOC Inlet Temperature Sensor (ECU) |
| 004363.02 | Issue With The SCR Outlet Temperature Sensor (ECU) |
| 004363.03 | Issue With The SCR Outlet Temperature Sensor (ECU) |
| 004363.04 | Issue With The SCR Outlet Temperature Sensor (ECU) |
| 004363.10 | Issue With The SCR Outlet Temperature Sensor (ECU) |
| 004364.01 | NOx Are High In The Exhaust (ECU) |
| 004364.02 | NOx Are High In The Exhaust (ECU) |
| 004374.08 | DEF Pump Speed Issue (ECU) |
| 004374.14 | DEF Pump Speed Issue (ECU) |
| 004374.31 | DEF Pump Speed Issue (ECU) |
| 004375.03 | DEF Pump Control Issue (ECU) |
| 004375.04 | DEF Pump Control Issue (ECU) |
| 004375.05 | DEF Pump Control Issue (ECU) |
| 004376.03 | The DEF Reverse Flow Solenoid Valve High Voltage (ECU) |
| 004376.04 | The DEF Reverse Flow Solenoid Valve Low Voltage (ECU) |
| 004376.05 | The DEF Reverse Flow Solenoid Valve Low Amps |
| 004376.05 | The DEF Reverse Flow Solenoid Valve Low Amps |
| 004792.02 | Issue With The DOC Temperature (ECU) |
| 005025.31 | NOx Sensor Before DOC Calibration Code Issue. (ECU) |
| 005026.02 | Issue With DOC NOx Sensor Module. (ECU) |
| 005028.13 | Issue With DOC NOx Sensor Module. (ECU) |
MF Error Codes from 005028.31 to 10.X.26
| MF Error Code | Massey Ferguson Error Code Description |
|---|---|
| 005028.31 | Issue With DOC NOx Sensor Module. (ECU) |
| 005032.31 | Issue With Exhaust Top NOx Sensor Module. (ECU) |
| 005033.02 | Issue With Exhaust Top NOx Sensor Module. (ECU) |
| 005035.13 | Issue With Exhaust Top NOx Sensor Module. (ECU) |
| 005035.31 | Issue With Exhaust Top NOx Sensor Module. (ECU) |
| 005370.19 | Turbo Waste Gate Communication Issue. (ECU) |
| 005372.00 | Turbo Waste Gate Over Heating Issue. (ECU) |
| 005372.16 | Turbo Waste Gate Over Heating Issue. (ECU) |
| 005451.04 | Turbo Waste Gate Actuator Issue. (ECU) |
| 005451.14 | Turbo Waste Gate Actuator Issue. (ECU) |
| 005451.31 | Turbo Waste Gate Actuator Issue. (ECU) |
| 00974.04 | Engine Throttle Sensor Voltage Issue (ECU) |
| 10.00.01 | Air Conditioning Vent Temperature Sensor Open Circuit (AIRCON) |
| 10.00.02 | Air Conditioning Vent Temperature Sensor Short Circuit (AIRCON) |
| 10.00.05 | Cab Temperature Sensor Open Circuit (AIRCON) |
| 10.00.06 | Cab Temperature Sensor Short Circuit (AIRCON) |
| 10.00.07 | Air Conditioning Outside Temperature Sensor Open Circuit (AIRCON) |
| 10.00.08 | Air Conditioning Outside Temperature Sensor Short Circuit (AIRCON) |
| 10.00.09 | Air Conditioning Evaporator Temperature Sensor Open Circuit (AIRCON) |
| 10.00.10 | Air Conditioning Evaporator Temperature Sensor Short Circuit (AIRCON) |
| 10.00.11 | Sunlight Sensor Signal Incorrect (AIRCON) |
| 10.00.14 | Air Vent Circulation Flap Position Sensor Voltage Issue (AIRCON) |
| 10.00.15 | Air Vent Circulation Flap Position Sensor Supply Voltage Issue (AIRCON) |
| 10.00.16 | Air Conditioning Panel Module Internal Issue With Temperature Dial (AIRCON) |
| 10.00.17 | Air Conditioning Panel Module Internal Issue With Fan Speed Dial (AIRCON) |
| 10.00.18 | Cab Temperature Sensor Fault (AIRCON) |
| 10.00.19 | Issue With The Heater Valve (AIRCON) |
| 10.00.20 | Issue With Air Circulation Flap Motors (AIRCON) |
| 10.00.21 | Air Conditioning Compressor Relay Signal From AC Module Issue (AIRCON) |
| 10.00.22 | Optional Cab Heater Pump Relay Signal From AC Module (AIRCON) |
| 10.00.23 | Optional Cab Extra Fan Relay Signal From AC Module (AIRCON) |
| 10.00.24 | No Engine Speed Information Received On The CAN BUS To AC Module (AIRCON) |
| 10.00.25 | No Vehicle Speed Information Received On The CAN BUS To AC Module (AIRCON) |
| 10.00.26 | No Engine Coolant Temperature Information Received On The CAN BUS To AC Module (AIRCON) |
| 10.00.27 | Issue With Signal To Left Cab Fan Speed Controller (AIRCON) |
| 10.00.28 | Issue With Voltage To Air Conditioning Module (AIRCON) |
| 10.00.29 | Issue With Voltage To Air Conditioning Module (AIRCON) |
| 10.00.30 | Issue With Signal To Right Cab Fan Speed Controller (AIRCON) |
| 10.00.31 | Issue With Signal To Left Cab Fan Speed Controller (AIRCON) |
| 10.00.32 | Issue With Signal To Right Cab Fan Speed Controller (AIRCON) |
| 10.00.33 | Air Vent Circulation Flap Position Sensor Voltage Issue (AIRCON) |
| 10.01.01 | Air Conditioning Vent Temperature Sensor Open Circuit (AIRCON) |
| 10.01.02 | Air Conditioning Vent Temperature Sensor Short Circuit (AIRCON) |
| 10.01.05 | Cab Temperature Sensor Open Circuit (AIRCON) |
| 10.01.06 | Cab Temperature Sensor Short Circuit (AIRCON) |
| 10.01.07 | Air Conditioning Outside Temperature Sensor Open Circuit (AIRCON) |
| 10.01.08 | Air Conditioning Outside Temperature Sensor Short Circuit (AIRCON) |
| 10.01.09 | Air Conditioning Evaporator Temperature Sensor Open Circuit (AIRCON) |
| 10.01.10 | Air Conditioning Evaporator Temperature Sensor Short Circuit (AIRCON) |
| 10.01.11 | Sunlight Sensor Signal Incorrect (AIRCON) |
| 10.01.14 | Air Vent Circulation Flap Position Sensor Voltage Issue (AIRCON) |
| 10.01.15 | Air Vent Circulation Flap Position Sensor Supply Voltage Issue (AIRCON) |
| 10.01.16 | Air Conditioning Panel Module Internal Issue With Temperature Dial (AIRCON) |
| 10.01.17 | Air Conditioning Panel Module Internal Issue With Fan Speed Dial (AIRCON) |
| 10.01.18 | Cab Temperature Sensor Fault (AIRCON) |
| 10.01.19 | Issue With The Heater Valve (AIRCON) |
| 10.01.20 | Issue With Air Circulation Flap Motors (AIRCON) |
| 10.01.21 | Air Conditioning Compressor Relay Signal From AC Module Issue (AIRCON) |
| 10.01.22 | Optional Cab Heater Pump Relay Signal From AC Module (AIRCON) |
| 10.01.23 | Optional Cab Extra Fan Relay Signal From AC Module (AIRCON) |
| 10.01.24 | No Engine Speed Information Received On The CAN BUS To AC Module (AIRCON) |
| 10.01.25 | No Vehicle Speed Information Received On The CAN BUS To AC Module (AIRCON) |
| 10.01.26 | No Engine Coolant Temperature Information Received On The CAN BUS To AC Module (AIRCON) |
| 10.01.27 | Issue With Signal To Left Cab Fan Speed Controller (AIRCON) |
| 10.01.28 | Issue With Voltage To Air Conditioning Module (AIRCON) |
| 10.01.29 | Issue With Voltage To Air Conditioning Module (AIRCON) |
| 10.01.30 | Issue With Signal To Right Cab Fan Speed Controller (AIRCON) |
| 10.01.31 | Issue With Signal To Left Cab Fan Speed Controller (AIRCON) |
| 10.01.32 | Issue With Signal To Right Cab Fan Speed Controller (AIRCON) |
| 10.01.33 | Air Vent Circulation Flap Position Sensor Voltage Issue (AIRCON) |
| 10.02.01 | Air Conditioning Vent Temperature Sensor Open Circuit (AIRCON) |
| 10.02.02 | Air Conditioning Vent Temperature Sensor Short Circuit (AIRCON) |
| 10.02.05 | Cab Temperature Sensor Open Circuit (AIRCON) |
| 10.02.06 | Cab Temperature Sensor Short Circuit (AIRCON) |
| 10.02.07 | Air Conditioning Outside Temperature Sensor Open Circuit (AIRCON) |
| 10.02.08 | Air Conditioning Outside Temperature Sensor Short Circuit (AIRCON) |
| 10.02.09 | Air Conditioning Evaporator Temperature Sensor Open Circuit (AIRCON) |
| 10.02.10 | Air Conditioning Evaporator Temperature Sensor Short Circuit (AIRCON) |
| 10.02.11 | Sunlight Sensor Signal Incorrect (AIRCON) |
| 10.02.14 | Air Vent Circulation Flap Position Sensor Voltage Issue (AIRCON) |
| 10.02.15 | Air Vent Circulation Flap Position Sensor Supply Voltage Issue (AIRCON) |
| 10.02.16 | Air Conditioning Panel Module Internal Issue With Temperature Dial (AIRCON) |
| 10.02.17 | Air Conditioning Panel Module Internal Issue With Fan Speed Dial (AIRCON) |
| 10.02.18 | Cab Temperature Sensor Fault (AIRCON) |
| 10.02.19 | Issue With The Heater Valve (AIRCON) |
| 10.02.20 | Issue With Air Circulation Flap Motors (AIRCON) |
| 10.02.21 | Air Conditioning Compressor Relay Signal From AC Module Issue (AIRCON) |
| 10.02.22 | Optional Cab Heater Pump Relay Signal From AC Module (AIRCON) |
| 10.02.23 | Optional Cab Extra Fan Relay Signal From AC Module (AIRCON) |
| 10.02.24 | No Engine Speed Information Received On The CAN BUS To AC Module (AIRCON) |
| 10.02.25 | No Vehicle Speed Information Received On The CAN BUS To AC Module (AIRCON) |
| 10.02.26 | No Engine Coolant Temperature Information Received On The CAN BUS To AC Module (AIRCON) |
| 10.02.27 | Issue With Signal To Left Cab Fan Speed Controller (AIRCON) |
| 10.02.28 | Issue With Voltage To Air Conditioning Module (AIRCON) |
| 10.02.29 | Issue With Voltage To Air Conditioning Module (AIRCON) |
| 10.02.30 | Issue With Signal To Right Cab Fan Speed Controller (AIRCON) |
| 10.02.31 | Issue With Signal To Left Cab Fan Speed Controller (AIRCON) |
| 10.02.32 | Issue With Signal To Right Cab Fan Speed Controller (AIRCON) |
| 10.02.33 | Air Vent Circulation Flap Position Sensor Voltage Issue (AIRCON) |
| 10.03.01 | Air Conditioning Vent Temperature Sensor Open Circuit (AIRCON) |
| 10.03.02 | Air Conditioning Vent Temperature Sensor Short Circuit (AIRCON) |
| 10.03.05 | Cab Temperature Sensor Open Circuit (AIRCON) |
| 10.03.06 | Cab Temperature Sensor Short Circuit (AIRCON) |
| 10.03.07 | Air Conditioning Outside Temperature Sensor Open Circuit (AIRCON) |
| 10.03.08 | Air Conditioning Outside Temperature Sensor Short Circuit (AIRCON) |
| 10.03.09 | Air Conditioning Evaporator Temperature Sensor Open Circuit (AIRCON) |
| 10.03.10 | Air Conditioning Evaporator Temperature Sensor Short Circuit (AIRCON) |
| 10.03.11 | Sunlight Sensor Signal Incorrect (AIRCON) |
| 10.03.14 | Air Vent Circulation Flap Position Sensor Voltage Issue (AIRCON) |
| 10.03.15 | Air Vent Circulation Flap Position Sensor Supply Voltage Issue (AIRCON) |
| 10.03.16 | Air Conditioning Panel Module Internal Issue With Temperature Dial (AIRCON) |
| 10.03.17 | Air Conditioning Panel Module Internal Issue With Fan Speed Dial (AIRCON) |
| 10.03.18 | Cab Temperature Sensor Fault (AIRCON) |
| 10.03.19 | Issue With The Heater Valve (AIRCON) |
| 10.03.20 | Issue With Air Circulation Flap Motors (AIRCON) |
| 10.03.21 | Air Conditioning Compressor Relay Signal From AC Module Issue (AIRCON) |
| 10.03.22 | Optional Cab Heater Pump Relay Signal From AC Module (AIRCON) |
| 10.03.23 | Optional Cab Extra Fan Relay Signal From AC Module (AIRCON) |
| 10.03.24 | No Engine Speed Information Received On The CAN BUS To AC Module (AIRCON) |
| 10.03.25 | No Vehicle Speed Information Received On The CAN BUS To AC Module (AIRCON) |
| 10.03.26 | No Engine Coolant Temperature Information Received On The CAN BUS To AC Module (AIRCON) |
| 10.03.27 | Issue With Signal To Left Cab Fan Speed Controller (AIRCON) |
| 10.03.28 | Issue With Voltage To Air Conditioning Module (AIRCON) |
| 10.03.29 | Issue With Voltage To Air Conditioning Module (AIRCON) |
| 10.03.30 | Issue With Signal To Right Cab Fan Speed Controller (AIRCON) |
| 10.03.31 | Issue With Signal To Left Cab Fan Speed Controller (AIRCON) |
| 10.03.32 | Issue With Signal To Right Cab Fan Speed Controller (AIRCON) |
| 10.03.33 | Air Vent Circulation Flap Position Sensor Voltage Issue (AIRCON) |
| 10.X.01 | Air Conditioning Vent Temperature Sensor Open Circuit (AIRCON) |
| 10.X.02 | Air Conditioning Vent Temperature Sensor Short Circuit (AIRCON) |
| 10.X.05 | Cab Temperature Sensor Open Circuit (AIRCON) |
| 10.X.06 | Cab Temperature Sensor Short Circuit (AIRCON) |
| 10.X.07 | Air Conditioning Outside Temperature Sensor Open Circuit (AIRCON) |
| 10.X.08 | Air Conditioning Outside Temperature Sensor Short Circuit (AIRCON) |
| 10.X.09 | Air Conditioning Evaporator Temperature Sensor Open Circuit (AIRCON) |
| 10.X.10 | Air Conditioning Evaporator Temperature Sensor Short Circuit (AIRCON) |
| 10.X.11 | Sunlight Sensor Signal Incorrect (AIRCON) |
| 10.X.14 | Air Vent Circulation Flap Position Sensor Voltage Issue (AIRCON) |
| 10.X.15 | Air Vent Circulation Flap Position Sensor Supply Voltage Issue (AIRCON) |
| 10.X.16 | Air Conditioning Panel Module Internal Issue With Temperature Dial (AIRCON) |
| 10.X.17 | Air Conditioning Panel Module Internal Issue With Fan Speed Dial (AIRCON) |
| 10.X.18 | Cab Temperature Sensor Fault (AIRCON) |
| 10.X.19 | Issue With The Heater Valve (AIRCON) |
| 10.X.20 | Issue With Air Circulation Flap Motors (AIRCON) |
| 10.X.21 | Air Conditioning Compressor Relay Signal From AC Module Issue (AIRCON) |
| 10.X.22 | Optional Cab Heater Pump Relay Signal From AC Module (AIRCON) |
| 10.X.23 | Optional Cab Extra Fan Relay Signal From AC Module (AIRCON) |
| 10.X.24 | No Engine Speed Information Received On The CAN BUS To AC Module (AIRCON) |
| 10.X.25 | No Vehicle Speed Information Received On The CAN BUS To AC Module (AIRCON) |
| 10.X.26 | No Engine Coolant Temperature Information Received On The CAN BUS To AC Module (AIRCON) |
How to Read Massey Ferguson DTC Fault Codes
Reading Massey Ferguson DTC Fault Codes involves accessing the diagnostic system on the equipment’s display panel or through a diagnostic tool.
Here’s a general guide on how to read Massey Ferguson DTC codes:
- Accessing the Diagnostic System: On most Massey Ferguson equipment, you can access the diagnostic system through the display panel or dashboard. Look for a button labeled “Diagnosis” or “Diagnostic Codes” on the control panel.
- Enter Diagnostic Mode: Press the designated button to enter the diagnostic mode. This will allow you to view any active or stored error codes.
- View Error Codes: Once in diagnostic mode, the display panel will show any active or stored error codes. These codes are usually alphanumeric and may be accompanied by a brief description of the fault.
- Interpreting the Codes: Each error code corresponds to a specific fault or issue with the equipment. Refer to the equipment’s user manual or service manual to interpret the meaning of each code. The manual will provide detailed explanations of the codes and their associated problems.
- Addressing the Issues: After identifying the error codes and their meanings, take appropriate action to address the underlying issues. This may involve troubleshooting the equipment, performing repairs, or seeking assistance from a qualified technician.
- Clearing Error Codes: Once the issues have been addressed, you can clear the error codes from the diagnostic system. This typically involves navigating to the “Clear Codes” or “Reset Codes” option in the diagnostic menu and following the on-screen prompts.
- Verification: After clearing the error codes, verify that the issues have been resolved by monitoring the equipment’s performance. If the problem persists or if new error codes appear, further troubleshooting may be necessary.
Always refer to the specific equipment’s user manual or service manual for detailed instructions on accessing and interpreting error codes, as well as recommended troubleshooting procedures.
MF Error Codes Part I ➡️ (E / AC / AR / C / D / FA / L / P / R / T / U)
MF Error Codes Part III ➡️ (10.X.27 – 04.02.E5)
MF Error Codes Part IV ➡️ (04.02.E6 – 06.X.1A)
MF Error Codes Part V ➡️ (06.X.1B – 0B.X.24)
