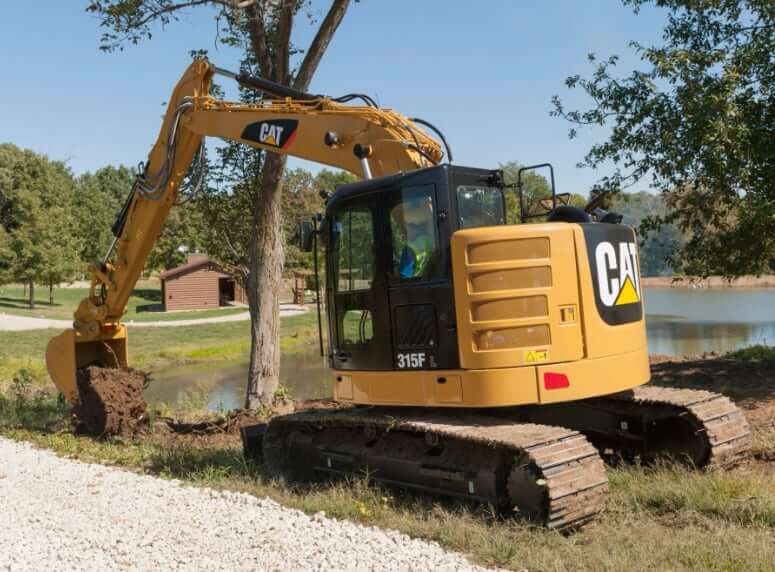

Weight
| Operating Weight | 33296 lb (15100 kg) |
| Max Operating Weight | 37794 lb (17140 kg) |
| Counterweight | 7849 lb (3560 kg) |

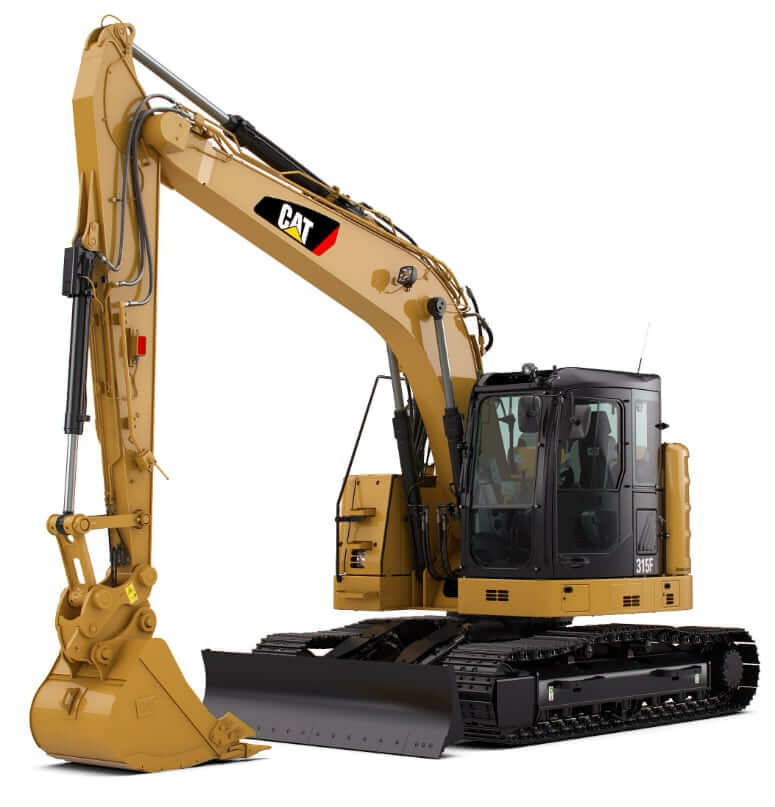

Dimensions
| Shipping Length w/ Blade | 26.25 ft in (8010 mm) |
| Shipping Height | 9.83 ft in (3000 mm) |
| Shipping Width w/ 24″ (600 mm) Shoes | 8.5 ft in (2600 mm) |
| Cab Height | 9.25 ft in (2820 mm) |
| Cab Height w/ Top Guard | 9.67 ft in (2950 mm) |
| Length – Center of Rollers | 10 ft in (3050 mm) |
| Tail Swing Radius | 4.92 ft in (1500 mm) |
| Counterweight Clearance | 2.83 ft in (870 mmm) |
| Ground Clearance | 1.42 ft in (440 mm) |

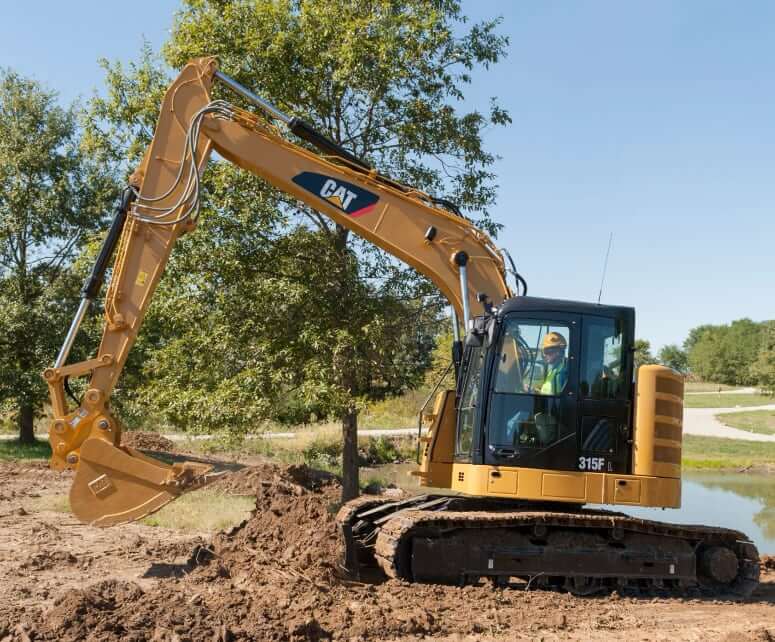

Working Ranges
| Boom Length | 15’3″ (4650 mm) |
| Stick Length | 9’10” (3000 mm) |
| Max Digging Depth | 19.5 ft in (6000 mm) |
| Max Reach at Ground Level | 28.5 ft in (8700 mm) |
| Max Cutting Height | 31.7 ft in (9700 mm) |
| Max Loading Height | 23.6 ft in (7200 mm) |
| Min Loading Height | 6.8 ft in (2100 mm) |
| Max Depth Cut For 8′ (2440 mm) Level Bottom | 18.6 ft in (5700 mm) |
| Max Vertical Wall Digging Depth | 17.4 ft in (5300 mm) |
| Bucket Digging Force (SAE) | 19200 lbf (85 kN) |
| Bucket Digging Force (ISO) | 21420 lbf (95.3 kN) |
| Stick Digging Force (SAE) | 12800 lbf (57 kN) |
| Stick Digging Force (ISO) | 13130 lbf (58.4 kN) |
Bucket
| Type | General Duty Bucket |
| Bucket Width | 35″ (900 mm) |
| Bucket Capacity | 0.69 yd3 (0.53 m3) |
Engine Details
| Number of Cylinders | 4 |
| Engine Make | Caterpillar |
| Engine Model | Cat C4.4 ACERT |
| Displacement | 270 cu in (4.4 L) |
| Bore | 4.1 in (105 mm) |
| Stroke | 5.0 in (127 mm) |
| Gross Power | 100 hp (74 kw) |
| Net Power | 97 hp (72 kw) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 553 lb ft (750 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged and aftercooled |
| Aftertreatment | DOC+SCR or DOC+DPF+SCR |
| Emission Standards | U.S. EPA Tier 4 Final + EU Stage IV |
Operational Specs
| Operator Sound Pressure Level (ISO 6396) | 69 dB(A) |
| Exterior Sound Power Level (ISO 6395) | 101 dB(A) |
| Display | Color LCD display with indicators, filter/fluid change, and working hour data |
| Operating Voltage | 24 V |
| Alternator | 80 amps |
| Battery | 24 V |
Undercarriage
| Track Length | 12.33 ft in (3760 mm) |
| Track Gauge | 6.5 ft in (1990 mm) |
| Maximum Travel Speed | 3.4 mph (5.5 km/h) |
| Maximum Drawbar Pull | 25400 lb (11521 kg) |
Swing
| Swing Torque | 22790 lb ft (30899 Nm) |
| Swing Speed | 11.5 rpm |
Hydraulic System
| Max Total Flow | 67 gal/min (254 L/min) |
| Pilot System – Maximum Flow | 4.8 gal/min (18.2 L/min) |
| Pilot System – Maximum Pressure | 600 psi (4137 kPa) |
| Travel System – Maximum Pressure | 5080 psi (35000 kPa) |
| Swing Circuit – Maximum Pressure | 3340 psi (23000 kPa) |
| Equipment Circuit – Maximum Pressure | 4420 psi (30500 kPa) |
| Power Offset Boom – Maximum Pressure (optional) | 4340 psi (30000 kPa) |
Service Refill Capacities
| Fuel Tank Capacity | 47 gal (178 L) |
| DEF Tank Capacity | 5 gal (19 L) |
| Engine Oil Capacity (w/ Filter) | 3.6 gal (13.5 L) |
| Cooling System Capacity | 7.4 gal (28 L) |
| Hydraulic System Capacity w/ Tank | 42.3 gal (160 L) |
| Hydraulic Tank Capacity | 22.2 gal (84 L) |
| Final Drive Capacity (each) | 0.8 gal (3.1 L) |
| Swing Drive Capacity (each) | 0.6 gal (2.4 L) |
