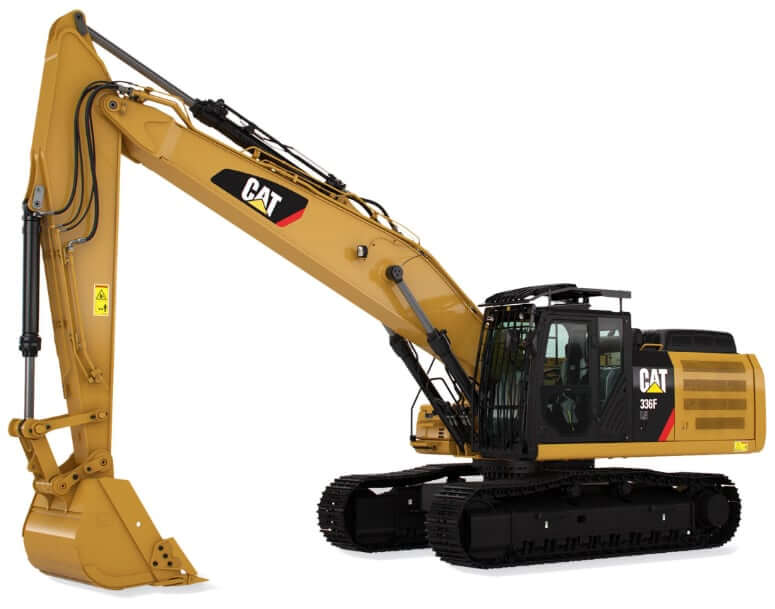

Dimensions
| Configuration | Boom 6900 mm (22’8″); Stick 3200 mm (10’6″) | Boom 6900 mm (22’8″); Stick 3900 mm (12’10”) |
|---|---|---|
| Shipping Length | 37.67 ft in (11.49 m) | 37.33 ft in (11.38 m) |
| Shipping Height | 11.42 ft in (3.49 m) | 12.25 ft in (3.74 m) |
| Cab Height | 10.42 ft in (3.18 m) | 10.42 ft in (3.18 m) |
| Cab Height – With Top Guard | 11.42 ft in (3.49 m) | 11.42 ft in (3.49 m) |
| Transport Width – Long Narrow Undercarriage | 9.83 ft in (3 m) | 9.83 ft in (3 m) |
| Transport Width – Long Undercarriage | 10.5 ft in (3.21 m) | 10.5 ft in (3.21 m) |
| Tail Swing Radius | 11.5 ft in (3.51 m) | 11.5 ft in (3.51 m) |
| Counterweight Clearance | 4 ft in (1.22 m) | 4 ft in (1.22 m) |
| Ground Clearance | 1.67 ft in (0.51 m) | 1.67 ft in (0.51 m) |

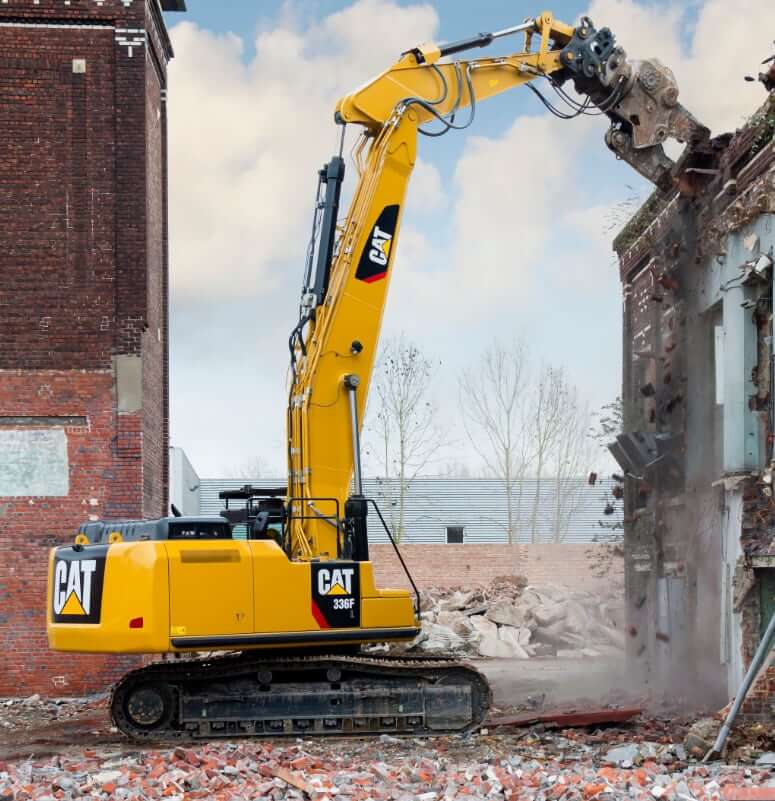

Undercarriage
| Track Gauge – Long Narrow Undercarriage | 7.83 ft in (2.39 m) |
| Track Gauge – Long Undercarriage | 8.5 ft in (2.6 m) |
| Length – Center Of Rollers | 13.25 ft in (4.04 m) |
| Track Length | 16.5 ft in (5.03 m) |
| Number of Shoes (each side) | 49 |
| Number of Track Rollers (each side) | 9 |
| Number of Carrier Rollers (each side) | 9 |
| Shoe Size | 24″ (600 mm) |
| Shoe Type | Triple Grouser Shoes |
| Service / Parking Brakes | SAE J1026/APR90 |
| Maximum Travel Speed | 3 mph (4.8 km/h) |
| Maximum Drawbar Pull | 65352 lb (291 kN) |
Swing
| Swing Torque | 80144 lb ft (109 kNm) |
| Swing Speed | 8.8 rpm |

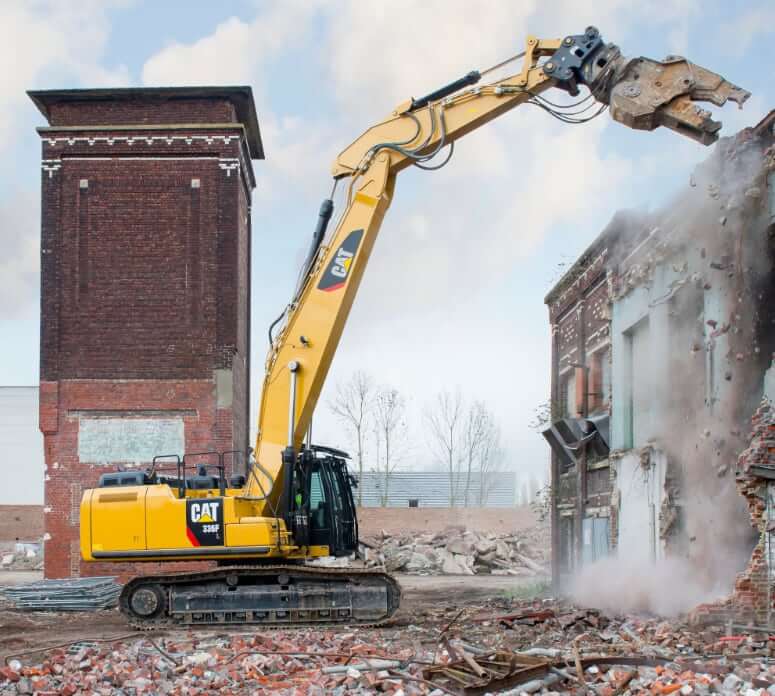

Working Range
| Configuration | Boom 6900 mm (22’8″); Stick 3200 mm (10’6″) | Boom 6900 mm (22’8″); Stick 3900 mm (12’10”) |
|---|---|---|
| Maximum Digging Depth | 19.5 ft in (6 m) | 21.8 ft in (6.7 m) |
| Maximum Reach – Ground Level | 38.2 ft in (11.7 m) | 40.5 ft in (12.4 m) |
| Maximum Cutting Height | 43.1 ft in (13.2 m) | 45.2 ft in (13.8 m) |
| Maximum Loading Height | 31.5 ft in (9.7 m) | 33.7 ft in (10.3 m) |
| Minimum Loading Height | 13.1 ft in (4 m) | 11.1 ft in (3.4 m) |
| Maximum Depth Cut For 2440 Mm (8’0″) Level Bottom | 19 ft in (5.8 m) | 21.4 ft in (6.6 m) |
| Maximum Vertical Wall Digging Depth | 16.4 ft in (5 m) | 18.5 ft in (5.7 m) |
| Bucket Digging Force (ISO) | 47142 lbf (209.7 kN) | 47142 lbf (209.7 kN) |
| Stick Digging Force (ISO) | 32440 lbf (144.3 kN) | 37296 lbf (165.9 kN) |
Engine Details
| Number of Cylinders | 6 |
| Engine Make | Caterpillar |
| Engine Model | Cat C9.3 ACERT |
| Displacement | 568 cu in (9.4 L) |
| Bore | 4.53 in (115 mm) |
| Stroke | 5.87 in (149 mm) |
| Gross Power | 319 hp (238 kW) |
| Net Power | 306 hp (228 kW) |
| Power Measured @ | 2200 rpm |
| Peak Torque | 1092 lb ft (1480 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged and aftercooled |
| Emission Standards | US EPA Tier 4 Final Nonroad + EU Stage IV Nonroad |
Operational Specs
| Operating Weight | 89900 lb (40800 kg) |
| Counterweight | 18629 lb (8450 kg) |
| Alternator | 80 amps |
| Operator Sound Pressure Level (ISO 6396) | 73 dB(A) |
| Exterior Sound Power Level (ISO 6395) | 106 dB(A) |
Hydraulic System
| Total Main System Flow | 151 gal/min (572 L/min) |
| Maximum Pressure – Equipment (Lift Mode) | 5076 psi (35000 kPa) |
| Pilot Circuit – Maximum Flow | 8 gal/min (30.3 L/min) |
| Pilot Circuit – Maximum Pressure | 595 psi (4102 kPa) |
| Swing Circuit – Maximum Flow | 74 gal/min (280.1 L/min) |
| Swing Circuit – Maximum Pressure | 4061 psi (28000 kPa) |
| Travel Circuit – Maximum Pressure | 5076 psi (35000 kPa) |
| Auxiliary Circuit – High Pressure | 5367 psi (37000 kPa) |
| Auxiliary Circuit – Medium Pressure | 3359 psi (23160 kPa) |
Service Refill Capacities
| Fuel Tank Capacity | 164 gal (620 L) |
| Def Tank Capacity | 11 gal (41 L) |
| Cooling System Capacity | 11 gal (43 L) |
| Engine Oil Capacity (w/ Filter) | 8 gal (32 L) |
| Hydraulic System Oil Capacity(w/ Tank) | 100 gal (380 L) |
| Hydraulic Tank Oil Capacity | 46 gal (175 L) |
| Final Drive Capacity (each) | 2 gal (8 L) |
| Swing Drive Capacity (each) | 5 gal (19 L) |
